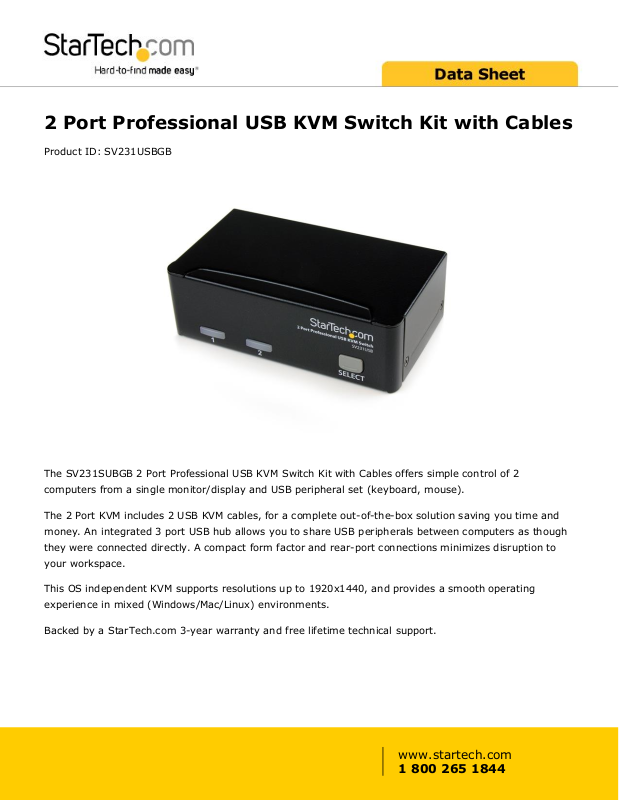

2 Port Professional USB KVM Switch Kit with Cables
Product ID: SV231USBGB
The SV231SUBGB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of 2
computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The 2 Port KVM includes 2 USB KVM cables, for a complete out-of-the-box solution saving you time and
money. An integrated 3 port USB hub allows you to share USB peripherals between computers as though
they were connected directly. A compact form factor and rear-port connections minimizes disruption to
your workspace.
This OS independent KVM supports resolutions up to 1920x1440, and provides a smooth operating
experience in mixed (Windows/Mac/Linux) environments.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Dual system control for a single workstations increasing user
productivity in the office
• Provide centralized control for multiple high-res Digital Signage
server control
• Great for manufacturing line computer control, simplifying access to
multiple systems
• Perfect for PC test/burn-in computer control saving the desk space
required for two monitors, keyboards and mice
Features
• Control 2 computers from one USB keyboard/mouse/monitor
• Share 3 different USB peripherals using the integrated hub
• High 1920x1440 resolution capability
• Front panel push buttons for easy computer selection
• OS independent - No software or drivers required
• Supports keyboard and mouse plug and play
• Selectable auto scan time interval
• Supports DDC2B VGA monitors
• Universal Power Adapter with EU and UK prong types included
www.startech.com
1 800 265 1844
Warranty 3 Years
Hardware Audio No
Cables Included Yes
Daisy-Chain No
KVM Ports 2
Number of Monitors Supported 1
PC Interface USB
PC Video Type VGA
Rack-Mountable No
U Height 1U
Performance Auto Scan 3, 8, 15 & 30 seconds
DVI Support No
Hot-Key Selection No
IP Control No
Maximum Analog Resolutions 1920x1440
Maximum Cable Length 5 m [16.4 ft]
Maximum Number of Users 1
On-Screen Display No
Port Selection Support Push Button
Connector(s) Console Interface(s) 1 - VGA (15 pin, High Density D-Sub) Female
3 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors 2 - USB B (4 pin) Female
2 - VGA (15 pin, High Density D-Sub) Male
Software OS Compatibility OS independent; No software or drivers required
Power Center Tip Polarity Positive
Input Current 0.4A
Input Voltage 110V-240V AC
Output Current 2A
Output Voltage 5 DC
Plug Type N
Power Consumption (In Watts) 10
Power Source AC Adapter Included
www.startech.com
1 800 265 1844
Physical
Characteristics
Color Black
Enclosure Type Steel
Product Depth 70 mm [2.8 in]
Product Height 40 mm [1.6 in]
Product Weight 420 g [14.8 oz]
Product Width 124 mm [4.9 in]
Packaging
Information
Shipping (Package) Weight 1.5 kg [3.3 lb]
What's in the Box Included in Package 1 - 2 Port KVM Switch
2 - 6ft(1.83m) KVM Cables
1 - Universal power adapter (EU/UK)
1 - User Manual
Product appearance and specifications are subject to change without notice.
