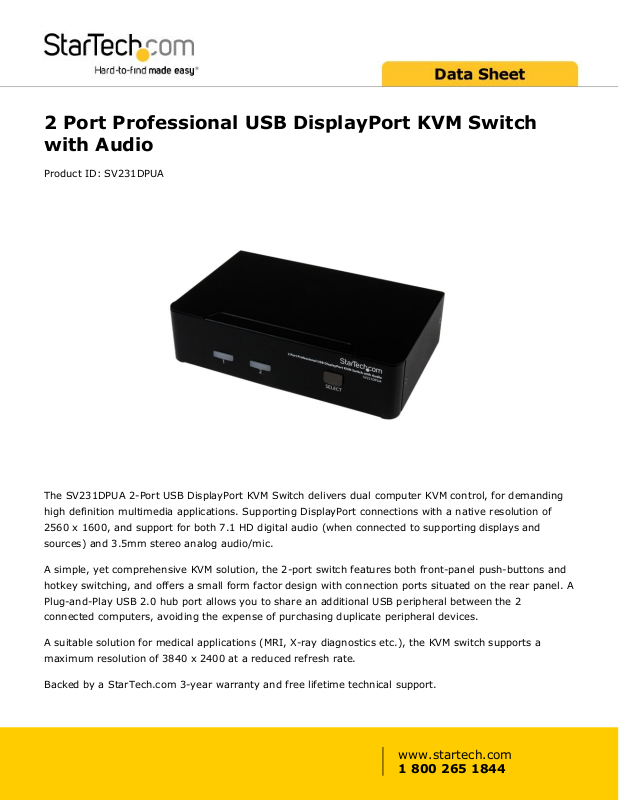

Page 1
2 Port Professional USB DisplayPort KVM Switch
with Audio
Product ID: SV231DPUA
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding
high definition multimedia applications. Supporting DisplayPort connections with a native resolution of
2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and
sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and
hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A
Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2
connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a
maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Page 2
Certifications, Reports
and Compatibility
Applications
• Multimedia design, multimedia post-production and video editing
using Mac or PC computers
• High resolution medical imaging and Health care display, such as MRI
and Xray display
• Manufacturing line computer control
• PC test/burn-in computer control
• High-res Digital Signage server control
• Satellite Topography
• Dual system control for a single work terminal
Features
• Supports native DisplayPort computer connections - no adapter
required
• Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
• Supports a maximum resolution of 3840 x 2400 at lower refresh
rates
• VESA and CEA compliant
• Supports 3.5mm Stereo analog audio; Supports 7.1 Channel High
Definition Digital Audio through the DisplayPort connection
• USB 2.0 peripheral sharing
• No driver or software installation required
• Hotkey and push-button switching
• Full plug-and-play support with USB keyboards, mice, and connected
peripherals
• Platform Independent - Supports Mac and PC operating environments
• Supports DDC2B for monitor detection
• Supports hot-plug, un-plug and link status-failure detection
• User-defined scan time intervals
www.startech.com
1 800 265 1844
Page 3
Warranty 3 Years
Hardware Audio Yes
Cables Included No
Daisy-Chain No
KVM Ports 2
Number of Monitors Supported 1
PC Interface USB
PC Video Type DisplayPort
Rack-Mountable No
Performance DVI Support No
Hot-Key Selection Yes
IP Control No
Maximum Digital Resolutions 2560 x 1600 @ 60Hz
Maximum Number of Users 1
On-Screen Display No
Port Selection Support Push Button and Hotkeys
Wide Screen Supported Yes
Connector(s) Console Interface(s) 1 - DisplayPort (20 pin) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors 2 - DisplayPort (20 pin) Female
2 - USB B (4 pin) Female
4 - 3.5 mm Mini-Jack (3 Position) Female
Software OS Compatibility OS independent; No software or drivers required
Indicators LED Indicators 2 - Green - Online indicator (One LED per port)
2 - Red - Select indicator (One LED per port)
Power Center Tip Polarity Positive
Input Current 0.8A
Input Voltage 110V-240V AC
Output Current 2A
Output Voltage 12 DC
Plug Type M
www.startech.com
1 800 265 1844
Page 4
Power Consumption (In Watts) 24
Power Source AC Adapter Included
Environmental Humidity 0~80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical
Characteristics
Color Black
Enclosure Type Steel
Product Depth 5.1 in [130 mm]
Product Height 1.7 in [44 mm]
Product Weight 38.8 oz [1100 g]
Product Width 8.7 in [220 mm]
Packaging
Information
Shipping (Package) Weight 45.9 oz [1300 g]
What's in the Box Included in Package 1 - 2-port DisplayPort KVM switch
4 - foot pads
1 - universal power adapter (NA/UK/EU/AU)
1 - instruction manual
Product appearance and specifications are subject to change without notice.
