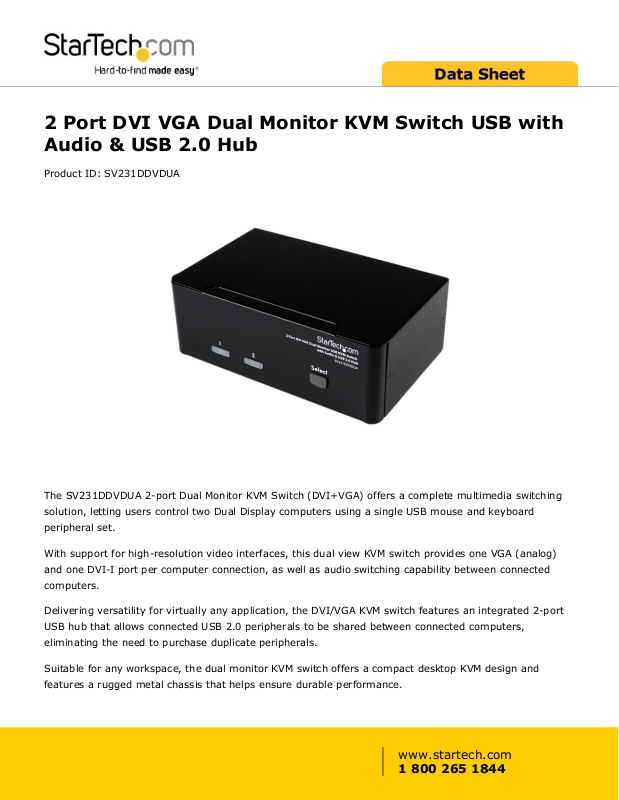

arTech SV231DDVDUA User Manual

2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
Product ID: SV231DDVDUA
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching
solution, letting users control two Dual Display computers using a single USB mouse and keyboard
peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog)
and one DVI-I port per computer connection, as well as audio switching capability between connected
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port
USB hub that allows connected USB 2.0 peripherals to be shared between connected computers,
eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and
features a rugged metal chassis that helps ensure durable performance.
www.startech.com
1 800 265 1844
Note: If you're connecting a digital display to the DVI console port, it is recommended you use a DVI-D
digital cable. However, if you're connecting an analog display (adapter required), it is recommended you
use a DVI-I or a DVI-A cable.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports and Compatibility
Applications
Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurations
Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual monitor units are needed
Suitable for use in environments with electromagnetic interference, based on sturdy metal design
Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)
Features
Direct channel selection and operation using front panel push-button or keyboard hotkeys
Supports a maximum resolution of 1920 x 1200
Independent or simultaneous audio switching
OS independent (no drivers or software required)
Full support for plug-n-play peripherals
Rugged, all-metal chassis for use in harsh environments
Status LED display for easy port status monitoring
USB style keyboard and mouse, plus two other USB peripherals can be shared between up to two computers
Tone indicator for computer switching
Selectable time intervals for auto scan
Rear function key to adjust video strength
HDCP compliant
Support DDC2B emulation and EDID pass through, which allows the display adapter to recognize and auto configure the display resolution to match the display capabilities
Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA]
www.startech.com
1 800 265 1844
Warranty 3 Years
Hardware Audio Yes
Cables Included No
Daisy-Chain No
KVM Ports 2
Number of Monitors Supported 2
PC Interface USB
PC Video Type DVI+VGA
Rack-Mountable No
Performance DVI Support Yes - Single Link
Hot-Key Selection Yes
IP Control No
Maximum Digital Resolutions 1920 x 1200
Maximum Number of Users 1
MTBF 64,691 Hours
On-Screen Display No
Port Selection Support Push Button and Hotkeys
Connector(s) Console Interface(s) 1 - DVI-I (29 pin) Female
1 - VGA (15 pin, High Density D-Sub) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
4 - USB A (4 pin) Female
Host Connectors 2 - DVI-I (29 pin) Female
2 - USB B (4 pin) Female
2 - VGA (15 pin, High Density D-Sub) Female
4 - 3.5 mm Mini-Jack (3 Position) Female
Software OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
Note This KVM switch supports DVI-D (digital) signaling only and
it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Indicators LED Indicators 1 - Green - Power
2 - Green - PC Detected
www.startech.com
1 800 265 1844
2 - Red - PC Indicator
Power Center Tip Polarity Positive
Input Current 0.8A
Input Voltage 110V-240V AC
Output Current 1.5A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 18
Power Source AC Adapter Included
Environmental Humidity 80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Depth 3.9 in [100 mm]
Product Height 2.2 in [57 mm]
Product Length 6.4 in [163 mm]
Product Weight 26.5 oz [750 g]
Product Width 6.3 in [160 mm]
Packaging Information
Shipping (Package) Weight 2.7 lb [1.2 kg]
What's in the Box Included in Package 1 - 2-port KVM switch
4 - foot pads
1 - universal power adapter (NA/EU/UK/AU)
1 - instruction manual
Product appearance and specifications are subject to change without notice.
www.startech.com
1 800 265 1844
