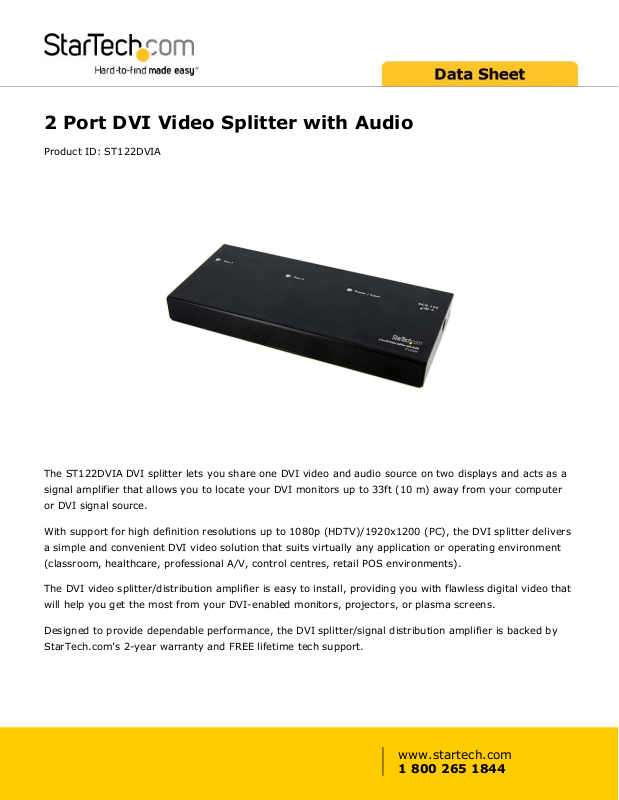

Page 1
2 Port DVI Video Splitter with Audio
Product ID: ST122DVIA
The ST122DVIA DVI splitter lets you share one DVI video and audio source on two displays and acts as a
signal amplifier that allows you to locate your DVI monitors up to 33ft (10 m) away from your computer
or DVI signal source.
With support for high definition resolutions up to 1080p (HDTV)/1920x1200 (PC), the DVI splitter delivers
a simple and convenient DVI video solution that suits virtually any application or operating environment
(classroom, healthcare, professional A/V, control centres, retail POS environments).
The DVI video splitter/distribution amplifier is easy to install, providing you with flawless digital video that
will help you get the most from your DVI-enabled monitors, projectors, or plasma screens.
Designed to provide dependable performance, the DVI splitter/signal distribution amplifier is backed by
StarTech.com’s 2-year warranty and FREE lifetime tech support.
www.startech.com
1 800 265 1844
Page 2
Certifications, Reports
and Compatibility
Applications
• Connect DVI projectors, monitors, large displays, and wall display
systems for digital signage applications and ensuring content is
delivered to target audience.
• Great for use in tradeshows, POS retail, healthcare, transportation
terminals, education, house of worship.
Features
• Supports resolutions of up to 1920 x 1200 pixels @ 60 Hz
• Split both video and 3.5mm analog stereo audio
• DVI, and HDCP compliant for easier HD video distribution
• Accurate and reliable reproduction of digital video signal, with no
signal attenuation or distortion
• Easy setup for a quick connection in minutes
www.startech.com
1 800 265 1844
Page 3
Warranty 2 Years
Hardware Cabling DVI
Industry Standards DVI 1.0, and HDCP 1.1
Output Signal DVI-D (DVI Digital)
Ports 2
Performance Max Distance 10 m / 33 ft
Maximum Digital Resolutions 1920x1200 @ 60Hz
Wide Screen Supported Yes
Connector(s) Connector A 1 - 3.5 mm Mini-Jack (3 Position) Female
1 - DVI-I (29 pin) Female
Connector B 2 - 3.5 mm Mini-Jack (3 Position) Female
2 - DVI-I (29 pin) Female
Indicators LED Indicators 1 - Green - Power/Link
2 - Green - Link
Power Center Tip Polarity Positive
Output Current 0.6A
Output Voltage 9 DC
Power Consumption (In Watts) 5.4
Power Source AC Adapter Included
Environmental Humidity 0~80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical
Characteristics
Color Black
Enclosure Type Aluminum
Product Height 0.8 in [20 mm]
Product Length 7.1 in [181.4 mm]
Product Weight 1.3 lb [0.6 kg]
Product Width 3.4 in [85.2 mm]
Packaging
Information
Shipping (Package) Weight 28.2 oz [800 g]
What's in the Box Included in Package 1 - DVI splitter
www.startech.com
1 800 265 1844
Page 4
4 - rubber feet
1 - universal power adapter (NA, EU, UK, ANZ)
1 - instruction manual
Product appearance and specifications are subject to change without notice.
