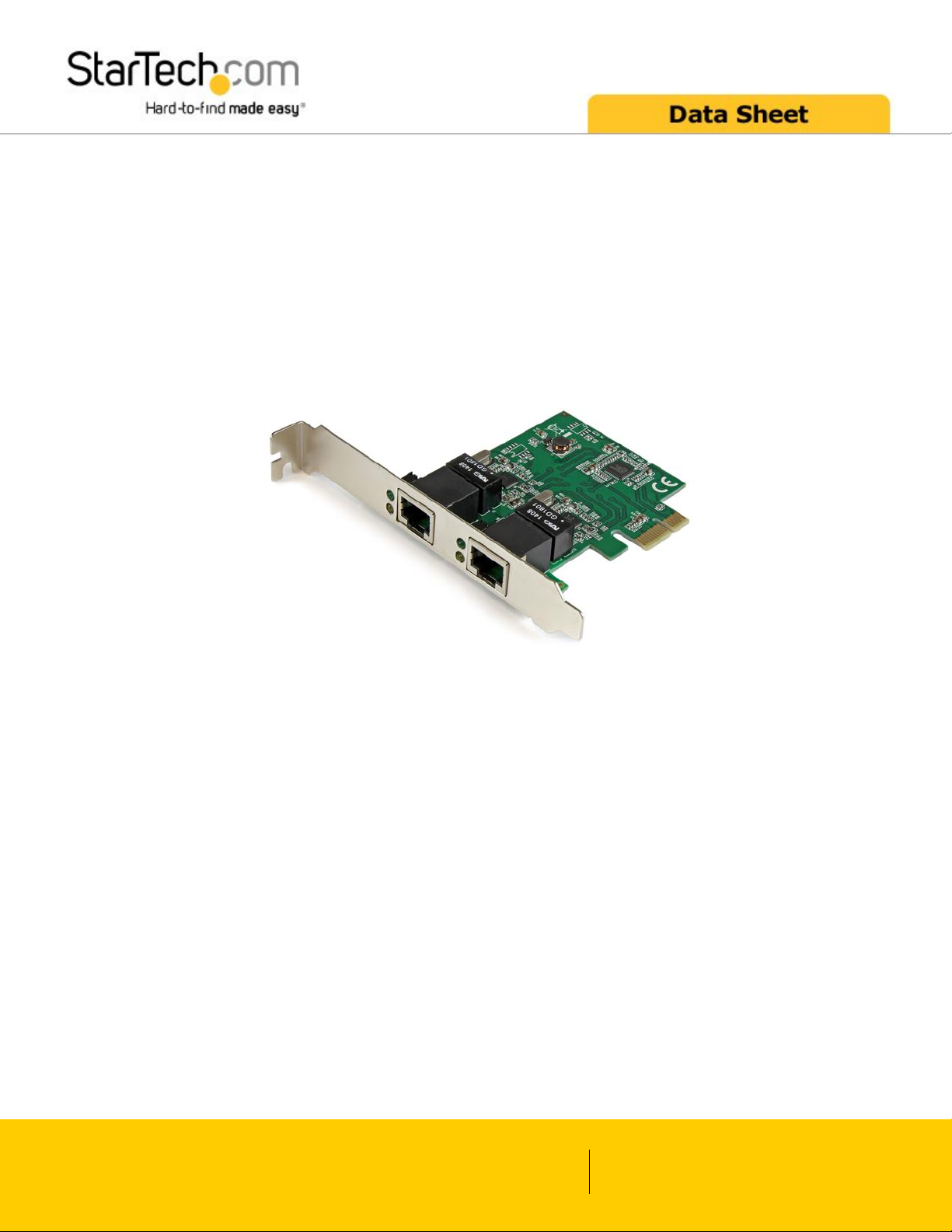

Dual Port Gigabit PCI Express Server Network
Adapter Card - PCIe NIC
Product ID: ST1000SPEXD4
The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports
to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps
capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow
control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-
homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo
Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-
profile / half-height bracket that can be used for installation into a standard or small form-factor computer
chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com/m
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Ideal for VM environments with multiple operating systems, requiring
shared or dedicated NICs
• Provide redundant connectivity to ensure an uninterrupted network
connection
• Configure a dual-homed proxy or gateway system for an added layer
of security
• Specially designed for desktop PC clients, servers, and workstations
with few PCI Express slots available
Features
• Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
• Up to 9K Jumbo Frame support
• Compatible with PCI Express Base Specification 2.0 (backward
compatible with 1.0a/1.1)
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and
supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority
Encoding and IEEE 802.3x Full Duplex Flow Control
• Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and
Large send Offload
• Wake-on-LAN / Remote Wake-up support
• Configured with standard profile bracket, low profile/half-height
bracket included
• Supports Pair Swap / Polarity / Skew Correction
www.startech.com/m
1 800 265 1844
Warranty 2 Years
Hardware Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Realtek - RTL8111E
Asmedia - ASM1182E
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
PCI Express Base Specification 2.0
Interface RJ45 (Gigabit Ethernet)
Port Style Integrated on Card
Ports 2
Performance Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Maximum Data Transfer Rate 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Promiscuous Mode Yes
Supported Protocols IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority
Encoding and IEEE 802.3x Full Duplex Flow Control
Connector(s) Connector Type(s) 1 - PCI Express x1 Male
External Ports 2 - RJ-45 Female
Software OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.4 to 10.9
Linux 2.4.x to 4.4.x LTS Versions only
Special Notes /
Requirements
System and Cable Requirements Available PCI Express slot
Indicators LED Indicators 2 - Green - Link/Activity
2 - Yellow - Gigabit Mode
Environmental Humidity 10~90% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature 0°C to 100°C (32°F to 212°F)
Physical
Characteristics
Product Height 4.7 in [120 mm]
Product Length 3.6 in [92.6 mm]
www.startech.com/m
1 800 265 1844
Product Weight 1.8 oz [51 g]
Product Width 0.7 in [18 mm]
Packaging
Information
Shipping (Package) Weight 4.7 oz [133 g]
What's in the Box Included in Package 1 - PCIe Network Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
