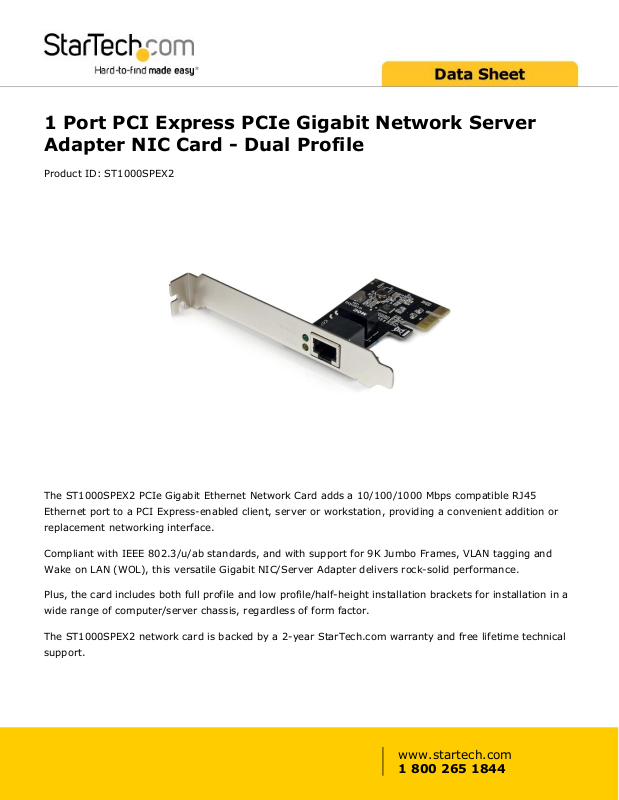

1 Port PCI Express PCIe Gigabit Network Server
Adapter NIC Card - Dual Profile
Product ID: ST1000SPEX2
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45
Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or
replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and
Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a
wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical
support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Upgrade 10/100 Ethernet capability to Gigabit capability
• Add an Ethernet port to a workstation or server computer, for
redundancy or bridging
• Add networking capabilities to an old system with no Ethernet port
Features
• A single 10/100/1000Mbps compatible RJ45 Ethernet port
• Gigabit detection and Link/Activity LED indicators
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE
802.3ab standards
• Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority
Encoding and IEEE 802.3x Full Duplex Flow Control
• Jumbo frame support
• Full and half duplex support
• Supports Wake-on-LAN function
• Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
• Includes a low profile/half-height installation bracket
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Realtek RTL8111E
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Interface RJ45 (Gigabit Ethernet)
Ports 1
Performance Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Maximum Data Transfer Rate 1000 Mbps
MTBF 376,212 Hours
Promiscuous Mode Yes
Supported Protocols CSMA/CD
Connector(s) Connector Type(s) 1 - PCI Express x1 Male
External Ports 1 - RJ-45 Female
Software OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS X® 10.6 to 10.9
Linux 2.4.x to 4.4.x LTS Versions Only
Special Notes /
Requirements
System and Cable Requirements Available PCI Express expansion card slot
Indicators LED Indicators 1 - Gigabit Detect (Yellow)
1 - Link/Activity (Green)
Environmental Humidity 10% ~ 90% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature 0°C to 100°C (32°F to 212°F)
Physical
Characteristics
Product Height 0.7 in [18 mm]
Product Length 2.7 in [67.9 mm]
Product Weight 1.4 oz [40 g]
Product Width 4.7 in [120.3 mm]
www.startech.com
1 800 265 1844
Packaging
Information
Shipping (Package) Weight 4.2 oz [120 g]
What's in the Box Included in Package 1 - Gigabit Ethernet PCI Express Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
