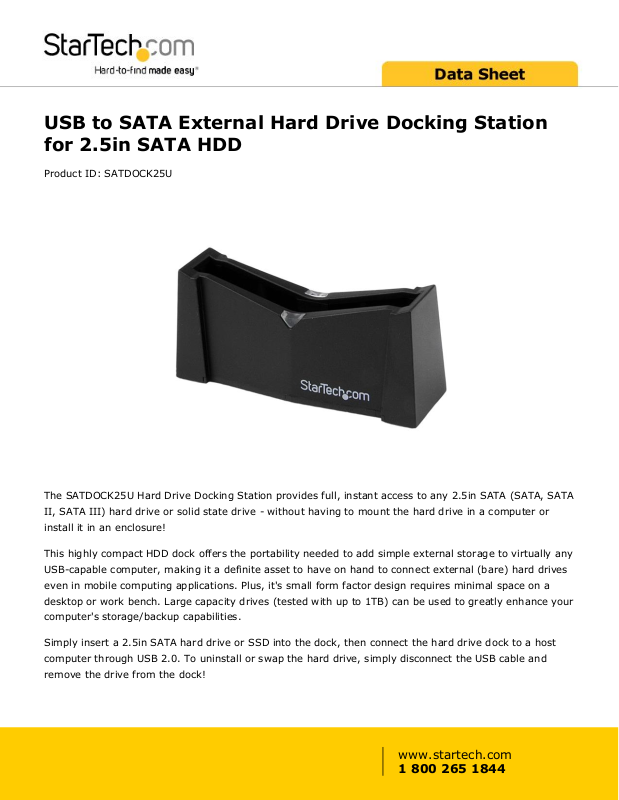

USB to SATA External Hard Drive Docking Station
for 2.5in SATA HDD
Product ID: SATDOCK25U
The SATDOCK25U Hard Drive Docking Station provides full, instant access to any 2.5in SATA (SATA, SATA
II, SATA III) hard drive or solid state drive - without having to mount the hard drive in a computer or
install it in an enclosure!
This highly compact HDD dock offers the portability needed to add simple external storage to virtually any
USB-capable computer, making it a definite asset to have on hand to connect external (bare) hard drives
even in mobile computing applications. Plus, it's small form factor design requires minimal space on a
desktop or work bench. Large capacity drives (tested with up to 1TB) can be used to greatly enhance your
computer's storage/backup capabilities.
Simply insert a 2.5in SATA hard drive or SSD into the dock, then connect the hard drive dock to a host
computer through USB 2.0. To uninstall or swap the hard drive, simply disconnect the USB cable and
remove the drive from the dock!
www.startech.com
1 800 265 1844
In addition to providing a fast convenient way to access or recover data from a mobile 2.5in drive this
dock is completely USB powered, so no power adapter is required. The HDD Dock supports plug and play
hard drive installation on most operating systems, and offers data transfer speeds of up to 480Mbps - a
convenient alternative to external hard drive enclosures that saves the time needed to prepare the drive
for conventional installation.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Access spare or removed 2.5" drives quickly to retrieve data from
• Data recovery specialists who need quick access to drives for imaging
• Backup data quickly to an external drive for archiving
• Technicians who regularly test or benchmark different hard drives
and need to swap between them
Features
• High Speed USB 2.0 compliant host interface, with support for
transfer rates up to 480 Mbps
• Powered directly from the USB port
• Power/Activity LED
• Built-in rotating stand
• Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives
• Plug-and-Play and Hot-Swap compatible
• Support for 2.5" form factor hard drives (HDD) or solid state drives
(SSD)
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Chipset ID Jmicron - JM20329
Compatible Drive Types SATA
Drive Size 2.5in
Fan(s) No
Interface USB 2.0
Number of Drives 1
Performance Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives
Type and Rate USB 2.0 - 480 Mbit/s
UASP Support No
Connector(s) Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - USB Mini-B (5 pin) Female
Software OS Compatibility OS independent; No software or drivers required
Indicators LED Indicators 1 - Blue - Solid for power, blinking for Activity
Environmental Humidity 90% RH
Operating Temperature 5°C to 80°C (41°F to 176°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Physical
Characteristics
Color Black
Enclosure Type Plastic
Max Drive Height 0.4 in [9.5 mm]
Product Height 1.4 in [36 mm]
Product Length 3.2 in [82 mm]
Product Weight 1.1 oz [30 g]
Product Width 1 in [25 mm]
Packaging
Information
Shipping (Package) Weight 3.5 oz [100 g]
What's in the Box Included in Package 1 - 2.5in SATA Hard Drive Dock
1 - USB mini-B Y Cable
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
