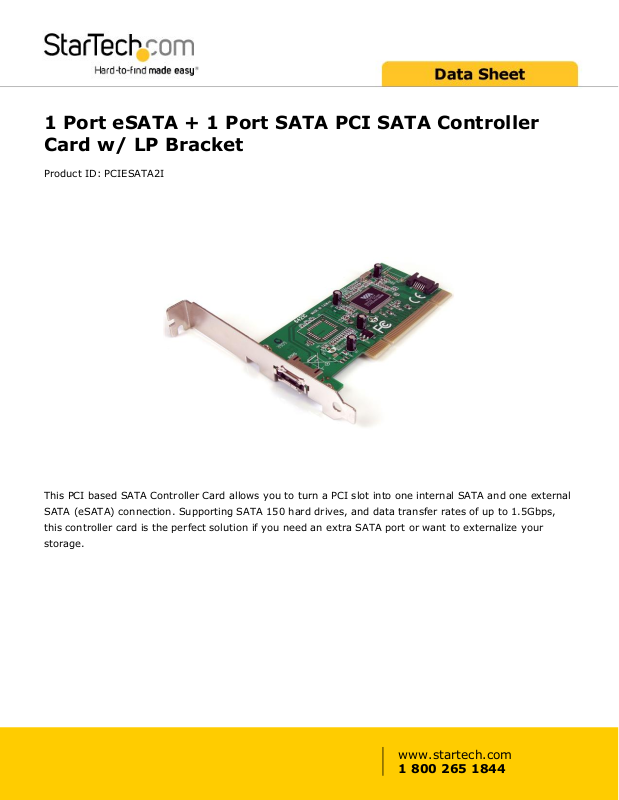

1 Port eSATA + 1 Port SATA PCI SATA Controller
Card w/ LP Bracket
Product ID: PCIESATA2I
This PCI based SATA Controller Card allows you to turn a PCI slot into one internal SATA and one external
SATA (eSATA) connection. Supporting SATA 150 hard drives, and data transfer rates of up to 1.5Gbps,
this controller card is the perfect solution if you need an extra SATA port or want to externalize your
storage.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Upgrade a PCI-based desktop with SATA and eSATA capabilities
• Add additional SATA capabilities to a desktop computer
• Add SATA capabilities to a low profile/small form factor (SFF)
computer
Features
• 1 internal SATA port and 1 external eSATA port
• Large capacity drive support with 48-bit Logical Block Addressing
(LBA)
• Fully compliant with the Serial ATA 1.0a specification, with transfer
rates up to 1.5Gbps
• Independent 256-byte FIFOs (32 bit x 64 deep) per SATA channel
• Integrated PCI DMA engines
• Includes a low profile/half-height installation bracket
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Bus Type PCI / PCI-X (5 / 3.3V)
Card Type Standard Profile (LP bracket incl.)
Chipset ID VIA - VT6421
Interface eSATA & SATA
SATA
Ports 2
Performance Maximum Data Transfer Rate 1.5 Gb/sec
Port Multiplier No
RAID No
Type and Rate SATA I (1.5 Gbps)
Connector(s) Connector Type(s) 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male
External Ports 1 - eSATA (7 pin, Data) Plug
Internal Ports 1 - SATA (7 pin, Data) Plug
Software OS Compatibility Windows® 2000, XP, Vista, 7, 8
Windows Server® 2003, 2008 R2
Linux 3.5.x to 4.4.x LTS Versions only
Physical
Characteristics
Product Height 0.8 in [20 mm]
Product Length 4.8 in [121 mm]
Product Weight 1.6 oz [46.6 g]
Product Width 2.1 in [54 mm]
Packaging
Information
Package Quantity 1
Shipping (Package) Weight 4.8 oz [135 g]
What's in the Box Included in Package 1 - PCI eSATA Card
1 - SATA Data Cable
1 - Low Profile Bracket
1 - Software CD
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
