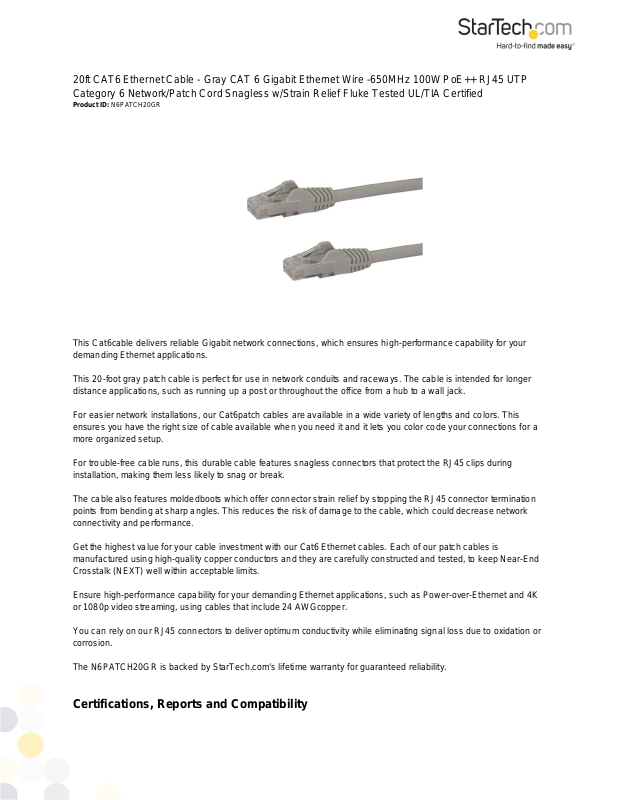

20ft CAT6 Ethernet Cable - Gray CAT 6 Gigabit Ethernet Wire -650MHz 100W PoE++ RJ45 UTP
Category 6 Network/Patch Cord Snagless w/Strain Relief Fluke Tested UL/TIA Certified

Product ID: N6PATCH20GR

This Cat6cable delivers reliable Gigabit network connections, which ensures high-performance capability for your
demanding Ethernet applications.

This 20-foot gray patch cable is perfect for use in network conduits and raceways. The cable is intended for longer
distance applications, such as running up a post or throughout the office from a hub to a wall jack.

For easier network installations, our Cat6patch cables are available in a wide variety of lengths and colors. This
ensures you have the right size of cable available when you need it and it lets you color code your connections for a
more organized setup.

For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during
installation, making them less likely to snag or break.

The cable also features moldedboots which offer connector strain relief by stopping the RJ45 connector termination
points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network
connectivity and performance.

Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is
manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End
Crosstalk (NEXT) well within acceptable limits.

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K
or 1080p video streaming, using cables that include 24 AWGcopper.

You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or
corrosion.

The N6PATCH20GR is backed by StarTech.com’s lifetime warranty for guaranteed reliability.

Certifications, Reports and Compatibility

Hardware

Warranty
Anzahl von Leitern
Steckverbinderplatten
Typ der

Kabelummantelung
Feuerwiderstandssklasse
Kabeltyp
Verkabelungsstandard

90 Days
4 pair UTP
Gold
PVC - Polyvinyl Chloride
CMG Rated (General Purpose)
Snagless
TIA/EIA-568-B.1-2001 T568B

Leistung

Kabelnennwerte

CAT6 - 650 MHz

Steckverbinder

Steckverbinder A
Steckverbinder B

RJ-45
RJ-45

Physische
Eigenschaften

Farbe
Drahtstrke

Gray
24 AWG

Applications

• Designed for use with Gigabit networks

• Patches from hub to distribution panel

• Connects workstation to wall outlet

Features

• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps
connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified

• POE SUPPORT: 24 AWG stranded copper conductors & UL rated wiring supports up to 100W for PoE devices like
VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating

• QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to
avoid costly network downtime; High quality PVC jacket resists bending or fraying damage

• EASY INSTALLATION: 20 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits;
Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces

• SPECS: Length: 20ft (6m) Color: Gray 650 MHz Rated Structure: 4 Pair UTP RJ45 Jacket: PVC Wire Gauge: 24
AWG Copper Wiring: ANSI/T568B ETL Verified Warranty: Lifetime

• High-quality 24 AWG copper wire

• ETL verified
