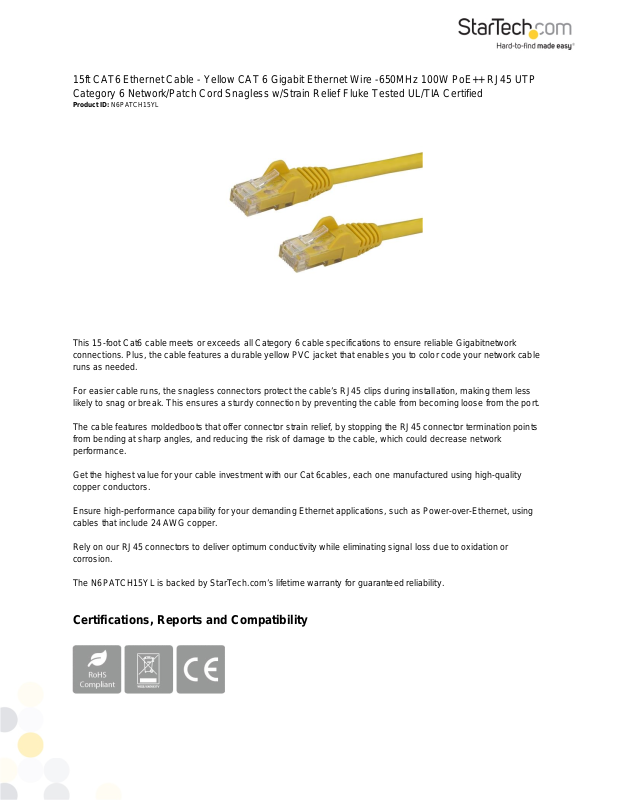

arTech N6PATCH15YL User Manual [de]

15ft CAT6 Ethernet Cable - Yellow CAT 6 Gigabit Ethernet Wire -650MHz 100W PoE++ RJ45 UTP
Category 6 Network/Patch Cord Snagless w/Strain Relief Fluke Tested UL/TIA Certified

Product ID: N6PATCH15YL

This 15-foot Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabitnetwork
connections. Plus, the cable features a durable yellow PVC jacket that enables you to color code your network cable
runs as needed.

For easier cable runs, the snagless connectors protect the cable’s RJ45 clips during installation, making them less
likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.

The cable features moldedboots that offer connector strain relief, by stopping the RJ45 connector termination points
from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network
performance.

Get the highest value for your cable investment with our Cat 6cables, each one manufactured using high-quality
copper conductors.

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using
cables that include 24 AWG copper.

Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or
corrosion.

The N6PATCH15YL is backed by StarTech.com’s lifetime warranty for guaranteed reliability.

Certifications, Reports and Compatibility

Applications

Hardware

Warranty
Anzahl von Leitern
Typ der

Kabelummantelung
Feuerwiderstandssklasse
Kabeltyp
Verkabelungsstandard

90 Days
4 Pair UTP
PVC - Polyvinyl Chloride
CMG Rated (General Purpose)
Snagless
TIA/EIA-568-B.1-2001 T568B

Leistung

Kabelnennwerte

CAT6 - 650 MHz

Steckverbinder

Steckverbinder A
Steckverbinder B

RJ-45
RJ-45

Physische
Eigenschaften

Farbe
Drahtstrke
Leitungstyp
Kabellnge
Produktlnge
Produktgewicht

Yellow
24 AWG
Stranded Copper

15.0 ft [4.6 m]

15.0 ft [4.6 m]

7.0 oz [198 g]

• Designed for use with Gigabit networks

• Patches from hub to distribution panel

• Connects workstation to wall outlet

• Extend the reach of your Gigabit network devices by 15 ft

Features

• EASY INSTALLATION: 15 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits;
Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces

• SPECS: Length: 15ft (4.6m) Color: Yellow 650 MHz Rated Structure: 4 Pair UTP RJ45 Jacket: PVC Wire
Gauge: 24 AWG Copper Wiring: ANSI/T568B ETL Verified Warranty: Lifetime

• Colored hoods for departmental color coding

• Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the
stress at the plug termination point

• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps
connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified

• POE SUPPORT: 24 AWG stranded copper conductors & UL rated wiring supports up to 100W for PoE devices like
VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating

• QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to
avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
