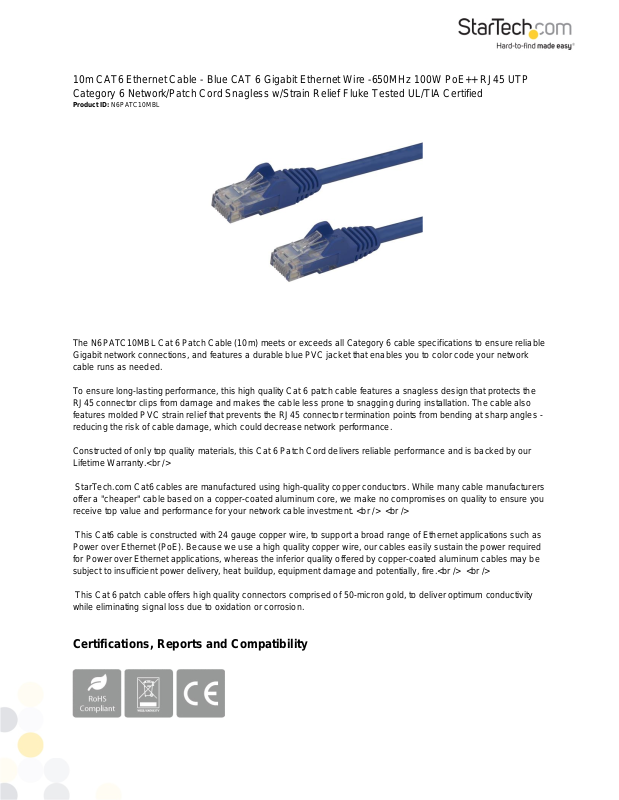

arTech N6PATC10MBL User Manual

10m CAT6 Ethernet Cable - Blue CAT 6 Gigabit Ethernet Wire -650MHz 100W PoE++ RJ45 UTP
Category 6 Network/Patch Cord Snagless w/Strain Relief Fluke Tested UL/TIA Certified

Product ID: N6PATC10MBL

The N6PATC10MBL Cat 6 Patch Cable (10m) meets or exceeds all Category 6 cable specifications to ensure reliable
Gigabit network connections, and features a durable blue PVC jacket that enables you to color code your network
cable runs as needed.

To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the
RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also
features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles ­reducing the risk of cable damage, which could decrease network performance.

Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our
Lifetime Warranty.<br />

StarTech.com Cat6 cables are manufactured using high-quality copper conductors. While many cable manufacturers
offer a "cheaper" cable based on a copper-coated aluminum core, we make no compromises on quality to ensure you
receive top value and performance for your network cable investment. <br /> <br />

This Cat6 cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as
Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required
for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be
subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.<br /> <br />

This Cat 6 patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity
while eliminating signal loss due to oxidation or corrosion.

Certifications, Reports and Compatibility

Applications

Hardware

Warranty
Number of Conductors
Connector Plating
Cable Jacket Material
Fire Rating
Cable Type
Wiring Standard

90 Days
4 pair UTP
Gold
PVC - Polyvinyl Chloride
CMG Rated (General Purpose)
Snagless
TIA/EIA-568-B.1-2001 T568B

Performance

Cable Rating

CAT6 - 650 MHz

Connector(s)

Connector A
Connector B

RJ-45
RJ-45

Physical
Characteristics

Color
Wire Gauge
Conductor Type
Cable Length
Product Length
Weight of Product

Blue
24 AWG
Stranded Copper

32.8 ft [10 m]

32.8 ft [10 m]

13.8 oz [392 g]

• Connects workstation to wall outlet

• Patches from hub to distribution panel

• Designed for use with Gigabit networks

• Extend the reach of your Gigabit network devices by 10m (32.8ft)

Features

• POE SUPPORT: 24 AWG stranded copper conductors & UL rated wiring supports up to 100W for PoE devices like
VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating

• QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to
avoid costly network downtime; High quality PVC jacket resists bending or fraying damage

• EASY INSTALLATION: Snagless patch cord for easy installation & flexible disconnection in wiring conduits;
Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces

• SPECS: Length: 10m (33ft) Color: Blue 650 MHz Rated Structure: 4 Pair UTP RJ45 Jacket: PVC Wire Gauge:
24 AWG Copper Wiring: ANSI/T568B ETL Verified Warranty: Lifetime

• RJ45 connector clip protectors

• ETL Verified

• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps
connections; 10Gbps up to 50m; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6 & ETL Verified
