arTech IES81GW operation manual

8-Port Gigabit Ethernet Switch
- Managed
IES81GW
*actual product may vary from photos
FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com
For the latest information, technical specications, and support for this product, please visit www.StarTech.com/IES81GW.
Manual Revision: 01/19/2017
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.
Industry Canada Statement
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (A)/NMB-3(A)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Quick-start guide
Table of Contents
Introduction ............................................................................................1
Product diagram ........................................................................................................................................ 1
Package contents ...................................................................................................................................... 2
Requirements ............................................................................................................................................. 2
About the LED indicators ......................................................................3
Wire the power inputs ...........................................................................3
Reboot the network switch ..................................................................4
Reset to the default factory settings ..................................................4
Installation ..............................................................................................5
Install the enclosure on a wall .............................................................................................................. 5
Install the enclosure on a magnetic surface .................................................................................... 6
Mount the enclosure to a DIN rail ....................................................................................................... 7
Technical support ...................................................................................8
Warranty information ............................................................................8
Quick-start guide
i
Introduction

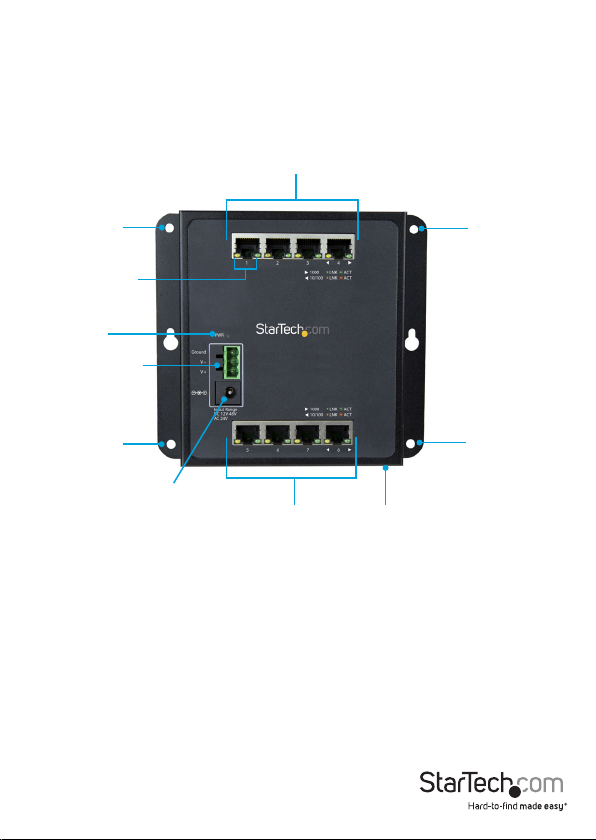

Product diagram
RJ45 ports 1 to 4
Mounting hole
Link and activity LED indicators (2 per port)
Power LED indicator
3-pin terminal block
Mounting hole
Quick-start guide
DC power input
RJ45 ports 5 to 8
1
Mounting hole
Mounting hole
Reset button (not pictured)
Package contents
• 1 x network switch
• 1 x universal power adapter (NA/JP, UK, EU, ANZ)
• 1 x terminal block connector
• 4 x screw anchors
• 4 x screws
• 4 x attaching pins
• 4 x locking pins
• 4 x washers
• 4 x magnets
• 1 x DIN rail
• 3 x DIN-rail screws
• 8 x dust caps
• 1 x quick-start guide
Requirements
• Ethernet port connection
• RJ45 network cables
Requirements are subject to change. For the latest requirements, please visit
www.StarTech.com/IES81GW.
Quick-start guide
2
About the LED indicators
This network switch features a link and activity LED indicator for each of the eight RJ45 ports. There is an additional power LED located above the 3-pin terminal block.
For more information about what the LED indicators signify, see the table below.
LED Behavior Signicance
Illuminated yellow Link was successfully
LED indicator on the left
side of the RJ45 ports
LED indicator on the right
side of the RJ45 ports
Power LED Illuminated Switch is receiving power
Blinking yellow Data is being transferred
Illuminated green Link was successfully
Blinking green Data is being transferred
established
at 10/100 Mbps
established
at 1000 Mbps
Wire the power inputs
You can use either the universal power adapter or the terminal block to power the network switch. Alternatively, you can connect both the universal power adapter and the terminal block to create a redundant power input.
You should use wire ranging in size of 12 to 24 AWG.
Caution! Make sure that you ground the enclosure before you install the terminal block connector into the network switch.
1. Insert the grounding wire into the Ground port on the terminal block, and tighten the wire clamp screws.
2. Insert the positive DC power wire into the V+ port on the terminal block connector, and tighten the wire clamp screws.
3. Insert the negative DC power wire into the V- port on the terminal block connector, and tighten the wire clamp screws.
4. Insert the terminal block connector into the 3-pin terminal block on the network switch.
Quick-start guide
3
Reboot the network switch
The Reset button on the network switch is designed to reboot the network switch without turning o and turning on the power.
• To reboot the network switch, press the Reset button.
Reset to the default factory settings
You can use the Reset button to reset the network switch to the following default factory settings:
Default user name: admin
Default password: admin
Default IP address: 192.168.0.100
Subnet mask: 255.255.255.0
Default gateway: 192.168.0.254
• To reset to the default factory settings, press and hold the Reset button for more than 5 seconds.
When you press the Reset button, the port LED indicators illuminate. When the LEDs are no longer illuminated, the reset sequence is complete.
Quick-start guide
4
Installation

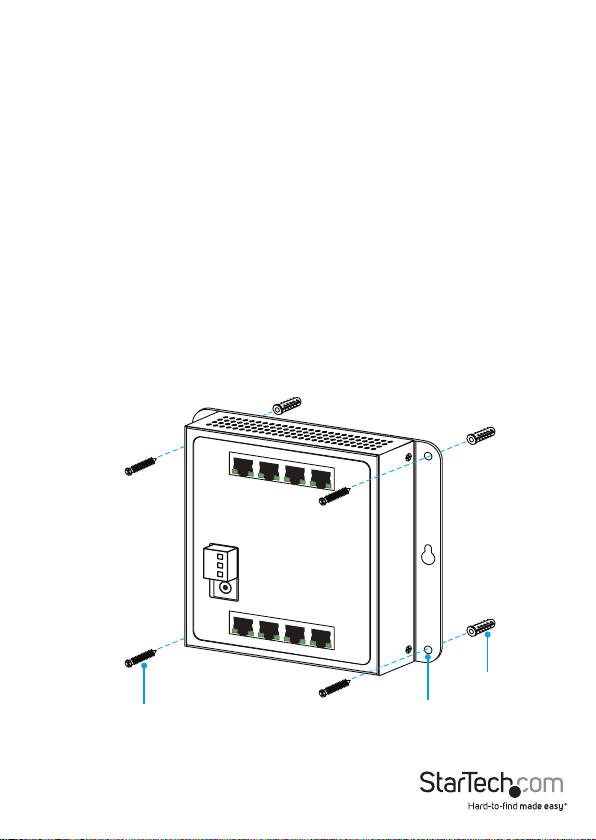

Install the enclosure on a wall
1. Hold the enclosure against the wall in the area that you want to install it, and use a pencil to trace the location of the four mounting holes onto the wall.
2. Use the mounting holes that you traced on the wall as a template and drill holes in the wall.
3. Insert the four screw anchors into the holes.
Note: Make sure that the screw anchors are ush against the wall.
4. Place the enclosure against the wall and insert the four screws through the mounting holes on the enclosure and into the screw anchors. (gure 1)
5. Tighten the screws.
6. To power the switch, connect an external power adapter, wire the power inputs, or do both.
7. Connect the RJ45 cables to the RJ45 ports on the enclosure.
gure 1
Quick-start guide
Screw
Screw anchor
Mounting hole
5

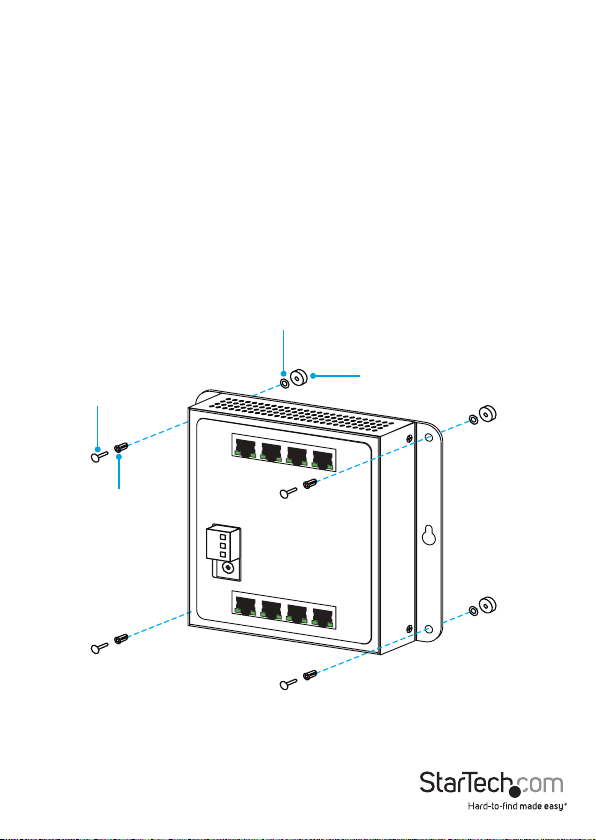

Install the enclosure on a magnetic surface
1. Push each of the attaching pins into a locking pin.
2. Insert the attaching and locking pins into one of the mounting holes on the enclosure, through a washer, and into a magnet.
Note: To prevent the magnets from becoming loose, make sure that you position the magnet so that the at side is against the enclosure.
3. Repeat step 2 for all of the mounting holes on the enclosure. (gure 2)
4. Attach the enclosure to a magnetic surface.
5. To power the switch, connect an external power adapter, wire the power inputs, or do both.
6. Connect the RJ45 cables to the RJ45 ports on the enclosure.
gure 2
Washer
Magnet
Attaching pin
Locking pin
Quick-start guide
6

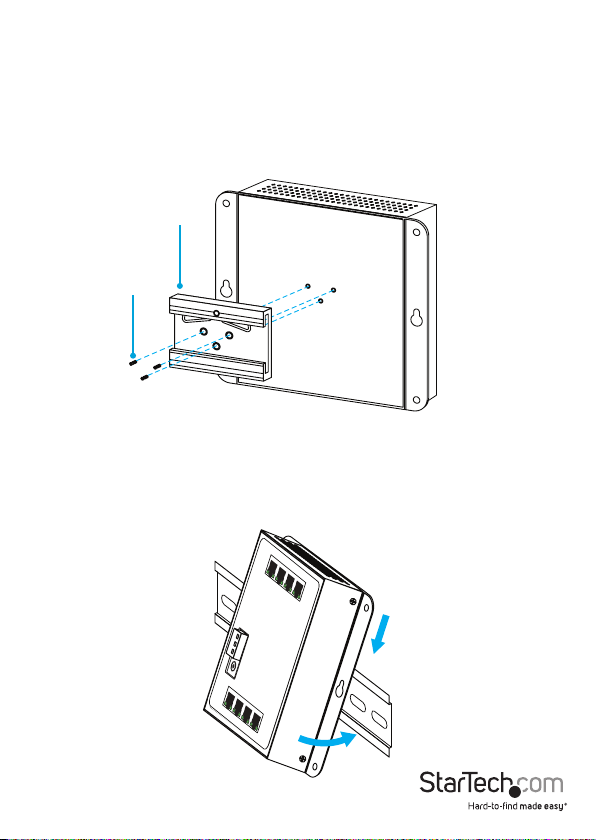

Mount the enclosure to a DIN rail
1. With the at side of the DIN rail positioned against the enclosure, line up the holes on the DIN rail with the holes on the enclosure.
2. Insert the DIN-rail screws through the DIN rail and into the enclosure. (gure 3)
3. Tighten the screws.
gure 3
DIN rail
DIN-rail screw
4. Hook the DIN rail onto the top of the track, and push it against the track. (gure 4)
5. To power the switch, connect an external power adapter, wire the power inputs, or
do both.
6. Connect the RJ45 cables to the RJ45 ports on the enclosure.
gure 4
Quick-start guide
7
Technical support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty information
This product is backed by a two-year warranty.
StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
