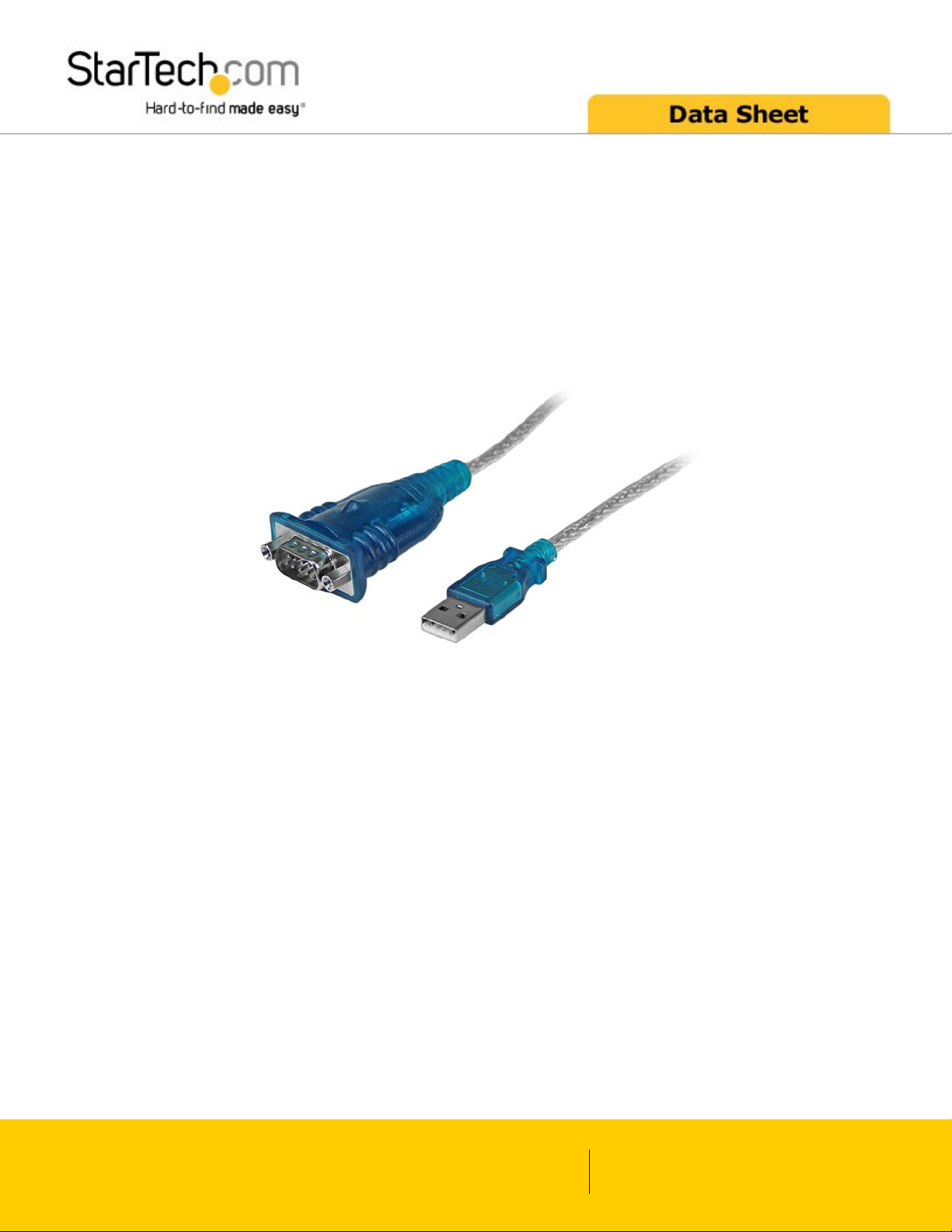

1 Port USB to RS232 DB9 Serial Adapter Cable M/M
Product ID: ICUSB232V2
The ICUSB232V2 1 Port USB to Serial Adapter converts a USB port into an RS232 DB9 serial port to
connect to, monitor, and control a serial device.
Supporting data transfer rates up to 921.6 Kbps, the USB to serial cable is a convenient and cost-saving
solution for providing serial connectivity to devices such as point-of-sale terminals, serial modems,
industrial equipment, and a wide variety of other RS232 peripherals.
The USB to RS232 converter is easy to install and offers broad operating system compatibility, including
Windows® 8, Linux and Mac OS®, for easy integration into mixed environments.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• IT Administrators looking to add legacy functionality to newer
notebooks, PCs and servers that lack an integrated RS232 port
• Connect bar code scanners, receipt printers and other point of sale
devices
• Connect, monitor and control industrial/automotive sensors and other
sensitive equipment
• Connect and program LED and digital signage boards
Features
• USB to Straight-Through RS232 DB9 Serial Adapter
• High-speed 921.6Kbps Baud Rate
• Compatible with Windows® 8, Mac OS X® and Linux
• Compatible with USB 1.1 or higher ports
• USB-powered - no external power adapter required
• Single cable, small footprint design for portability
www.startech.com
1 800 265 1844
Warranty 3 Years
Hardware Bus Type USB 2.0
Chipset ID Prolific - PL2303RA
Industry Standards USB 1.1/2.0
RS232
Interface Serial
Port Style Cable Adapters
Ports 1
Performance Data Bits 5, 6, 7, 8
FIFO 512 Bytes
Flow Control None, Xon/Xoff, RTS/CTS, DTR/DSR
Max Baud Rate 921.6 Kbps
MTBF 30,000 Hours
Parity Odd, Even, Mark, Space, or None Parity Modes
Serial Protocol RS-232
Stop Bits 1, 1.5, 2
Connector(s) Connector Type(s) 1 - DB-9 (9 pin, D-Sub) Male
1 - USB A (4 pin) Male
Software Microsoft WHQL Certified Yes
OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 9.x, 8.x, 10.6 to 10.12
Linux 2.4.31 to 4.4.x LTS Versions Only
Special Notes /
Requirements
System and Cable Requirements One available USB 1.1 (or above) port
Environmental Humidity 0~65% RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Physical
Characteristics
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 16.9 in [430 mm]
Product Weight 1.9 oz [52.5 g]
Product Width 1.4 in [35 mm]
www.startech.com
1 800 265 1844
Packaging
Information
Shipping (Package) Weight 2.2 oz [62.5 g]
What's in the Box Included in Package 1 - USB to RS232 Adapter
1 - Instruction Manual
Product appearance and specifications are subject to change without notice.
