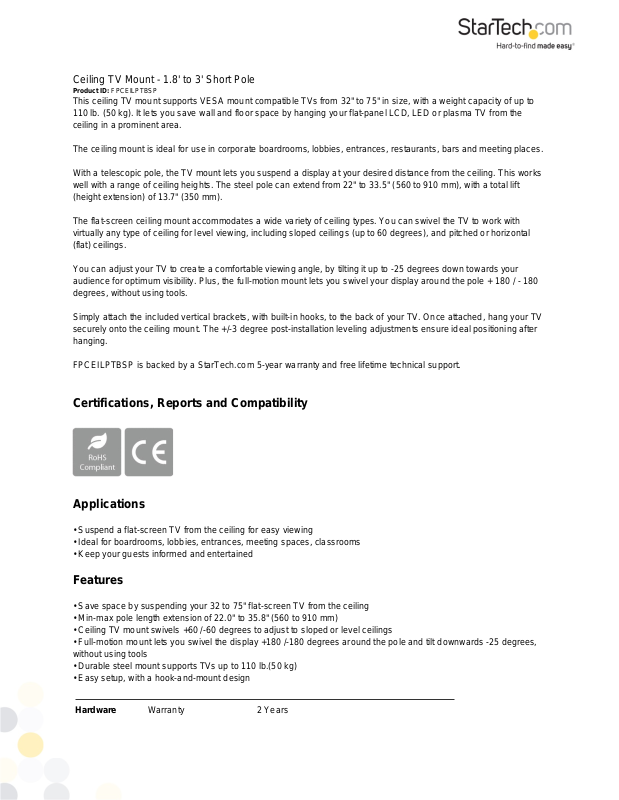

Ceiling TV Mount - 1.8' to 3' Short Pole
Hardware
Warranty
2 Years
Product ID: FPCEILPTBSP
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to
110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the
ceiling in a prominent area.
The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works
well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift
(height extension) of 13.7" (350 mm).
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with
virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal
(flat) ceilings.
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your
audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180
degrees, without using tools.
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV
securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after
hanging.
FPCEILPTBSP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Certifications, Reports and Compatibility
Applications
• Suspend a flat-screen TV from the ceiling for easy viewing
• Ideal for boardrooms, lobbies, entrances, meeting spaces, classrooms
• Keep your guests informed and entertained
Features
• Save space by suspending your 32 to 75" flat-screen TV from the ceiling
• Min-max pole length extension of 22.0" to 35.8" (560 to 910 mm)
• Ceiling TV mount swivels +60 /-60 degrees to adjust to sloped or level ceilings
• Full-motion mount lets you swivel the display +180 /-180 degrees around the pole and tilt downwards -25 degrees,
without using tools
• Durable steel mount supports TVs up to 110 lb.(50 kg)
• Easy setup, with a hook-and-mount design
Page 2
Wallmountable
Cable Management
# of Displays Supported
Mounting Options
VESA Hole Pattern(s)
VESA Hole Pattern(s)
VESA Hole Pattern(s)
VESA Hole Pattern(s)
VESA Hole Pattern(s)
Mounting Surface
Thickness
No
Yes
1
Ceiling Mount
200x200 mm
400x200 mm
300x300 mm
400x400 mm
600x400 mm
560 mm to 910 mm
Performance
General Specifications
Weight Capacity (Per
Display)
Minimum Display Size
Maximum Display Size
Fits Curved Display
Video Wall
Height Adjustment
Minimum Height
Maximum Height
Display Tilt
Swivel / Pivot
Display Rotation
Anti-theft
Post-Installation Leveling Adjustment: +/-3
110.5 lb [50 kg]
32"
75"
Yes
No
Yes
22.0 in [5.6 cm]
35.8 in [9.1 cm]
+0 / -25
+180 to -180
360
No
Physical
Characteristics
Color
Material
Product Length
Product Width
Product Height
Weight of Product
Black
Steel
17.1 in [4.4 cm]
26.8 in [6.8 cm]
3.8 ft [1.2 m]
10.8 lb [4.9 kg]
Page 3
Packaging
Information
Package Length
Package Width
Package Height
Shipping (Package)
Weight
14.4 in [3.7 cm]
30.4 in [7.7 cm]
5.9 in [1.5 cm]
15.1 lb [6.8 kg]
What's in the
Box
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
Included in Package
ceiling mount and pole
extension pole
vertical brackets
horizontal bracket
bolts
nuts
wrench
hex key
mounting template
M5x14 mm screws
M6x14 mm screws
M6x30 mm screws
M8x30 mm screws
M8x50 mm screws
rectangular washers
small spacers
large spacers
6.3x55 mm screws
concrete anchor
circular washers
instruction manual
*Product appearance and specifications are subject to change without notice.
