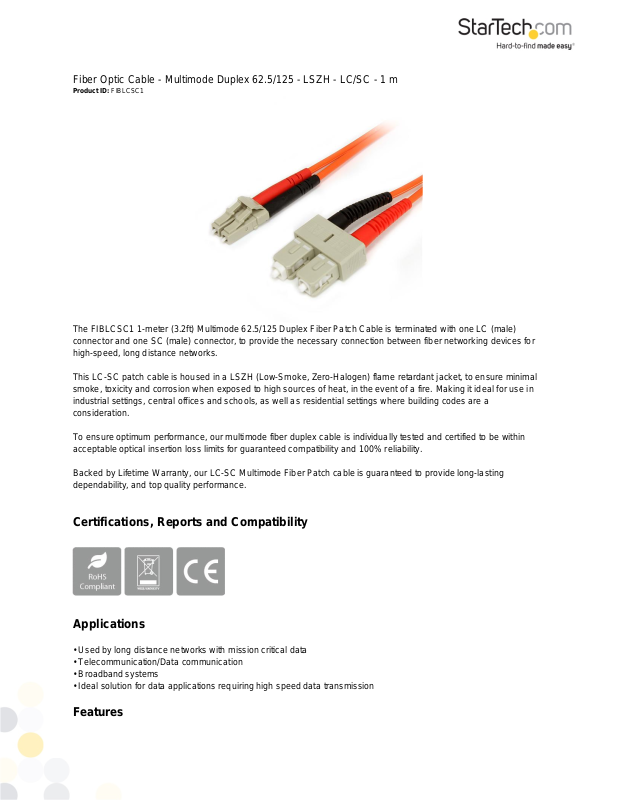

Fiber Optic Cable - Multimode Duplex 62.5/125 - LSZH - LC/SC - 1 m
Product ID: FIBLCSC1
The FIBLCSC1 1-meter (3.2ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male)
connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for
high-speed, long distance networks.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal
smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in
industrial settings, central offices and schools, as well as residential settings where building codes are a
consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within
acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting
dependability, and top quality performance.
Certifications, Reports and Compatibility
Applications
• Used by long distance networks with mission critical data
• Telecommunication/Data communication
• Broadband systems
• Ideal solution for data applications requiring high speed data transmission
Features
• Attenuation loss meets or exceeds industry standards
Hardware
Warranty
Fire Rating
Fiber Size
90 Days
LSZH Rated (Low Smoke Zero Halogen)
62.5/125
Performance
Maximum Data Transfer
Rate
Cable Rating
Fiber Classification
Type
10Gbps
1Gbps / 10Gbps
OM1
Multi Mode
Connector(s)
Connector A
Connector B
Fiber Optic LC Duplex
Fiber Optic SC Duplex
Environmental
Operating Temperature
Storage Temperature
Humidity
-20C to 60C (-4F to 140F)
-20C to 60C (-4F to 140F)
0~90% RH
Physical
Characteristics
Color
Cable Length
Product Length
Product Width
Product Height
Weight of Product
Orange
39.4 in [10 cm]
39.4 in [10.0 cm]
0.0 in [0.000 mm]
0.0 in [0.000 mm]
0.9 oz [26.000 g]
Packaging
Information
Package Length
Package Width
Package Height
Shipping (Package)
Weight
8.7 in [2.2 cm]
7.9 in [2.0 cm]
1.0 in [26.000 mm]
1.2 oz [35.000 g]
What's in the
Box
Included in Package
1m Multimode 62.5/125 Duplex Fiber Patch Cable LC - SC
• LSZH (Low-Smoke, Zero-Halogen) cable jacket
• Immune to electrical interference
