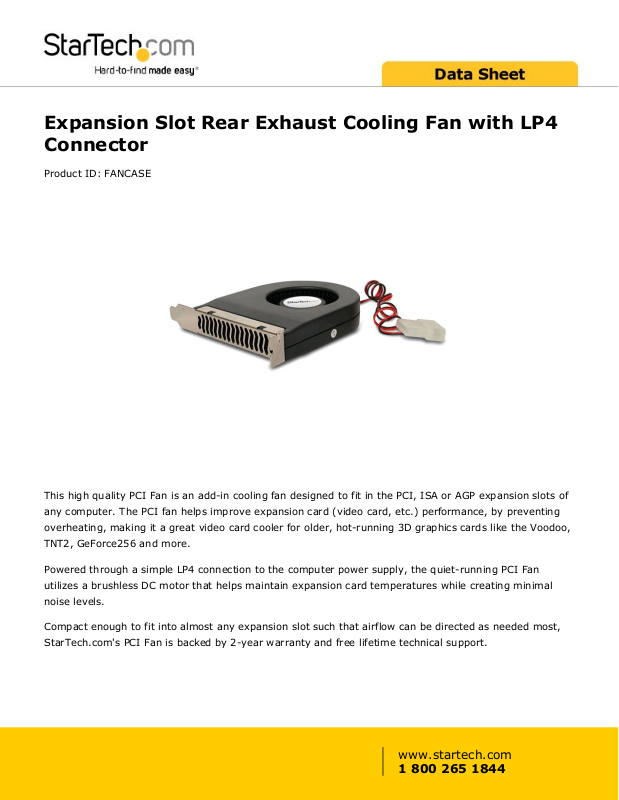

Expansion Slot Rear Exhaust Cooling Fan with LP4
Connector
Product ID: FANCASE
This high quality PCI Fan is an add-in cooling fan designed to fit in the PCI, ISA or AGP expansion slots of
any computer. The PCI fan helps improve expansion card (video card, etc.) performance, by preventing
overheating, making it a great video card cooler for older, hot-running 3D graphics cards like the Voodoo,
TNT2, GeForce256 and more.
Powered through a simple LP4 connection to the computer power supply, the quiet-running PCI Fan
utilizes a brushless DC motor that helps maintain expansion card temperatures while creating minimal
noise levels.
Compact enough to fit into almost any expansion slot such that airflow can be directed as needed most,
StarTech.com's PCI Fan is backed by 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Increase airflow within a computer case by adding an exhaust fan
• Add an additional fan to a computer case that doesn't have
provisions for a case fan
• Remove the hot air from a high performance graphics card more
efficiently
Features
• Ball bearing fan design
• Standard (full) profile expansion slot design
• Inline LP4 Molex power connectors
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Fan Bearing Type Ball Bearing
Performance Air Flow Rate 6.9 CFM
Fan RPM 2200 RPM
Noise Level 32 dBA
Connector(s) Connector Type(s) 1 - LP4 (4 pin; Large Drive Power) Female
1 - LP4 (4 pin; Large Drive Power) Male
Special Notes /
Requirements
System and Cable Requirements Available rear expansion card slot
Power Input Voltage 12 DC
Power Consumption (In Watts) 1.8W
Environmental Operating Temperature -10°C to 80°C (14°F to 176°F)
Physical
Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.8 in [2 cm]
Product Length 4.3 in [11 cm]
Product Width 3.5 in [90 mm]
Weight of Product 3.6 oz [103 g]
Packaging
Information
Package Height 1.2 in [30 mm]
Package Length 6.1 in [15.5 cm]
Package Width 5.1 in [13 cm]
Shipping (Package) Weight 4.6 oz [130 g]
What's in the Box Included in Package 1 - Expansion Slot Exhaust Fan
Product appearance and specifications are subject to change without notice.
