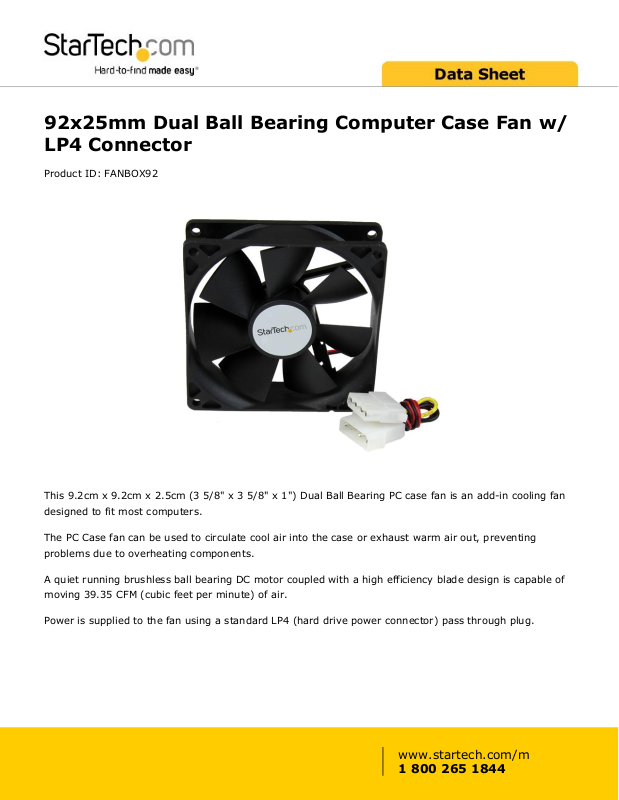

92x25mm Dual Ball Bearing Computer Case Fan w/
LP4 Connector
Product ID: FANBOX92
This 9.2cm x 9.2cm x 2.5cm (3 5/8" x 3 5/8" x 1") Dual Ball Bearing PC case fan is an add-in cooling fan
designed to fit most computers.
The PC Case fan can be used to circulate cool air into the case or exhaust warm air out, preventing
problems due to overheating components.
A quiet running brushless ball bearing DC motor coupled with a high efficiency blade design is capable of
moving 39.35 CFM (cubic feet per minute) of air.
Power is supplied to the fan using a standard LP4 (hard drive power connector) pass through plug.
www.startech.com/m
1 800 265 1844
Page 2
Certifications, Reports
and Compatibility
Applications
• Replace a noisy or failed computer case fan
• Install into a computer case to increase air flow and cooling
Features
• 92mm dual ball bearing fan design
• Inline LP4 power connectors
www.startech.com/m
1 800 265 1844
Page 3
Warranty 2 Years
Hardware Fan Bearing Type Ball Bearing
Number of Conductors 2
Performance Air Flow Rate 39.35 CFM
Fan RPM 2200
Noise Level 26 dBA
Connector(s) Connector Type(s) 1 - LP4 (4 pin, Molex Large Drive Power) Female
1 - LP4 (4 pin, Molex Large Drive Power) Male
Power Input Voltage 12 DC
Environmental Operating Temperature -10 to 80
Physical
Characteristics
Color Black
Enclosure Type Plastic
Product Height 3.6 in [92 mm]
Product Length 3.6 in [92 mm]
Product Weight 3.8 oz [108 g]
Product Width 1 in [25 mm]
Packaging
Information
Shipping (Package) Weight 0.3 lb [0.1 kg]
What's in the Box Included in Package 1 - 92mm Case Fan
4 - Mounting Screws
Product appearance and specifications are subject to change without notice.
