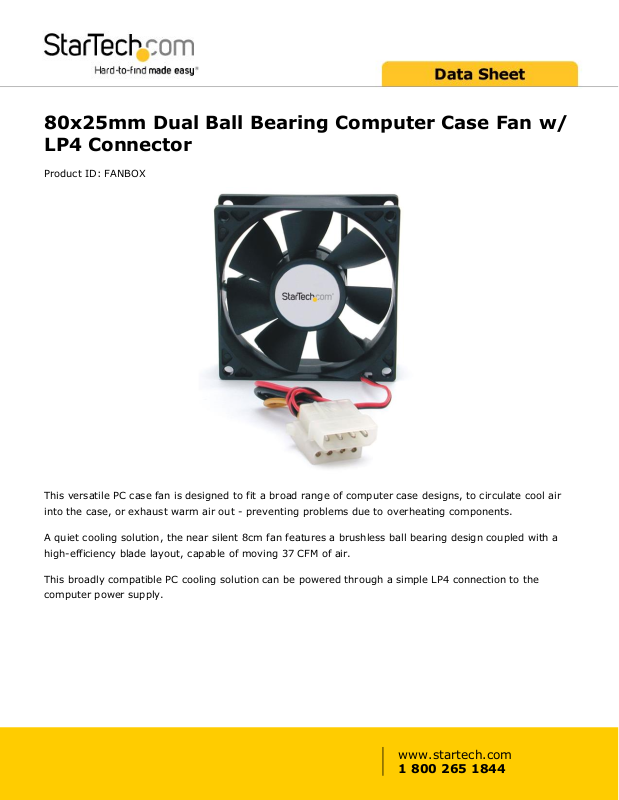

80x25mm Dual Ball Bearing Computer Case Fan w/
LP4 Connector
Product ID: FANBOX
This versatile PC case fan is designed to fit a broad range of computer case designs, to circulate cool air
into the case, or exhaust warm air out - preventing problems due to overheating components.
A quiet cooling solution, the near silent 8cm fan features a brushless ball bearing design coupled with a
high-efficiency blade layout, capable of moving 37 CFM of air.
This broadly compatible PC cooling solution can be powered through a simple LP4 connection to the
computer power supply.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Replace a noisy or failed computer case fan
• Install into a computer to increase air flow and cooling
Features
• Dual ball bearing design
• Inline LP4 power connectors
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Fan Bearing Type Ball Bearing
Number of Conductors 2
Performance Air Flow Rate 37.27 CFM
Fan RPM 3000
Noise Level 27 dBA
Connector(s) Connector Type(s) 1 - LP4 (4 pin, Molex Large Drive Power) Female
1 - LP4 (4 pin, Molex Large Drive Power) Male
Power Input Current 0.16
Input Voltage 12 DC
Environmental Operating Temperature -10 to 80
Physical
Characteristics
Color Black
Enclosure Type Plastic
Product Height 3.1 in [80 mm]
Product Length 3.1 in [80 mm]
Product Weight 2.6 oz [75 g]
Product Width 1 in [25 mm]
Packaging
Information
Shipping (Package) Weight 0.3 lb [0.1 kg]
What's in the Box Included in Package 1 - 8cm Case Fan
4 - Mounting Screws
Product appearance and specifications are subject to change without notice.
