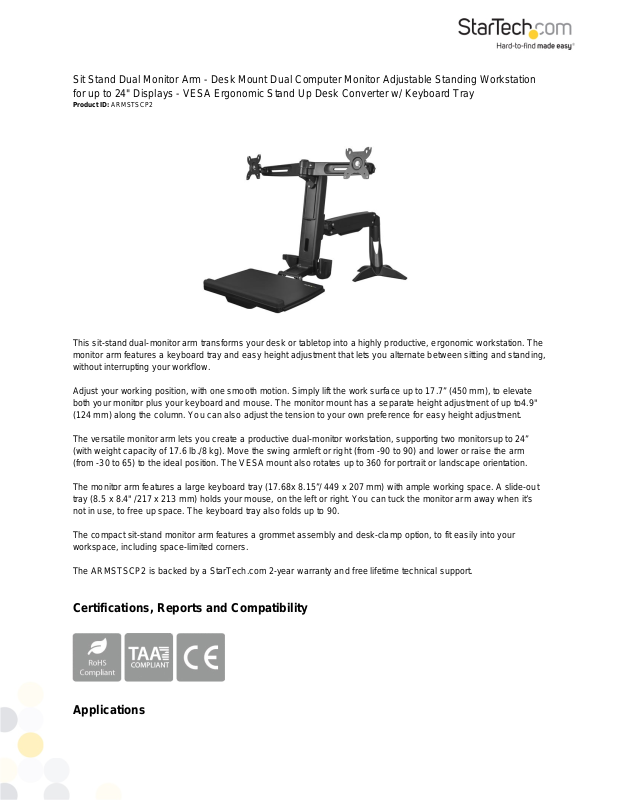

arTech ARMSTSCP2 User Manual

Sit Stand Dual Monitor Arm - Desk Mount Dual Computer Monitor Adjustable Standing Workstation
for up to 24" Displays - VESA Ergonomic Stand Up Desk Converter w/ Keyboard Tray

Product ID: ARMSTSCP2

This sit-stand dual-monitor arm transforms your desk or tabletop into a highly productive, ergonomic workstation. The
monitor arm features a keyboard tray and easy height adjustment that lets you alternate between sitting and standing,
without interrupting your workflow.

Adjust your working position, with one smooth motion. Simply lift the work surface up to 17.7” (450 mm), to elevate
both your monitor plus your keyboard and mouse. The monitor mount has a separate height adjustment of up to4.9"
(124 mm) along the column. You can also adjust the tension to your own preference for easy height adjustment.

The versatile monitor arm lets you create a productive dual-monitor workstation, supporting two monitorsup to 24”
(with weight capacity of 17.6 lb./8 kg). Move the swing armleft or right (from -90 to 90) and lower or raise the arm
(from -30 to 65) to the ideal position. The VESA mount also rotates up to 360 for portrait or landscape orientation.

The monitor arm features a large keyboard tray (17.68x 8.15”/ 449 x 207 mm) with ample working space. A slide-out
tray (8.5 x 8.4" /217 x 213 mm) holds your mouse, on the left or right. You can tuck the monitor arm away when it’s
not in use, to free up space. The keyboard tray also folds up to 90.

The compact sit-stand monitor arm features a grommet assembly and desk-clamp option, to fit easily into your
workspace, including space-limited corners.

The ARMSTSCP2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Certifications, Reports and Compatibility

Applications

• Create a sit-stand workstation in healthcare environments, cubicles, or offices with limited space

Hardware

Warranty
Cable Management
# of Displays Supported
Mounting Options
VESA Hole Pattern(s)
VESA Hole Pattern(s)
Mounting Surface

Thickness

2 Years
Yes
2
Desk & Grommet Clamp
100x100 mm
75x75 mm
Desk Clamp: Table Thickness 0.31 - 1.96 in. (8 - 50 mm)
Grommet Clamp: Table Thickness 0.31 - 1.96 in. (8 - 50 mm)
Table Hole for Grommet Mount: 0.33 - 2.55 in. (8.5 - 65 mm)

Performance

General Specifications
General Specifications
General Specifications
Maximum Display Size
Height Adjustment
Display Tilt
Swivel / Pivot
Display Rotation

Weight capacity of monitor arm: 17.6 lb. (8 kg)
Weight capacity of keyboard tray with grommet mount: 5.6 lb. (2.5 kg)
Weight capacity of keyboard tray with desk clamp: 3.3 lb. (1.5 kg)
24in
Yes
+30 / 0
+90 / -90
360

Physical
Characteristics

Color
Material

Black
Steel, Aluminum and Plastic

• Provides a cost-effective solution, with clamp or grommet mounting options for existing desks

• Works well with space-limited corner desks

Features

• ERGONOMIC SIT-STAND WORKSTATION: This VESA 75x75mm/100x100mm compatible sit stand dual monitor
arm supports 2 widescreen displays up to 24-inch (17.6 lb/8 kg) & features basic horizontal articulation

• WIDE RANGE OF MOTION: The dual monitor arms support +/-30 tilt, +/-15 swivel, 360 rotating computer screens
(landscape/portrait) & adjustable height up the 4.9" (124mm) track for ergonomic comfort

• MAXIMIZE DESK SPACE: This desk mount stand-up workstation has a padded keyboard tray with slide-out
right/left mouse tray that folds up 90 when not in use & cable management for a minimal footprint

• FULLY ADJUSTABLE: This standing desk converter w/ spring-assisted height adjustment & 360 swivel base is
designed for maximum stability & flexible installation for space-limited areas & corner desks

• EASY TO CLEAN: The removable mouse tray & plastic ergonomic wrist rest cover allow for frequent cleaning of all
high-touch surfaces for a sanitary shared desktop dual monitor sit stand workstation
