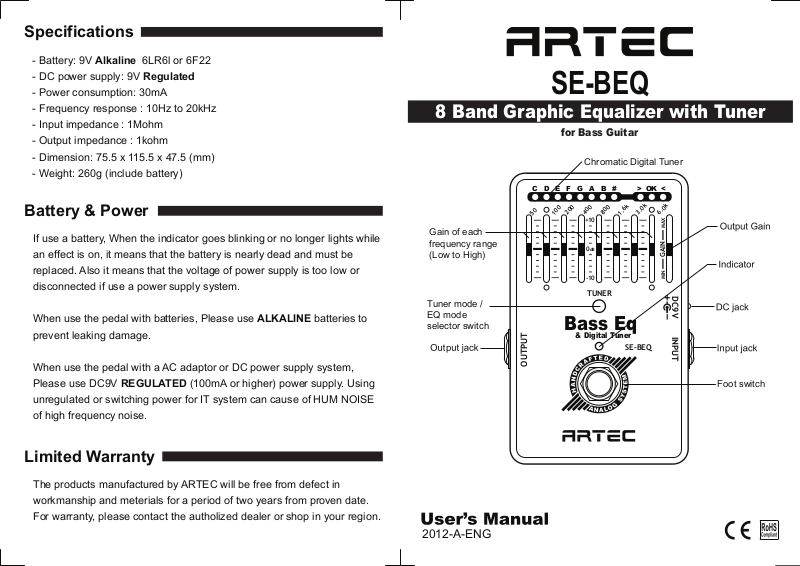

Specifications
- Battery: 9V Alkaline 6LR6l or 6F22
- DC power supply: 9V Regulated
- Power consumption: 30mA
- Frequency response : 10Hz to 20kHz
- Input impedance : 1Mohm
- Output impedance : 1kohm
- Dimension: 75.5 x 115.5 x 47.5 (mm)
- Weight: 260g (include battery)
Battery & Power
If use a battery, When the indicator goes blinking or no longer lights while
an effect is on, it means that the battery is nearly dead and must be
replaced. Also it means that the voltage of power supply is too low or
disconnected if use a power supply system.
When use the pedal with batteries, Please use ALKALINE batteries to
prevent leaking damage.
When use the pedal with a AC adaptor or DC power supply system,
Please use DC9V REGULATED (100mA or higher) power supply. Using
unregulated or switching power for IT system can cause of HUM NOISE
of high frequency noise.
SE-BEQ
8 Band Graphic Equalizer with Tuner
for Bass Guitar
Chromatic Digital Tuner
C D E F G A B # > OK <
3.0k
1.6k
SE-BEQ
6.0k
MIN GAIN MAX
INPUTDC9V
Foot switch
Gain of each
frequency range
(Low to High)
Tuner mode /
EQ mode
selector switch
50
OUTPUT
100
200
400
800
+10
0dB
-10
TUNER
Bass Eq
& Digital Tuner
Limited Warranty
The products manufactured by ARTEC will be free from defect in
workmanship and meterials for a period of two years from proven date.
For warranty, please contact the autholized dealer or shop in your region.
2012-A-ENG
