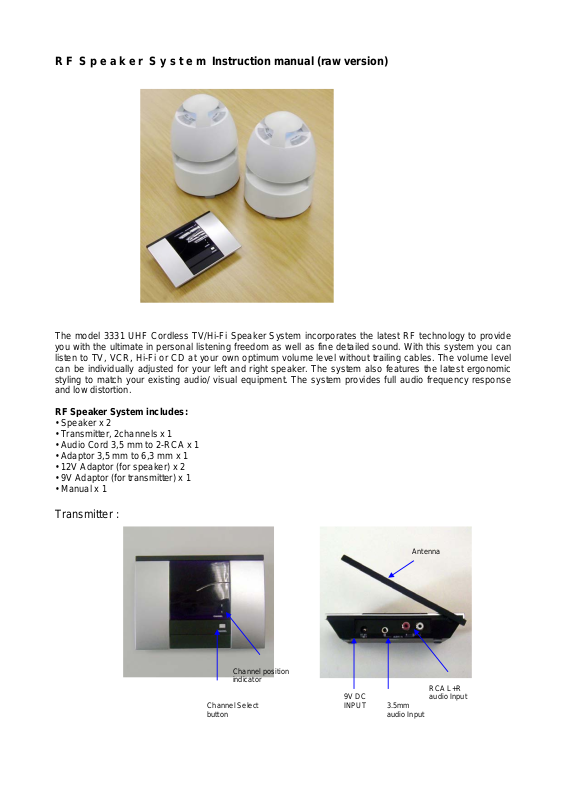

R F S p e a k e r S y s t e m Instruction manual (raw version)

The model 3331 UHF Cordless TV/Hi-Fi Speaker System incorporates the latest RF technology to provide
you with the ultimate in personal listening freedom as well as fine detailed sound. With this system you can
listen to TV, VCR, Hi-Fi or CD at your own optimum volume level without trailing cables. The volume level
can be individually adjusted for your left and right speaker. The system also features the latest ergonomic
styling to match your existing audio/ visual equipment. The system provides full audio frequency response
and low distortion.

RF Speaker System includes:

• Speaker x 2

• Transmitter, 2channels x 1

• Audio Cord 3,5 mm to 2-RCA x 1

• Adaptor 3,5 mm to 6,3 mm x 1

• 12V Adaptor (for speaker) x 2

• 9V Adaptor (for transmitter) x 1

• Manual x 1

Transmitter :

Antenna

Channel position
indicator

Channel Select
button

9V DC
INPUT

RCA L+R
audio Input

3.5mm
audio Input

Speaker receiver:

- Digital volume control (down / up)

- On/Off button

- Channel select button

- Bass booster

- LED mood light On/off
Remark

: Push the Power On/Off button for 2 seconds for
power off the speaker.

Remark

- Unit operated by the 12V AC/DC

- 500mA adapter only

- Please very cautious when connecting

or taking out the DC jack

- It can be operated by 8 x AA batteris

Warning
Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation.

Ensure that the ventilation is not impeded by covering the ventilation openings with items, such as
newspapers, table-cloths, curtains, etc.
Do not place naked flame sources, such as lighted candles on the apparatus.
Use the apparatus only in moderate climates (not in tropical climates).
Do not expose the apparatus to dripping or splashing.
Do not place objects filled with liquids, such as vases, on the apparatus.
The location of the marking are situated on the base at the bottom of the appara tus
The mains plug or the appliance coupler shall always remain readily operable.
Take attention to the environmental aspects of battery disposal.

Caution!
Do only use the attached power supply! Never use another type/model!

Transmitter Set Up/Operation

1. Plug the transmitter AC/DC power adaptor into an AC outlet and connect the adaptor’s power output plug
to the back of the transmitter marked DC 9 V.

2.Connect the audio connection cable to the AUDIO IN socket with the other end of the cord conn ected to
your audio source (e.g. stereo system, TV system etc.).
You can use the provided 3,5 - 6,3 mm plug adaptor or 2-RCA phono-plug adaptor to suit the connection of
your audio source.

3. The transmitter will automatically power up when there is an audio signal received from your audio source.
The red LED light will illuminate to indicate the transmitter is powered ON.

4. Set the “CHANNEL” button to select the transmission channel as displayed by the channel indicator.

5. Ensure the antenna is extended to complete vertical to provide maximum coverage.
