Page 1
Musical notes
Sensorial
F1
Italian style
The art of listening
Page 2
Project Philosophy
Our philosophical approached is predicated on a constant
exchange between the heart and the mind, emotion and
science intertwined.
The scientific approach encompasses the preliminary
measurements of the best passive components, drivers, and
expensive internal wiring. The components are warmed up
prior to any listening test to recreate what a client will hear in
his own environment.

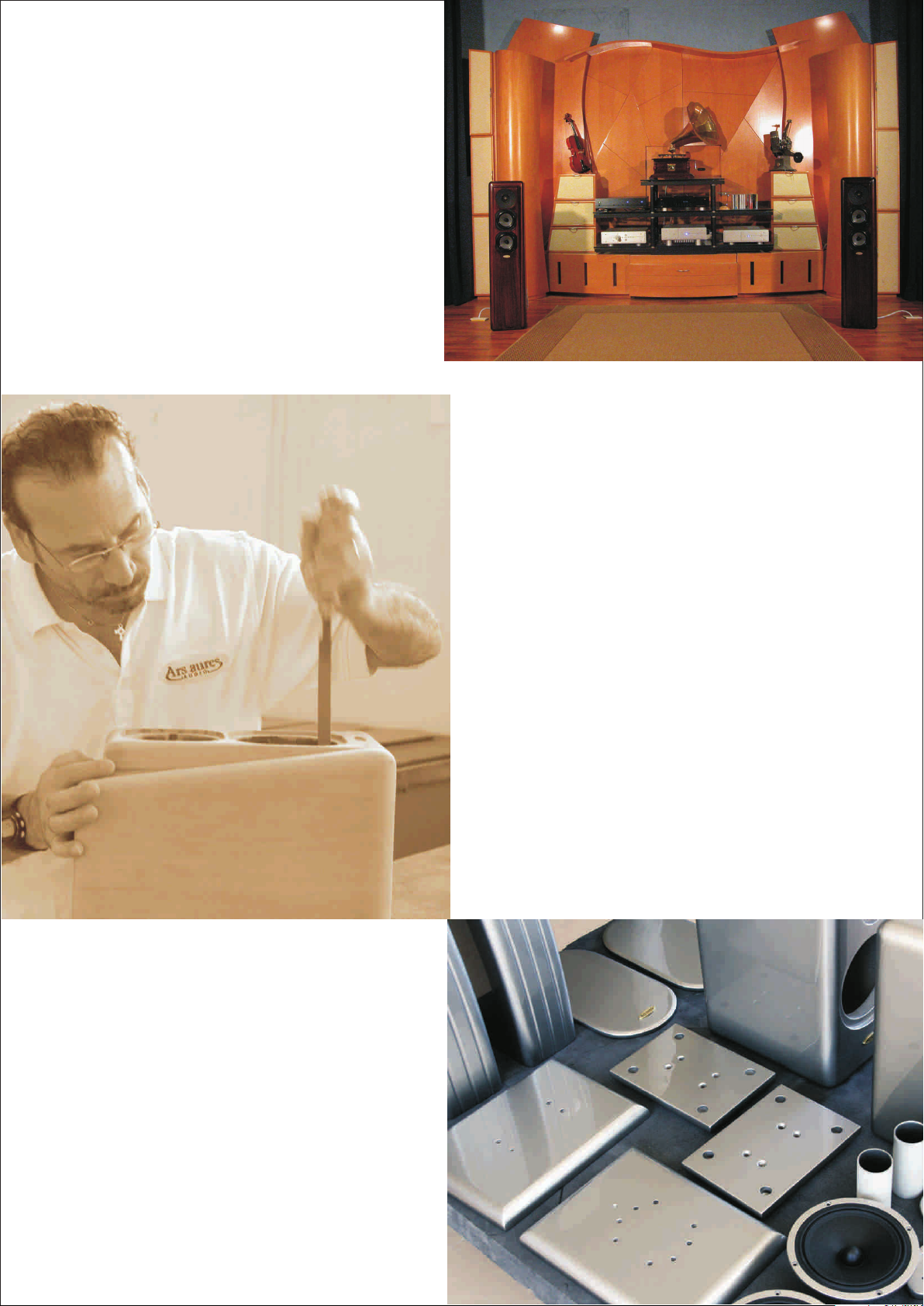

Our handcrafted process requires lengthy quality control
tests that must be done to insure that each speaker can be
certified as an Ars Aures product.
The heart or emotional approach is evidenced as we search
for an evocative sound by tuning the crossover as we listen.
Natural sound, dynamics and soundstage are important and
indispensable qualities when searching for sound
reproduction of a musical event. Without these traits the
feeling of freedom of expression and liveness cannot exist.
Our technologies include: first-order crossovers, bass reflex,
band pass, and above all, no compromise in musical
reproduction.
Our path to high-end is simple and is based upon quality. The
aim is to capture the emotions of the music that hang in the air
and bring them to you…
In 2002, after 5 years from its' inception in 1997, Ars
Aures Audio presented the Musical Notes line at Las
Vegas CES. The new loudspeaker line was designed
as a benchmark product without compromises in quality
or musicality.
High technology in projecting, manufacturing and
testing are only the preface of the know how that brings
the birth of a Musical Note's Speaker.
The unique AA sound is a result of many factors. First,
we select drivers that are closely matched to obtain
uniformity and consistency in our sound. Then we
invest a great deal of time in intense listening sessions.
There are many fine ways to arrive at “good” sound but
only our special blend of warmth, concreteness,
sweetness, and detail can be called, “The Musical
Notes Sound”. This is the best that high-end technology
can offer to reach our ultimate goal: “Realism”.
The art of listening
Page 3
Natural Crossover
THE MAIN GOAL of the Ars Aures crossover is to retain a
seamless transition between the drivers that creates a
sweet and natural sound.
We choose the best available matched drivers in the
world so that no crossover correction is required.
The crossover allows the drivers to work well within their
best frequency range. This allows the drivers to blend
imperceptibly so they appear to the listener to be one.
Our Natural Crossover produces no phase rotation and
does not alter the speed of the drivers. This maintains
time coherency which locates instruments and vocals in
their proper place in space.
We do all of this to maintain a very linear phase response.
This gives all of the Ars Aures loudspeakers a true and
realistic soundstage and very natural reproduction of the
musical event.
Neutral Cabinet
We believe that a speaker must add nothing to the music. It
must only be a conduit for the source; an absolute fidelity
reproduction system.
Only the drivers in a speaker should be heard. The cabinet
cannot introduce any noise, which may interfere with the
sound stage or the clarity of the input source.
Ars Aures Audio speakers employ high-density woods with a
variety of thickness in the cabinet, varying from a density of
1¼”: to 3¾”to eliminate unwanted vibration that might produce
noise. Even our various marble speakers, made on request, to
obtain maximum neutrality.
The internal distribution of volumes and shapes is studied to
minimize and eliminate stationary waves inside the cabinet
that could introduce distortion.
For the same reason, our cabinets have no sharp angles to
avoid diffractions.
Our path to high end is simple:
It is based upon quality;
to capture the emotions
of the music that hang
in the air and bring
them to you.
Page 4

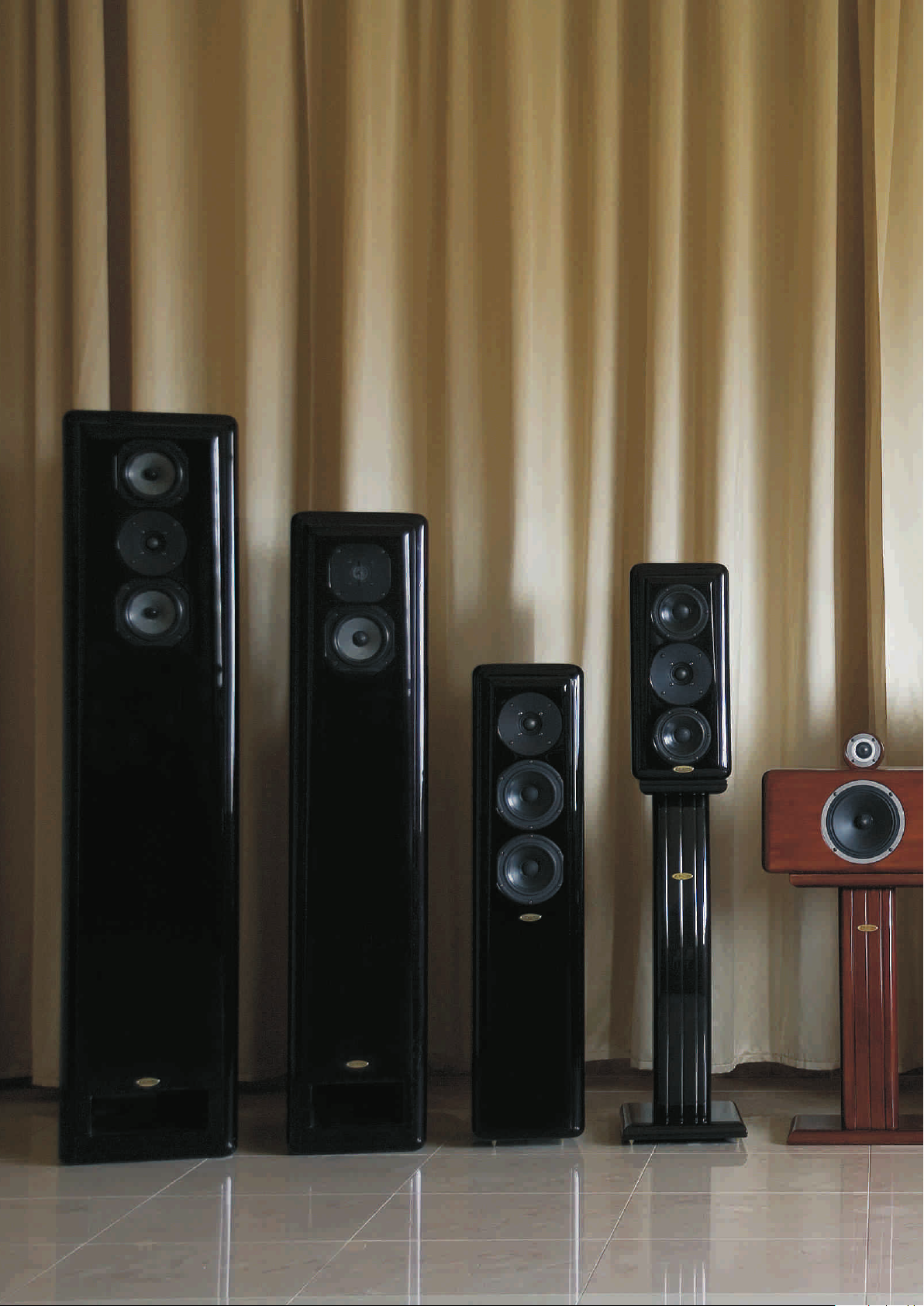

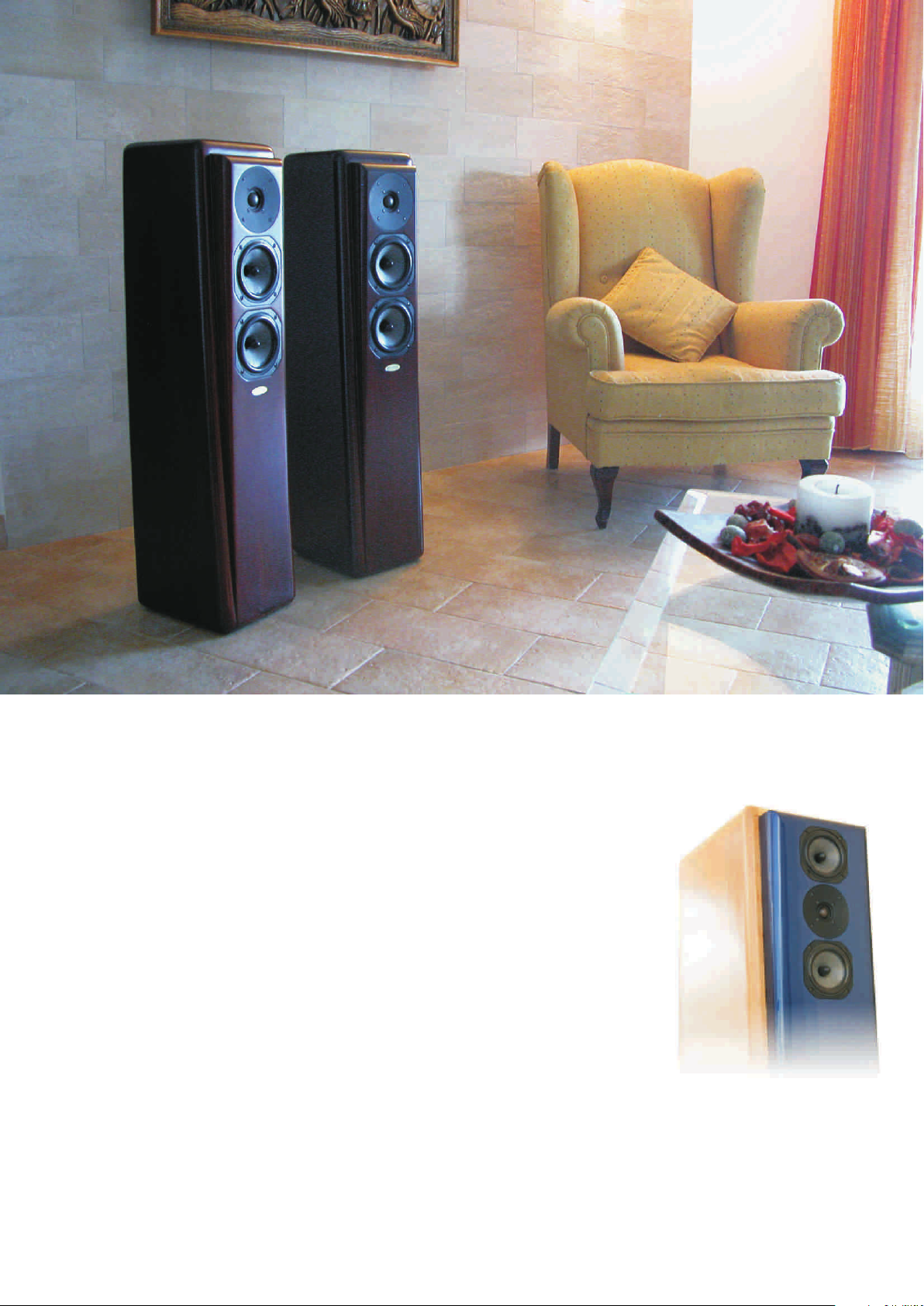

Musical Notes Line
Ars Aures Audio loudspeakers represent a major step forward in obtaining purity and
realism in the natural reproduction of a musical event. They can reconstruct a more
natural and detailed soundstage that brings the listener closer to a more truthful
listening experience.
With the adoption of NATURAL CROSSOVER and NEUTRAL CABINET, we were
forced to adhere to a very strict selection process for passive components (resistors,
capacitors, coils, internal wiring, and terminals), with the use of solid wood and HDF of
the highest density.
Every passive component is selectively chosen to meet our strict standards. Then
they are measured. If they do not meet our set standards they are rejected.
The manufacturing of the loudspeakers follows a severe protocol:
Our technical audio experts assemble crossovers. Next, our project manager tests
them. Finally Giuseppe Nizzola, AA President, a graduate audio engineer, test them.
At this point the crossover is ready to be installed.
After the final installation of the crossover, additional measuring tests are done on
each and every speaker.
The final and most important test we do is by the HUMAN EAR.
Everyone on the Ars Aures staff does the listening test from the workers to the
President. This ensures that everyone on our staff can be proud of the speakers we
produce.
Our strength in being a smaller speaker manufacturer is our ability to work in harmony
and be able to express our feelings in having a speaker that is made with not just
machinery but with our hearts.
The first model in the
Musical Notes line was
the “SOL”, our absolute reference.
Page 5
Musical Notes
Technical information
Musical Center
System: standmount, bass reflex,
Freq.Response : 60-30.000Hz +-3dB
Nominal Impedance: 4 Ohm
Sensitivity : 89 dB (2,83v, 1m)
Natural Crossover: 6 db/octave, litz coils
Recomm. amp: from 30 to 100 W
Components: 2 Woofer 4"1/2"
Components: Tweeter 1" Revelator
Dimensions (HxWxD): 28x23x36 cm
Neutral Cabinet: from 30 to 60 mm;
Net Weight: 16Kg (HDF)
Finish: wood, wood painted, high gloss.
MI new version 2007
System: floorstander, bass reflex,
Freq. Response : 40-30.000Hz +-3dB
Minimum Impedance: 4.5 Ohm
Nominal Impedance: 4 Ohm
Sensitivity : 89 dB (2,83v, 1m)
Natural Crossover: 6 db/octave, litz coils
Recomm. amp: from 40 to 100 W
Components: 2 Woofer 5"
Components: Tweeter 1" Revelator
Dimensions (HxWxD): 99x23x28 cm
Neutral Cabinet: 60 mm (front panel); 30 mm
(others)
Net Weight: 35 Kg each
Finish: HDF high gloss , solid wood, wood
painted
DO new version 2007
System: standmount, bass reflex, symmetrical
system
Freq.Response : 55-30.000Hz +-3dB
Minimum Impedance: 4.5 Ohm
Nominal Impedance: 4 Ohm
Sensitivity : 89 dB (2,83v, 1m)
Natural Crossover: 6 db/octave, litz coils
Recomm. amp: from 35 to 100 W
Components: 2 Woofer 5"
Components: Tweeter 1" Revelator
Dimensions (HxWxD): 46x23x28 cm
Neutral Cabinet: 60 mm (front panel); 30 mm
(others)
Net Weight: 16Kg (HDF)
Finish: HDF high gloss finish, solid wood,
wood painted.
FA
System: floorstander, reflex+bandpass
Freq. Response : 30-28.000Hz +-3dB
Minimum Impedance: 2.8 Ohm
Nominal Impedance: 4 Ohm
Sensitivity : 89 dB (2,83v, 1m)
Natural Crossover: 6 db/octave, litz coils
Recomm. amp: from 50 to 100 W
Components: Woofer 5"
Components: 2xWoofers 8"
Components: Tweeter 1"
Dimensions (HxWxD): 132x28x48 cm
Neutral Cabinet: 60 mm (front panel); 30 mm
(others)
Net Weight: 60 Kg each
Finish: HDF high gloss, wood painted.
SOL
System: floorstander,
reflex+bandpass
Freq. Response : 25-30.000Hz +-3dB
Minimum Impedance: 2.8 Ohm
Nominal Impedance: 4 Ohm
Sensitivity : 92 dB (2,83v, 1m)
Natural Crossover: 6db/octave, litz coils
Recomm. amp: from 70 to 100 W
Components: 2xWoofer 5"
Components: 2xWoofers 11"
Components: Tweeter 1" Revelator
Dimensions (HxWxD): 151.5x34x55 cm
Neutral Cabinet: 90 mm (front panel); 30 mm
(others)
Net Weight: 120 Kg each
Finish: HDF high gloss , wood painted
symmetrical system,
Page 6

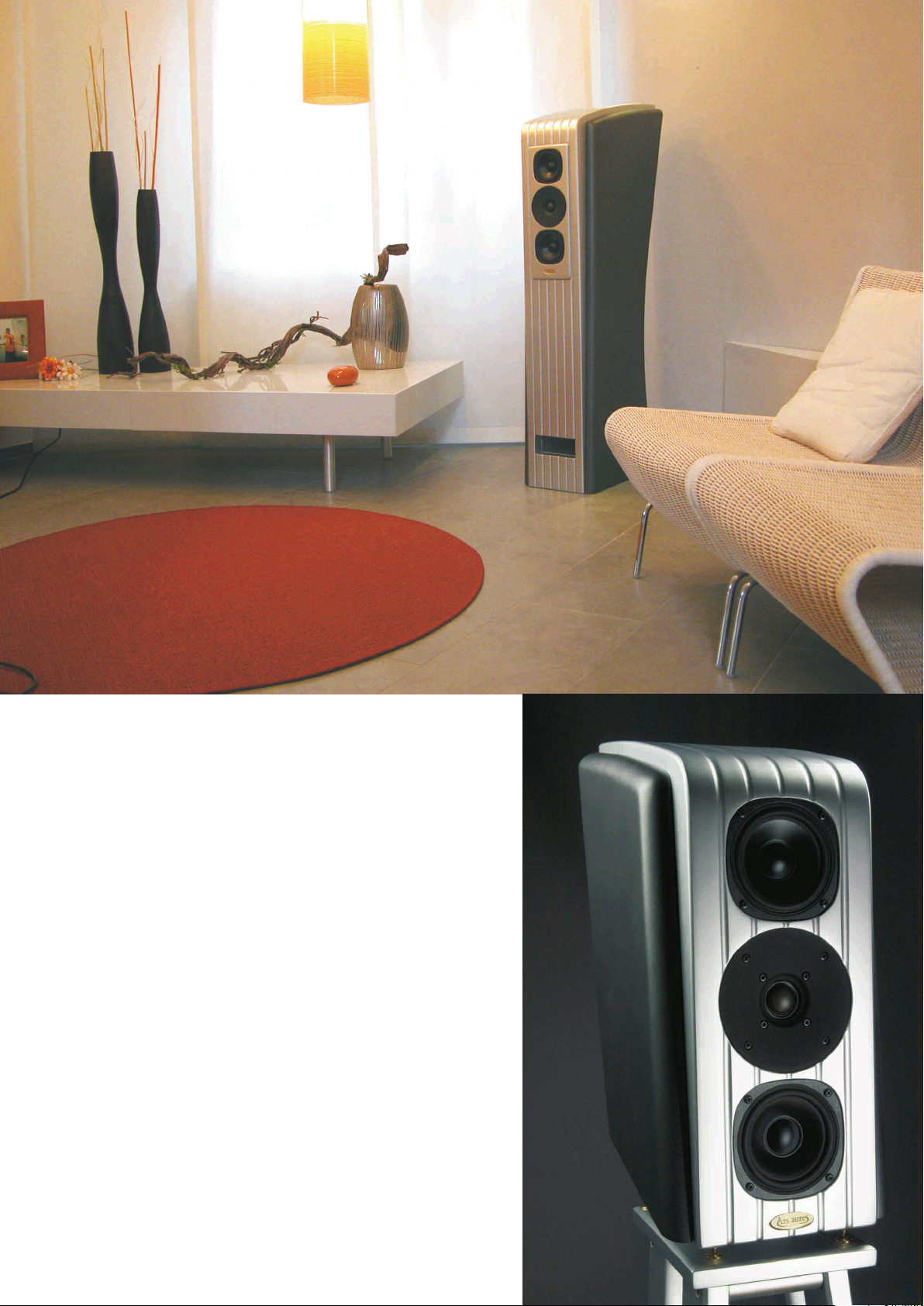

Sensorial Line
A research on a new line of Loudspeakers to complement the
existing ones was made, Ars Aures Audio developed the "
SENSORIAL" with a futuristic design and state of the art
technology, the first model was introduced in May 2003 at the High
End Show in Frankfurt, Germany, where it got excellent reviews by
the audiophile clientele and professionals.
The starting point of the Sensorial line was given by improving the
excellent resonance control capacity of the Musical Notes line.
The new Sensorial speaker has two incomparable features, the
irregular shape and a thicker panel to give better control on
eliminating any adverse resonance
The end result is: " MUSIC HAS NEVER BEEN SO REAL"
The Sensorial Loudspeaker will meet or exceed any expectation
in its exterior beauty and on the quality of the sound reproduction.
Thanks to the experience of his master handicraftsmen, Ars Aures
Audio is introducing modern design and old world knowledge to
handcraft speakers without compromises, rich of detail, where
man is again the protagonist.
Ars Aures Audio:
where Technology meets Art
Page 7
Sensorial Line
Technical information
Mini Sensorial
System: standmount, bass reflex,
Freq. Response : 60-30.000Hz +-3dB
Minimum Impedance: 4.5 Ohm
Nominal Impedance: 4 Ohm
Sensitivity : 89 dB (2,83v, 1m)
Natural Crossover: 6 db/octave, litz coils
Recomm. amp: from 30 to 100 W
Components: 2xWoofers 4"1/2
Components: Tweeter 1" Revelator
symmetrical system
Sensorial
System: standmount, bass reflex, symmetrical system
Freq. Response : 50-30.000Hz +-3dB
Minimum Impedance: 4.5 Ohm
Nominal Impedance: 4 Ohm
Sensitivity : 89 dB (2,83v, 1m)
Natural Crossover: 6 db/octave, litz coils
Recomm. amp: from 50 to 100 W
Components: 2xWoofers 5"
Components: Tweeter 1" Revelator
Dimensions (HxWxD): 74x44x23 cm
Neutral Cabinet: from 30 to 60 mm
Net Weight: 22 Kg each
Finish: HDF high gloss, high gloss and wood, chrome
gloss.
Neutral Cabinet: 60 mm (front panel);
from 40 to 55 mm others
Net Weight: 30 Kg each
Finish: HDF high gloss and wood, High gloss, chrome
gloss.
Midi Sensorial
Sys tem: f loors t ander,
reflex+bandpass
Freq. Response : 30-30.000Hz +-3dB
Minimum Impedance: 3.5 Ohm
Nominal Impedance: 4 Ohm
Sensitivity : 89 dB (2,83v, 1m)
Natural Crossover: 6 db/octave, litz coils
Recomm. amp: from 50 to 100 W
Components: 2xWoofers 4"1/2
Components: Tweeter 1" Revelator
Components: Woofer 11"bandpass
sym metric al sy stem,
Dimensions (HxWxD): 120x25x50 cm
Neutral Cabinet: from 30 to 60 mm
Net Weight: 50 Kg each
Finish: HDF high gloss, chrome gloss.
Page 8
The F1 line is born with the goal to offer to audiophiles the emotion of true
music, through a system of loudspeakers offered to a reasonable price.
By diligent researching of drivers and by approaching our cabinet design
from a cost/benefit point of view we were able to dramatically reduce our
costs without compromising the quality of our sound.
The drivers were considerably less expensive than those used in the
Sensorial and Musical Notes line. We then modified the drivers to our own
specifications. The result was our ability to achieve the Ars Aures
signature sound.
We made no compromise on the technological side, applying strictly our
principles of NATURAL CROSSOVER and NEUTRAL CABINET.
Listening to these loudspeakers, it comes natural to exclaim:
"It is an Ars Aures loudspeaker!"
Because the sound living in the air is natural and musical, as only an Ars
Aures speaker can do.
F1 Line
Ars Aures Audio:
where Technology meets
Essentiality
Italian style
Page 9
F1 Line
Technical information
F1 Center Channel
System type: sealed enclosure
Frequency Response : 65-20.000Hz +-3dB
Nominal Impedence: 8 Ohm
Sensitivity: : 89 dB (2,83v, 1m)
Crossover: 6 db/octave, litz coils
Recommended amp: 30 -100 W
F1 Monitor
System type: reflex standmount
Frequency Response: 50-20.000Hz +-3dB
Nominal Impedence: 8 Ohm
Sensitivity: 89 dB (2,83v, 1m)
Crossover: 6 db/octave, litz coils
Recommended amp: 30-100 W
Components: 1 woofer 6"1/2
Components: Tweeter 1" <br />
Dimensions (HxWxD): 25x43x22 cm
Finish: MDF faux wood, high and medium
gloss, solid wood
Cabinet:30 mm (frontal) 25 mm others
Net Weight: 10 Kg
Components: 1 woofer 6"1/2
Components: Tweeter 1"
Dimensions (HxWxD): 40x22x30 cm
Finish: MDF faux wood, high and medium
gloss, solid wood
Cabinet: 30 mm (frontal) 25 mm others
Net Weight: 10 Kg each one
F1
System type: reflex floorstander
Frequency Response : 35-20.000Hz +-3dB
Nominal Impedence: 8 Ohm
Sensitivity: : 89dB (2,83v, 1m)
Crossover: 6db/octave, litz coils
Recommended amp: 30 -100 W
Components: 1 woofer 6"1/2
Components: Tweeter 1"
Dimensions (HxWxD): 100x22x28.5 cm
Finish: HDF painted, high gloss, solid wood,
veneer with painted frontal
Cabinet: 60 mm (frontal) 30 mm others
Net Weight: 25 Kg each one
Page 10
Page 11
Page 12
Made in Italy
ARS AURES AUDIO
Strada Statale 115 Km 68 - 91022 Castelvetrano (ITALY)
Phone: +39 0924 913674
[email protected] - www.arsaures.com
Loading...
