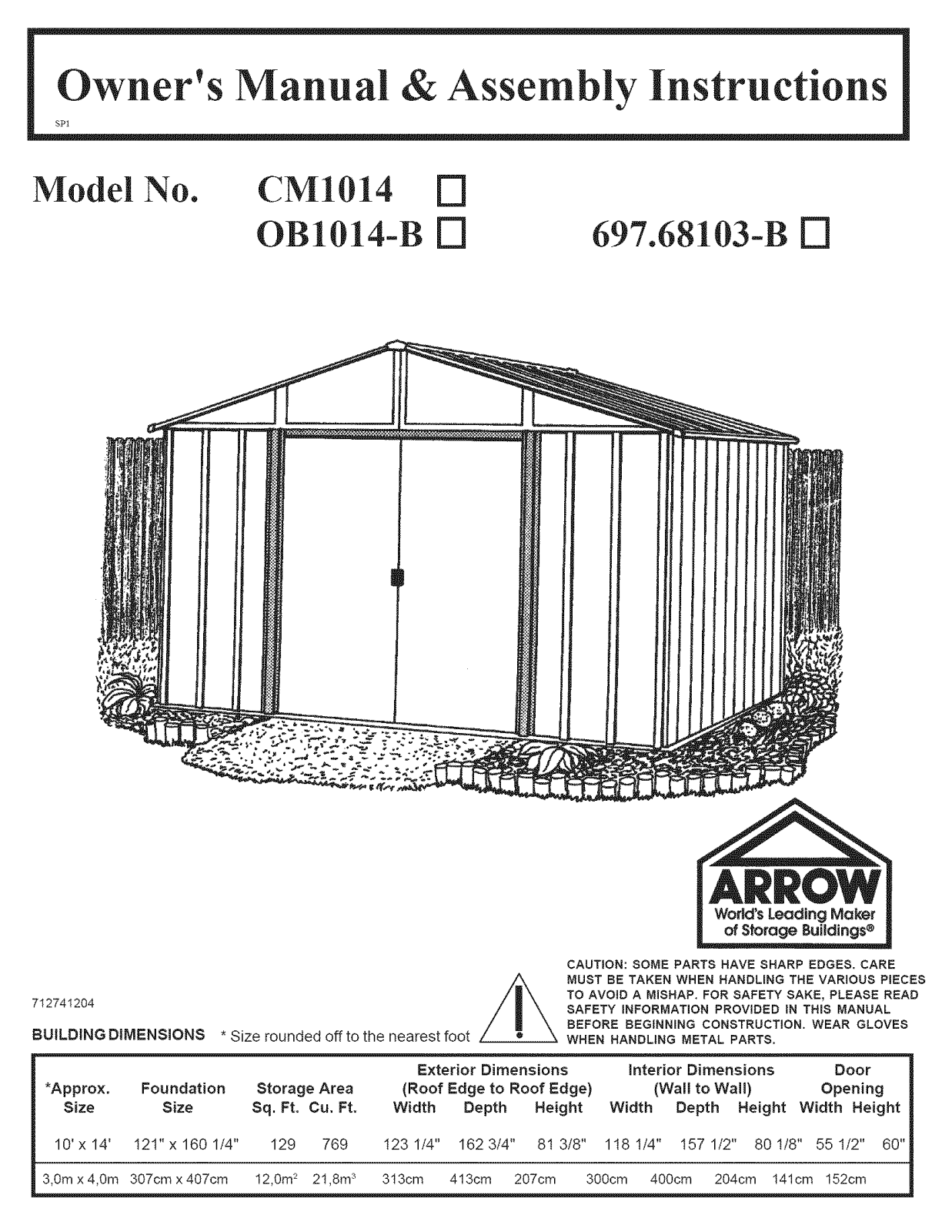

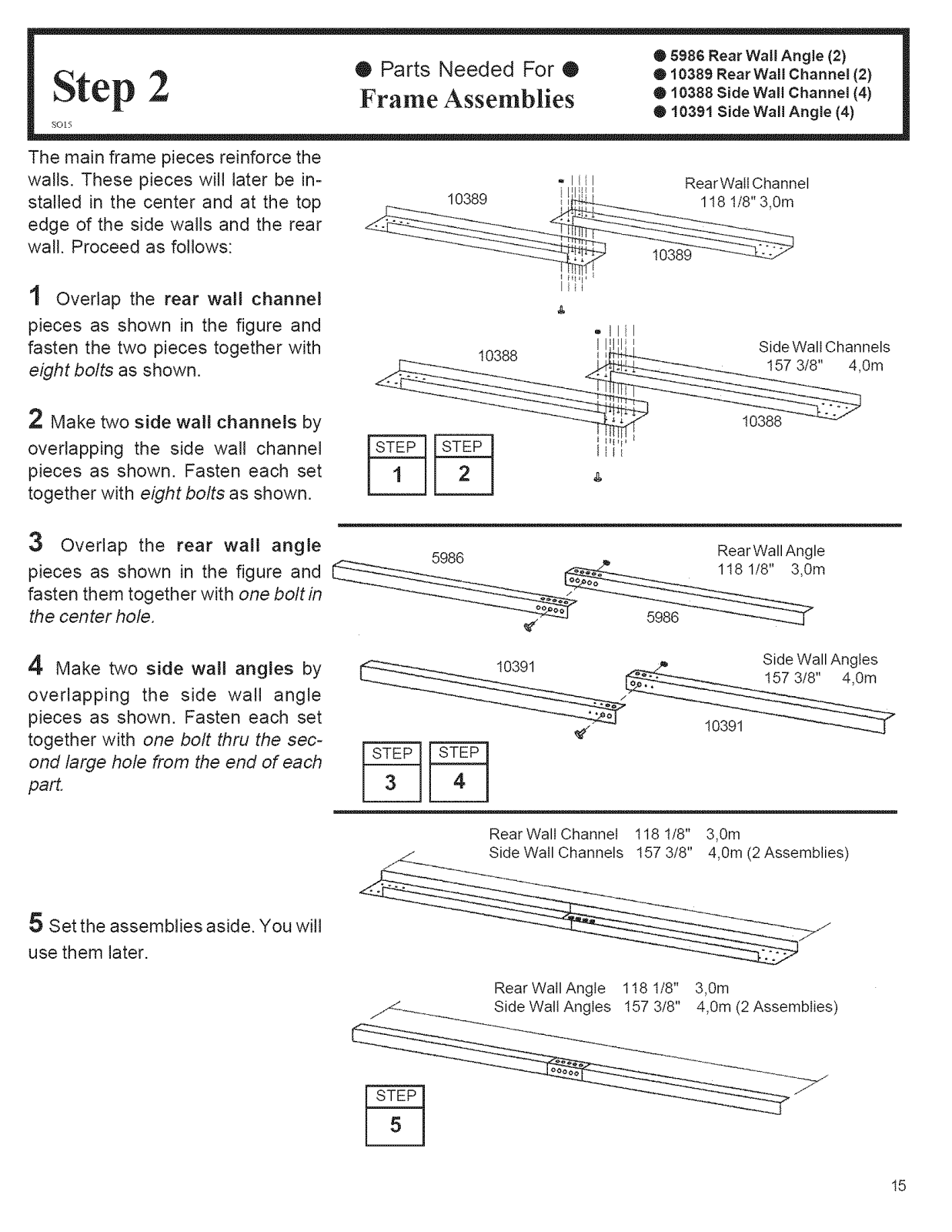

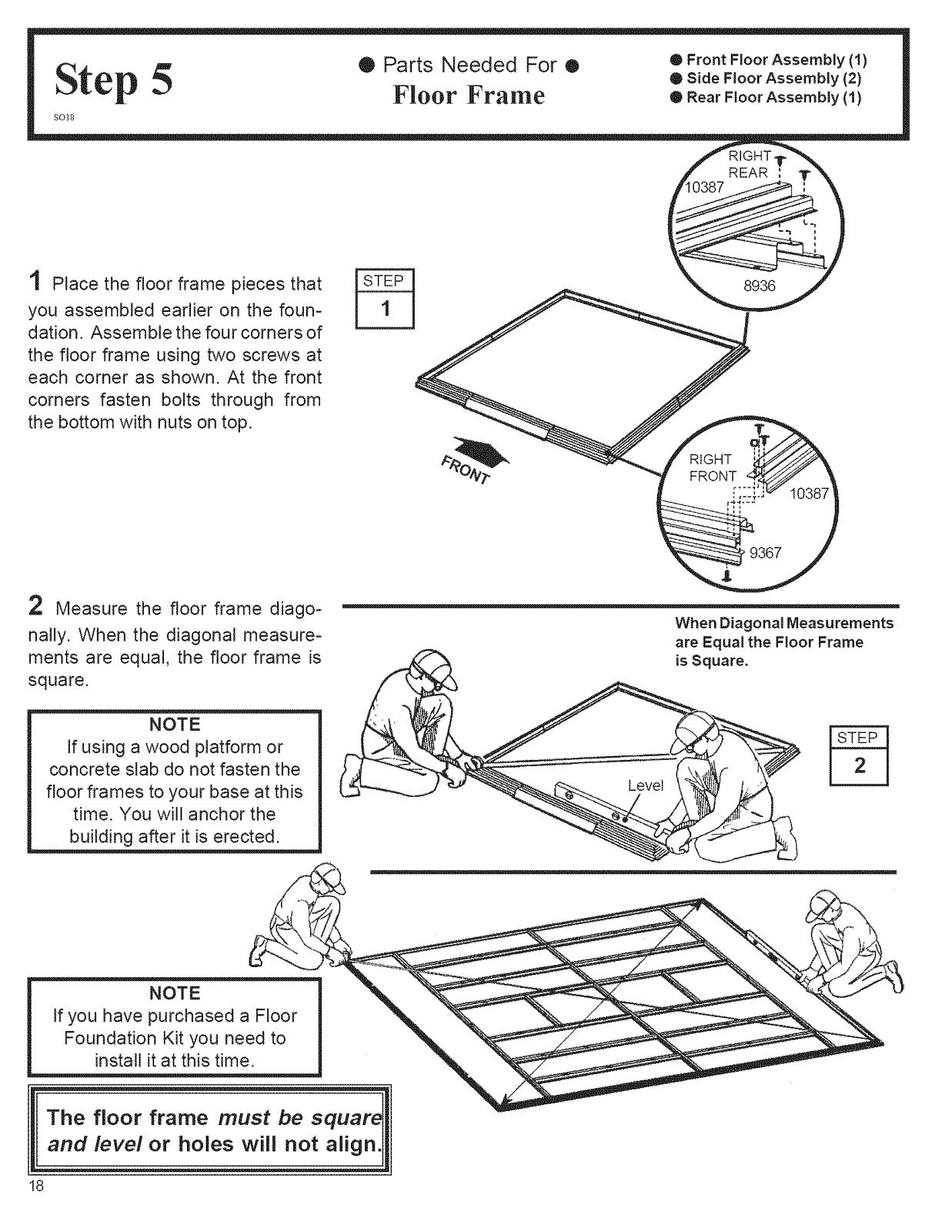

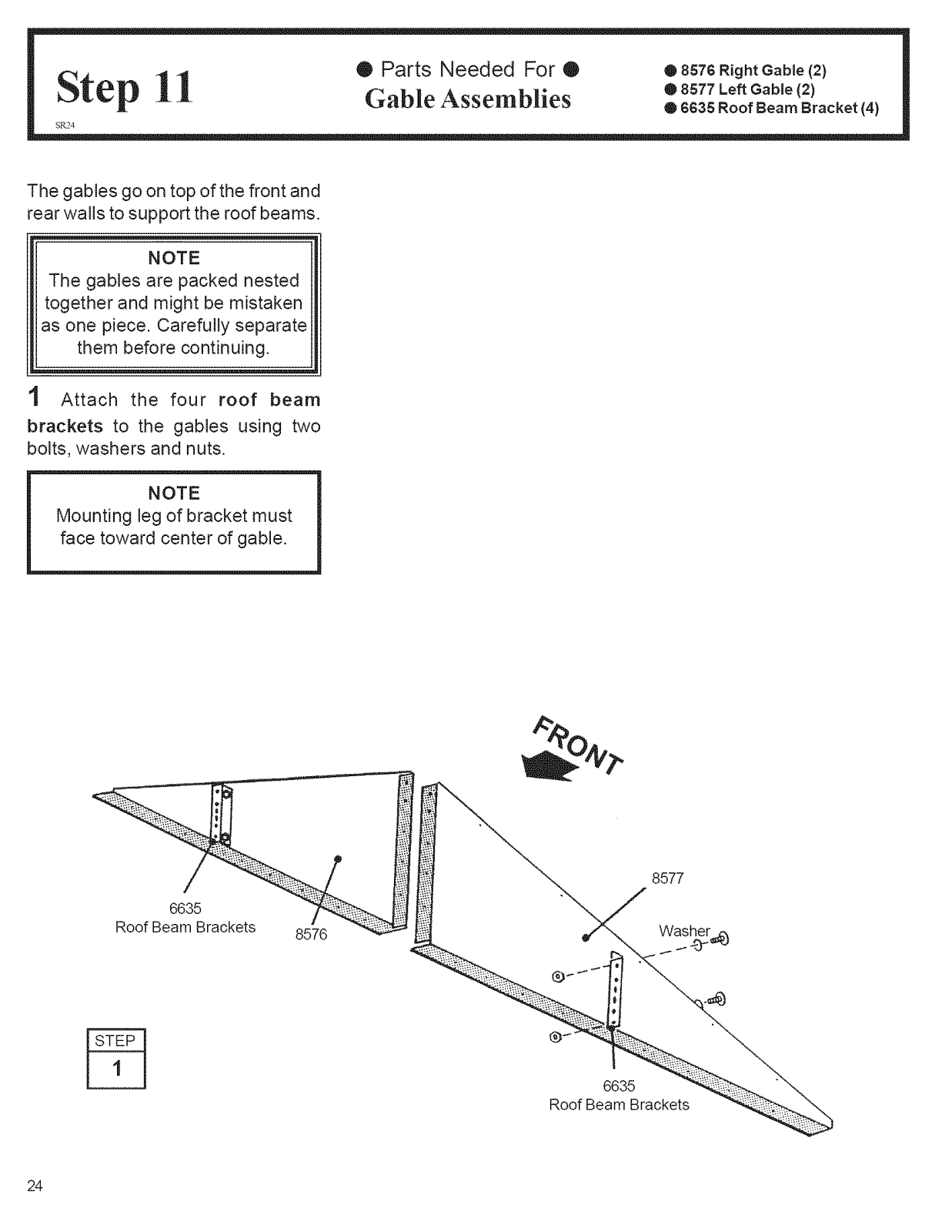

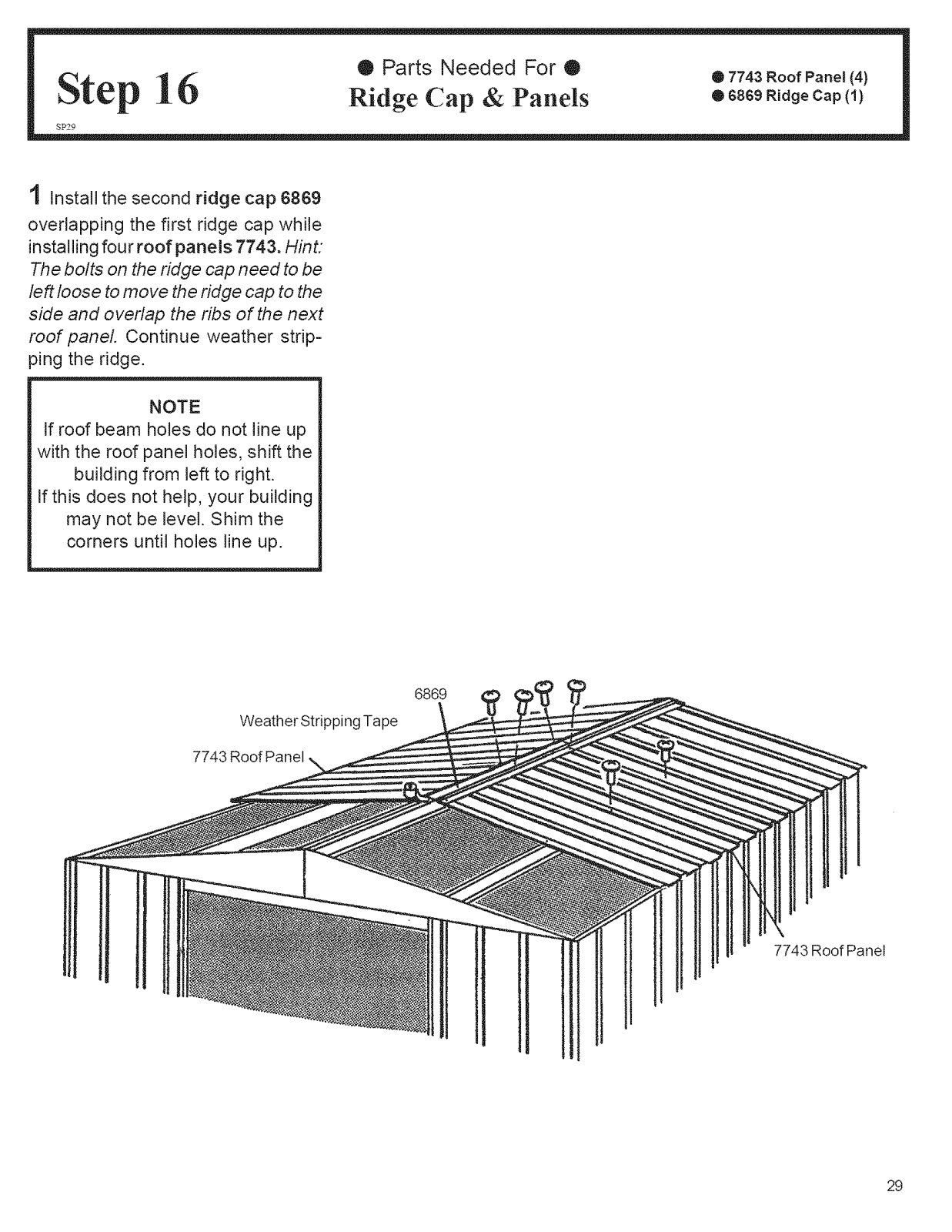

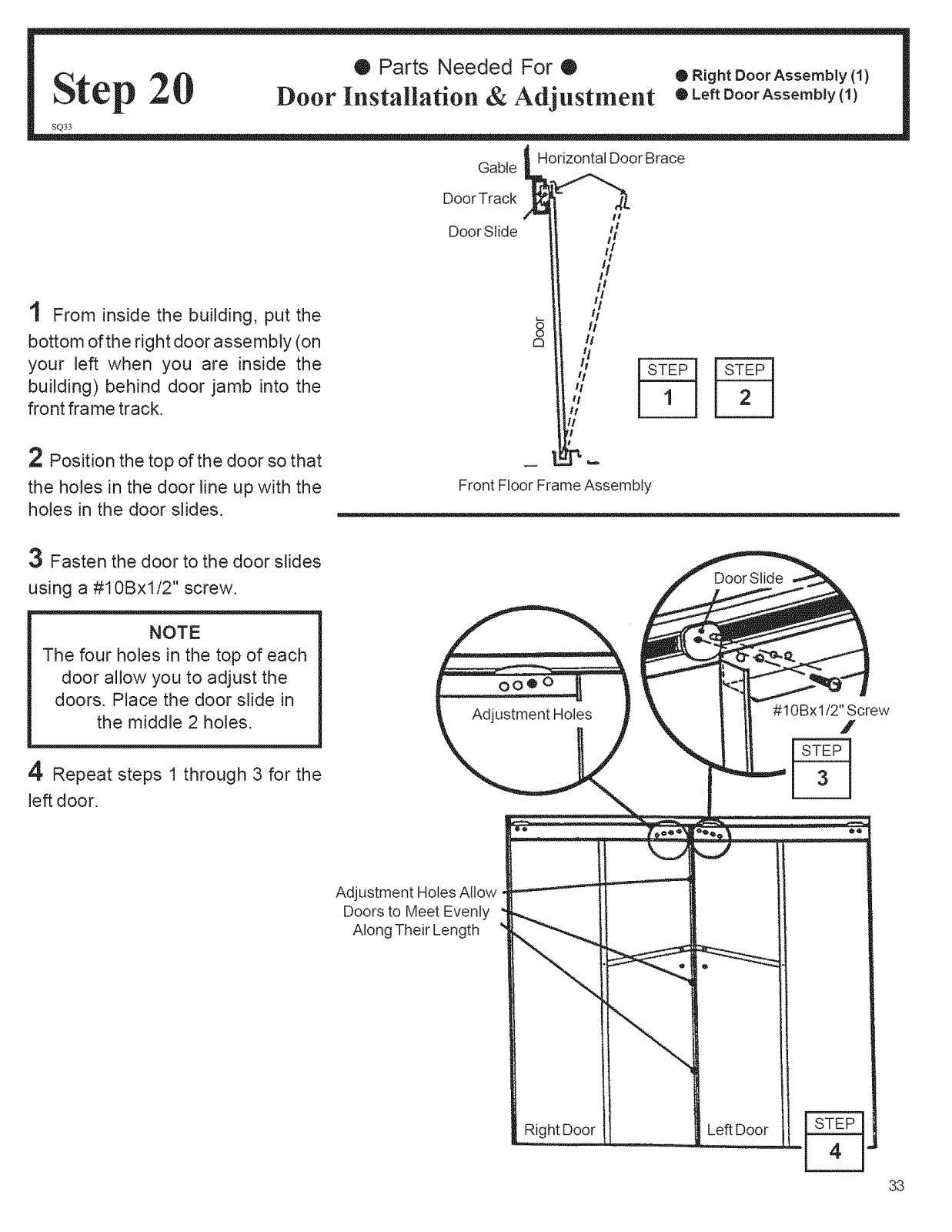

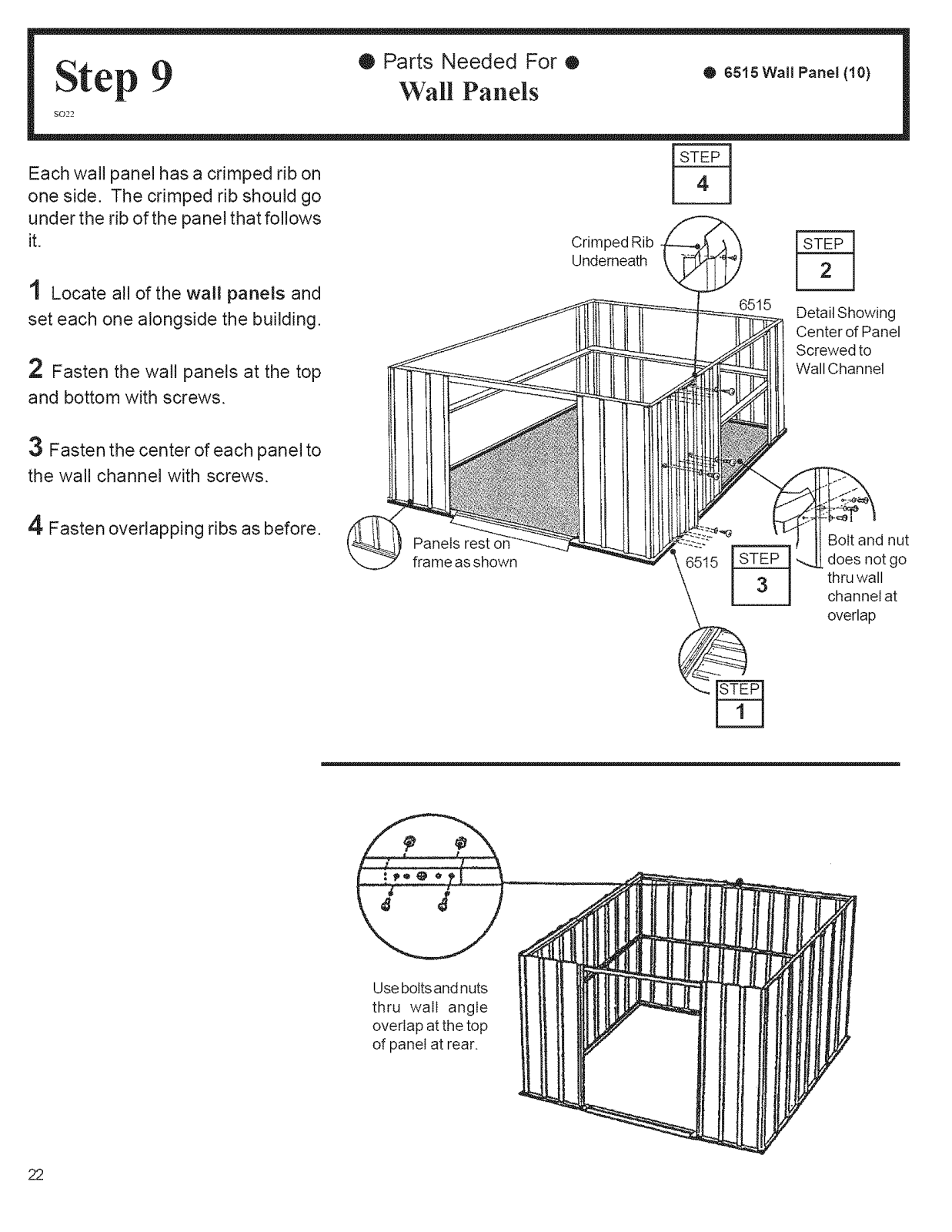

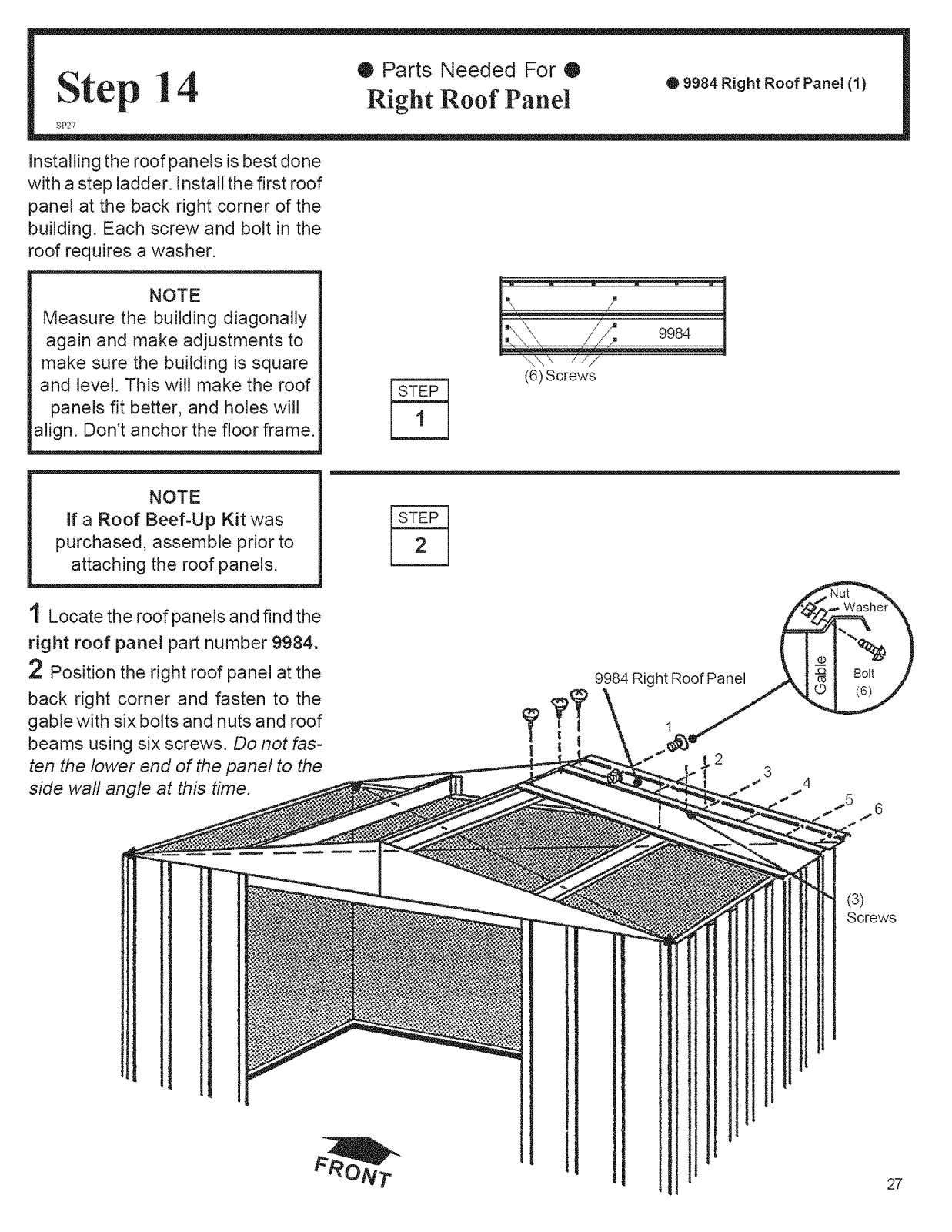

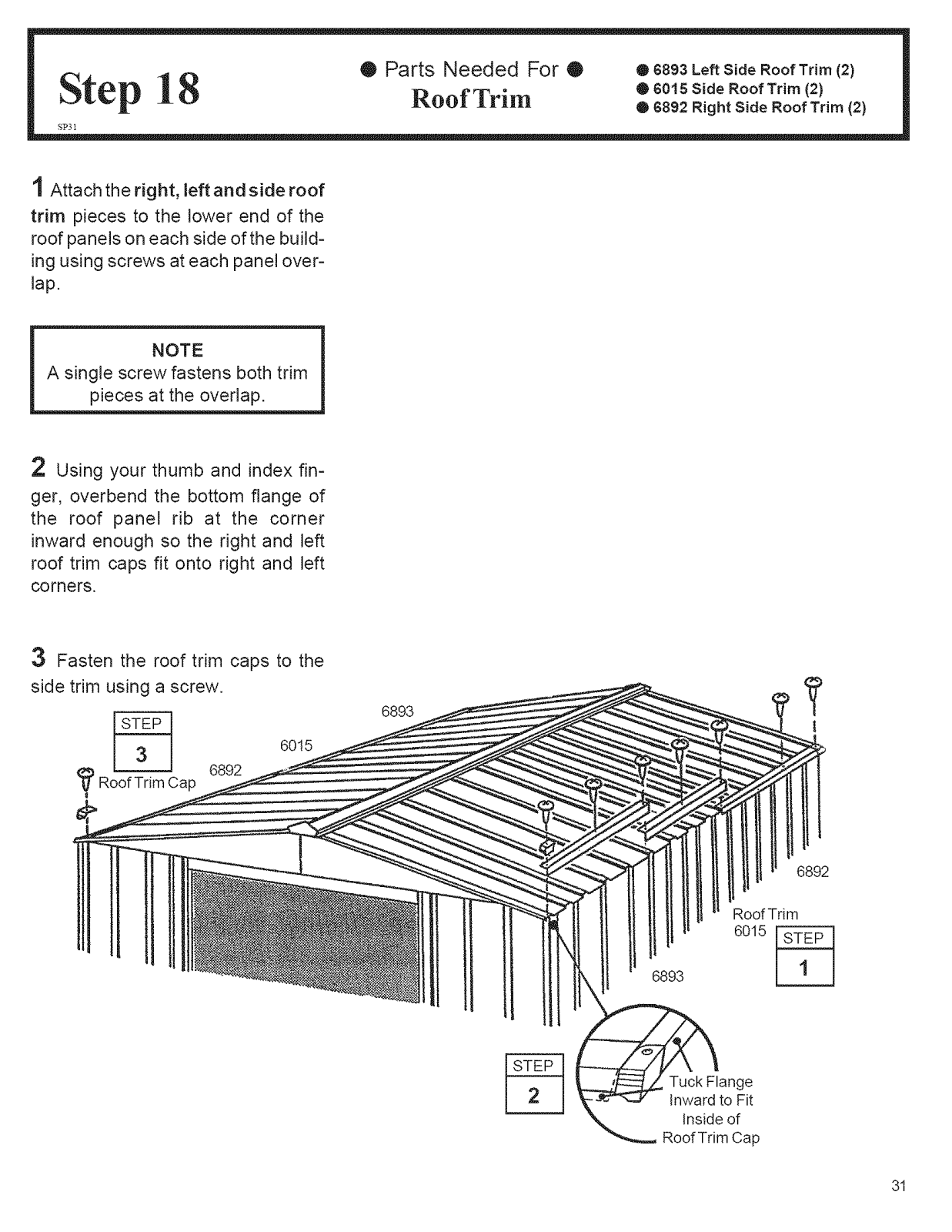

Arrow Storage Products OB1014-B, 697.68103-B, CM1014 User Manual

Owner's Manual & Assembly Instructions

SPl

Model No.

CM1014 D

OB1014-B Q 697.68103-B Q

CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES

712741204

BUILDING DIMENSIONS

*Approx. Foundation Storage Area

Size Size Sq. Ft. Cu, Ft.

10'x14' 121"x1601/4" 129 769 1231/4" 1623/4" 813/8" 1181/4" 1571/2" 801/8" 551/2" 60"

3,0mx4,0m 307cmx407cm 12,0m 2 21,8m 3 313cm 413cm 207cm 300cm 400cm 204cm 141cm 152cm

* Size rounded off to the nearest foot

Exterior Dimensions Interior Dimensions Door

(Roof Edge to Roof Edge) (Wall to Wall) Opening

Width Depth Height Width Depth Height Width Height

TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ

SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES

WHEN HANDLING METAL PARTS.

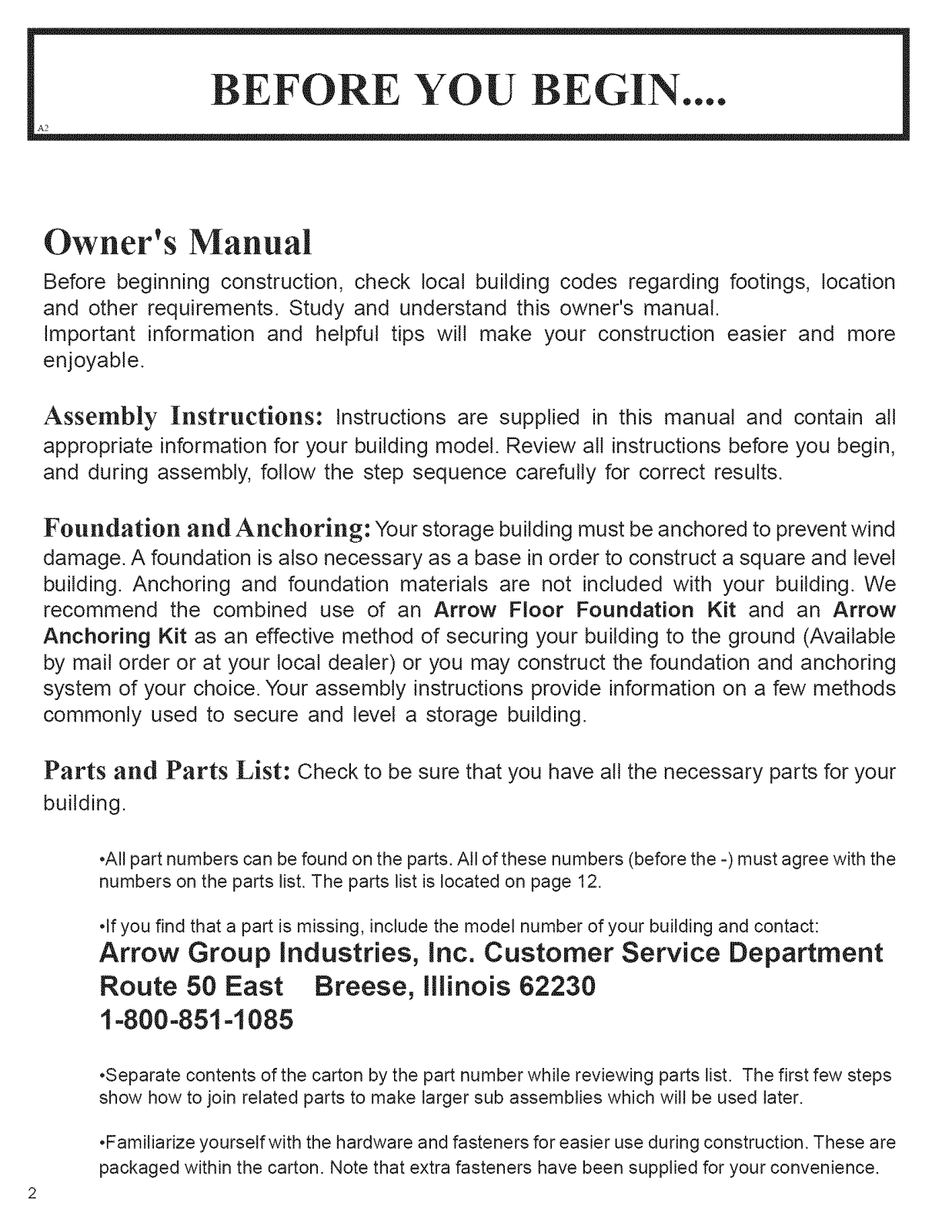

BEFORE YOU BEGIN....

A2

Owner*s Manual

Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.

Important information and helpful tips will make your construction easier and more
enjoyable.

Assembly Instructions: Instructions are supplied in this manual and contain all

appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.

Foundation and Anchoring: Your storage building must be anchored to prevent wind

damage. A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We

recommend the combined use of an Arrow Floor Foundation Kit and an Arrow
Anchoring Kit as an effective method of securing your building to the ground (Available

by mail order or at your local dealer) or you may construct the foundation and anchoring
system of your choice. Your assembly instructions provide information on a few methods

commonly used to secure and level a storage building.

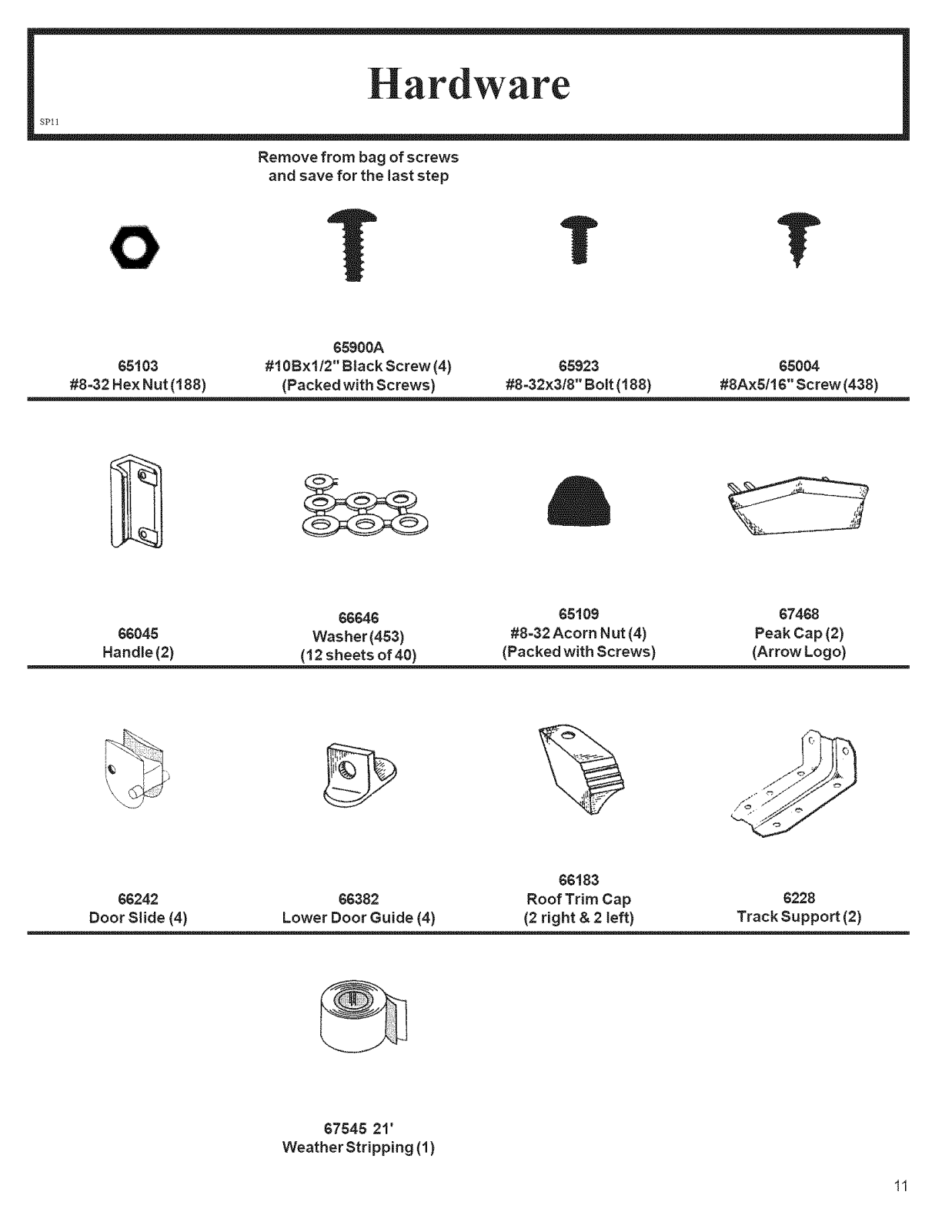

Parts and Parts List: Check to be sure that you have all the necessary parts for your

building.

•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the

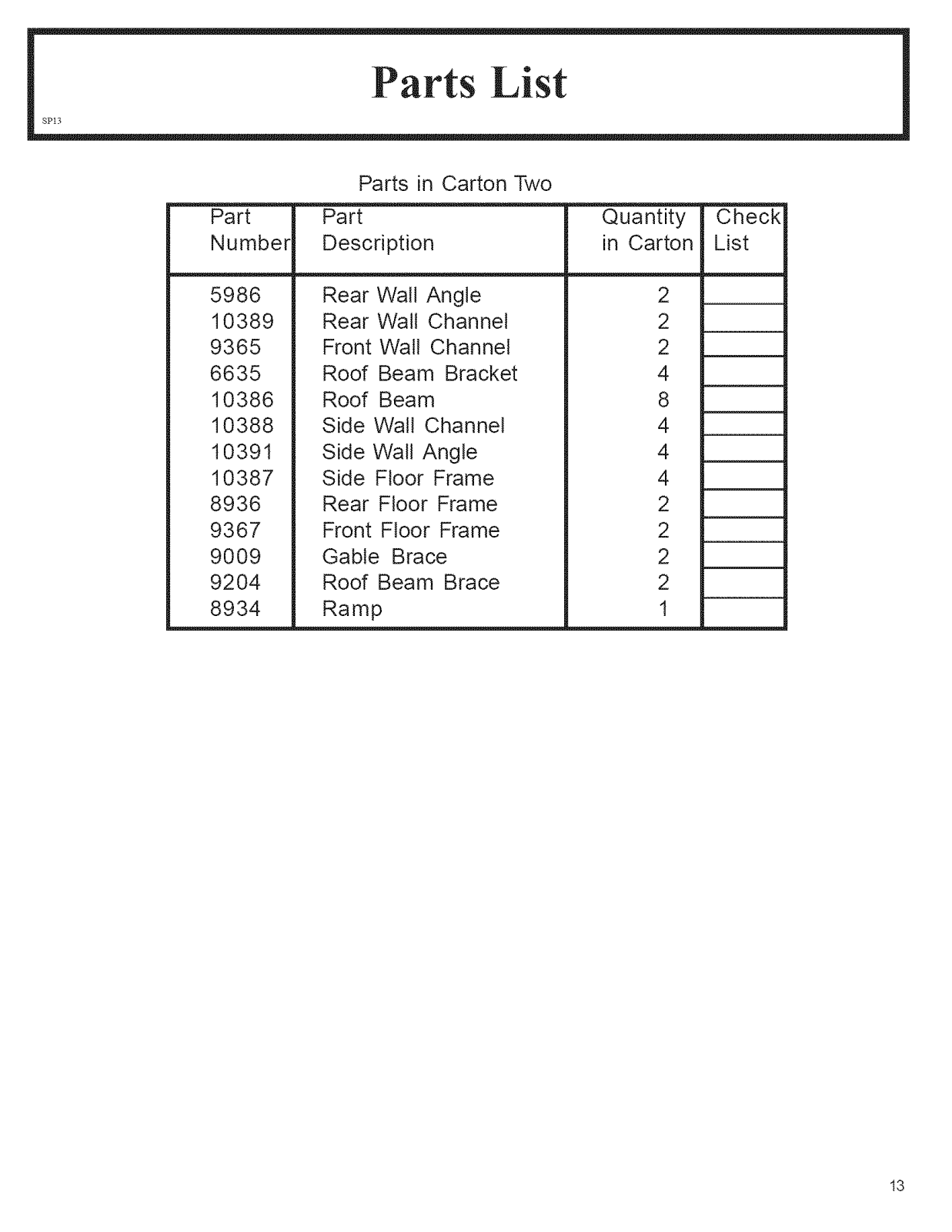

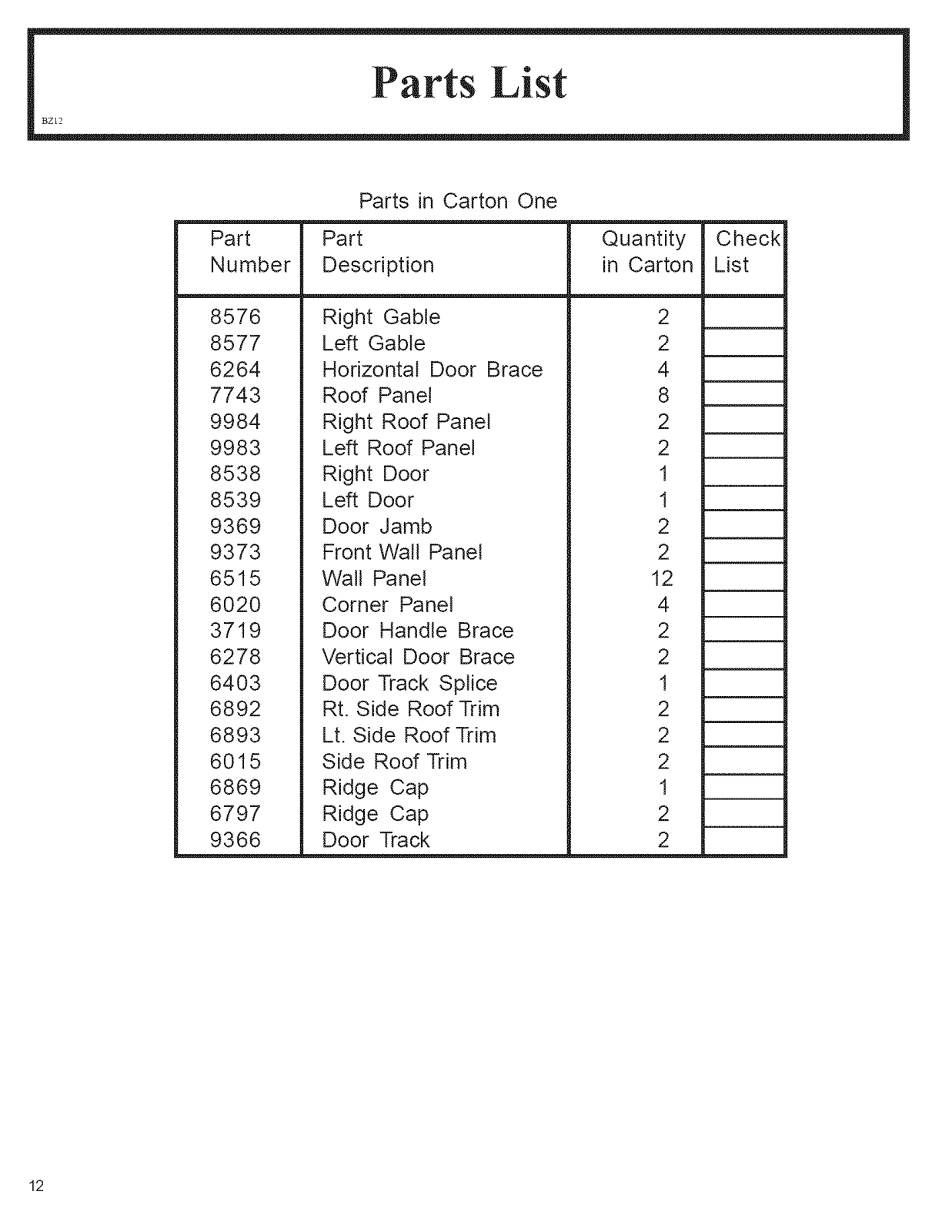

numbers on the parts list. The parts list is located on page 12.

•if you find that a part is missing, include the model number of your building and contact:

Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230

1-800-851-1085

,Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.

.Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.

2

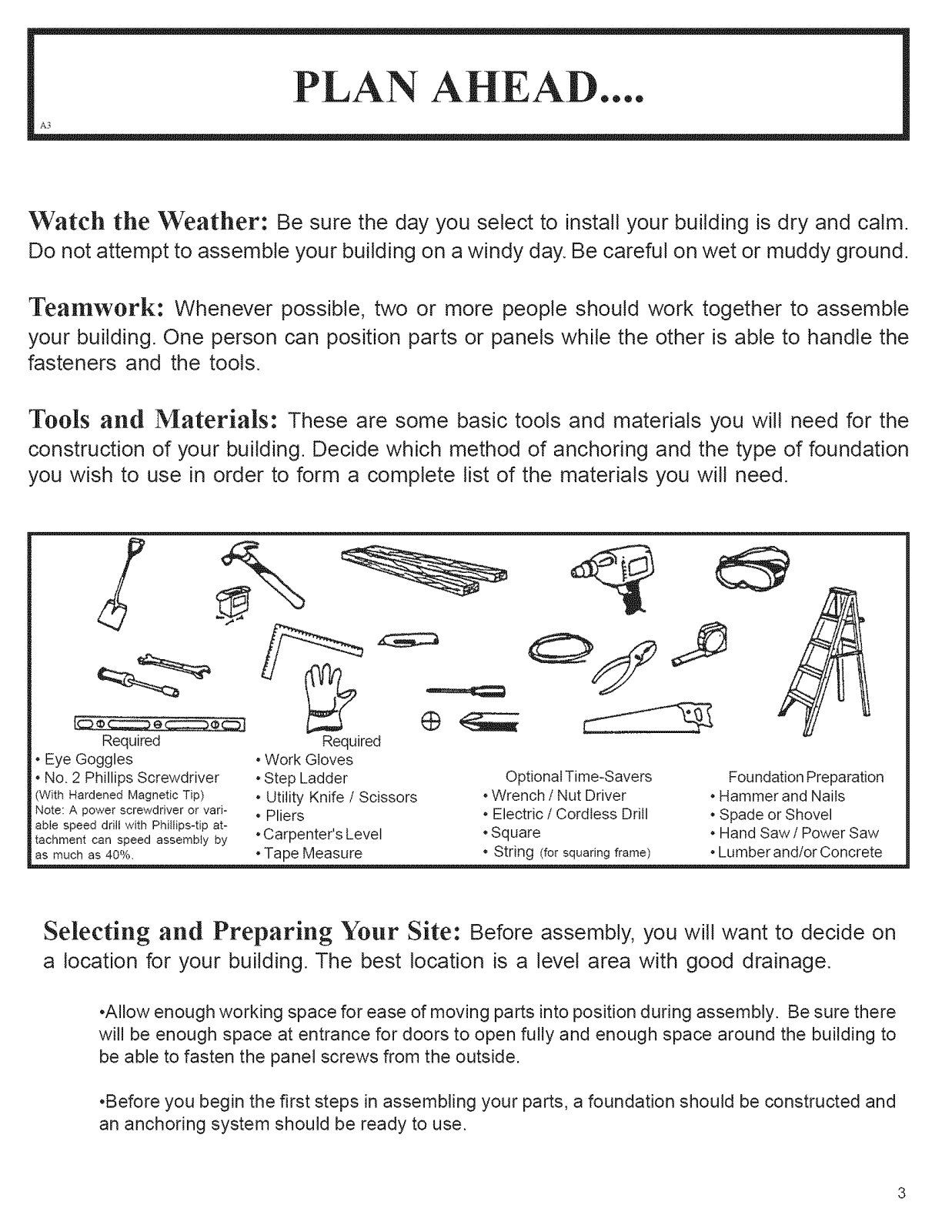

PLAN AHEAD....

A3

Watch the Weather: Be sure the day you select to install your building is dry and calm.

Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.

Teamwork: Whenever possible, two or more people should work together to assemble

your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.

Tools and Materials: These are some basic tools and materials you will need for the

construction of your building, Decide which method of anchoring and the type of foundation
you wish to use in order to form a complete list of the materials you will need,

RequiredRequired

Eye Goggles
No. 2 Phillips Screwdriver

With Hardened Magnetic Tip)

Note: A power screwdriver or vari-
able speed drill with Ph/tips-tip at-

tachment can speed assembiy by

as much as 40%

• Work Gloves

• Step Ladder

• Utility Knife / Scissors

• Pliers

•Carpenter's Level

•Tape Measure

Optional Time-Savers

•Wrench / Nut Driver

• Electric / Cordless Drill

•Square

• String (forsquaringframe)

Foundation Preparation

•Hammer and Nails

•Spade or Shovel

• Hand Saw / Power Saw

•Lumber and/or Concrete

Selecting and Preparing Your Site: Before assembly, you will want to decide on

a location for your building. The best location is a level area with good drainage.

.Allow enough working space for ease of moving parts into position during assembly. Be sure there

will be enough space at entrance for doors to open fully and enough space around the building to

be able to fasten the panel screws from the outside.

.Before you begin the first steps Jnassembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.

3

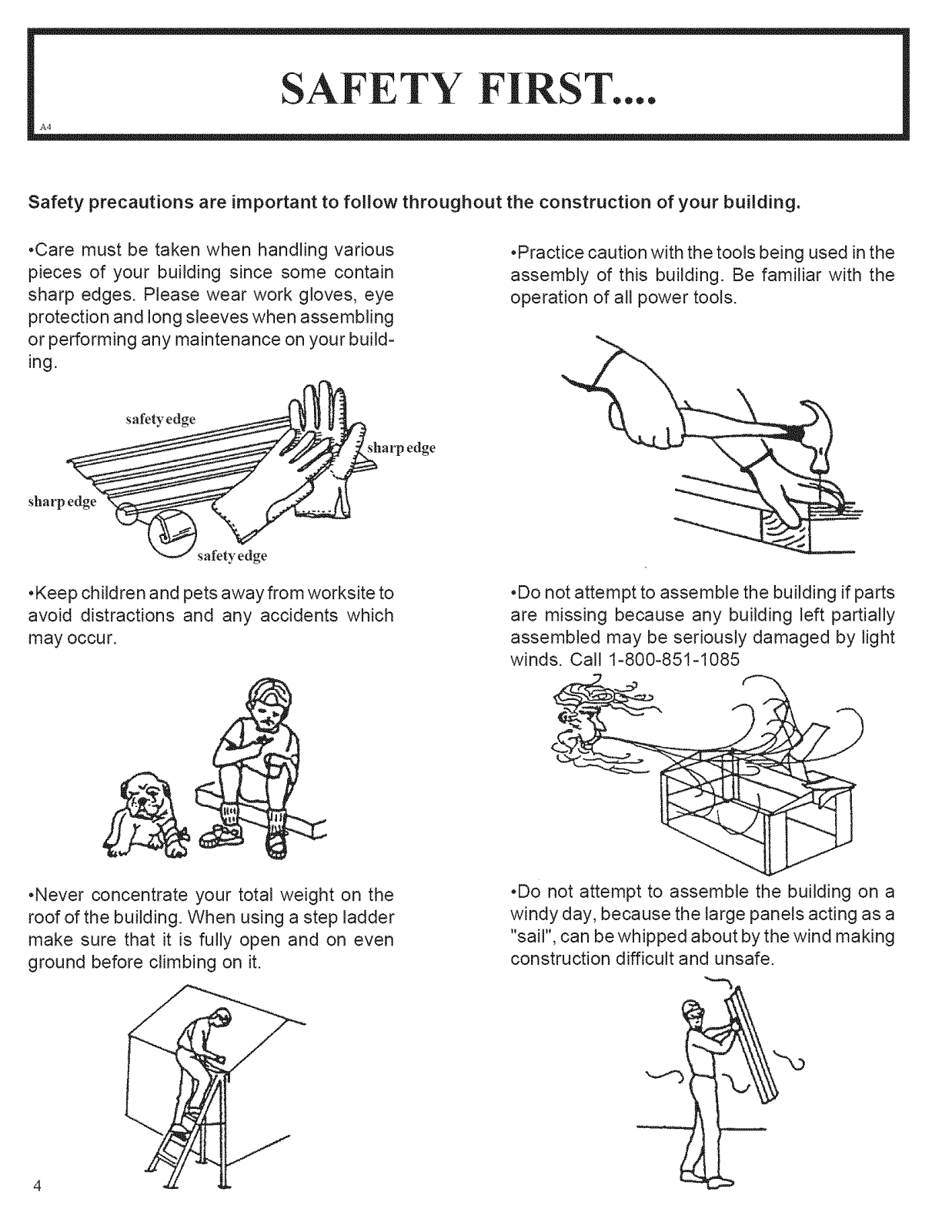

SAFETY FIRST....

A4

Safety precautions are important to follow throughout the construction of your building.

•Care must be taken when handling various
pieces of your building since some contain

sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling

or performing any maintenance on your build-
ing.

safetyedge

sharpedge

sharpedge

safetyedge

•Keep children and pets away from worksite to
avoid distractions and any accidents which

may occur.

•Practice caution with the tools being used in the

assembly of this building. Be familiar with the
operation of all power tools.

•Do not attempt to assemble the building if parts

are missing because any building left partially
assembled may be seriously damaged by light

winds. Call 1-800-851-1085

?

•Never concentrate your total weight on the
roof of the building. When using a step ladder

make sure that it is fully open and on even
ground before climbing on it.

,Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sair', can be whipped about by the wind making

construction difficult and unsafe.

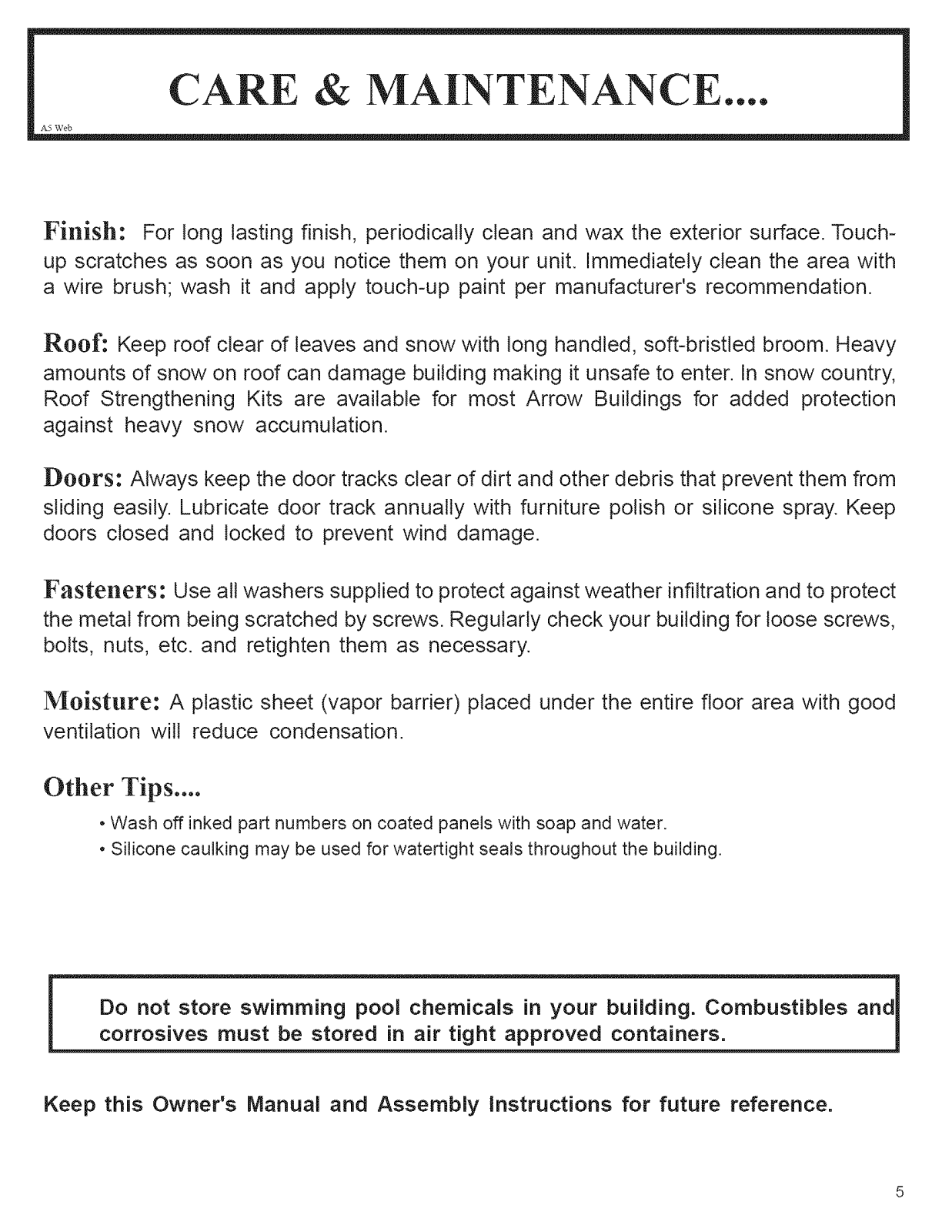

CARE & MAINTENANCE....

A5 Web

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-

up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.

Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,

Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.

Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep

doors closed and locked to prevent wind damage.

Fasteners: Use all washers supplied to protect against weather infiltration and to protect

the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.

Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good

ventilation will reduce condensation.

Other Tips ....

• Wash off inked part numbers on coated panels with soap and water.

• Silicone caulking may be used for watertight seals throughout the building.

_ swimming pool chemicals in your building. Combustiblesand_

corrosives must be stored in air tight approved containers.

Keep this Owner's Manual and Assembly instructions for future reference.

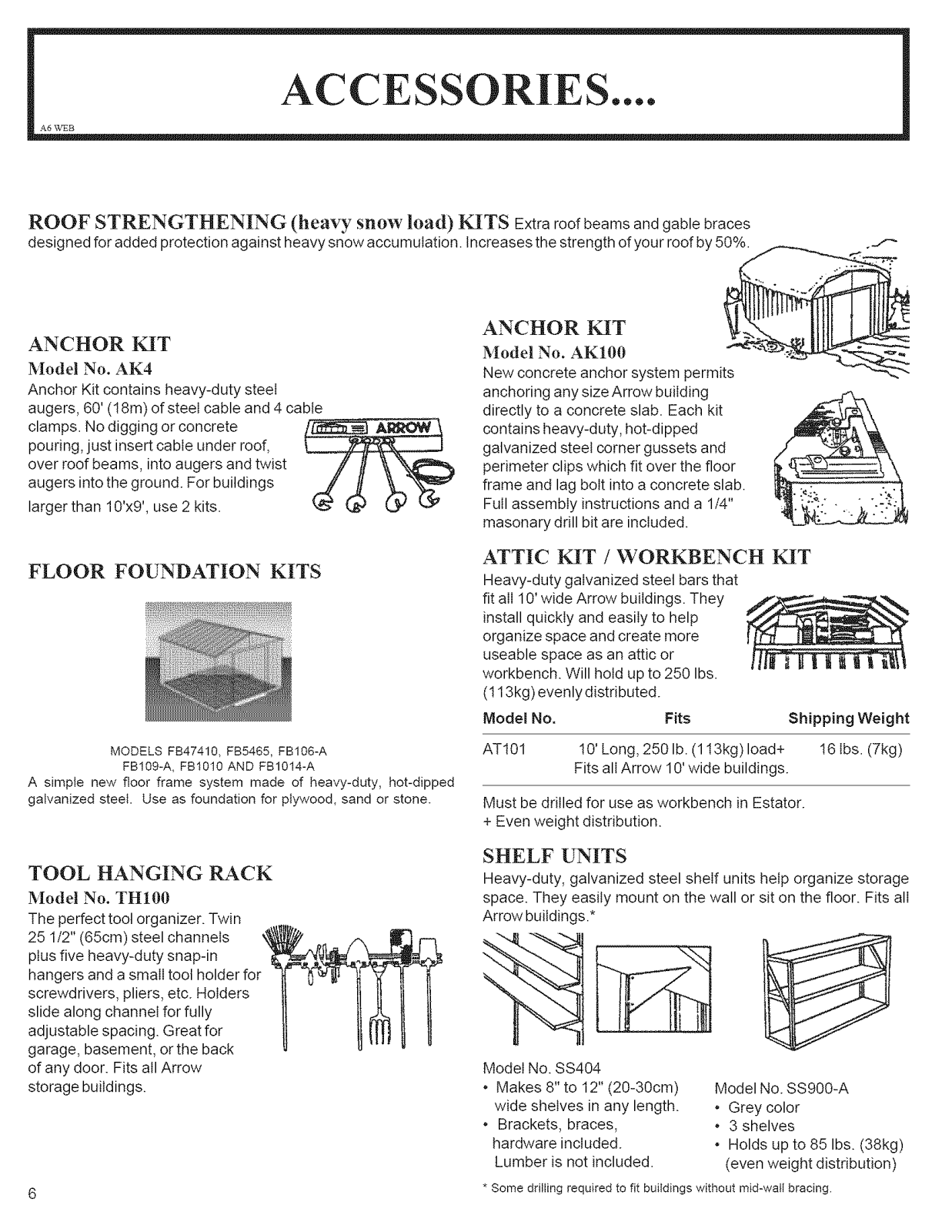

ACCESSORIES....

A6 \VEB

ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces

designed for added protection against heavy snow accumulation. Increases the strength of your roof by 50%.

ANCHOR KIT

ANCHOR KIT

Model No. AK4

Anchor Kit contains heavy-duty steeI
augers, 60' (18m) of steet cable and 4 cable

clamps. No digging or concrete
pouring, just insert cable under roof,

over roof beams, into augers and twist
augers into the ground. For buildings

larger than 10'x9', use 2 kits.

Model No. AK100

New concrete anchor system permits
anchoring any size Arrow building

directly to a concrete slab. Each kit

contains heavy-duty, hot-dipped

galvanized steel corner gussets and

perimeter clips which fit over the floor

frame and lag bolt into a concrete slab.

Full assembly instructions and a 1/4"
masonary drill bit are included.

FLOOR FOUNDATION KITS

MODELS FB47410, FB5465, FB106-A

FB109-A, FB1010AND FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.

TOOL HANGING RACK

Model No. TH100

The perfect tool organizer. Twin
25 1/2" (65cm) steel channels

plus five heavy-duty snap-in I
hangers and a small tool holder for

screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.

ATTIC KIT / WORKBENCH KIT

Heavy-duty galvanized steel bars that

fit all 10' wide Arrow buildings. They

install quickly and easily to help

organize space and create more

useable space as an attic or

workbench. Will hold up to 250 Ibs.

(113kg) evenly distributed.
Model No. Fits

AT101 10' Long, 250 lb. (113kg) load+ 16 Ibs. (7kg)

Fits alI Arrow 10' wide buildings.

Must be drilled for use as workbench in Estator.
+ Even weight distribution.

Shipping Weight

SHELF UNITS

Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits alI

Arrow buildings.*

%

Model No. SS404
* Makes 8" to 12" (20-30cm)

wide shelves in any length.

* Brackets, braces,

hardware included.

Lumber is not included.

* Some drilling required to fit buildings without mid-wall bracing

Model No. SS900-A
* Grey color

* 3 shelves
* Holds up to 85 Ibs. (38kg)

(even weight distribution)

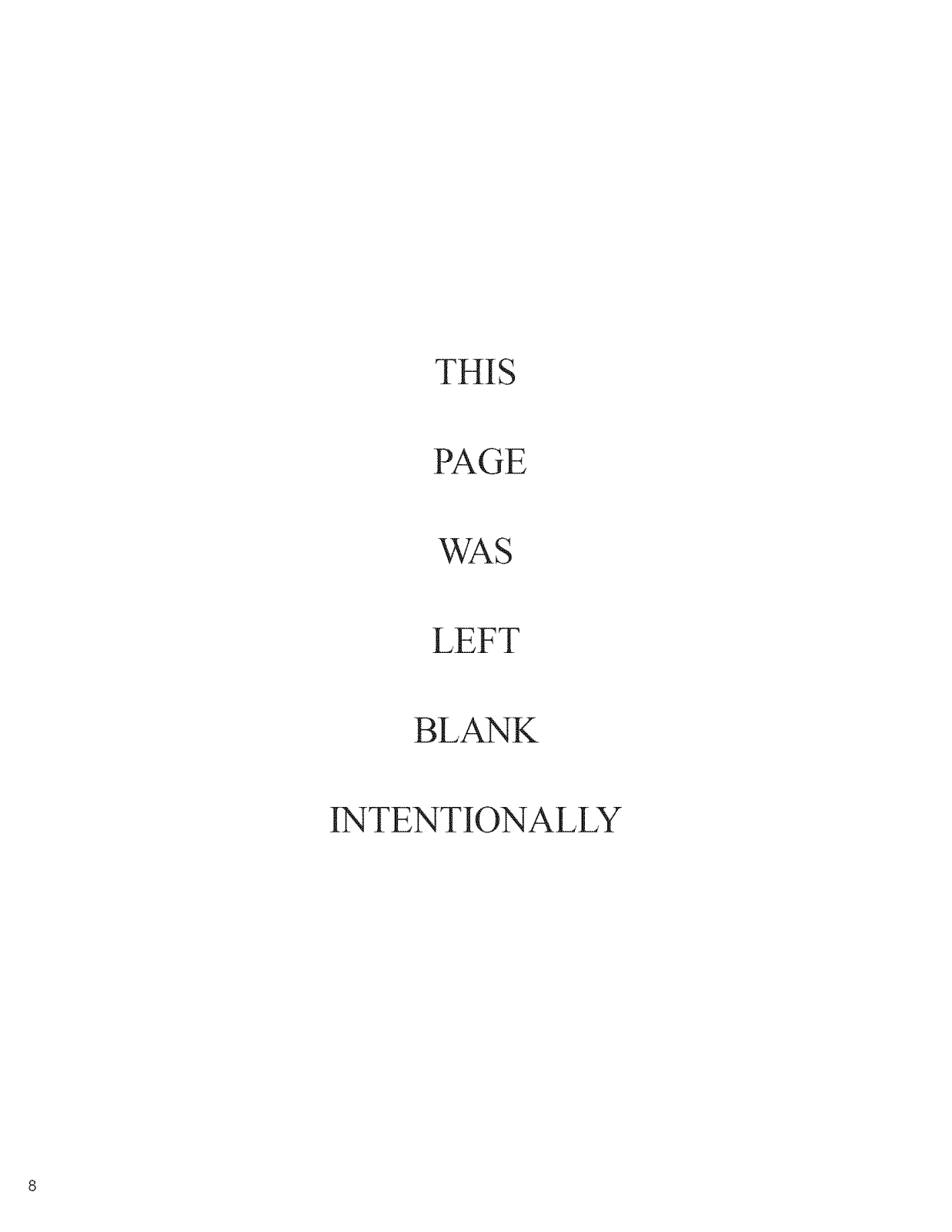

THIS

PAGE

WAS

LEFT

BLANK

INTENTIONALLY

THIS

PAGE

WAS

LEFT

BLANK

INTENTIONALLY

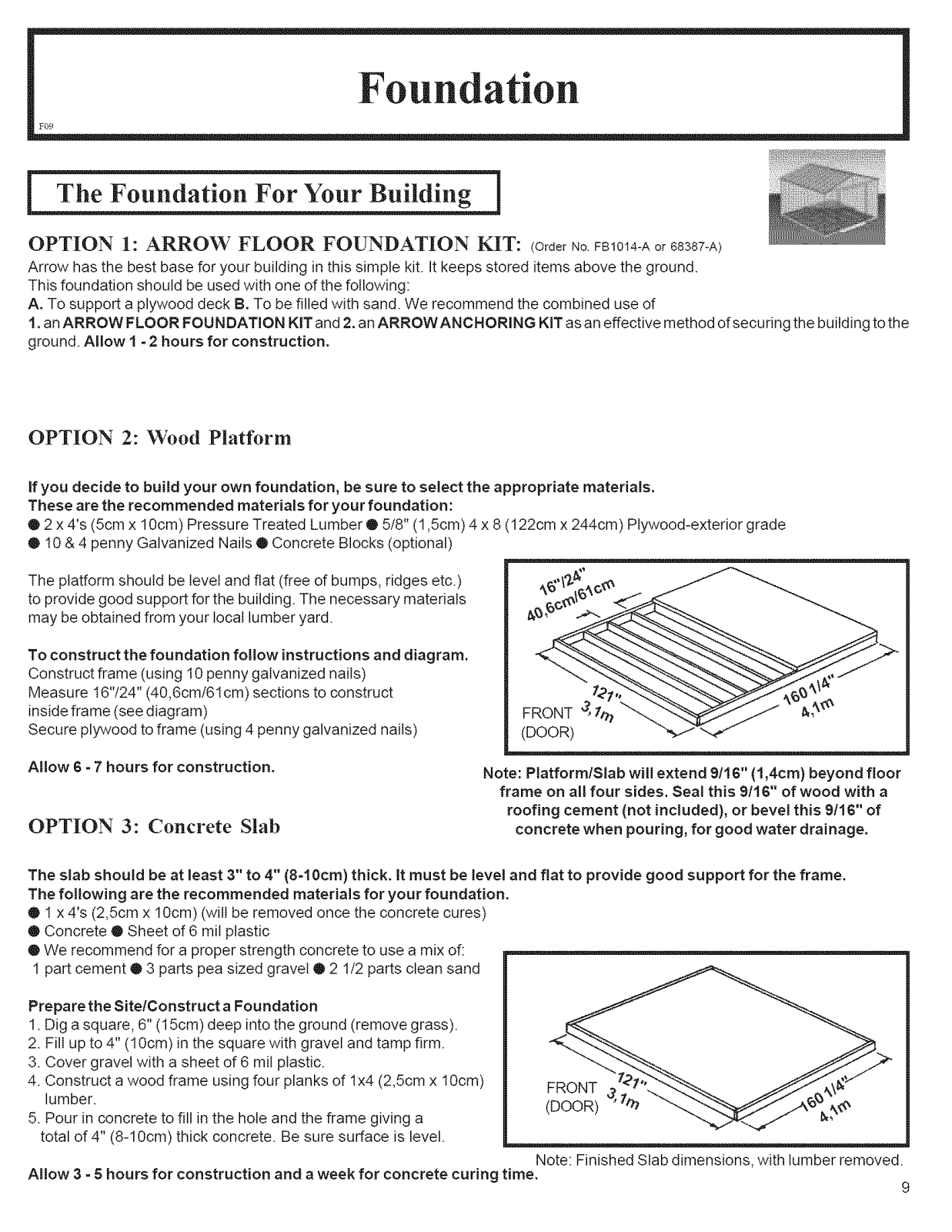

Foundation

F09

The Foundation For Your Building

OPTION 1: ARROW FLOOR FOUNDATION KIT: (OrderNoFSl0 4-Aor 68387-A)

Arrow has the best base for your building in this simple kit. It keeps stored items above the ground.
This foundation should be used with one of the following:
A. To support a plywood deck 8. To be filled with sand. We recommend the combined use of

1. an ARROW FLOOR FOUNDATION KIT and 2. an ARROW ANC NORING KIT as an effective method of securing the building to the
ground. Allow 1 -2 hours for construction.

OPTION 2: Wood Plattbrm

If you decide to build your own foundation, be sure to select the appropriate materials.
These are the recommended materials for your foundation:
O 2 x 4's (5cm x 10cm) Pressure Treated Lumber ® 5/8" (1,Scm) 4 x 8 (122cm x 244cm) Plywood-exterior grade
O 10 &4 penny Galvanized Nails O Concrete Blocks (optional)

The platform should be level and fiat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.

To construct the foundation follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6cm/61cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)

Allow 6 - 7 hours for construction.

OPTION 3: Concrete Slab

The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.

® 1x 4's (2,5cm x 1Ocm) (will be removed once the concrete cures)
® Concrete ® Sheet of 6 miI plastic

O We recommend for a proper strength concrete to use a mix of:

1 part cement O 3 parts pea sized gravel O 2 1/2 parts clean sand

Prepare the Site/Construct a Foundation

1. Dig asquare, 6" (15cm) deep into the ground (remove grass).

2. FilI up to 4" (10cm) in the square with gravel and tamp firm.

3. Cover gravel with a sheet of 6 mit plastic.

4. Construct a wood frame using four planks of lx4 (2,5cm x 1Ocm)

lumber.

5. Pour in concrete to fill in the hole and the frame giving a

total of 4" (8-1Ocm) thick concrete. Be sure surface is level.

Allow 3 - 5 hours for construction and a week for concrete curing time.

FRONT *'_

(DOOR)

Note: Platform/Slab will extend 9/t6" (1,4cm) beyond floor

frame on all four sides. Seal this 9/16" of wood with a

roofing cement (not included), or bevel this 9/16" of

concrete when pouring, for good water drainage.

FRONT

(DOOR) _,_

Note: Finished Slab dimensions, with lumber removed.

9

Anchoring

AIO

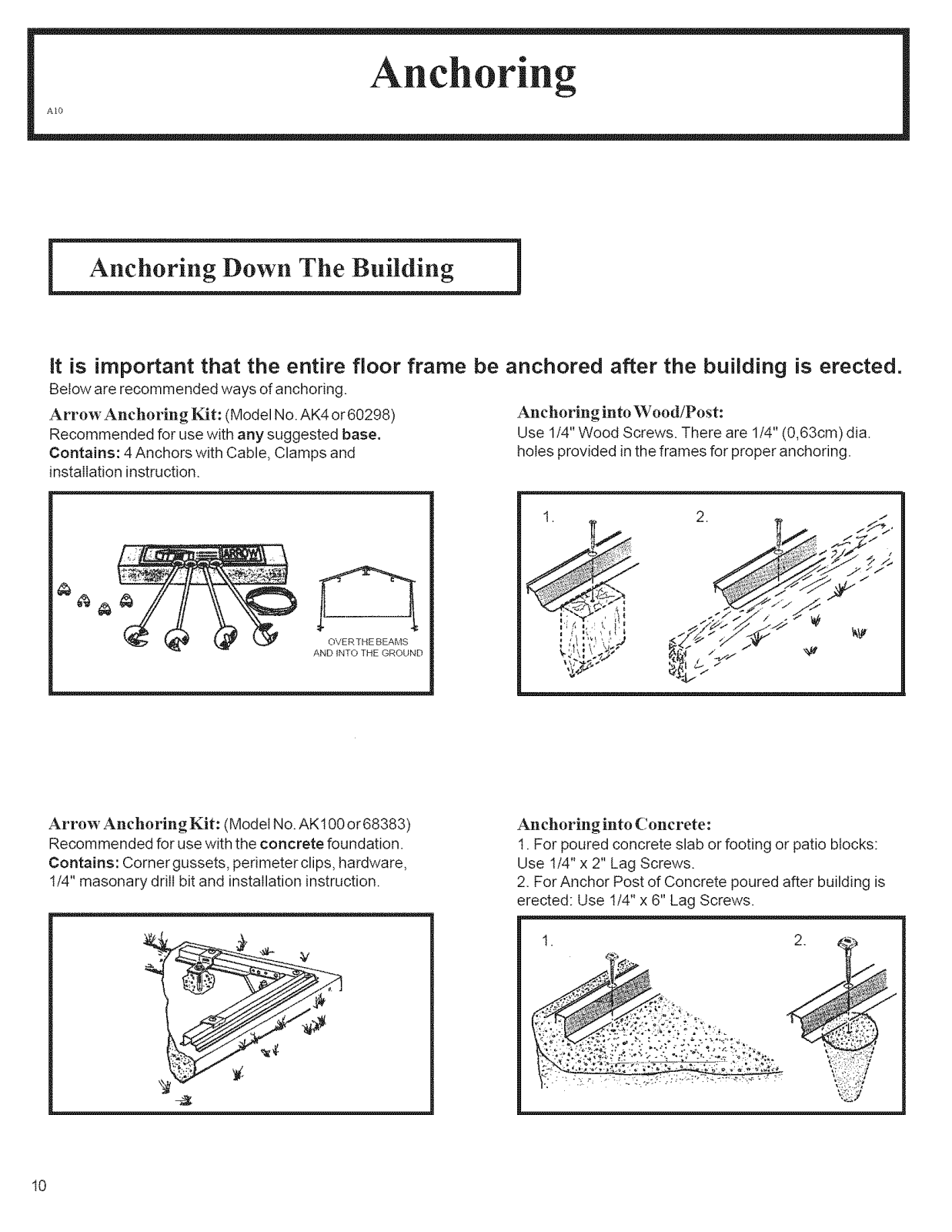

it is important that the entire floor frame be anchored after the building is erected.

Below are recommended ways of anchoring.

Arrow Anchoring Kit: (Model No. AK4 or 60298) Anchoring into _Vood/Post:

Recommended for use with any suggested base. Use 1/4" Wood Screws. There are 1/4" (O,63cm) dia.
Contains: 4 Anchors with Cable, Clamps and holes provided in the frames for proper anchoring•

installation instruction.

OVERTHE BEABIS

AND iNTO THE GROUND

Arrow Anchoring Kit: (Model No. AK1OOor 88383)

Recommended for use with the concrete foundation•

Contains: Corner gussets, perimeter clips, hardware,

1/4" masonary drill bit and installation instruction•

Anchoring into Concrete:

1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.

2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws•

10

Hardware

SPll

Remove from bag of screws

and save for the last step

T T T

65900A

65103 #f 0Bxf/2" Black Screw (4) 66923 65004

#8-32 Hex Nut (188) (Packed with Screws) #8-32x3/8" Bolt (188) #8Ax5/16" Screw (438)

66646 65109 67468

66045 Washer (453) #8-32 Acorn Nut (4) Peak Cap (2)

Handle (2) (12 sheets of 40) (Packed with Screws) (Arrow Logo)

66183

66242 66382 RoofTrim Cap 6228

DoorSlide(4) Lower DoorGuide(4) (2 right &21eft) TrackSuppo_(2)

67545 21'

WeatherStripping(1)

11
