WARNING:
a reliable and safe manner. Please read the instructions and warnings carefully prior to assembly, setup or use.
As this model aircraft is a sophisticated hobby product, it must be flown with safety and common sense in mind, failure
in doing so may result in injury or property damage. This product is not intended for use by children without direct adult
supervision.
This manual contains important information that will help you maintain and operate your model aircraft in
Safety precautions and Warnings
As the user, you are solely responsible for the safe operation and maintenance of this product. Follow the directions
and warnings listed in this manual, as well as that of supporting equipment (chargers, batteries etc.) and always use
common sense.
This is not a toy. Not for children under 14 years of age.
Always operate your model in an open area away from buildings, cars, traffic or people. Never operate near
people-especially children who can wander unpredictably. Never operate in populated areas for any reason, where
injury or damage can occur.
Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled
by a radio signal subject to interference from many sources outside your control. Interference can cause momentary
loss of control.
Never catch the aircraft while it is in flight, the structure of the fuselage was not designed and protected for this
purpose.
Never operate your model in bad weather, including in excessively windy or precipitating conditions.
Never operate your model with low transmitter batteries.
Keep your throttle quadrant in its lowest position prior and after every flight. Use the throttle cut function if able.
Always use fully charged batteries and move batteries before disassembly.
Avoid water exposure to all equipment not specifically designed and protected for this purpose.
Avoid cleaning this product with chemicals.
Never lick or place any part of your model in your mouth as it could cause serious injury or even death.
Keep all chemicals, small parts and anything electrical out of the reach of children.
02
Page 3
Introduction
A. C. D.
B.
The Russian Mikoyan MiG-29 (NATO reporting name: Fulcrum) is a fourth-generation, twin engined air-superiority fighter.
Developed in the 1970s by the Mikoyan design bureau (now the Russian Aircraft Corporation MIG), the legendary MiG-29
and the larger Sukhoi Su-27 were developed to counter American F-15 and F-16 fighter aircraft.
Arrows hobby has once again utilized all of its engineering and testing experience in developing the dual-64mm EDF
MiG-29; confident that this is a MiG-29 that will surpass the performance and features of any other R/C MiG-29 on the
market today.
Performance- dual 12-bladed 64mm EDFs and dual- 40 amp ESCs provide ample thrust for the Arrows MiG-29. With exhilarating high-speed and vertical performance along with the turbine-like sound wave, this is certainly the cutting edge of R/C
aviation.
Scale features: Functional LEDs, full flying horizontal stabilizer and full-metal shock-absorbing undercarriage provide functional realism; while a detailed cockpit, panel lines, removable armaments, pilot figure and scale trim scheme allow the
aircraft to look like the real thing up close.
Despite the complex structure of the Arrows MiG-29, the aircraft comes prebuilt from the factory. Experienced pilots will find
that the assembly process is easy and straight-forward, taking as little as 15 minutes to complete.
For pilots that have mastered the Marlin and are looking for something in the scale-department, the aggressive MiG-29 is
not to be missed!
Features:
• Ample thrust courtesy of dual out-runner 64mm 12-bladed
fans,dual 40A ESCs and 6S power.
• Highly realistic functional and scale features.
• CNC machined-metal shock-absorbing undercarriage.
Table of contents Specifications
Introduction
Specifications
Kit contents
Model Assembly
Battery installation
Receiver diagram
Preflight check
Clevis installation
Control horn and servo arm settings
Center of gravity(CG)
Before flying the model
Flying course
Trouble shooting
Spare parts list content
················································ 3
·············································· 3
··············································· 3
·········································· 4
········································
········································· 6
············································ 6
········································ 7
················· 8
··································· 8
·································· 8
············································· 9
········································· 10
································· 10
6
• Electric retracts with over-current protection
• High-quality rubber tires
• Bearing-equipped full-flying horizontal stabilizer
• Preinstalled ball-linked linkages for precise surface
movements
Wingspan 906mm(35.7in)
Overall length 1358mm(53.5in)
Flying weight ~ 2500g
Motor size 2840-kv2280
Wing load 111g/dm²
Wing area 22.5dm²
ESC
9g plastic servo x6
Servo
9g metal servo x3
Recommended battery 22.2V 3300mAh 35C
Twin 40A ESC with 5.5V
5A BEC

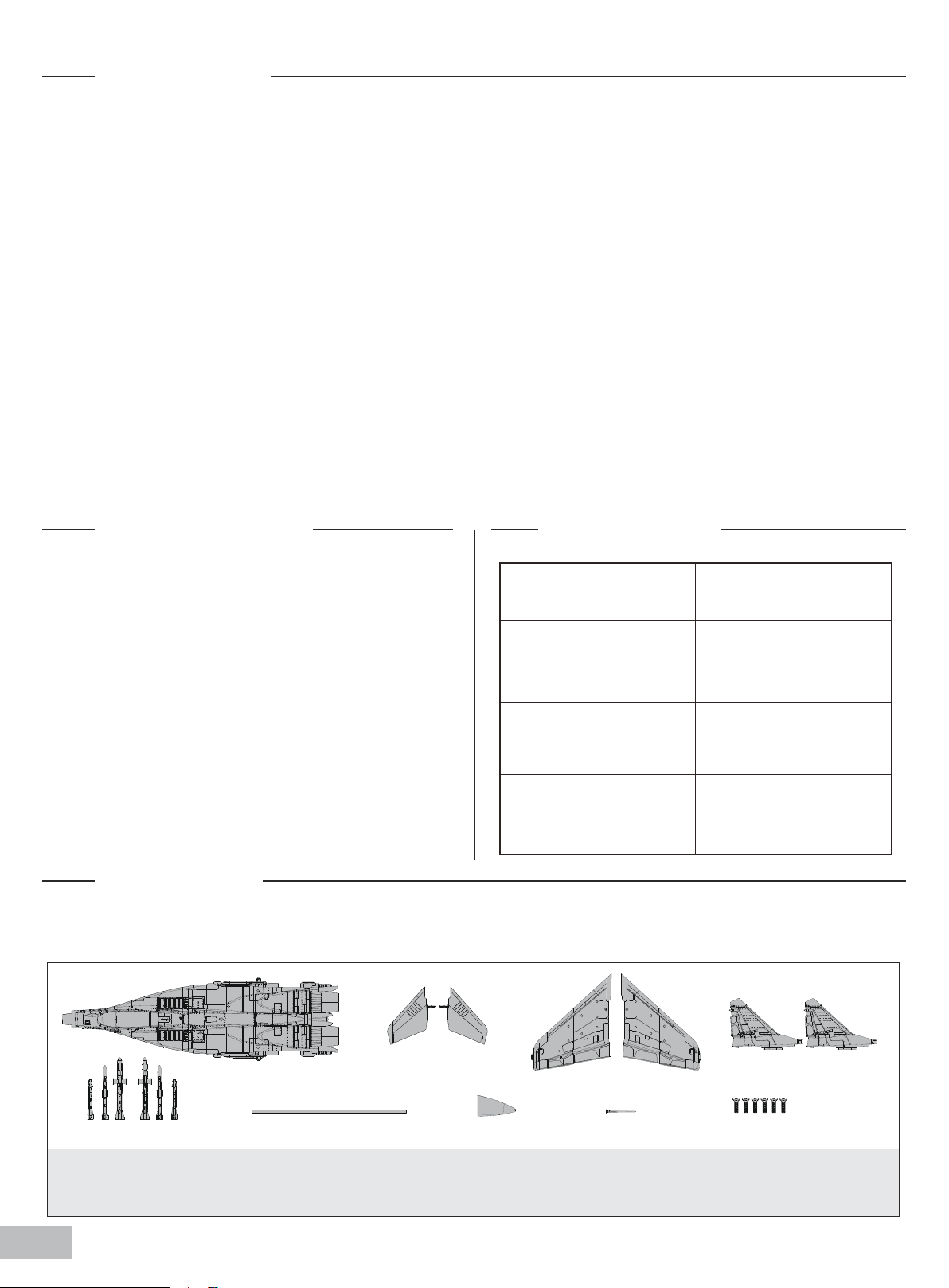

Kit contents
Before assembly, please inspect the contents of the kit. The photo below details the contents of the kit with labels. If any
parts are missing or defective, please identify the name or part number (refer to the spare parts list near the end of the
manual) then contact your local shop.
E. F. G. H. I.
A: Fuselage
B: Horizontal stabilizer
C: Main wing
D: Vertical stabilizer
E: Armament
F: Wing spar
G: Nose cone
H:Pitot tube
I: Screw set
（HKM3.0*10x6）
03
Page 4
Model assembly
Required Adhesives:
Medium CA

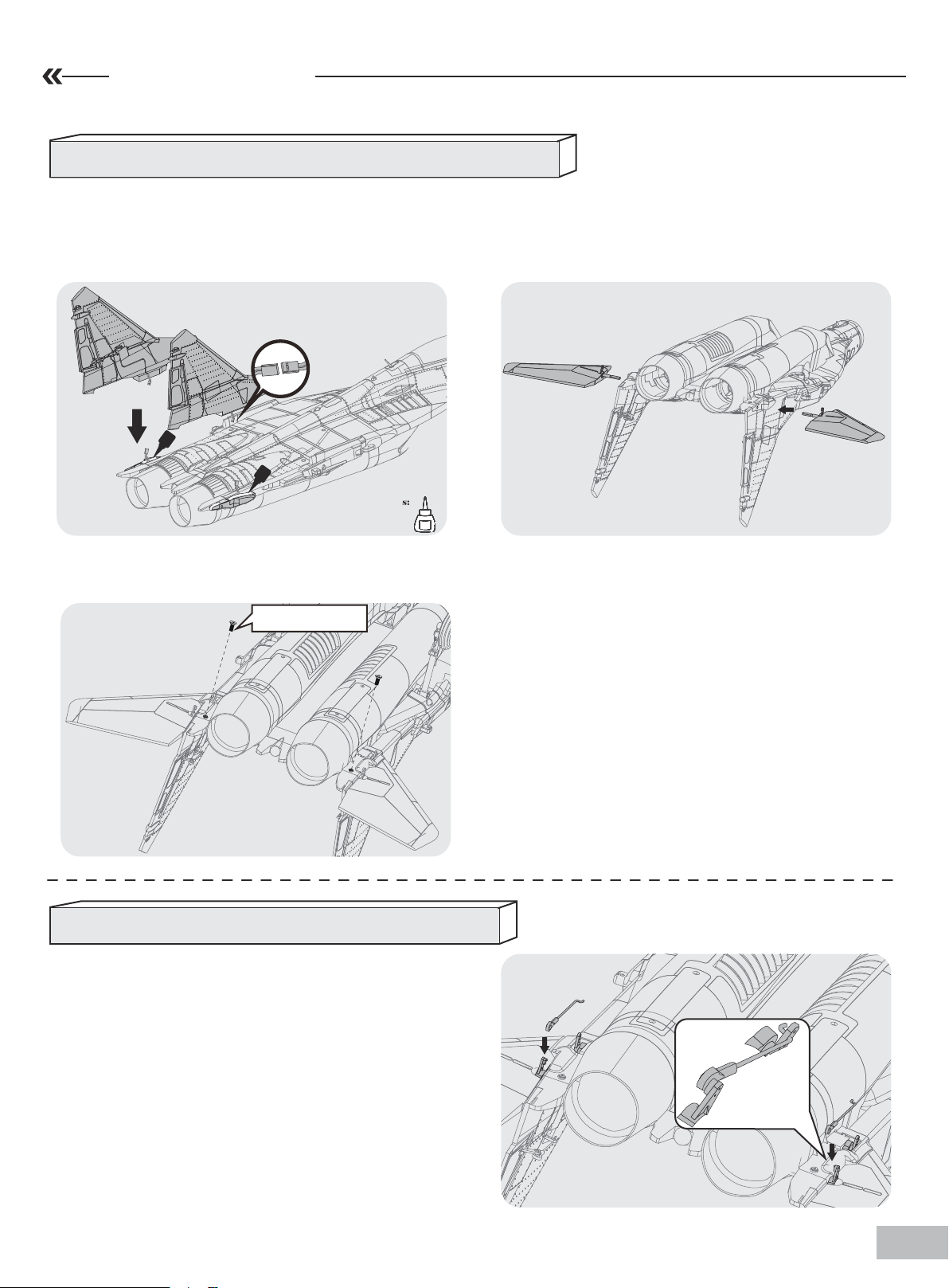

Installation of the vertical and horizontal stabilizers
1. Connect the rudder servo leads to the servo extension located in the aft fuselage. Apply glue to the
illustrated location and adhere the vertical stabilizer to
the fuselage as shown.
3.Use the included screws to secure the horizontal
stabilizers.
HKM3.0*10mm
2.Slide the horizontal stabilizer spar into the fuselage.
Pushrod connection
1.With the servo at its neutral position, connect the
pushrod to the control arms as shown.
04
Page 5
Model assembly

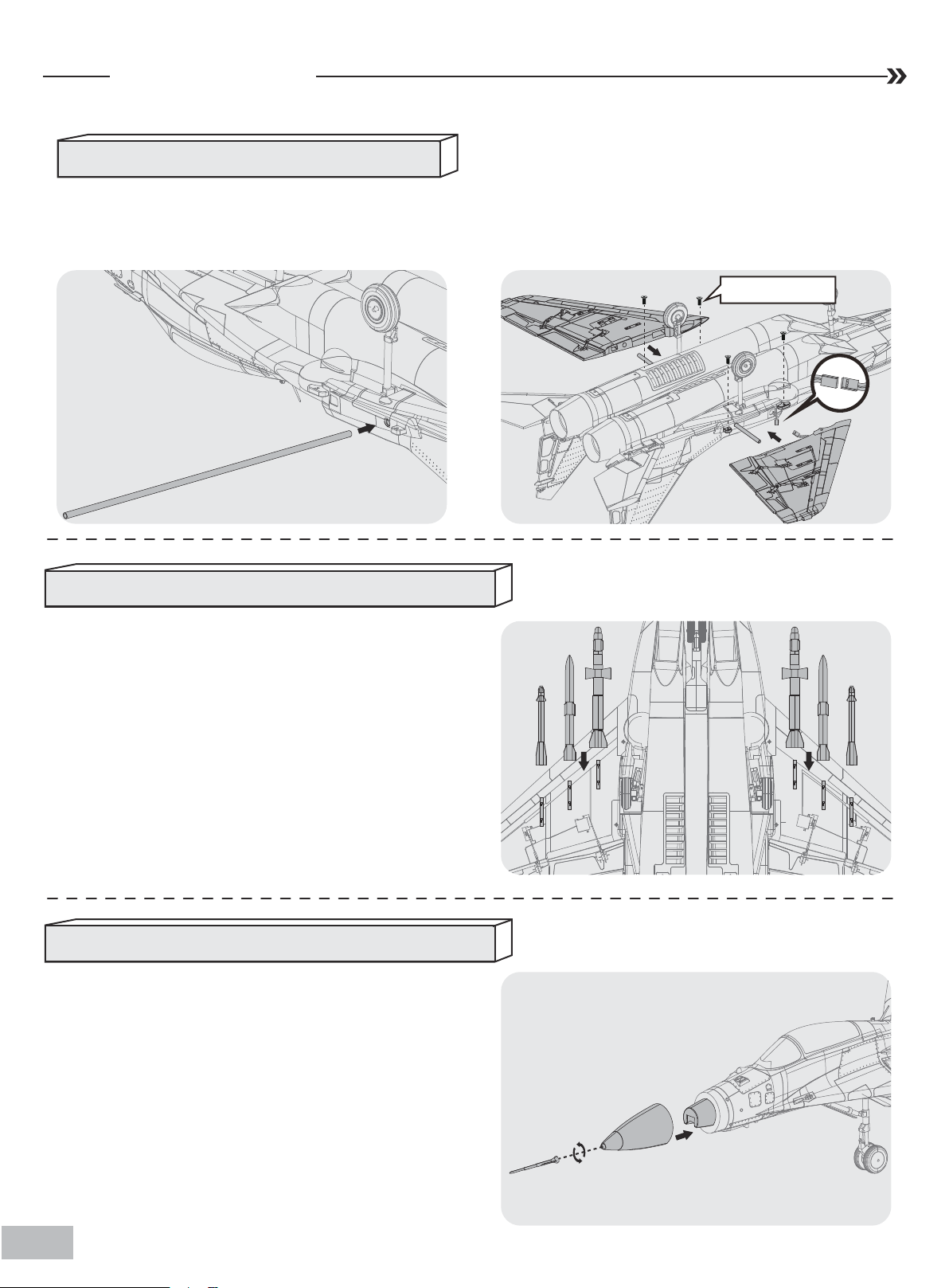

Installation of the main wing
1. Slide the wing spar into the fuselage pass-through.
Installation of armaments
2. Connect the wing servo leads to the servo leads
located on the fuselage. Slide the wing halves over the
spar and secure using the included screw.
HKM3.0*10mm
1. The included missiles slide fore-aft onto the wings
as shown.
Installation of the nose cone and pitot tube
1. The pitot tube is secured onto the nose cone by
rotating it in a counter-clockwise direction. The nose
cone slides onto the front of the fuselage as shown.
05
Page 6
Battery installation

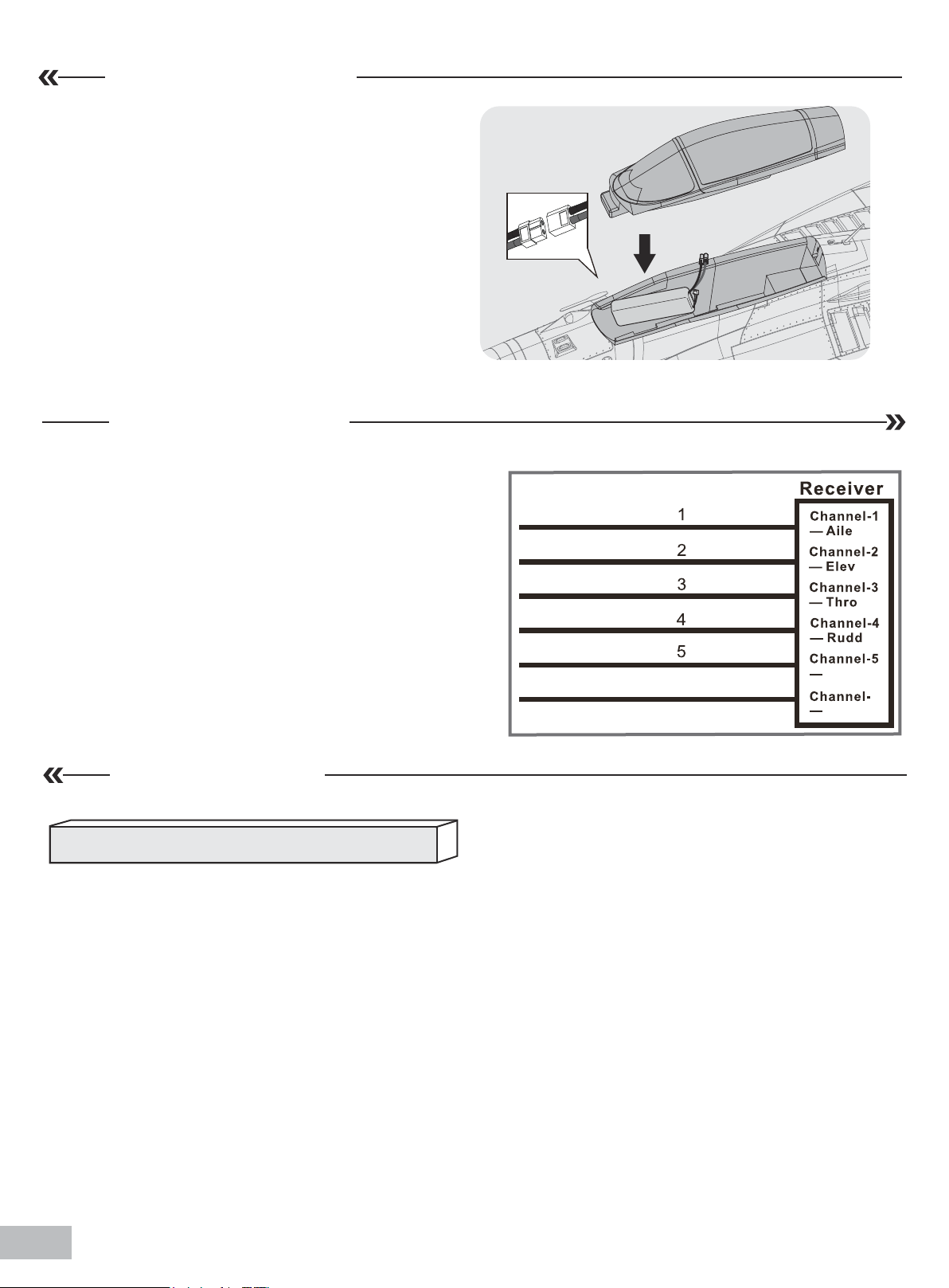

1. Remove the battery hatch.
2. Remove the hook and loop tape from the fuselage.
Apply the looped surface to the battery.
3. Install the battery into the fuselage- securing it with
the preinstalled battery straps.
Note: The weight of each battery may vary due to
different manufacturing techniques. Move the battery
fore or aft to achieve the optimal center of gravity.
Receiver diagram
Aileron
The cables from the servo connector board should be
Elevator
connected to your receiver in the order shown. Note that
the LEDs can be powered by any spare channel on the
Throttle
receiver.
Tuck the wire leads into the recessed cavity towards the
rear of the battery hatch.
Rudder
Spare
Flap
5
6
Spare
6
Flap
Preflight check
Important ESC and model information
1. The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in the low
throttle or off position, the motor will not start until the throttle stick is moved to the low throttle or off position. Once the throttle stick is
moved to the low throttle or off position, the motor will emit a series of beeps. Several beeps with the same tune means the ESC has
detected the cells of the battery. The count of the beeps equals the cells of the battery. The motor is now armed and will start when the
throttle is moved.
2. The motor and ESC come pre-connected and the motor rotation should be correct. If for any reason the motor is rotating in the wrong
direction, simply reverse two of the three motor wires to change the direction of rotation.
3. The motor has an optional brake setting. The ESC comes with brake switched off and we recommend that the model be flown with
the brake off. However, the brake could be accidentally switched on if the motor battery is connected to the ESC while the throttle stick
is set at full throttle. To switch the brake off, move the throttle stick to full throttle and plug in the motor battery. The motor will beep one
time. Move the throttle stick to low throttle or the off position. The motor is ready to run and the brake will be switched off.
4. Battery Selection and Installation. We recommend the 22.2V 3300mAh 35C Li-Po battery. If using another battery, the battery must
be at least a 22.2V 3300mAh 35C battery. Your battery should be approximately the same capacity, dimension and weight as the 22.2V
3300mAh 35C Li-Po battery to fit the fuselage without changing the center of gravity significantly.
06
Page 7
Preflight check
transmitter and model setup
After assembly and prior to your first flight, make sure all control surfaces respond
correctly to your transmitter by referring to the diagram below.

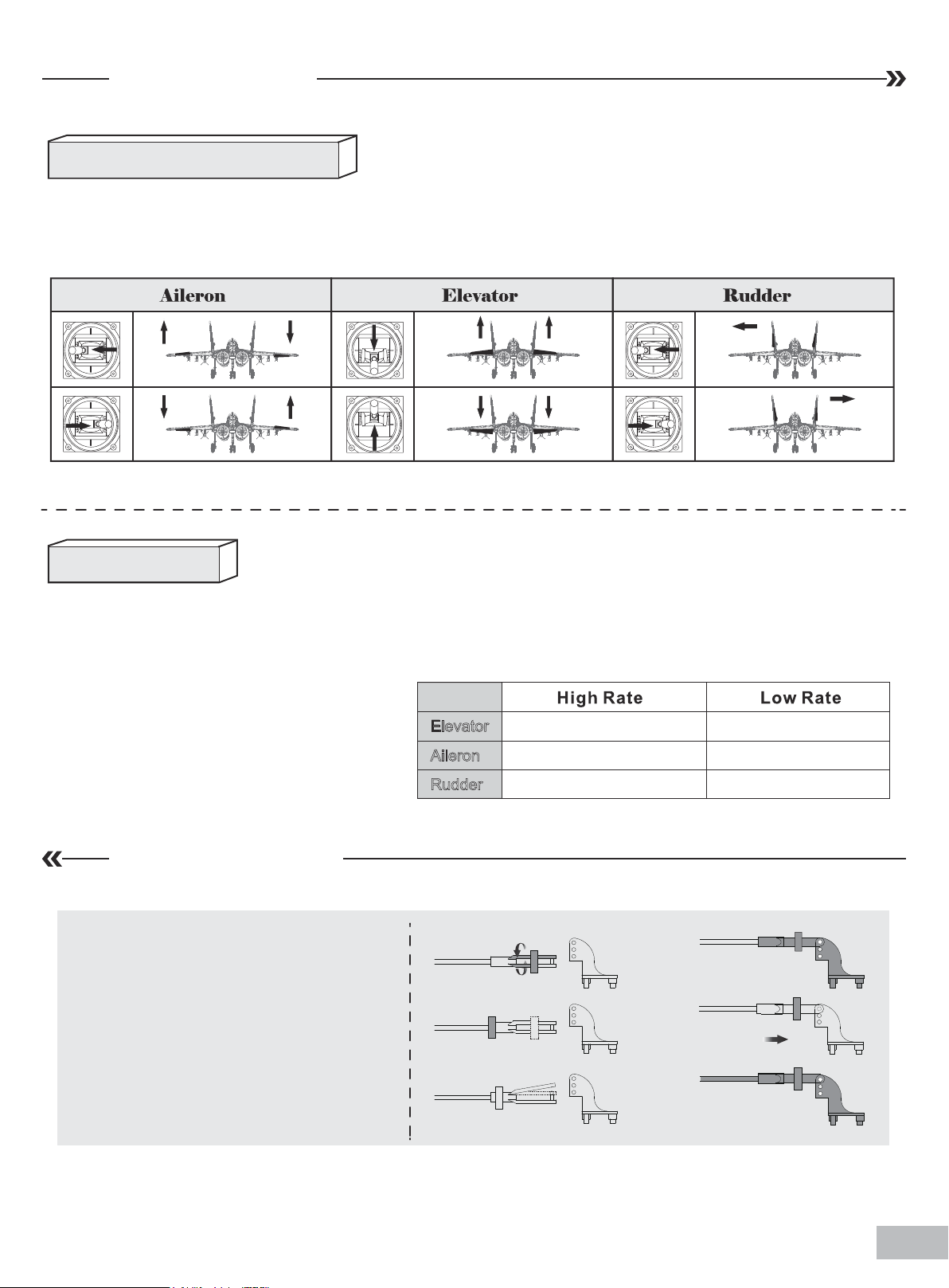

Control throws
The suggested control throw setting for the Twin 64mm Mikoyan MiG-29 are as follows
(dual rate setting):
Tips: The maiden flight should always be flown
using low rates, fly the aircraft until you are familiar with its characteristics prior to trying high
rates. Make sure the aircraft is flying at a decent
altitude and speed prior to using high rates, as
the aircraft will be sensitive to control inputs with
the larger control surface movements.
Aileron
Rudder
35mm up / downElevator
20mm up / down
25mm left / right
30mm up / down
15mm up / down
20mm left / right
Clevis installation
1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the
clevis pin into the desired hole in the control
horn.
a.
b.
d.
e.
3.Move the tube to hold the clevis on the
control horn.
c.
f.
07
Page 8
Control horn and servo arm settings
Horns
1. The table shows the factory settings for the
control horns and servo arms. Fly the aircraft at the
factory settings before making changes.
2. After flying, you may choose to adjust the linkage
positions for the desired control response.
ElevatorRudderAilerons

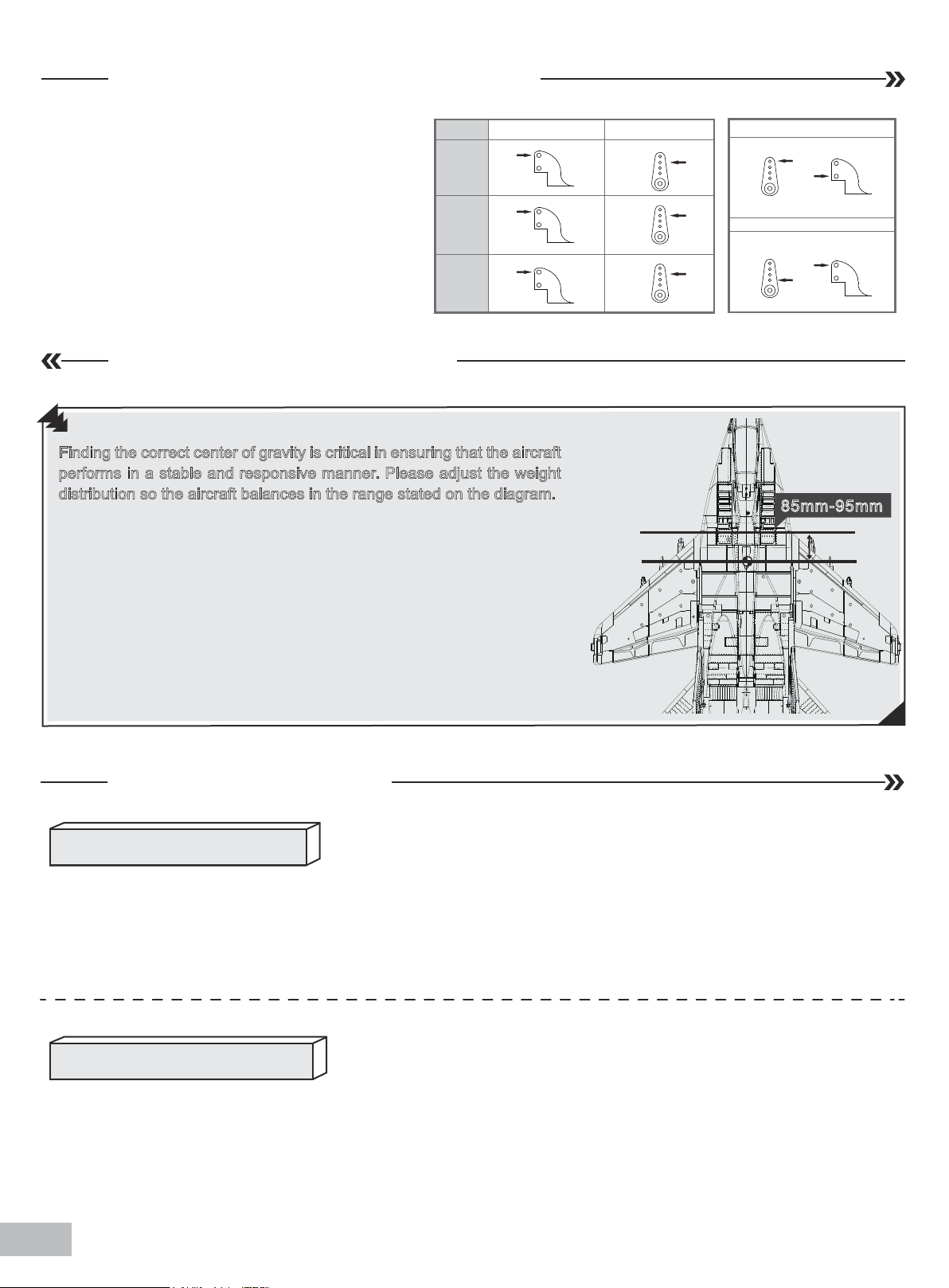

Finding the center of gravity
Finding the correct center of gravity is critical in ensuring that the aircraft
performs in a stable and responsive manner. Please adjust the weight
distribution so the aircraft balances in the range stated on the diagram.
• Depending on the capacity and weight of your choosen flight
batteries, move the battery forward or backward to adjust the
center of gravity.
Arms
More control throw
Less control throw
85mm-95mm
• If you cannot obtain the recommended CG by moving the battery to a
suitable location, you can also install a counterweight to achieve correct
CG. However, with the recommended battery size, a counterweight is not
required. We recommend flying without unnecessary counterweight.
Before flying the model
Find a suitable flying site
Find a flying site clear of buildings, trees, power lines and other obstructions. Until you know how much area will be
required and have mastered flying your plane in confined spaces, choose a site which is at least the size of two to three
football fields - a flying field specifically for R/C planes is best. Never fly near people - especially children, who can
wander unpredictably.
Performing a range check
A radio range check should be performed prior to the first flight of the day. This test may assist you in detecting electronic
problems that may lead to a loss of control- problems such as low transmitter batteries, defective or damaged radio components or radio interference. This usually requires an assistant and should be done at the flying site.
08
Page 9
Before flying the model
Always turn your transmitter on first. Install a fully charged battery in the battery bay, then connect it to the ESC. In this
process, make sure that the throttle cut functionality is on, and that the throttle stick is secured in its lowest position- otherwise, the propeller/fan will engage and possibly cause bodily harm.
Note: Please refer to your transmitter manual that came with your radio control system to perform a ground
range check. If the controls are not working correctly or if anything seems wrong, do not fly the model until you
correct the problem. Make certain all the servo wires are securely connected to the receiver and the transmitter
batteries have a good connection.
Monitor your flight time
Monitor and limit your flight time using a timer (such as a stopwatch or on the transmitter, if available). As modern Lithium
Polymer batteries are not designed to discharge completely, when the battery runs low, the ESC will lower then completely
cut the power to the motors to protect the battery. Often (but not always) power can be briefly restored after the motor
cuts off by holding the throttle stick all the way down for a few seconds.To avoid an unexpected dead-stick landing on your
first flight,set your timer to a conservative 4 minutes. When your alarm sounds you should land right away.
Flying course
Take off
Point the aircraft into the wind while slowly applying power until the aircraft starts to track straight, use the rudder when
necessary. When the aircraft reaches takeoff speed, ease back on the elevator stick until the aircraft is climbing at a
constant rate without decelerating. Climbing at too steep of an angle at the relatively low speeds of a takeoff-climb may
result in an aerodynamic stall.
Flying
Always choose a wide-open space for flying your plane. It is ideal for you to fly at a sanctioned flying field. If you are not
flying at an approved site always avoid flying near houses, trees, wires and buildings. You should also be careful to avoid
flying in areas where there are many people, such as busy parks, schoolyards, or soccer fields. Consult laws and
ordinances before choosing a location to fly your aircraft. After takeoff, gain some altitude. Climb to a safe height before
trying technical manoeuvres.
Landing
Land the aircraft when you start to feel sluggish motor response. If using a transmitter with a timer, set the timer so you
have enough flight time to make several landing approaches.The model’s three point landing gear allows the model to land
on hard surfaces. Align model directly into the wind and fly down to the ground. Fly the airplane down to the ground using
1/4-1/3 throttle to keep enough energy for proper flare. Before the model touches down, always fully decrease the throttle
to avoid damaging the propeller or other components. The key to a great landing is to manage the power and elevator all
the way to the ground and set down lightly on the main landing gear. With some practice, you will be able to set the aircraft
gently on its main gear and hold it that way until the speed reduces enough where the nose wheel (tricycle landing gear
aircraft) or tail wheel (tail draggers) settles onto the ground.
Maintenance
Repairs to the foam should be made with foam safe adhesives such as hot glue, foam safe CA, and 5min epoxy. When
parts are not repairable, see the spare parts lst for ordering by item number.Always check to make sure all screws on the
aircraft are tightened. Pay special attention to make sure the spinner is firmly in place before every flight.
9
Page 10
Troubleshooting
Problem Possible Cause Solution
Aircraft will not respond to
the throttle but responds to
other controls.
Excessive vibration or
propeller noise.
Reduced flight time or
aircraft underpowered.
Control surfaces
unresponsive or sluggish.
Controls reversed.
Motor loses power
Motor power pulses then
motor loses power.
ESC is not armed.
Throttle channel is reversed.
Damaged spinner, propeller,
motor or motor mount.
Loose propeller and spinner parts.
Propellor installed backwards.
Flight battery charge is low.
Propeller installed backward.
Flight battery damaged.
Control surface, control horn,
linkage or servo damage.
Wire damaged or connections
loose.
Channels are reversed in the
transmitter.
Damage to motor, or battery.
Loss of power to aircraft.
ESC uses default soft Low Voltage
Cutoff(LVC).
Lower throttle stick and throttle trim to lowest
settings.
Reverse throttle channel on transmitter.
Replace damaged parts.
Tighten parts for propeller adapter, propeller
and spinner.
Remove and install propeller correctly.
Completely recharge flight battery.
Replace flight battery and follow flight battery
instructions.
Replace or repair damaged parts and adjust
controls.
Do a check of connections for loose wiring.
Do the control direction test and adjust controls for
aircraft and transmitter.
Do a check of batteries, transmitter, receiver, ESC,
motor and wiring for damage(replace as needed).
Land aircraft immediately and recharge flight battery.
LED on receiver flashes
slowly.
Spare parts list
AHAK101
AHAK102
AHAK103
AHAK104
AHAK105
AHAK106
AHAK107
AHAK108
AHAK109
AHAK110
AHAK111
AHAK112
AHAK113
AHAK114
AHAK115
AHAK116
Power loss to receiver.
Fuselage
Mainwing set
Horizontal stabilizer
Vertical stabilizer
Cockpit
Cowl
Wing tube
Airspeed head
Linkage rods
Wheel set
Screw set
Decal set
Control horn set
Dummy armament set
LED set
Supporting rod
Check connection from ESC to receiver.
Check servos for damage.
Check linkages for binding.
AHAK117
AHAK118
AHAK119
AHAK120
AHAK121
AHRE004
AHRE005
AHESC40A-Twin
AHBEC5A
AH9GP
AH9MGP
AH9MGR
AH64MM12B
AHKV2280
Landing gear cover
Front landing gear set
Main landing gear set
Front landing gear system
Main landing gear system
EL Retract
EL Retract
Twin 40A ESC
5A BEC
9g gear servo positive
9g metal gear servo positive
9g metal gear servo reverse
64mm Ducted Fan(12-blade)
2840-KV2280 Motor
10
Page 11
Page 12
Loading...
