Arrowhead KP600F User Manual

KP600F/L

LED/LCD KEYPADS

Owner's Manual

Use with

AV6500 & SP850 Control panels

IT IS IMPORTANT FOR YOUR SAFETY TO TEST YOUR
SYSTEM AND IT'S COMPONENTS REGULARLY.

P/N 64812823 A PDF 10/23/97

Table of Contents

Introduction 3

System Configuration 3

Keypad Description 4

Disarming And Silencing Your System 7

Arming Your System 7

Zone Bypass 8

Bypassing a Group of Zones 8

Instant/Delay Mode 9

Arming/Disarming Reports By User 9

Testing the Communicator 9

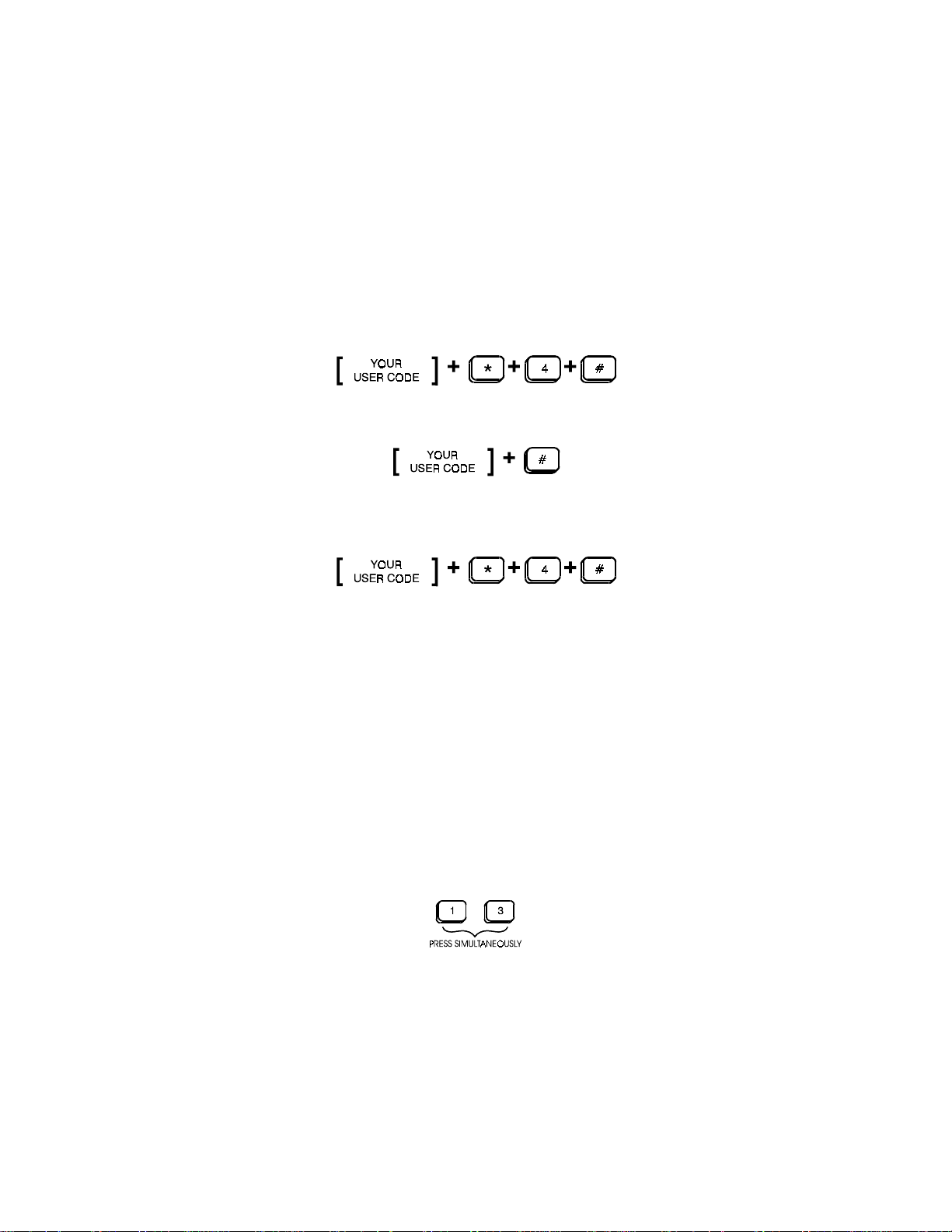

Testing Your System 10

Smoke Detector Reset 10

Setting Chime Mode 11

Fault Condition 11

Duress (Ambush) 12

Emergency Alarm Key Pairs 13

Changing User Code(s) From The Keypad 14

Deleting Secondary User Codes 14

Remote Telephone Access 15

Evacuation Plan 16

Warranty and Liability Limitations and Disclaimer 17

2

Introduction

Your installer has selected one of the finest alarm systems available

for your installation and has custom programmed the system features

to meet your specific requirements. Arrowhead Control Panels are

designed for high reliability, excellent security and simplicity of

operation. These features make it easy for you to get the most out of

your system and prevent false alarms. The system is capable of

reporting alarm and fault information via the telephone to a central

monitoring station.

Some of the functions that your installer might have programmed are:

fire, burglary, entry/exit delays, silent alarm, duress, power failure,

communication failure, fire trouble and others. Consult with your

installer and make sure you understand which ones are programmed

and how they are used. The material in this publication is for

information purposes only and is subject to change without notice.

SENTROL, INC., assumes no responsibility for any error which may

appear in this publication.

System Configuration

The items below should be marked by your installer at the time of

installation defining the options that have been programmed.

Options Programmed

KEYPAIR ALARMS KEYPAD DURESS

KEYPAD FIRE RESET [1&3] EXIT TONE ENABLE

CHIME ZONES _______ GROUP BYPASS ZONES _____

OPENING AND CLOSING BY USER

ARM WITH DELAY ZONES VIOLATED "Defeat Lockout"

USER 7 CODE USED AS DURESS CODE

REMOTE TELEPHONE ACCESS

3

Keypad Description

●

◆

The KP600L "LCD" and KP600F "LED" Keypads are digital arming/

disarming stations that provide full system control and display full

system status from one or more convenient locations. A brief

description of the functions of the lights on both styles of keypads are

shown on the following pages. Additionally, built into each of the

keypads is a miniature sounding device which, when active, indicates

various conditions such as a Pre-Alarm Warning, Fault Condition or

Chime Mode.

Your keypad has the added convenience of additional user codes.

These secondary codes are designed to provide access to other users

or service persons for whom you want to grant entry. Obviously, they

can also be used in any other way that you desire. These codes can

only be changed using the primary user code.

Arming, disarming, bypassing zones, etc., can be accomplished

using any of the codes. In order to change codes from the keypad,

use of the primary user code is required. User codes can be changed

from any of the keypads and must be 4 digits in length.

IT IS IMPORTANT FOR YOUR SAFETY THAT YOU TEST

YOUR SYSTEM REGULARLY.

KeyPair Alarms

The chart below is duplicated on page 12 but included here for your

installer to complete, reflecting the programming of the panel.

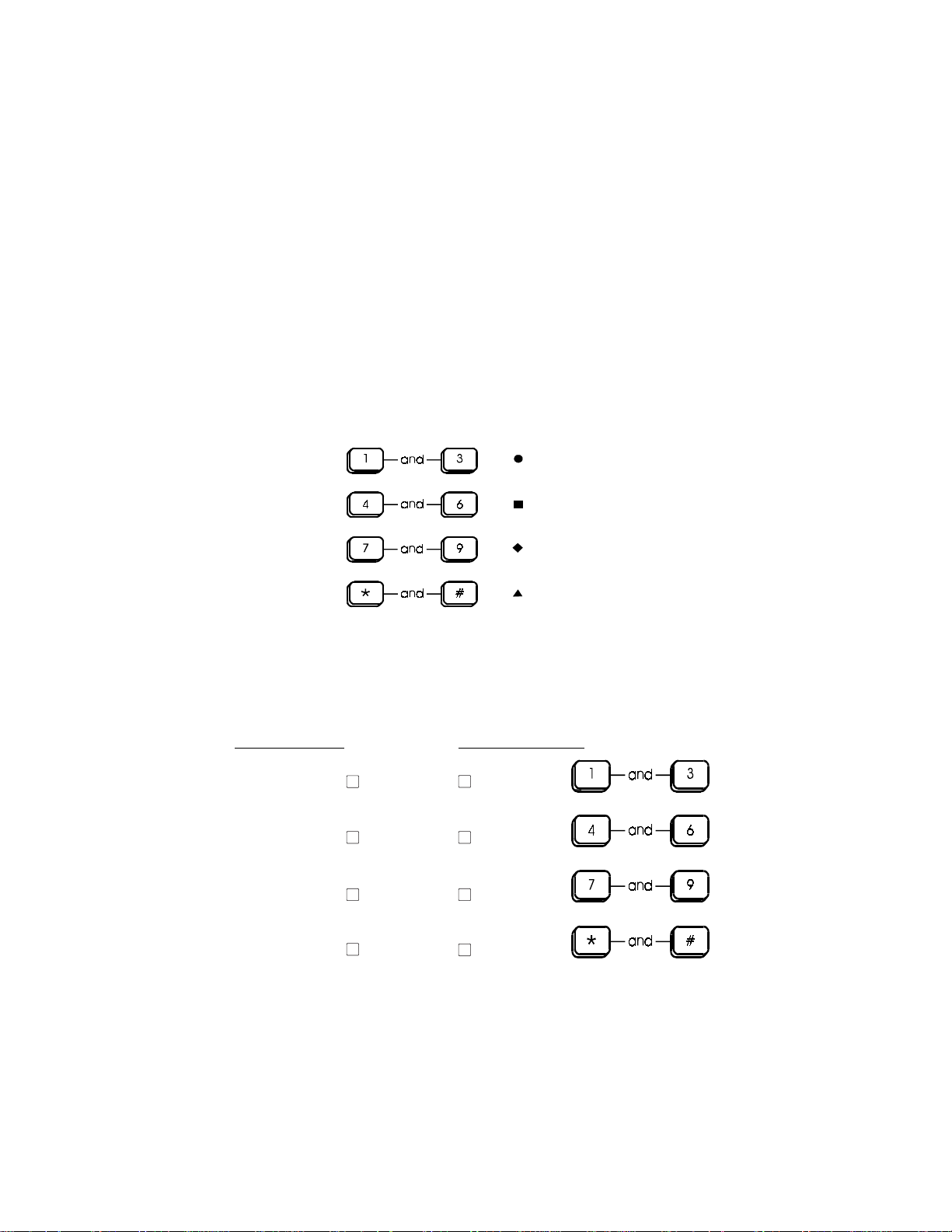

Keypad Symbol Assigned Function

Circle Not Used _____________

■

Square Not Used _____________

Diamond Not Used _____________

▲

Triangle Not Used _____________

4

C

A

B

KP600L "LCD" Keypad

A

- Red ARMED Light -

ON STEADY - Indicates system is armed or on

FLASHING - Indicates "Alarm Memory"

- Green READY Light -

B

ON STEADY - Indicates system is ready to be armed,

FLASHING - Indicates system "Trouble" or Fault Condition exists

C

- The "LCD DISPLAY" indicates system status in English, with

READY, ARMED, BYPASSED, VIOLATED, TROUBLE and ALARM

conditions all being displayed. System information such as AC OFF,

LOW BATTERY, TROUBLE, and COMM FAIL, along with ZONE

IDENTIFIERS will be displayed along with the other system status

messages as needed to clearly show the current condition of the

system.

5

D

E

KP600F "LED" Keypad

D

- Yellow "STATUS Light" -

ON STEADY - Indicates system "Armed"

OFF - Indicates system "Disarmed"

FLASHING - Indicates system "Trouble" or Fault Condition exists.

E

- Red "ZONE Lights" - These lights indicate different conditions

depending on the status of the system. When the system is

"Disarmed", lights that are ON indicate violated zones. When the

system is "Armed", lights that are ON indicate active zones, and lights

that are flashing indicate zones that have caused an alarm.

6
