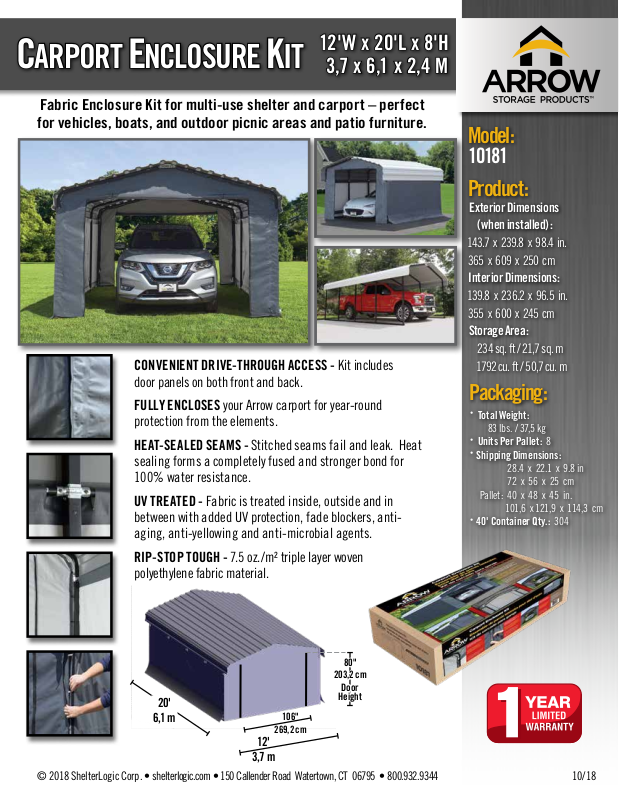

12'W x 20'L x 8'H
CARPORT ENCLOSURE KIT
3,7 x 6,1 x 2,4 M
Fabric Enclosure Kit for multi-use shelter and carport – perfect
for vehicles, boats, and outdoor picnic areas and patio furniture.
Model:
10181
Product:
Exterior Dimensions
(when installed):
143.7 x 239.8 x 98.4 in.
365 x 609 x 250 cm
Interior Dimensions:
139.8 x 236.2 x 96.5 in.
355 x 600 x 245 cm
Storage Area:
234 sq. ft / 21,7 sq. m
CONVENIENT DRIVE-THROUGH ACCESS - Kit includes
door panels on both front and back.
FULLY ENCLOSES your Arrow carport for year-round
protection from the elements.
HEAT-SEALED SEAMS - Stitched seams fail and leak. Heat
sealing forms a completely fused and stronger bond for
100% water resistance.
UV TREATED - Fabric is treated inside, outside and in
between with added UV protection, fade blockers, antiaging, anti-yellowing and anti-microbial agents.
RIP-STOP TOUGH - 7.5 oz./m² triple layer woven
polyethylene fabric material.
1792 cu. ft / 50,7 cu. m
Packaging:
•
Total Weight:
83 lbs. / 37,5 kg
•
Units Per Pallet: 8
•
Shipping Dimensions:
28.4 x 22.1 x 9.8 in
72 x 56 x 25 cm
Pallet: 40 x 48 x 45 in.
101,6 x 121,9 x 114,3 cm
•
40' Container Qty.: 304
80"
203,2 cm
Door
20'
6,1 m
3,7 m
© 2018 ShelterLogic Corp. • shelterlogic.com • 150 Callender Road Watertown, CT 06795 • 800.932.9344 10/18
106"
269,2 cm
12'
Height
