ARRI WRC-2 User Manual

WRC-2

Wireless Remote Control 2 (WRC-2) Instruction Manual

Rev. 1.1, February 2008

Technical data are subject to change without notice.

Ident-No. K5.67651.0

THEY MUST NOT BE COPIED FOR REPRODUCTION (E.G. ON CD-ROM DISKS OR INTERNET-SITES) OR USED IN THEIR ENTIRE FORM OR IN EXCERPTS WITHOUT OUR PREVIOUS WRITTEN AGREEMENT.

IF YOU ARE DOWNLOADING PDF-FILES FROM OUR INTERNET HOME-PAGE FOR YOUR PERSONAL USE, MAKE SURE TO CHECK FOR UPDATED VERSIONS.

WE CANNOT TAKE ANY LIABILITY WHATSOEVER FOR DOWNLOADED FILES, AS TECHNICAL DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

ALL ARTWORK, PICTURES AND TEXTS ARE COVERED BY OUR COPYRIGHT.

1

2

Order Numbers

3

1. Contents

2. Safety Instructions................................................ 6

2.1 Specic Safety Instructions......................................... 7

3. Disclaimer.......................................................................... 8

Contents

4. Introduction........................................................................ 10

5. Setup................................................................................... 12

5.1 WRC-2 in wireless mode............................................ 12

Transmitting................................................................. 12

Receiving..................................................................... 12

5.2 Mounting the WRC-2 on the WMU-3........................... 13

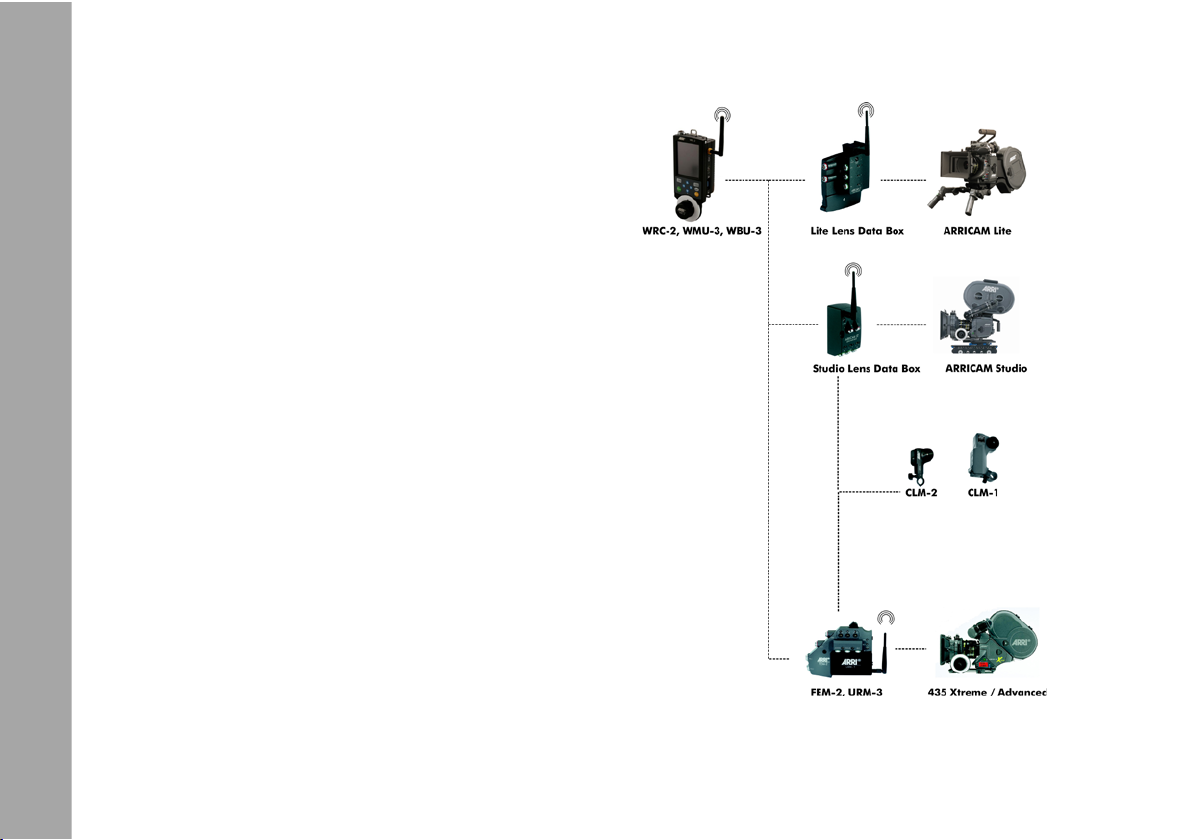

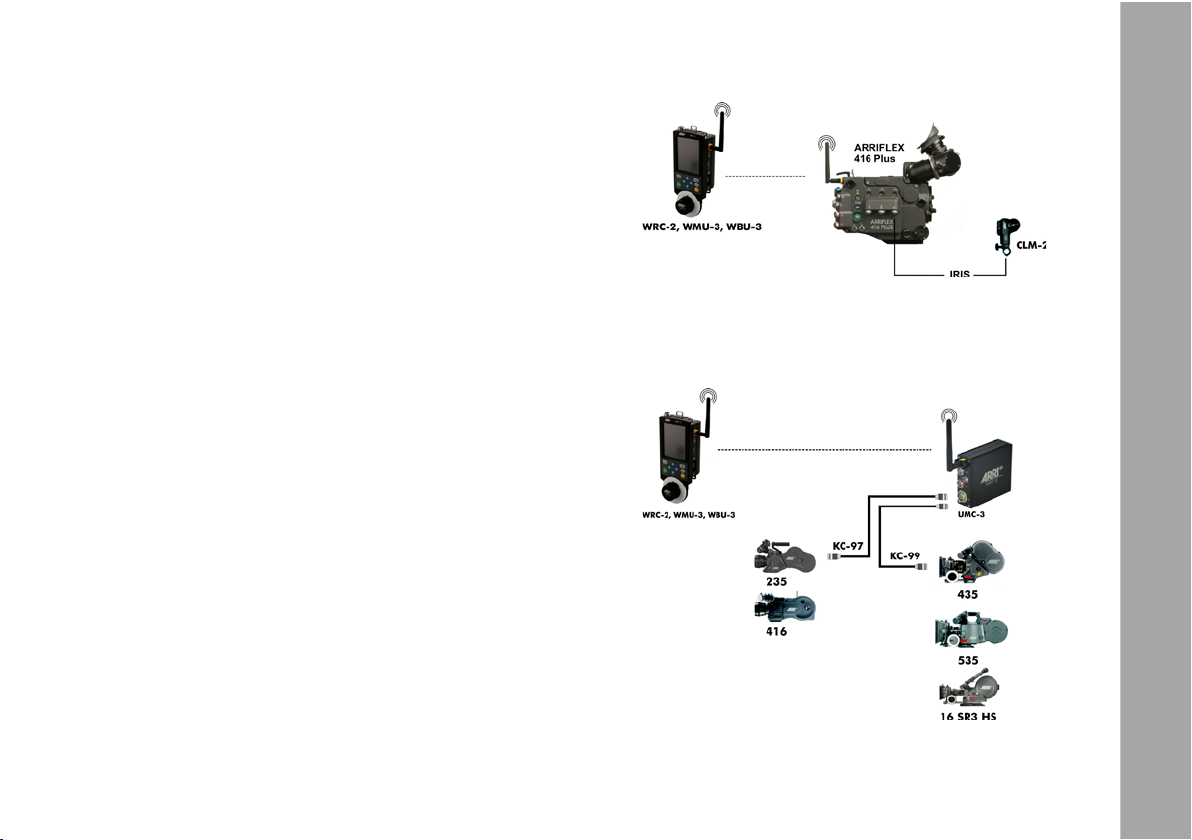

5.3 - 5.4 Wireless Congurations................................. 14

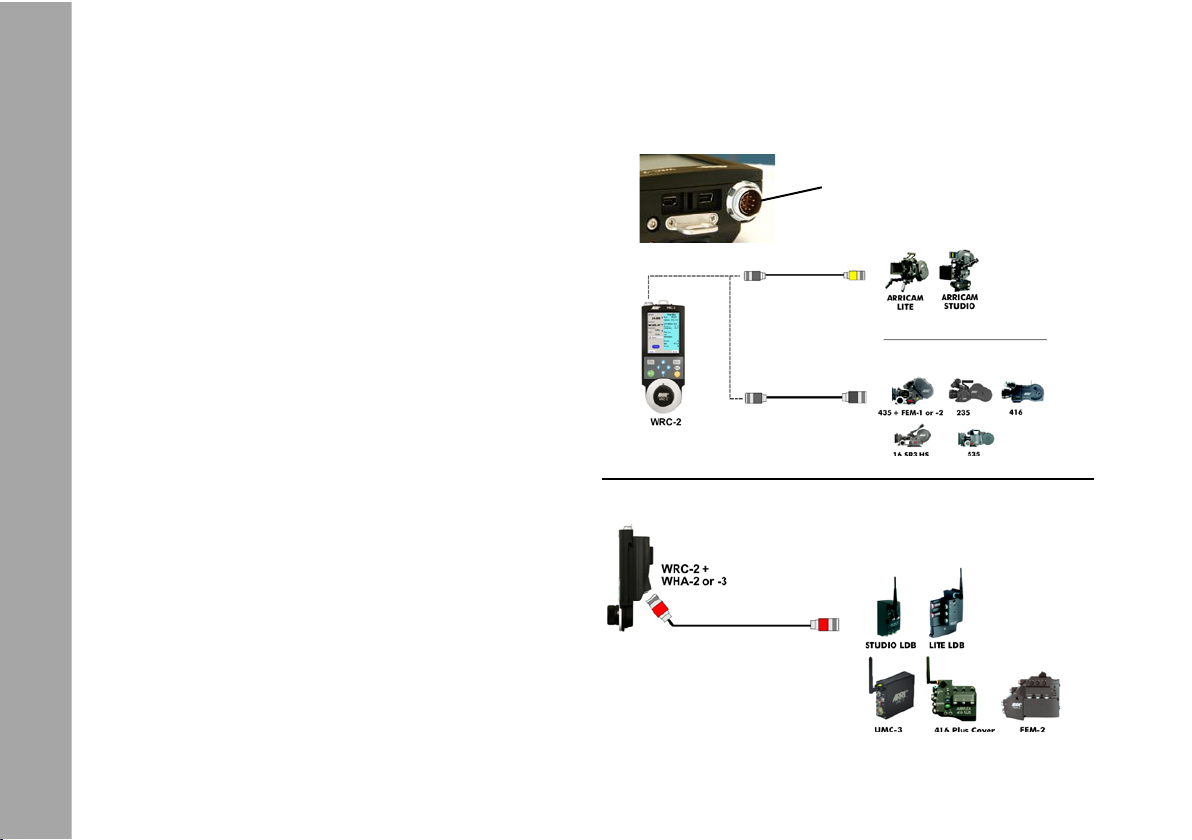

5.10 Wired Congurations............................................ 16

5.11 irect connection via the Camera Connector....... 16

5.12 Connection via Wireless Handgrip Attachment.... 16

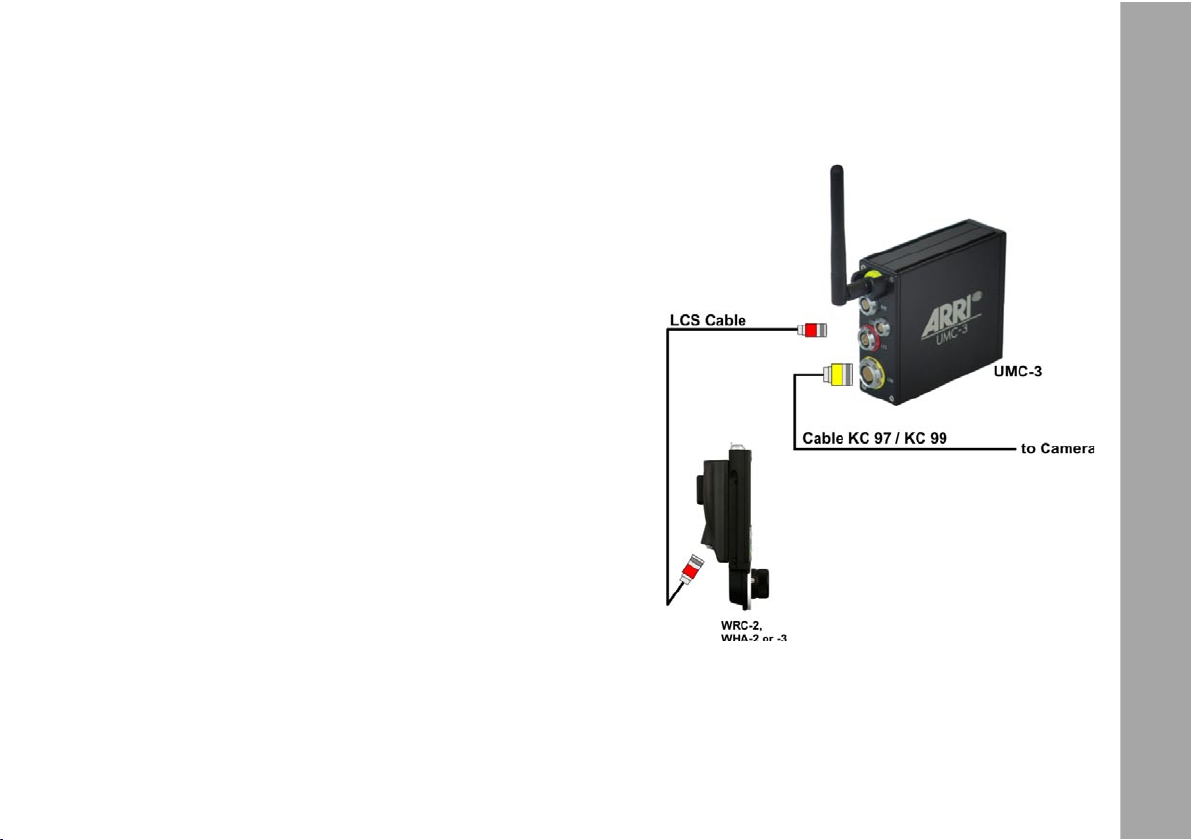

5.13 Conection via Universal Remote Controller.......... 17

6. First Steps.......................................................................... 20

6.1 Powering up the Unit................................................... 20

6.2 Using the Stylus.......................................................... 20

7. General Operation and Navigation.................................. 21

7.1 Touchscreen Navigation............................................ 21

7.2 Key Navigation............................................................ 21

8. Functions........................................................................... 22

8.1 Introduction.................................................................. 22

8.2 Basic WRC-2 Menus................................................... 22

9. Menu Structure.................................................................. 22

9.1 Introduction.................................................................. 23

9.2 Exit and Edit Buttons................................................... 23

10. Main Menu........................................................................ 24

10.1 Starting a Software Module....................................... 24

11. WRC-2 Settings Menu..................................................... 25

11.1 Adjusting the Backlight Level..................................... 25

11.2 Auto Dim Power Safe Function................................. 25

11.3 Calibrating the Touchscreen...................................... 25

12. Camera Control Menu..................................................... 26

12.1 Introduction................................................................ 27

12.2 Status Window........................................................... 27

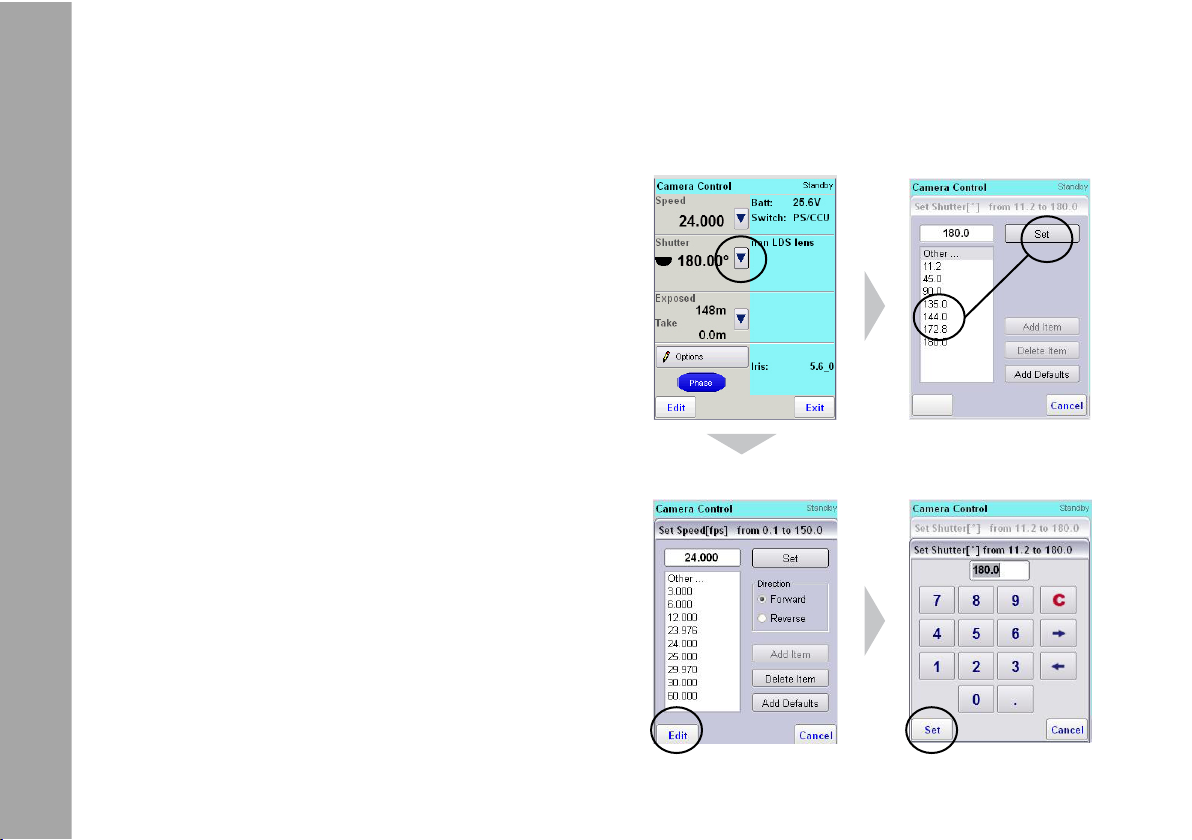

12.3 Changing Camera Speed.......................................... 28

12.4 Editing Preset Speeds & Change Run Direction....... 29

12.5 Changing Camera Mirror Shutter............................... 28

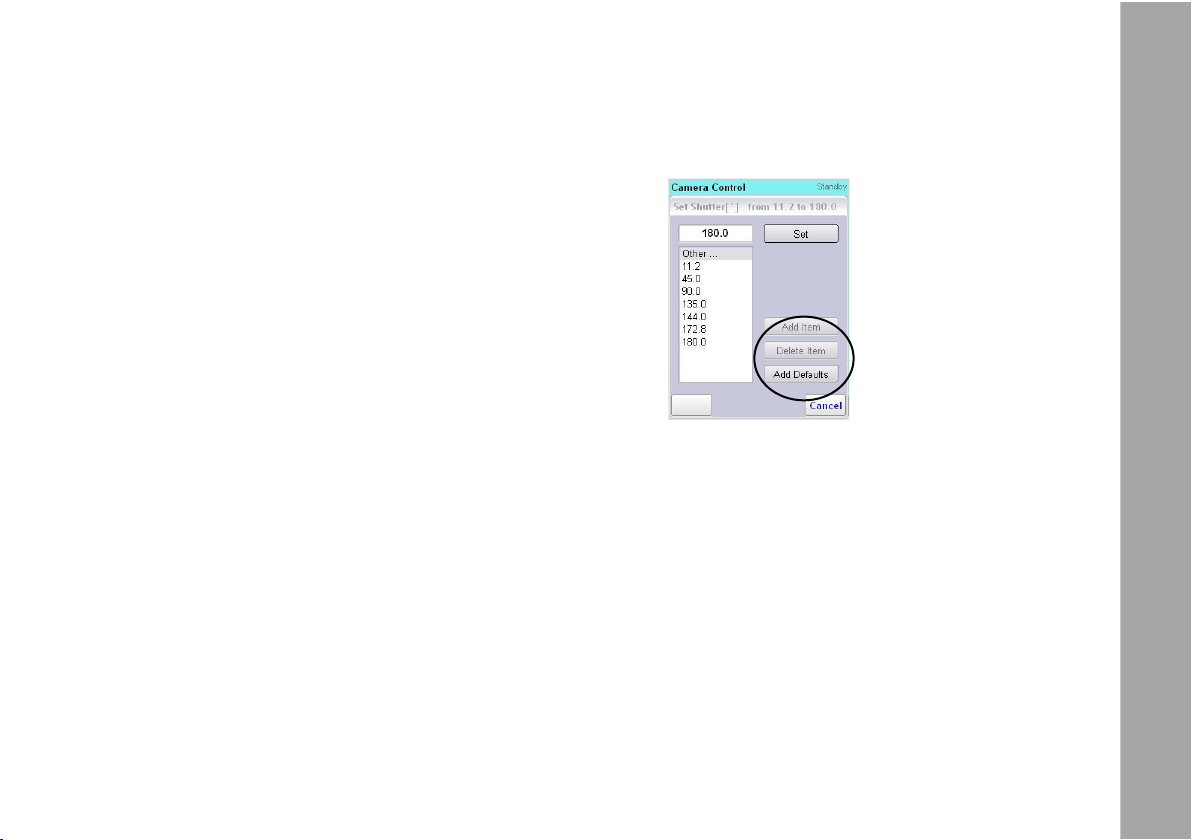

12.6 Editing Preset Camera Shutter Angles...................... 31

4

12.7 Filmcounter Sub Menu.......................................... 32

Exposed Film Counter.................................................. 32

Take Counter................................................................ 32

Raw Stock Counter....................................................... 32

Screen Time Display..................................................... 32

Changing Units between Meter and Feet..................... 32

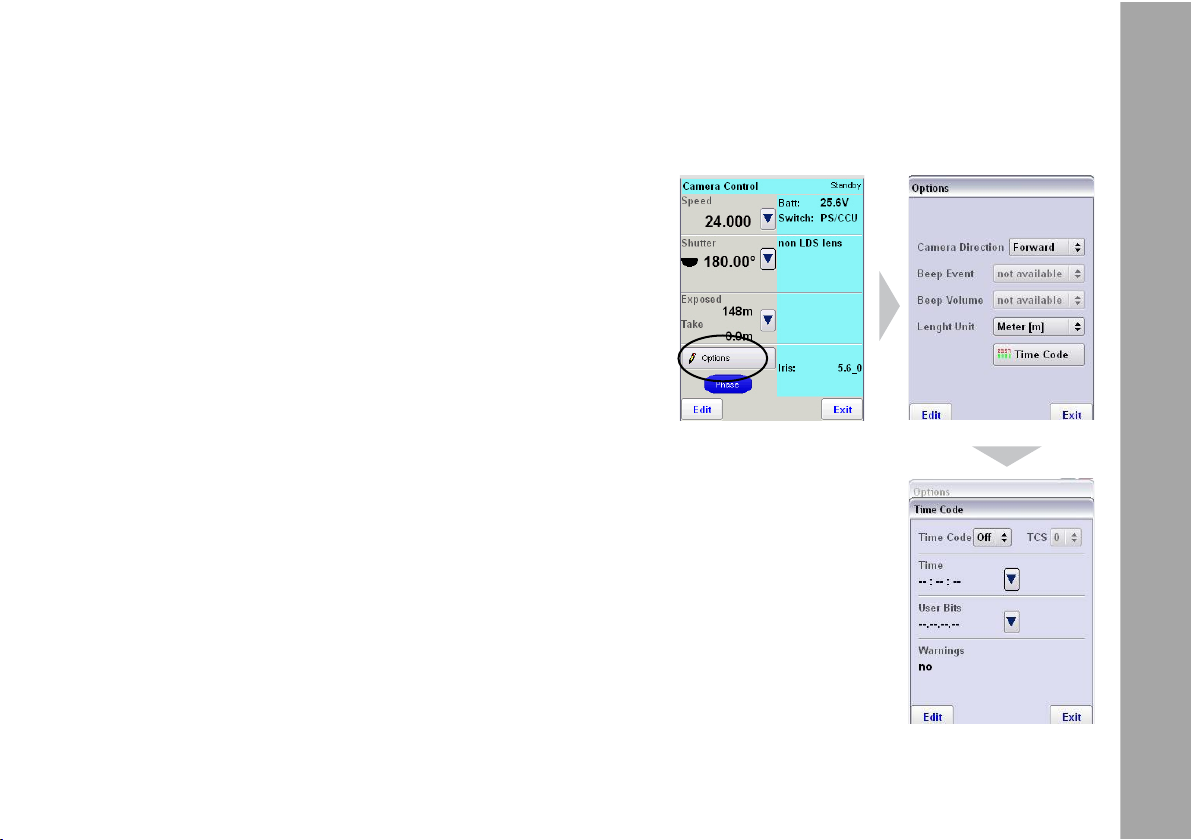

12.8 Camera Control Options Sub-Menu........................ 33

Camera Direction.......................................................... 33

Beep Event................................................................... 33

Beep Volume................................................................ 33

Length Unit................................................................... 33

Time Code.................................................................... 33

12.9 Time Code Sub-Menu............................................... 35

Time Code on/off.......................................................... 35

Time Code Sensitivity (TCS)........................................ 35

Time Code and User Bits.............................................. 35

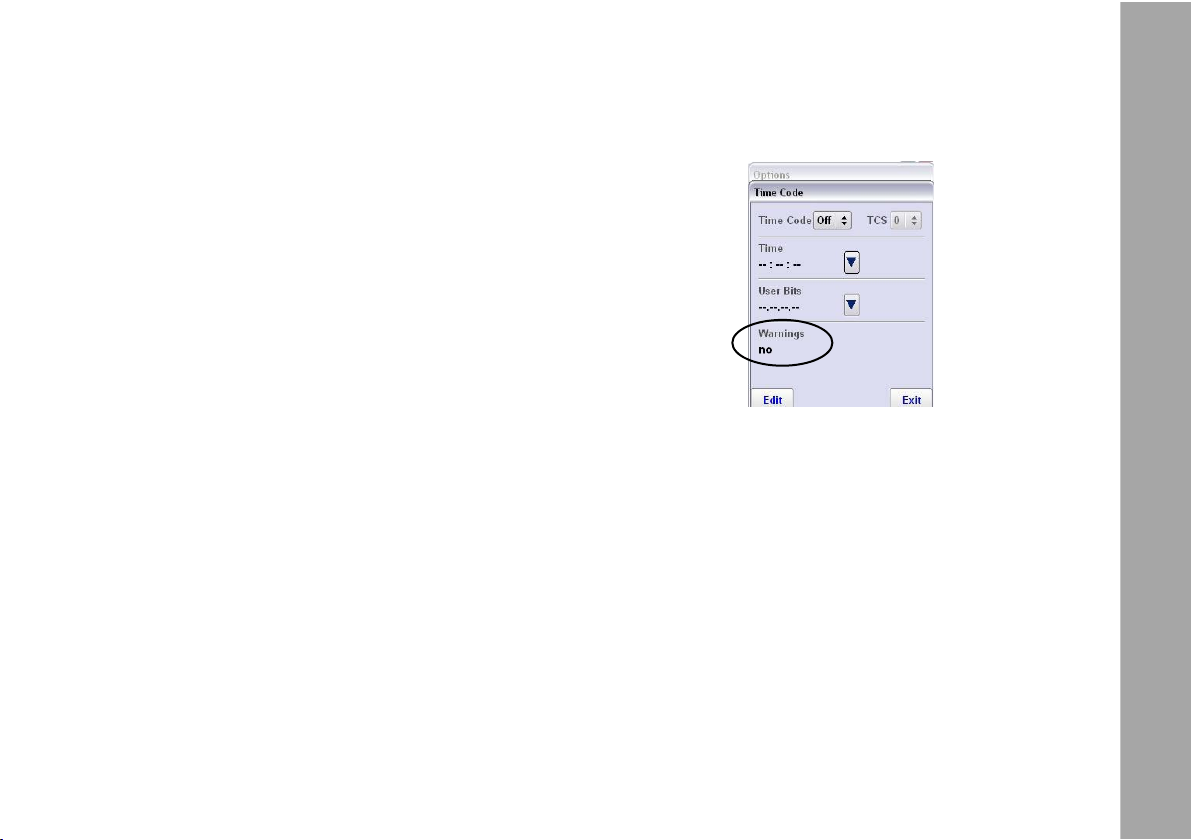

Status Field................................................................... 35

13. Lens Manager Menu........................................................ 36

13.1 Lens Manager Menu Functions.................................. 36

13.2 Administer Iris Tables.................................................. 37

13.3 Creating new Iris Tables using the Wizard................. 38

14. Ramp Control Menu........................................................ 41

14.1 Enabling the Iris Control............................................. 42

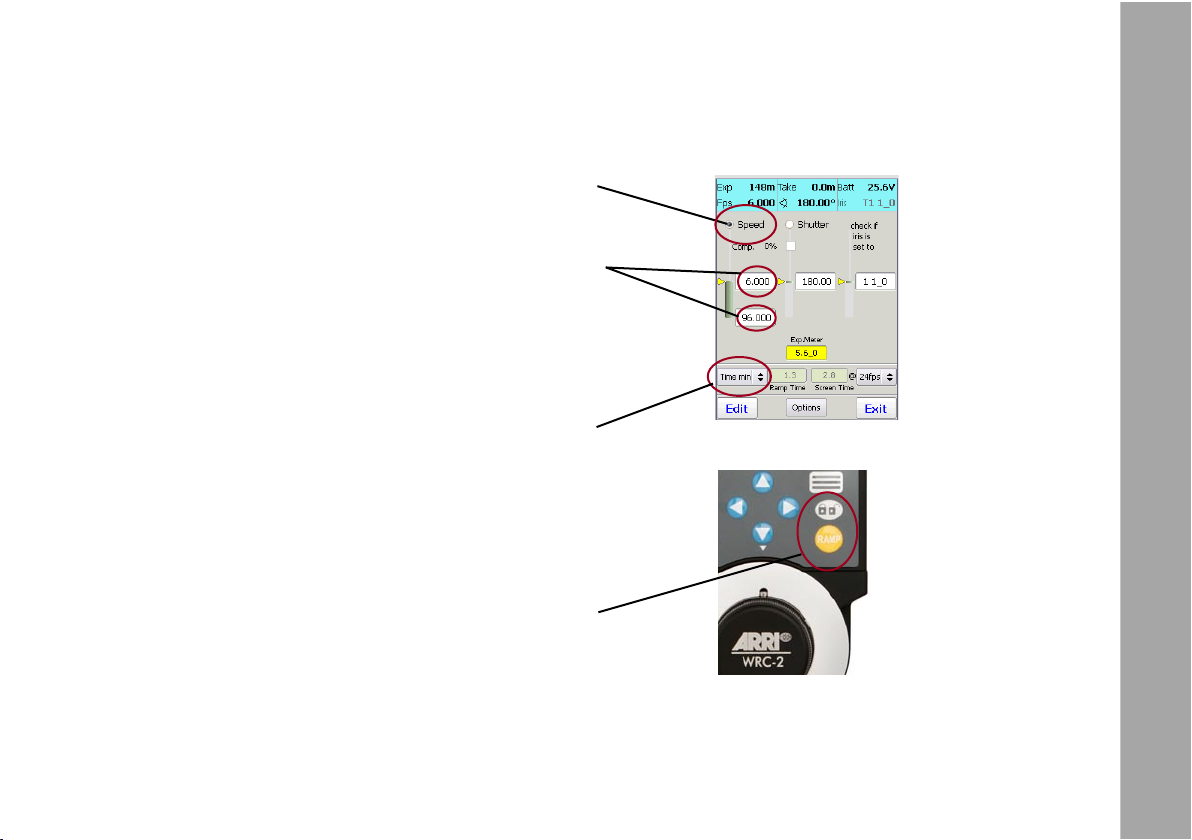

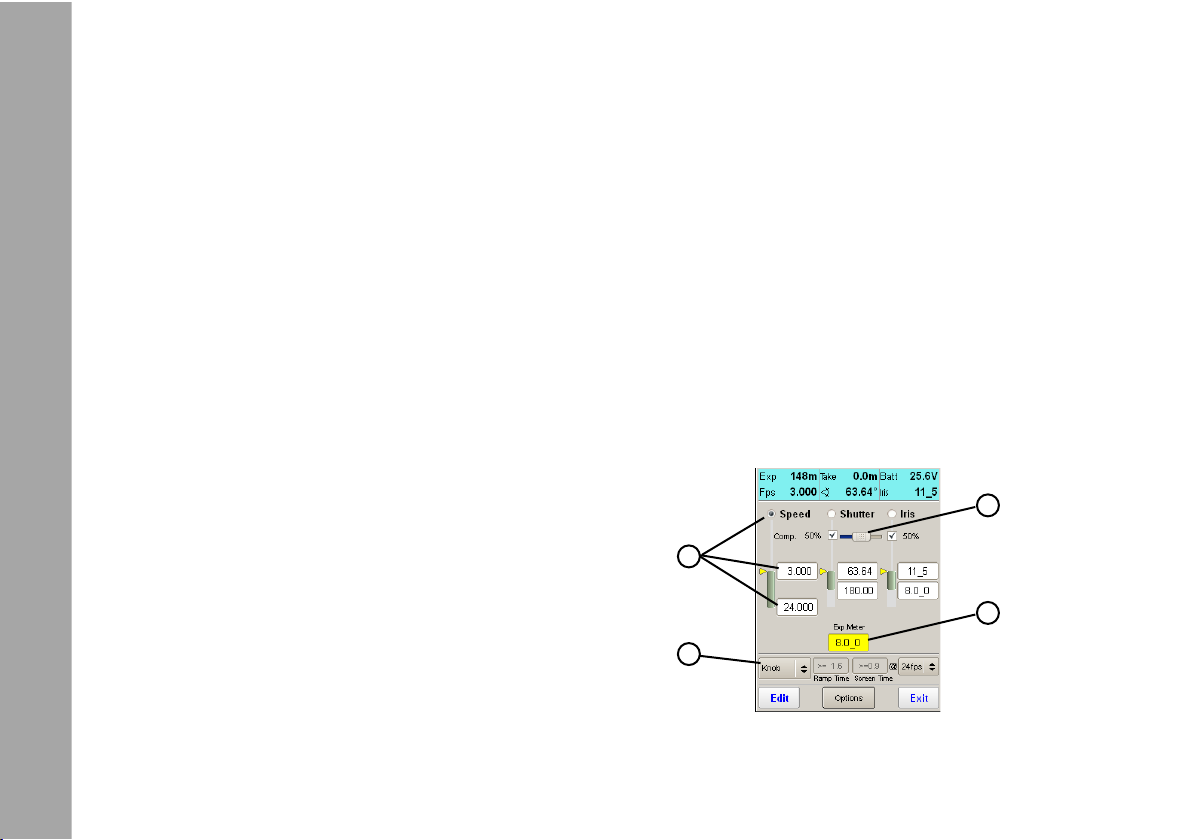

14.2 Programming a Ramp................................................ 43

14.3 Exposure Compensation............................................ 44

Compensation via the Mirror Shutter.......................... 44

Compensation via the Iris........................................... 44

Mixed Compensation via Shutter and Iris................... 44

14.4 Exposure Calculation.................................................. 45

Enable the Exposure Calculation............................... 45

14.5 Compensation Free Style.......................................... 46

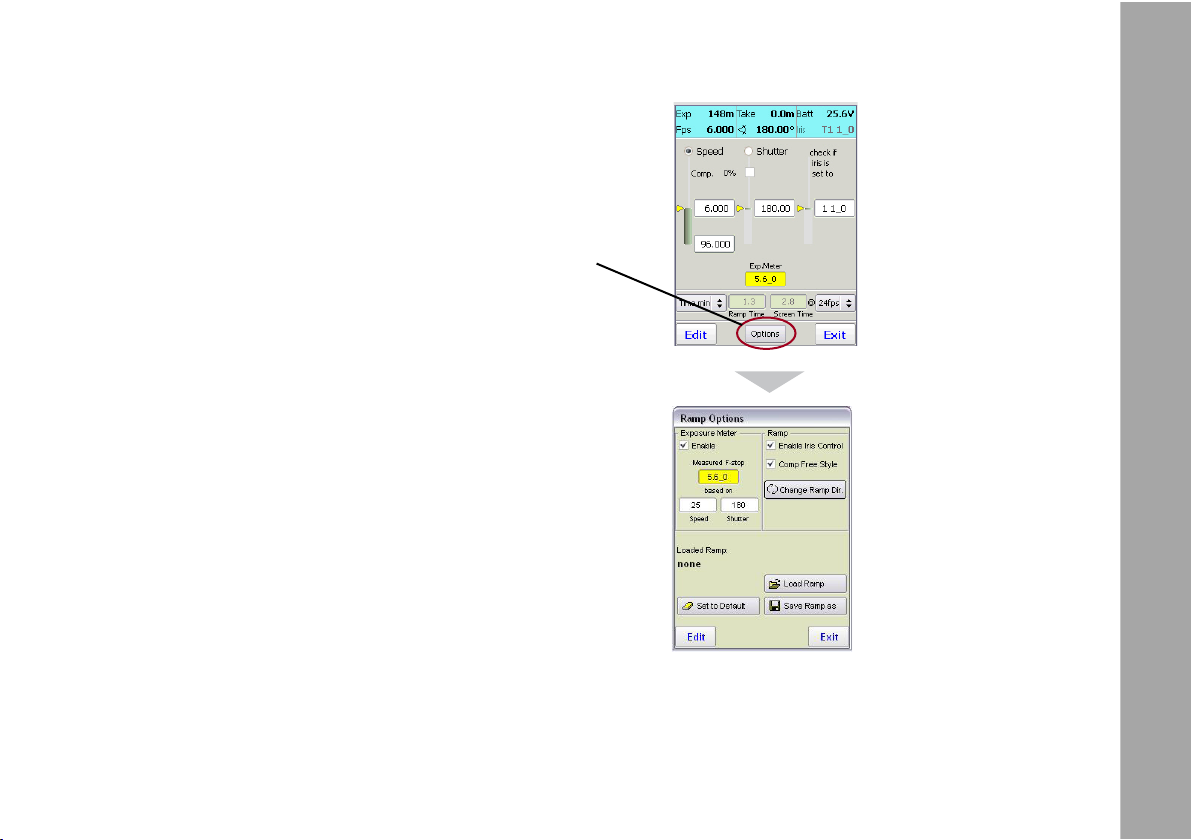

14.6 Ramp Options............................................................. 47

Change Ramp Direction............................................. 47

Save and Load a Ramp.............................................. 47

14.7 Ramp Example........................................................... 48

15. External Display Menu.................................................... 49

16. Appendix.......................................................................... 50

16.1 Updating the Unit.................................................. 50

16.2 Service Menu........................................................ 51

16.3 Cleaning .............................................................. 51

16.3 Troubleshooting.................................................... 52

16.4 Technical Data...................................................... 54

16.5 Declaration of Conformity..................................... 54

16.6 ARRI Service........................................................ 55

17. Index................................................................................. 56

Contents

5

2. Safety Instructions

Always follow these instructions to ensure against
injury to yourself and damage to the system or

other objects.

This safety information is in addition to the product
specic operating in snstructions in general and
must be strictly observed for safety reasons.

Warning signs

Possible risk of injury or damage to equipment

Safety Instructions

This symbol indicates the risk of electric shock or
re danger that could result in injury or equipment

damage.

General Safety Instructions

Read an understand all safety and operating
instructions before you operate or install the

system.

Retain all safety and operating instructions for
future reference

Heed all warnings on the system and in the safety
and operating instructions before you operate

or install the system. Follow all installation and
operating instructions.

Do not use accessories or attachments that are
not recommended by ARRI, as they may cause
hazards and invalide the warranty.

Do not attempt to repair any part of the system.

Repairs must only be carried out by authorized
ARRI Service Centers.

Do not remove any safety measures of the

system.

Do not operate the system in high humidity areas
or expose it to water or moisture.

6

Do not place the system on an unstable trolley,
stand, tripod, bracket or table. The system may

fall, causing serious personal injury and damage

to the system or other objects.

Operate the system using only the type of power

source indicated in the manual. Unplug the power
or connection cable(s) by gripping the plug, not the
cable.

Never insert objects of any kind into any part of the

system through openings, as the object may touch
dangerous voltage points or short out parts. This

could cause re or electrical shock.

Unplug the system from the power outlet before
opening any part of the system or before making

any changes to the system, especially the attaching

or removing of cables.

Do not use solvents to clean the display screen.

Clean the display surface only with a soft, lint.-free

cloth or paper with water only. Wipe the screen

carefully. Do not spray liquid directly on the screen.

You may also use a mild glass cleaner that contains
no alcohol or ammonia.

Do not loosen screws that are painted over.

Specic safety instructions

Safety Instructions

By using the WRC-2 you are able to run a connected

camera or other device. Therefore make shure
to follow all applicable safety instructions for the

connected devices.

Any violation of these safety instructions or the
nonobservance of personal care could cause

serious injuries (including death) and damage to
the system or other objects.

7

3. Disclaimer

Before using the products described in this manual be

sure to read and understand all respective instructions.
The Wireless Remote Control 2, WRC-2, is only

availbale for commercial customers.

The customer grants by utilization, that the WRC-2 or

Disclaimer

other components of the system are only deployed for

commercial use.
Otherwise the customer has the obligation to contact
ARRI preceding the utilization.

While ARRI endeavours to enhance the quality,
reliability and safety of their products, customers agree
and acknowledge that the possibility of defects thereof

cannot be eliminated entirely.

To minimize risks of damage to property or injury
(including death) to persons arising from defects in the
products, customers must incorporate sufcient safety

measures in their work with the system and have to
heed the statuted canonic use.

No part of this document may be copied or reproduced
in any form or by any means without written consent
of ARRI. ARRI assumes no responsibility for any errors

that may appear in this document.

The informations is subject to change without notice.
For product specication changes since this manual
was published, refer to the latest publications of ARRI
data sheets or data books, etc., for the most up-to-date
specications.

Not all products and/or types are available in every
country. Please check with an ARRI sales representative

for availability and additional information.

8

Neither ARRI nor its sbusidaries assume any liability for
infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use
of ARRI products or any other liability arising from the
use of such products.

damage to or replacement of equipment or property, any
costs or recovering of any material or goods associated
with the assembly or use of our products, or any other
damages or injury of persons and so on or under any

other legal theory.

No license, express, implied or otherwise, is granted
under any patents, copyrights or other intellectual

property rights of ARRI or others.

ARRI or its subsidiaries expressly exclude any libility,

warranty, demand or other obligation for any claim,

representation, or cause, or action, or whatsoever,
express or implied, wheter in contrat or tort, including
negligence, or incorporated in terms and conditions,
whether by statue, law or otherwise.

In no event shall ARRI or its subsidiaries be liable for
or have a remedy for recovery of any special, direct,
indirect, incidental, or consequential damages, including
but not limited to lost prots, lost savings, lost revenues
or economic loss of any kind or for any claim by third

party, downtime, good-will,

In the case one or all of the forgoing clauses are not
allowed by applicable law, the fullest extent permissible

clauses by applicable law are validated.

ARRI is a registered trademark of Arnold&Richter Cine

Technik GmbH & Co Betriebs KG.

Note:
This product and the accessories recommended by the

manufaturer full the specications of the EU-Guidelines

89/336/EWG.

Disclaimer

9

4. Introduction

General Description:

The WRC-2 is a modern and user friendly remote­control and program unit for all new-generation

ARRIFLEX and ARRICAM cameras. It combines the
functionality of the RCU-1 and WRC-1. Beyond that,

Introduction

the WRC-2 provides unique new features and due to
the touchscreen user interface, remote controlling a
camera was never faster and easier.

The range of functions is automatically adapted to
the attached camera. Since the functionality of the
WRC-2 is software based and therefore expandable,
we are looking on the most exible Remote Control

Unit, ARRI has ever provided.

Setups:

In the standard version, the WRC-2 enables the user
to remotely control

- the camera speed

- the shutter angle of the mirror shutter
providing a wide range of compensation options for

constant exposure via an easy an intuitive to use

software.

Automatic xposure Calculation:

Furthermore the WRC-2 automatically calculates the

correct exposure value for given ramps (speed, iris

or shutter) based on the measurements made by the

DOP on the set. This is a new and unique feature, only

available through the WRC-2. The complete ramp
data can now easily be entered in the clear arranged
Ramp Menu, guiding the user through the sometimes

very complex process of programming a ramp. Thus,
the WRC-2 is a very powerful tool that saves time
and provides a new level of exposure-safety and

precision.

Simulator Software:

To make yourself familiar with the unit before using it
on the lmset, we offer a WRC-2 simulator software,

that can be downloaded via our website.

Upload new Software Modules:

New released software modules or software updates

can be uploaded just by connecting an USB stick to
the WRC-2 mini-USB port.

10

Ramp Compensation with and without LDS Lenses:

The WRC-2 can automatically compensate speed
and iris ramps. In order to compensate the ramps by
the iris, a CLM-1 or CLM-2 motor has to be attached
to the camera and the mounted lens has to be
selected in the WRC-2. This is done automatically
when using LDS lenses (Master Prime or LDS Ultra
Prime). For other lenses an Iris Table can be easily

created following a few steps in the Lens Manager.

The lens can then be stored in the WRC-2 internal
memory.

Modular System

The WRC-2 works with the ARRI Wireless Remote
Control system and attaches to the Wireless Main
Unit WMU-2 and WMU-3.
It can be wired to an ARRIFLEX or ARRICAM either
directly or via a Wireless Handgrip Attachmend
WHA–2 or WHA-3 using a standard LCS cable.

The knob module can be removed to keep the unit as

small as possible, if desired.

Introduction

11

5. Setup

5.1 WRC-2 in wireless mode

Setup

Transmitting:

In order to be able to use the WRC-2 in wireless
mode, it must be mounted on a Wirless Main
Unit (WMU-2 or WMU-3) as a transmitter. The
Main Unit supplies the WRC-2 with power and
establishes the radio link with the camera.
Up to three WMU can be used simultaneously,

therefore the WRC-2 can be controled by one
operator while e.g. the focus unit can be controlled
by another operator. Please refer to the LCS
instruction manual for further details.

Receiving:

On the camera side, a receiver is needed. When
using ARRICAM cameras, the receiver is built
in the Lens Data Box. When using 435, the
receiver is the Universal Radio Module (URM-3).
This device has to be mounted to the Function
Expansion Module (FEM-1 or FEM-2) When
using other cameras, the Universal Radio Module
(URM-3) can be used as a receiver.

12

5.2 Mounting the WRC-2 on
the WMU-3 or WMU-2

● Switch off the Wirless Main Unit WMU by pressing
the ON/OFF button.

● With the wide black pin pointing forward, insert the
WRC-2 into the free space on the WMU. Then press

the WRC-2 onto the WMU until the module audibly
snaps into position.

● Select the same radio channel on the WMU and on
the receiver (e.g. Lens Data Box)

Note:
The WRC-2 can not be mounted on a WMU-3
together with other modules without using the
Wireless Expansion Bracket (WEB-3).

Note:

Do not seperate the hand control units from one

another when they are switched on, as this can
result in randomly set lens limits.

Setup

13

5.3 Wireless Congurations

5.4 WRC-2 & ARRICAM Studio and Lite

Setup

On the ARRICAM Lite and Studio a Lens Data Box
(LDB) has to be mounted in order to be remotely
controlled by the WRC-2 via the Wireless Main
Unit WMU-3 or WMU-2.
Functions:

- Speed, Shutter, Cam Info, LDS Info

- Ramp Control: Enter Speed and Shutter
Compensation by Iris* and/or Shutter

5.5 WRC-2 & ARRIFLEX 435 Xtreme / Advanced

On the FEM-2 the Universal Remote Controller
URM-3 has to be mounted.
Functions:

- Speed, Shutter, Cam Info, LDS Info

- Ramp Control: Enter Speed and Shutter
Compensation by Iris* and/or Shutter

*) if CLM-2 or CLM-1 motor is connected to
the Lens Data Box (LDB)

14

5.6 WRC-2 & ARRIFLEX 416

On the ARRIFLEX 416 the 416 PLUS
Electronics Side Cover has to be mounted
(included in 416 PLUS).
Functions:

- Speed, Cam Info

- Ramps: Speed
Compensation by Iris if CLM-2 or CLM-1 motor
is connected to the Electronics Side Cover.

5.7 WRC-2 & other ARRI Cameras

In order to control cameras without a bulit in
receiver (e.g. Lens Data Box on ARRICAM)
the Universal Remote Controller has to be
connected to a camera with the cable KC-97

for the 235 and 416 or with the cable KC-99 for

435, 535B and 16SR3 or 16SR3 HS.
Functions:

- Speed, Iris*, Shutter**

- Ramp Control: Enter: Speed, Iris*, Shutter**

*) if CLM-2 or CLM-1 motor is connected to
the Lens Data Box (LDB)

**) if camera has an electronic adjustable

mirror shutter

Setup

B

15

5.10 Wired Congurations

Setup

The WRC-2 can be wired to a camera or to a Universal
Motor Controller UMC-3 in three different ways:

Camera Connector

16

5.11 Direct connection via the
Camera Connector

to ARRICAM Studio and Lite: KC-125
to ARRIFLEX 235, 416, 435, 535, SR3 (HS):

KC-39 (1,5m/5ft) or KC-41 (20m/60ft):

5.12 Connection via the Wireless Handgrip
Attachment WHA-2 or WHA-3

To connect the WRC-2 to the LCS Bus the Wirless
Handgrip Attachment WHA-2 or WHA-3 has to be

mounted on the back of the WRC-2.

*LCS Bus = Lens Control System interface. ARRI

Cameras and accessories can be connected. The
bus can be recognized by the red sockets and red

plugs. See next page for a list of LCS cables.

KC-125

KC-39 or KC-41

LCS Cable

5.13 Connection via the
Universal Remote Controller URM-3

The UMC-3 can be connected to the WRC-2 either
directly via the WRC-2 Cam Cable or via the mounted
Wireless Handgrip Attachment WHA-2 or WHA-3 and
an Lens Control Cable (e.g. LC-Z1/Z2 or LC-M1/M2).
Both cables are pluged into the „LCS“ socket of the
UMC-3.

The cameras can then be wired to the UMC-3 („CAM“

socket) via two different cables:

KC-97: to ARRIFLEX 235 and 416
KC-99: to ARRIFLEX 435, 535, 16SR 3 (HS)

LCS Cables

LC-Z1 (3,5m/11ft) K4.41395.0
LC-Z2 (7m/23ft) K2.41396.0
LC-M1 (1m/3ft) K4.41397.0
LC-M2 (2m/6ft) K2.43871.0

Setup

17

5.14 WRC-2 & ARRICAM Studio and Lite

Possible Connections:

1.) Via KC 125 direct to ARRICAM Studio or Lite.

KC-125

Setup

2.) With WHA-2/3 attached to WRC-2 via LCS
cables. (A Lens Data Box has to be mounted)

Functions:

- Speed, Shutter, Cam Info, LDS Info

- Ramp Control: Enter Speed and Shutter
Compensation by Iris* and/or Shutter

5.15 WRC-2 & ARRIFLEX 435 Xtreme / Advanced

Possible Connections:

1.) Via KC-39 or -41 direct to 435 Xtreme/Adv.
KC-39 (1,5m/5ft) or KC-41 (20m/60ft)

2.) With WHA-2/3 attached to WRC-2 via LCS
cables. (FEM-2 has to be mounted)
Functions:

- Speed, Shutter, Cam Info, LDS Info

- Ramp Control: Enter Speed and Shutter
Compensation by Iris* and/or Shutter

*) if CLM-2 or CLM-1 motor is connected to
the Lens Data Box (LDB)

LCS Cable

KC-39 or KC-41

LCS Cable

18

5.16 WRC-2 & ARRIFLEX 416

Possible Connections:

1.) Via KC-39 or -41 direct to 416.

KC-39 =1,5m/5ft, KC-41 =20m/60ft

2.) With WHA-2/3 attached to WRC-2 via LCS
cables. (416 Plus only)
Functions:

- Speed, Cam Info

- Ramps: Speed, Iris (needs CLM-1 or -2)

5.17 WRC-2 & other ARRI Cameras

In order to control cameras without a bulit in
receiver (e.g. Lens Data Box on ARRICAM)
the Universal Remote Controller has to be
connected to a camera with the cable KC-97

for the 235 and 416 or with the cable KC-99 for

435, 535B and 16SR3 or 16SR3 HS.
Functions:

- Speed, Iris*, Shutter**

- Ramp Control: Enter Speed, Iris*, Shutter**

*) if CLM-2 or CLM-1 motor is connected to
the Lens Data Box (LDB)

**) if camera has an electronic adjustable

mirror shutter

Setup

B

19

6. First Steps:

6.1 Powering Up The Unit

After connecting the WRC-2 to a camera the WRC2

will power up automatically and the last used menu
will be displayed.

To go back from any menu to the Main Menu,

Introduction

click „Exit“ or „Cancel“ until the Main Menu appears.

6.2 Using the Stylus

Just as you use a mouse pointer to click elements
on a computer screen, you can use the stylus to tap
elements on your WRC-2‘s touch-sensitive screen.
Tapping is the basic action used to execute tasks on

your WRC-2. Alternatively you can use your nger.

However, in this manual both actions are described
as „click“.

Note:

Do not use a pen, pencil or any other sharp object
to click on the screen.
We recommend to use a screen protector.

KC-115

KC-39 / KC-41

ARRICAM Studio and ARRICAM Lite

ARRIFLEX SR3, 416, 235, 435, 535B

Main Menu

Stylus

20

7. General Operation and Navigation

The operating software can be controlled in two

ways.

7.1 Touchscreen Navigation

1.) Direct control via the „Touch screen“. Simply
click on the icons, sliders or other menu buttons
with the on-board Stylus or your nger. To
release the Stylus, press the „Stylus Release

Button“ on the right side of the WRC–2.

7.2 Key Navigation

2.) Navigate through the menus with the
„Arrow Buttons“ and use the „Function Keys“

to activate the buttons copied in the software.
For example: Instead of clicking on the „Edit“
button on the Touch Screen, just press the left

„Function Key“.

Use the left and right Arrow Buttons to jump
from item to item, use the up and down

Arrow Buttons to change values or to operate
sliders.

Lock/Unlock

To lock/unlock the keypad, press the Lock/

Unlock Key for three seconds.

Camera Connector

Touchscreen

Function Key

Arrow Button

Run Button

Knob

Marking Disk

PC and USB sockets

Stylus (Pen)

Stylus Release
Button

Introduction

Function Key
Lock/Unlock Key

Ramp Button

21

8. Functions

8.1 Introduction

The WRC-2 not only replaces camera control
accessories like WRC-1, RCU-1 or the External
Display EXD-1. By using special software modules

for each task, it provides many other new features

Functions

and possibilities. The Software Modules are called
„Menus“ and can be started from the „Main Menu“ in

the WRC-2.

Future software releases and menus can be uploaded

to by connecting an USB memory stick to the WRC-2.

Depending on the number of Software Menus you have
uploaded, the Main Menu will vary. For information
about future releases, please refer to the manual
updates that will be shipped with each Software.

8.1 The Basic WRC-2 contains the following
Menus:

Camera Control

Contains all camera related controls:

- Edit camera speed and shutter.

- Set lmcounters and other options

- Edit time code settings.

- Edit camera speed/direction and shutter.

Ramp Control

- Enter Speed or Iris Ramps.

- Set Compensation (Iris, Shutter or Mix).

- Calculate the actual exposure value .

- Calculate Screen Time.

Lens Manager

- Edit, save and load Lens Tables

- Calibrate lenses

External Display

- Provides the Camera Menu on the
WRC-2 display

WRC-2 Settings

- Set the backlight level.

- Calibrate the touchscreen.

- Perform software updates.

22

9. Menu Structure

9.1 Introduction

From the Main Menu all other
applications can be launched by
clicking on the corresponding icons.

Depending on the amount of
functions, some Menus can contain

Sub-Menus.

To navigate back to the Main Menu,
click on „Exit“ or „Cancel“ in the
Menus or Sub-Menus until the Main
Menu is displayed again.

„Exit“ and „Edit“ Buttons

● „Exit“ will safe your changes

and inputs and jump back to the
preceding menu. Click „Edit“ to
change the values.

● „Cancel“ will not safe your inputs

but jump back to the preceding
menu.

CaMeRa ContRol
ChapteR 12

exteRnal DiSplay
ChapteR 15

R

aMp ContRol

ChapteR 14

ain Menu

M
ChapteR 10

Functions

lenSManageR
ChapteR 13

WRC SettingS
ChapteR 11

23

10. Main Menu

10.1 Starting a Software Module

In the „Main Menu“ all available software

modules represented by a corresponding icon

are displayed. If you have installed further

Main Menu

applications, their icons may not be visible
without using the slider on the right side.
Alternatively you can always use the arrow

keys to move from one icon to another. Start
the application by using the left „Function Key“

or just click on the icon with the stylus or your

nger.

To navigate back to the „Main Menu“ from
anywhere in other software modules, just

click „Cancel“ or „Exit“ until the „Main Menu“
appears.

Note: The WRC-2 will always power up with
the last menu that was used in the preceding
session.

Icons

Main Menu

24

11. WRC-2 Settings Menu

In the Settings Menu the display backlight level and
Auto Dim durations can be set. Also the display can be
calibrated to asure a precise control with the stylus.

11.1 Adjusting the backlight level:

● In the Main Menu, click „WRC Settings“

● Use slider to adjust the backlight level.

11.2 Auto Dim (Backlight level) Function

● Select a time from the Auto Dim Listbox . The screen
will darken to the lowest possible setting after that

time to save battery energy. As soon as you touch

either the display or press any key, the brightness of

the display will jump back to the level previously set
on the slider.

11.3 Calibrating the touchscreen:

● In the WRC Settings Menu, click „Calibrate“

● Click on the cross-symbols precisely

● After calibration click on „Test“. Draw some lines on
the screen to check the precision of the stylus.

● Click „Exit“ to go back to the Main Menu.

Main Menu

11.4 Service Menu / Updating the Unit

● In the WRC Settings Menu, click „Service“

● Refer to Appendix Chapter 15.1 Service and

Maintenance

WRC SettingS Menu

Camera Control Menu

25

12. Camera Control Menu

12.1 Introduction

This menu represents a complete camera

remote control and status monitor. On the left
side in the „Settings Window“ you nd editable
values like speed, shutter and lmcounters.

Also other camera related options can be set
and edited via the „Options“ button.

The „Status Window“ is on the right side. It

offers an overview about the actual camera

status and can display error or warning

messages in detailed text form.

When working with the Lens Data System, the

Camera Control Menu

iris values will be displayed in the Lens Data

Information eld.

When using a Non-LDS-Lens an Iris Table can
be created and loaded in the Lens Manager
in order to display the actual iris values in the
Status Window.

Speed

Shutter*
Iris*

Filmcounter

Options

Phase
Button

Status WindowSettings Window

General Lens

Information

Messages &
Warnings

Lens Data

Information

CaMeRa ContRol Menu

26

12.2 Status Window

On the right side of the screen, the actual camera
status is displayed. The color of the screen can alter:

cyan = standby
green = camera running
orange = inching
red = warning or not ready

The following values and settings are displayed:

Battery Voltage

Displays the Voltage value.

PS/CCU

Displays the camera setting PS/CCU or NORM. In
order to be able to change the speed settings, the
camera has to be set to PS/CCU.
When the camera is switched to NORM mode, all
other options are available (shutter, iris etc.).

LDS: e.g. 40mm T1.9

In this case, a 40mm LDS Ultra Prime is connected

to the camera. The widest f-stop is T1.9
Note: This f-stop value is not the actual f-stop, set

on the lens.

Message & Warnings Field

Error Messages will be displayed here.

Iris

The Iris value, that is actually set on the lens.

Camera Control Menu

27

12.3 Changing Camera Speed

In the camera control menu, the camera speed can
be edited. There are two ways to edit the camera

speed. The fastest is to choose from preset values.
But also specic values can be entered.

Choose from a preset camera speed:

● In the Camera Control Menu, click on the arrow

button in the „Speed“ section, the Set Speed(fps)
Menu will appear.

● Click on the desired value in the speed list, the

value will be displayed in the small window on the
top.

● Conrm the value by clicking on „Set“.

Camera Control Menu

Enter a user dened camera speed

● In the Camera Control Menu, click on the arrow

button in the Speed section.

● In the Set Speed(fps) Menu, click on „Edit“.

● Enter the desired value. Use the arrow buttons to

navigate or „C“ to clear the input.

● Click „Set“ to set the new camera speed.

To choose from a preset camera speed

To edit a specic camera speed

28

12.4 Editing Preset Speeds & Change Camera Direction

Delete items from the preset list:

● In the Set Speed Menu, click on value you want to delete.

● Click on „Delete Item“

Add a user dened speed value:

● In the Set Speed Menu, click on „Edit“.

● Enter your speed value and click on „Set“.

● Click on „Add Item“, the new value will appear in the list.

Add all default speed values

● In the Set Speed Menu, click on „Add Defaults“.

All preset values will be added to the list.

Change Camera Direction

For forward run, check the „Forward“ button.
For reverse run, check the „Reverse“ button.

You will have to conrm the change.

Camera Control Menu

29

12.5 Changing Camera Mirror Shutter:

From the camera control screen, the camera shutter angle
can be edited. There are two ways to edit the shutter angle.

The fastest is to choose from preset values. But also specic

values can be entered.

Note: Before changing the mirror shutter values make sure

the locking mechanism is set to the LOOSE (unlocked)
position. Please refer to the corresponding camera

manual.

Choose from a preset camera shutter angle:

● In the Camera Control Menu, click on the arrow button

in the „Shutter“ section.

● The Set Shutter Menu will appear.

● Click on the desired value, the value will be displayed in the

Camera Control Menu

small window on the top.

● Conrm the value by clicking on „Set“.

Edit a specic camera shutter angle

● In the Camera Control Menu, click on the arrow button

in the Shutter section.

● In the Set Shutter Menu, click on „Edit“.

● Enter the desired value. Use the arrow buttons to navigate

or „C“ to clear the input.

● Click „Set“ to set the new camera shutter angle.

To choose from a preset camera speed

To edit a specic camera speed

30

12.6 Editing Preset Camera Shutter Angles

Delete items from the preset list:

● In the Set Shutter Menu, click on value you want to delete.

● Click on „Delete Item“

Add a user dened shutter angle value:

● In the Set Shutter Menu, click on „Edit“.

● Enter your shutter angle value and click on „Set“.

● Click on „Add Item“, the new value will appear in the list.

Add all default camera shutter values

● In the Set Shutter Menu, click on „Add Defaults“.

All preset values will be added to the list.

Camera Control Menu

31

12.7 Filmcounter Sub-Menu:

The WRC-2 provides three lm counters and calculates the

corresponding screen time.

Exposed Film Counter:

Displays the total amount of exposed lm.

Click „Reset“ to set counter to zero.

Take Counter

Counts only the take length and resets itself to zero after

running the camera.

Raw Stock Counter

Will display the raw stock quantity that was preset on

th camera (ARRIFLEX 416) or via the magazine

Camera Control Menu

(ARRICAM)

Screen Time Display

Calculates the screen time at 24 fps. The screen time is
the time needed for the projection of the shot with 24fps,
regardless of the camera speed.

Changing the unit of measurement (meter/feet)

Please refer to the next chapter: Camera Control Options

32

CaMeRa ContRol Menu optionS Sub-Menu

12.8 Camera Control Options Sub-Menu

To enter the Options Menu click „Options“ in the Camera
Control Menu

Camera Direction

Enables the change between forward and reverse run

Beep Event

Denes when the beep signal should occur.

Beep Volume

Sets the volume of the beep signal.

CaMeRa ContRol Menu optionS Sub-Menu

Length Unit

Sets the general lenght unit to meter or feet.

Time Code

Refer to the Chapter „Time Code Sub-Menu“

Camera Control Menu

tiMe CoDe Sub-Menu

33

12.9 Time Code Sub-Menu

Since the WRC-2 only remote controls the time code

settings of a particular ARRI camera, please refer to the
individual camera manual for detailed information about

time code recording.

To enter the Time Code Sub-Menu:

- In the Camera Control Menu click „Options“

- In the „Options Sub-Menu“ click „Time Code“

Time Code on/off

Enables time code recording.

(Only if camera and magazine allow TC exposure)

TCS (Time Code Sensitivity)

Camera Control Menu

Displays the TCS settings from the camera or magazine.
The TCS value descibes the intensity of the time code
recording to suit the sensitivity of different lm stocks.

For the correct TCS settings please refer to the corresponding

camera manual or to the -time code exposure sensitivity-

tables provided as PDF les in the download section on

www.arri.com.

CaMeRa ContRol Menu optionS Sub-Menu

34

tiMe CoDe Sub-Menu

Time / User Bits

Shows and sets the time code clock and user bits to the
desired values.

Warnings

Displays warnings in text form by clicking on the down arrow

button on the keypad.

tiMe CoDe Sub-Menu

35

13. Lens Manager Menu

13.1

Lens Manager Menu Functions

In order to compensate ramps via the iris or to display

iris values in the Camera Control Menu, one of the
following two requirements must be fullled:

1.) Using a Lens with Lens Data System:

In this case the iris information will be transfered via a

Lens Control System (LCS) Unit to the camera.
LCS Units are e.g.: Lens Data Box, FEM-2, UMC-3 or

ARRIFLEX 416 Plus (electronics side cover). Therefore

creating an Iris Table is not necessary.
To register and calibrate the lens:

● Connect a lens motor to the LCS Unit.

Lens Manager Menu

● Start the calibration process via the „CAL“ Button in
the Lens Manager Menu.

Alternatively the CAL button on the WHA-2/3 or

WMU-2/3 can be used. If no ramp compensation is
intended, the iris ring of the LDS ring can be turned
to enable the display of the iris values in the Camera

Control Menu.

2.) Using a Lens without LDS:

In this case, an Iris Table for the Non-LDS-Lens has
to be created manually in the Lens Manager Menu and

loaded into the LDB or Universal Remote Controller
(UMC-3). See Chapter 13.2.
All created Iris Tables will be stored permanently in the

internal ash-memory of the WRC-2 and simultaneously
displayed in the User Iris List for a quick access.

Iris Tables can be removed from the User Iris List for

a better clarity, however, they will remain stored in the

User Folder System from where they can be added to

the User Iris List again.

Camera Status Line

Iris Table Status Line

Calibration Button

Created Iris Tables

Access to User
Folder System

lenS ManageR Menu

36

13.2 Administer Iris Tables

Create new Iris Tables

● Click on the headword „<new>“ in the User Iris List
and click „Edit Iris Table“. This will start the Iris Table
Wizard. See chapter 13.3 to use the Wizard.

Load Iris Tables

● Click on the Iris Table in the User Iris List.

● Click „Load Table“.

● Insert the lens into the camera lens mount.

● Connect the lens motor to the LDB or UMC-3

● Click on „CAL“ to calibrate the lens.

Remove Iris Tables from the User Iris List

● Click on the Iris Table in the User Iris List.

● Click „Remove“. The Table will disapear from the

User Iris List but will remain stored in the User
Folder System.

Note:
To keep the lens list as clear as possible, store only

the currently and frequently used lenses in the User Iris List.

Add Iris Tables from the User Folder System

● Click on „Add Existing“

● In the User Folder System Menu, click on the desired

Iris Table.

● Click on „Open“. The Iris Table will appear in the
User Iris List.

Erase or Rename Iris Tables

● Click on „Add Existing“

● In the User Folder System Menu, double-click on the

desired Iris Table.

● From the PopUp Menu select „Delete“ or „Rename“

Note: Deleting an Iris Table from the User Folder
System can not be made undone.

Loaded Table Status Line

Displays the last Iris Table that was uploaded to the
LCS Unit. The Iris Table will remain stored in the
LCS Unit memory (LDB, FEM-2, UMC-3, 416 Plus

etc.) even after powering off the unit.

CAL Button

Click on the „Cal“ button to calibrate the lens.

Lens Manager Menu

37

13.3 Creating new Iris Tables with the Iris Table Wizard

● Click on the headword „<new>“ in the User Iris List and
click „Edit Iris Table“. This will start the Iris Table Wizard.

Step 1

Enter the range of your iris

Some lenses may have a „CLOSE“
position where the iris is shut

completely. If so, check „Yes“ in the

box.

● Enter open and close iris values
of your lens.

Lens Manager Menu

38

Step 2

Mount Lens Motor and Calibrate

● Attach a Controlled Lens Motor

(CLM-1/2) to the LDB or UMC.

● Start calibration.

Note: Alternatively the buttons
on WMU-2/3 or WHA-2/3 can be
used.

Step 3

Toggle stop position

Depending on how the lens was
mounted the iris may not be in the
open position at this stage.

● Click Toggle if the iris is not on

the open position.

Step 4

Dene the T-Stop positions

Step 5

Name the Iris Table

● Make sure the iris is set to the T-Stop marked by the yellow
arrow (e.g. f1.9). Use the knob of the WRC-2 to adjust the

position. Alternatively you can use the slider on the bottom

of the screen.

● Click „Set“ to assign the postions to the iris.

● Go ahead like this until all T-Stops are assigned. If necessary,

click on „Back“ or „Next“ to reassign the positions.

● Set at least five T-Stops. When the yellow arrow is at the last
position, click next to finish the process.

● Enter an appropriate name for the
iris table including lens type, focal
lenght and some last digits of the

serial number.

(e.g. „UP_50mm_1234)

● Click „Finish“

● To activate the Iris Table, go to the

Lens Manager Menu and load the
Iris Table (see Chapter 13)

Lens Manager Menu

39

40

Page intentionally left blank

14. Ramp Control Menu

In the Ramp Control Menu speed and shutter ramps

can be programmed. After enabling the Iris Control,
also iris ramps can be performed. If a speed ramp is

to be compensated by iris and shutter simultaneously,
the ratio of both values can be mixed via the
Compensation Mix Slider.

Status Window

Compensation
Mix Slider

The actual status and position of the ramp is shown

in the Ramp Display by the yellow arrows. When

the ramp is performed, the arrows move along the
ramp display from the start values to the end values
providing a clear situational awareness of the running

ramp.

The Exposure Calculator helps calculating the working
T-stop. Simply measure the light on the set with your
light meter and standard settings (e.g. 24fps, 250ASA)
and enter the measured T-stop in the calculator (T­stop input window). The working T-stop that has to be
set on the lens will then be computed and displayed
in the Ramp Display. When the Iris Control is enabled,
the iris will be set automatically to the correct value via
the lens motor.

Ramp
Display

Ramp
Time
Selector

Ramp Control Menu

T-stop input window for

Exposure Calculator

41

14.1 Enabling the Iris Control

In order to compensate ramps via the iris or to program

an iris ramp, please check if:

1.) The Iris Table is activated in the Lens Manager

To activate an Iris Table navigate to the Lens

Manager. Please refer to chapter 13.

2.) The Iris Control is enabled.

To enable the Iris Conrol:

● In the Set Ramp Menu, click on „Options“.

● In the Options Menu, click on „Enable Iris Control“.

Ramp Control Menu

If you can not activate the checkbox, no lens is

Note:
When the Iris Control is enabled, the iris motor will
set the iris automatically to the value entered in
the Ramp Control Menu. To manually set the iris,

switch the Iris Control off.

42

RaMp ContRol Menu

mounted. Please navigate to the Lens Manager
(see Chapter 13) and mount a lens.

RaMp optionS Menu

14.2 Programming a Ramp

● Select the desired speed ramp function by clicking on

the corresponding control button. (e.g. „Speed“)

● Click on the start and end values of the ramp display
to edit the values. (e.g. 6fps and 96fps)

The ramp will always be perfomed from top to bottom.

Therefore in this example the upper value will be
the initial camera speed (6fps). The yellow marker

displays the current camera speed.

● Click in the Ramp Time Window to select the timing
control:

„Time“ = A user dened ramp time can be set

„Time min“ = The fastest ramp will be computed and

set by the WRC-2 automatically.

„Knob“ = The ramp can be controlled manually
via the WRC-2 Knob / Handwheel.

● After running the camera the ramp can be performed

by pushing the „Ramp“ button on the WRC-2

Make sure the keypad is not locked. To unlock the

pad press the „Lock/Unlock“ key for three seconds.

- To compensate the Speed Ramp refer to 14.3

- To change the Ramp Direction refer to 14.5

RaMp ContRol Menu

Ramp Control Menu

43

14.3 Exposure Compensation

Via the Ramp Menu three different exposure

compensation methods can be selected:

1.) Compensation via the Mirror Shutter

The camera has to be outtted with an electronic

adjustable mirror shutter.

● Check the compensation box of the shutter ramp

display. The shutter values will be computed by the
WRC-2. (e.g. 11,25 to 180 degrees)

RaMp ContRol Menu

2.) Compensation via the iris

A CLM-1 or CLM-2 motor needs to be mounted to the
camera and an iris table must be activated. Refer to

Ramp Control Menu

chapter 15.

● Check the „Iris“ box of the iris ramp display. The iris

3.) Mixed Compensation via Shutter and Iris

● Check both the „Iris“ box and the „Shutter“ box of

44

values will be computed by the WRC–2

the ramp display. Use the Compensation Mix Slider
to adjust the ratio between iris and shutter in 5%
steps. To adjust the values in 1% steps, use the
Arrow Buttons on the WRC-2.

Red values:
The ramp calculation can result in values that can not
be accepted by the currently used camera or lens, e.g.
T-stop 32, or 10degree shutter angle.

In this case the value will be displayed in red.

Change the basic values, e.g. the speed, to keep the
calculated values in an acceptable range.
Example:

A speed change from 1 to 128 fps with shutter
compensation only is not possible since for

compensation seven T-stops are necessary (1-2-4-

8-16-32-64-128fps), but the shutter can only provide
four stops (180° -90°-45°-22,5°-11,25°). To solve the

problem, either reduce the speed range or enable the
iris compensation additionally.

14.4 Exposure Calculation

The exposure calculation is a very powerful feature of
the WRC-2. It reduces the workload of a ramp exposure
calculation to a simple transfer of the exposure value
from a light meter to the WRC-2.
Once the working f-stop for a shot is determined by the DP

and entered in the WRC-2, all exposure compensations
will be calculated automatically.

To Enable the Exposure Calculation:

● In the Ramp Menu click on „Options“

● Check „Enable“ in the Exposure Meter Window

● Enter speed and shutter values of the exposure meter

that is used on the set. (values will be stored)

● Click „Exit“ to go back to the Ramp Menu

Use the Exposure Calculation:

● Measure the light to determine the working f-stop.

● Click on the „Exposure Meter“ Window and enter the
working f-stop by using the sliders.

● Read the calculated f-stop in the Iris Display and set

the iris value on the lens.

Note: Since there is no compensation selected,
the current settings will lead to a two stop

underexposure. See the Exp. Diff. (Exposure
Difference) indicator window.

RaMp optionS Menu

Ramp Control Menu

RaMp ContRol Menu

45

14.5 Compensation Free Style

After selecting a compensation method for a desired ramp
(e.g. 100-25fps) the WRC-2 will compute the necessary
compensation values (e.g. 180°-90° and T2.8-T4). The

„Compensation Free Style“ mode enables the user to

edit all values of a ramp independently, regardless of the

exposure compensation. With the „Exposure Meter“ on,

the ramp entry values (e.g. 100fps, 180°, T2.8) will still

be computed but they can now also be changed. The
resulting over- oder underexposure will be displayed by

the „Exp. Diff“ indicator (Exposure Difference)

Enable „Compensation Free Style“

● In the Ramp Control Menu, click on „Options“ to enter

Ramp Control Menu

the Ramp Options Menu.

● Activate „Comp Free Style“

● Click „Exit“ to go back to the Ramp Control Menu

● In the Ramp Control Menu, click on the desired value

(in our example we want to change the T-stop value

from T4 to T8)

Note the „Exp. Diff“ (Exposure Difference) indicator. After
changing the f-stop from T4 to T8, the indicator will show

„-2.0“. That means, with the current setting, the result
will be a two stop underexposure.

RaMp optionS Menu

RaMp ContRol MenuRaMp ContRol Menu

46

14.6 Ramp Options

In the Ramp Options Menu the Exposure Calculation and
Iris Control can be enabled. Also the Ramp Direction can
be changed and ramps can be saved and loaded.

● In the Ramp Menu click on „Options“ to enter the

Ramp Options Menu.

Change Ramp Direction:

● Click on „Change Ramp Direction“ in the Ramp
Window and conrm the safety message.

Set to Default

● Will reset all ramp parameters to a standard speed

ramp to provide a basic setting.

Safe and Load a Ramp

Save a Ramp

● Click on „Save Ramp as“ to save the actual Ramp.
Note the name of the folder.

RaMp ContRol Menu

Ramp Control Menu

Load a Ramp

● Click on „Load Ramp“ and navigate to the folder where

the Ramps are saved.

RaMp optionS Menu

47

14.7 Ramp Example

Even though the WRC-2 can compute the correct

exposure values, a proper planning of the ramp is
recommended to understand and follow the calculations.
For this example we assume the following:

- The director wants to change the camera speed

between 3 and 24 fps manually.

- The exposure should be compensated by iris and
shutter simultaneously.

- Set up the WRC-2 and acquire the correct f-stop.

The WRC-2 could be set up as follows:

Ramp Control Menu

1.) In the Main Menu click on „Lens Manger“. Make
sure that the used lens is loaded and calibrated (see
Chapter 15) otherwise the iris compensation will not
be available.

2.) Start the Ramp Control Menu (from Main Menu).

3.) Click on „Options“ and enable the Ramp and
Exposure Meter Controls. Measure the light to

acquire the working f-stop and enter the value in the

yellow window. Make sure your lightmeter is set to

1/50 second or 24/25fps. Click EXIT to conrm.

4.) Click on „Speed“ and enter the start value „3“ and

the end value „24“ frames per second.

5.) Select „Knob“ from the Ramp Time Window to
enable the manual speed change.

6.) Activate „Shutter“ and „Iris“ compensation and
move the slider in the middle position to mix the
compensation ratio to 50% Iris and 50% Shutter.
Use the Arrow Buttons to adjust in small steps.

7.) Confirm the working f-stop or enter a new one if

the light has changed.

8.) Start the camera by pressing the RUN button and
control the speed change by turning the knob.

6

4

7

5

RaMp ContRol Menu

48

15. External Display Menu

The External Display Menu remote controls the camera

menu and shows the same information as screened on

the camera display.

Note: The External Display Menu can only be used with
cameras provided with an LCD display.
(e.g. ARRIFLEX 435, 535, 16SR-3, 416).

Thus the External Display Menu can neither be used
with ARRICAM Studio or ARRICAM Lite, nor with older
ARRIFLEX cameras without an LCD display (e.g. SR-2,
SR-1, BL-4 etc.)

● In the Main Menu click on the ikon „External Display“

to open the Menu.

● Click on „Mode“ to navigate to the next mode.

● To change a value: Click on „SEL“ until the desired
value starts to ash.

● Click „Set“ to change the value.

● Wait until the value stops ashing or click „Mode“ to
conrm the new setting.

Main Menu

External Display Menu

exteRnal DiSplay

49

16. Appendix

16.1 Updating the WRC-2

● Connect an USB Stick with the update software to

Appendix

the mini-USB connector „MEM“ of the WRC-2. Use
the provided adapter cable to adapt from an USB

stick to the Mini-USB connector.

50

● Open the WRC-2 Settings Menu.

● Click „Service“.

● Click „SW Update“.

● Check if version from memory stick is displayed.

If not, check USB stick connection.

● Click „Update“ to upload the new software.

● Click „OK“. The unit will boot with the new software.

Main Menu

WRC SettingS Menu

SeRviCe MenuupDate Menu

16.2 Service Menu

16.3 Cleaning

Exit from App.

For service personnel only.

Adjusting the Knob (Handwheel)

For service personnel only :

● Turn the knob to the left end stop and press „Adjust
left“, then turn the knob to the right end stop and

press „Adjust right“.

● Turn the knob from end stop to end stop and check
if the values change correspondingly.

File Dialog

For service personnel only.

Cleaning the Touchscreen

● Any standard glass cleaner can be used to clean

the touchscreen, but avoid products containing
ammonia. Always spray the glass cleaner on the
cloth or towel and then clean the touchscreen. Glass
cleaner sprayed directly on the unit could possibly
leak inside and cause damage.

Appendix

51

16.4 Troubleshooting

Communication Problems:

In the event of a communication failure between the

WRC-2 and the LCS Device or the Camera, the EDIT
button will turn red and a dot will run across the text.

Appendix

To solve the problem, check all cable connections and
restart the unit.

When using the WRC-2 wireless via a WMU-3 or

WMU-2, try the following:

1.) Connect both units, receiver (e.g. Lens Data Box)
and transmitter (e.g. WMU-3) via the WC–A3 antenna
cable to eliminate possible transmitting errors.

2.) Select a different channel on transmitter and receiver

and restart the camera.

Wait for a ashing green RF signal on the LCS unit (FEM-

2, LDB, UMC-3 etc) and then restart the WMU-3.

No Speed setting available:

Check if the camera is set to „PS/CCU“ and not to

„NORM“.

52

Page intentionally left blank

Appendix

53

16.5 Technical Data

Dimensions

Length 200mm (7.87“)
Width 76.6mm (3.02“)

Appendix

Height 27.3mm (1.07“)

Weight
approx. 460g with knob mounted

Power Supply

Acceptable Voltage Range 7-35V
Power Consumption 1.2W-1.8W
(depending on Backlight Settings)

Operating Temperature Range

-20°C to +50°C (-4°F to 122°F)

15.5 Declaration of Conformity

54

16.6 ARRI Service

Germany ......Arnold & Richter

Cine Technik
Türkenstraße 89
D-80799 München

phone: [phone]
fax: [phone]

E-mail: [e-mail]

USA ............. ARRI Inc.

(East Coast)
617, Route 303
Blauvelt, New York 10913
phone: [phone]

fax: [phone]
E-mail: arri[e-mail]

GB ............... ARRI (GB) Ltd.

2 Highbridge

Oxford Road

Uxbridge, Middlesex, UB8 1LX
phone: [phone]

fax: [phone]

E-mail: [e-mail]

Italy .............. ARRI ITALIA S.r.l.

Viale Edison 318
20099 Sesto S. Giovanni (Milano)
phone: [phone]

fax: [phone]
E-mail: [e-mail]

Via Placanica, 97
00040 Morena (Roma)
phone: [phone]

fax: [phone]

Appendix

(West Coast)
600 North Victory Blvd.

Burbank, California 91502

phone: [phone]

fax: [phone]
E-mail: arri[e-mail]

Canada ....... ARRI Canada Ltd.

415 Horner Avenue, Unit 11
Etobicoke, Ontario
Canada M8W 4W3
phone: [phone]

fax: [phone]

E-mail: [e-mail]

55

17. Index

A

Index

Add Defaults 29, 31
Add Existing 37
Add Item 29, 31
Adjusting the Knob 51
Administer Iris Tables 37
ARRICAM 12, 14, 15, 16, 18, 19, 20
ARRIFLEX 416 15, 19
ARRIFLEX 435 Xtreme / Advanced 14, 18
Arrow Buttons 21
Auto Dim 25

B

Backlight level 25
Battery Voltage 27
Beep Event 33
Beep Volume 33

C

CAL 36, 37
Calibration Button 36
Camera Connector 4, 16, 21
Camera Control Menu 26

Camera Speed 4, 28
Camera Status Line 36
Cam Info 14, 15, 18, 19
Changing Camera Mirror Shutter 4, 30
Cleaning 51
CLM-1 11, 14, 15, 18, 19, 44
CLM-2 11, 14, 15, 18, 19, 44
Compensation 11, 14, 15, 18, 22, 41, 44
Compensation Free Style 46
Compensation via the iris 44
Compensation via the Mirror Shutter 5, 44
Comp Free Style 46
Create new Iris Tables 37

D

Dimensions 54
Direct connection 16

E

Edit 21, 22, 23, 28, 29, 30, 31, 42
Edit Iris Table 37, 38
Erase or Rename Iris Tables 37
EXD-1 22
Exp. Diff 46

56

Exposed Film Counter 32
Exposure Calculation 45, 47
Exposure Calculator 41
Exposure Compensation 44
External Display 49

F

feet 32, 33
FEM-2 12, 14
Filmcounter 26, 32
Focus 27
Forward 29
Function Keys 21

H

Handwheel 43, 51

I

Iris Table 26, 36, 37, 38, 39, 42
Iris Table Status Line 36
Iris Table Wizard 37, 38

K

KC-97 15, 17, 19
KC-99 15, 17, 19
Key Navigation 21
Knob 43, 48, 51

L

LCS 12, 16, 17
LCS Bus 16
LCS Unit 36, 37
LDS Info 14, 18
Length Unit 5, 33
Lens Data Box 12, 13, 14, 15, 18, 19
Lens Manager 36, 39
Lens Manager Menu 36, 37, 38, 39
Light meter 41, 45
Loaded Table Status Line 37
Load a Ramp 47
Load Table 37
Lock/Unlock 21, 43

Index

57

M

R

Marking Disk 21
MEM 50
Menu Structure 23
Message Area 27
Meter 32, 33, 41, 45
Mini-USB 50
Mirror Shutter 44
Mixed Compensation via Shutter and Iris 44

O

ON/OFF button 13
Operating Temperature Range 54
Order Numbers 3
override 46

P

PC and USB sockets 21
Phase Button 26
Powering Up The Unit 20
Power Supply 54
Preset Camera Shutter Angles 31
preset values 28, 29, 30, 31
Programming a Ramp 43
PS/CCU 27

radio channel 13
radio link 12
Ramp Button 21
Ramp Compensation 11
Ramp Control 41
Ramp Time Window 43
ratio 41, 44
Raw Stock Counter 32
RCU-1 10, 22
Receiving 12
Red values 44
Remove Iris Tables 37
Reverse 29
Run Button 21

S

Save a Ramp 47
Screen Time Display 32
Service Menu 25, 50
Settings Window 26
Shutter 14, 15, 18, 19, 22, 26, 30, 31, 44
Simulator Software 10
Software Modules 10, 22
specic camera shutter angle 30
Speed 14, 15, 18, 19, 22, 26, 28, 29, 42, 43

58

Status Window 26, 27, 41
Stylus 20, 21
Stylus ReleaseButton 21

user dened camera speed 28
User Folder System 36, 37
User Iris List 36, 37, 38

T

T-stop 41, 44
Take Counter 32
Technical Data 54
Temperature Range 54
Time Code 33, 34, 35
Time min 43
touchscreen 10, 25
Touchscreen Navigation 21
Transmitting 12
Troubleshooting 52

U

UMC-3 16, 17
unit of measurement 32
Universal Remote Controller 14, 15, 17, 19, 36
unlock 43
Updating 25, 50
upload 50
URM-3 12, 14, 17
USB connector 50
USB Stick 50

V

Voltage Range 54

W

Warnings 26, 35
Weight 54
Wireless Expansion Bracket 13
Wireless Handgrip Attachmend 11
wireless mode 12
Wirless Main Unit 12, 13
Wizard 37, 38
WMU-2 12, 14
WMU-3 4, 11, 12, 13, 14
working T-stop 41
WRC-1 10, 22

Index

59
