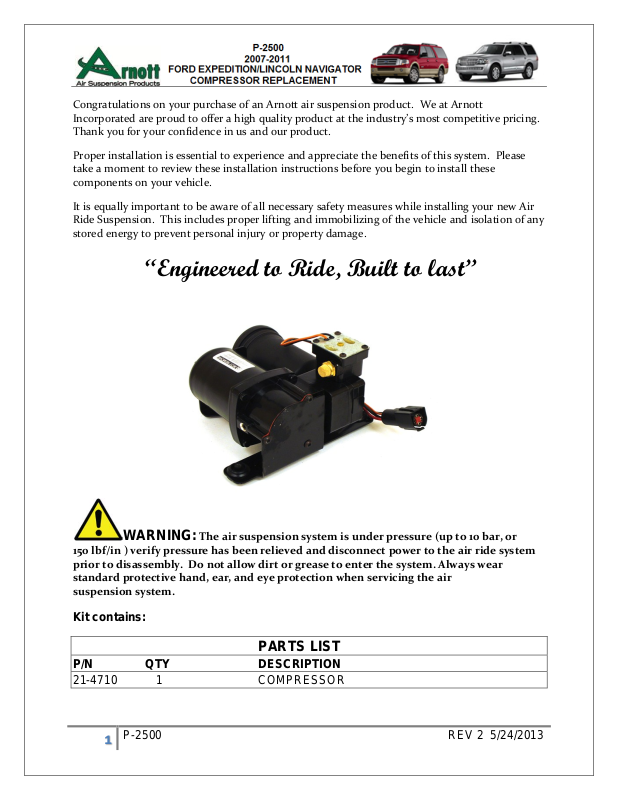

Page 1
1
P-2500 REV 2 5/24/2013
Congratulations on your purchase of an Arnott air suspension product. We at Arnott
Incorporated are proud to offer a high quality product at the industry’s most competitive pricing.
Thank you for your confidence in us and our product.
Proper installation is essential to experience and appreciate the benefits of this system. Please
take a moment to review these installation instructions before you begin to install these
components on your vehicle.
It is equally important to be aware of all necessary safety measures while installing your new Air
Ride Suspension. This includes proper lifting and immobilizing of the vehicle and isolation of any
stored energy to prevent personal injury or property damage.
“Engineered to Ride, Built to last”
WARNING: The air suspension system is under pressure (up to 10 bar, or
150 lbf/in ) verify pressure has been relieved and disconnect power to the air ride system
prior to disassembly. Do not allow dirt or grease to enter the system. Always wear
standard protective hand, ear, and eye protection when servicing the air
suspension system.
Kit contains:
PARTS LIST
P/N QTY DESCRIPTION
21-4710 1 COMPRESSOR
Page 2
2
P-2500 REV 2 5/24/2013
Compressor Removal/Installation:
THE COMPRESSOR IS LOCATED ON THE VEHICLES PASSENGERS SIDE BEHI ND THE
FRONT BUMPER.
1. Raise vehicle to remove the passenger’s side tire and fender well shroud (it may not be
necessary to remove the entire fender well shroud) (Figure A).
Figure A
Page 3
3
P-2500 REV 2 5/24/2013
3
1
2
3
2
NOTE: TO RELEASE AIR TUBE(S) YOU MUST PRESS DOWN ON TWO
SIDES THE QUICK RELEASE FITTING AND PULL OUT AIR TUBE(S).
2. Disconnect the (1) air inlet hose (disconnect and remove from vehicle, not used with new
compressor), (2) electrical connector and (3) air outlet tube fitting (Figures B and C).
Figure B
Page 4
4
P-2500 REV 2 5/24/2013
TO DISCONNECT THE AIR LINE- USE TWO (2) FINGERS TO
PULLING DOWN ON THE AIR TUBE.
PUSH UP ON THE AIR LINE FITTING (ORANGE RING) WHI L E
Figure C
3. Remove the three (3) bolts securing the compressor mounting bracket to the vehicle,
remove from vehicle (Figure D).
Figure D
Page 5
5
P-2500 REV 2 5/24/2013
4. Remove the three (3) screws securing the compressor to the mounting bracket. (This
bracket is to be reused on the replacement compressor) (Figure E).
Figure E
5. Compressor removal complete. Reinstall new compressor in the reverse order of removal.
NOTE: When installing the air tube, push tubing into fitting until it bottoms out.
