Page 1
Rev-01 06-07-10

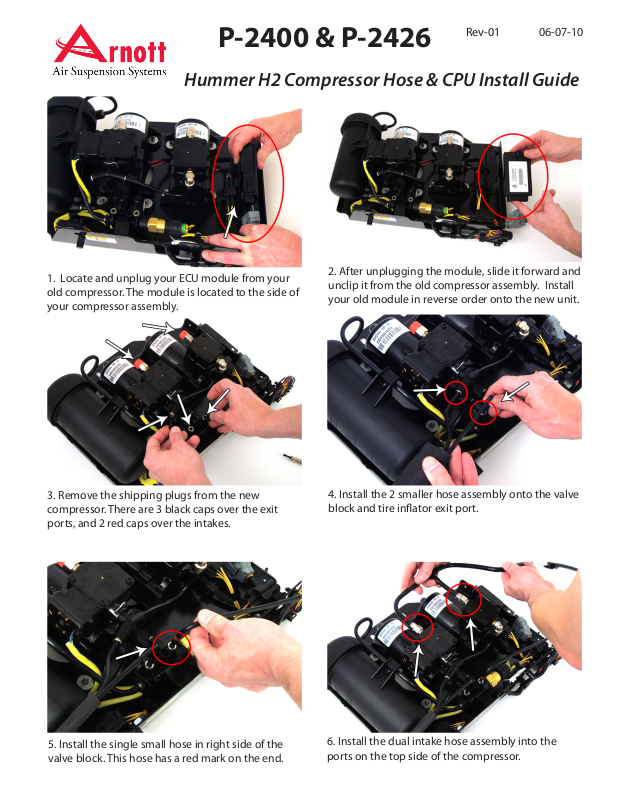

P-2400 & P-2426
Hummer H2 Compressor Hose & CPU Install Guide
1. Locate and unplug your ECU module from your
old compressor. The module is located to the side of
your compressor assembly.
3. Remove the shipping plugs from the new
compressor. There are 3 black caps over the exit
ports, and 2 red caps over the intakes.
2. After unplugging the module, slide it forward and
unclip it from the old compressor assembly. Install
your old module in reverse order onto the new unit.
4. Install the 2 smaller hose assembly onto the valve
block and tire inīator exit port.
5. Install the single small hose in right side of the
valve block. This hose has a red mark on the end.
6. Install the dual intake hose assembly into the
ports on the top side of the compressor.
