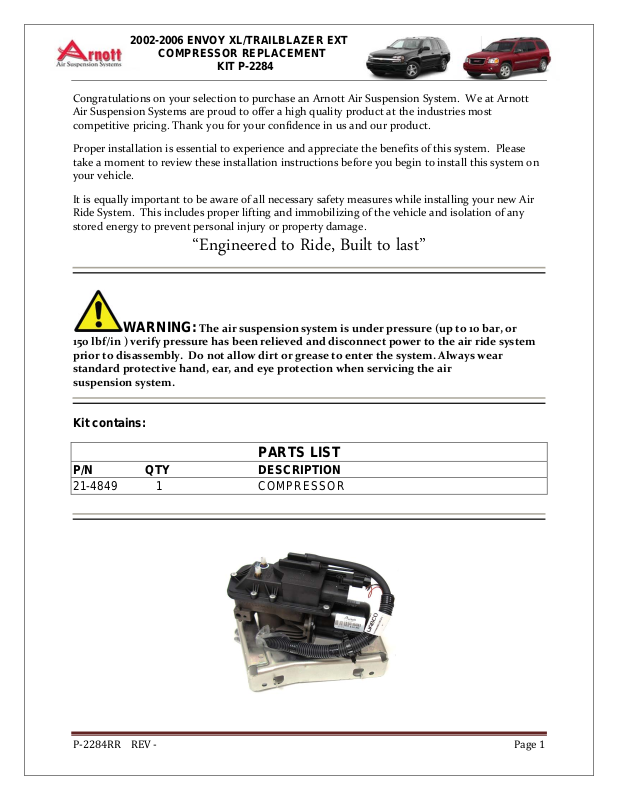

2002-2006 ENVOY XL/TRAILBLAZER EXT
KIT P-2284
COMPRESSO R REPL ACEMEN T
Congratulations on your selection to purchase an Arnott Air Suspension System. We at Arnott
Air Suspension Systems are proud to offer a high quality product at the industries most
competitive pricing. Thank you for your confidence in us and our product.
Proper installation is essential to experience and appreciate the benefits of this system. Please
take a moment to review these installation instructions before you begin to install this system on
your vehicle.
It is equally important to be aware of all necessary safety measures while installing your new Air
Ride System. This includes proper lifting and immobilizing of the vehicle and isolation of any
stored energy to prevent personal injury or property damage.
“Engineered to Ride, Built to last”
WARNING:
150 lbf/in ) verify pressure has been relieved and disconnect power to the air ride system
prior to disassembly. Do not allow dirt or grease to enter the system. Always wear
standard protective hand, ear, and eye protection when servicing the air
suspension system.
The air suspension system is under pressure (up to 10 bar, or
Kit contains:
PARTS LIST
P/N QTY DESCRIPTION
21-4849 1 COMPRESSOR
P-2284RR REV - Page 1
Page 2
2002-2006 ENVOY XL/TRAILBLAZER EXT
KIT P-2284
Fuse
See Figure C to
disconnect air line
COMPRESSO R REPL ACEMEN T
Compressor Removal/Installation:
1.0 Remove the air compressor fuse (fuse number 1) (figure A).
No. 1
Figure A
NOTE: THE COMPRESSOR IS LOCATED UNDER THE SPARE TIRE .
2.0 Remove the spare tire.
3.0 Raise vehicle to g ai n a cc ess to the co mpres sor.
4.0 Disconnect the electrical connector and the 2 air lines (located on the outside
of the frame on the driver's side) (Figure B and Figure C).
P-2284RR REV - Page 2
Figure B
Page 3
2002-2006 ENVOY XL/TRAILBLAZER EXT
KIT P-2284
TO DISCONNECT THE AIR LINE- USE TWO (2) FING ERS TO
PULLING DOWN ON THE AIR TUBE.
COMPRESSO R REPL ACEMEN T
PUSH UP ON THE AIR LINE FITTING (ORANGE RING) WHI L E
Figure C
5.0 Remove the two mounting bolts and lower the air compressor (Figure D).
Figure D
P-2284RR REV - Page 3
Page 4
2002-2006 ENVOY XL/TRAILBLAZER EXT
KIT P-2284
1
2
COMPRESSO R REPL ACEMEN T
6.0 Disconnect the (1) two air inlet hoses at the voss fittings (there is a right and
left air line) and the (2) electrical connector (Figure E).
7.0 Compressor removal complete. Reinstall new compressor in the reverse
order of removal.
P-2284RR REV - Page 4
Figure E
Page 5
2002-2006 ENVOY XL/TRAILBLAZER EXT
KIT P-2284
COMPRESSO R REPL ACEMEN T
NOTE: Installation of the air line to the air fitting is to be performed as
shown below.
Air hose installation:
1.0 Remove the air line from the air fitting by removing the split ring collet and
sliding the air fitting off the hose (Figure F).
Figure F
2.0 Remove plastic pin(s) from air line fitting (Figure G).
3.0 Push air line into new fitting until it bottoms out; pull outward to verify hose
is secure in air fitting.
P-2284RR REV - Page 5
Figure G
