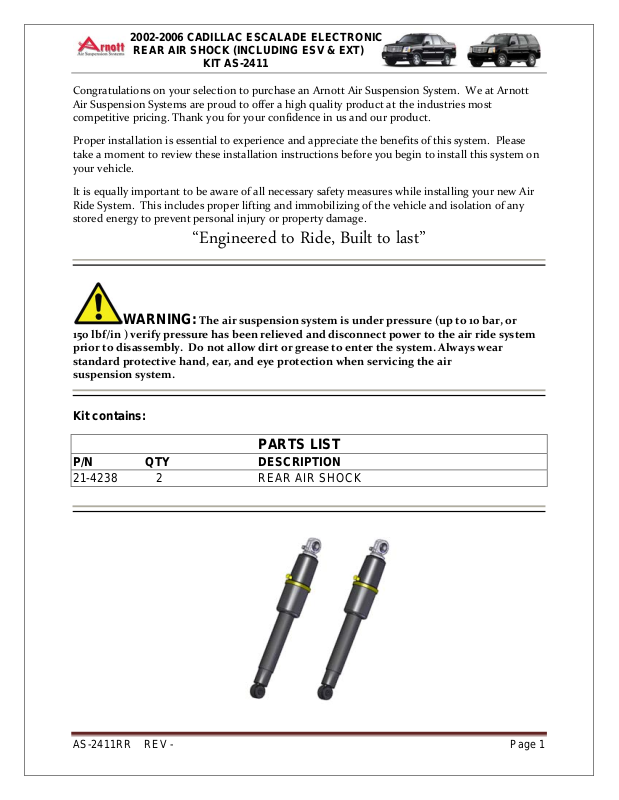

Page 1
2002-2006 CADILLAC ESCALADE ELECTRONIC
REAR AIR SHOCK (INCLUDING ESV & EXT)
KIT AS-2411
Congratulations on your selection to purchase an Arnott Air Suspension System. We at Arnott
Air Suspension Systems are proud to offer a high quality product at the industries most
competitive pricing. Thank you for your confidence in us and our product.
Proper installation is essential to experience and appreciate the benefits of this system. Please
take a moment to review these installation instructions before you begin to install this system on
your vehicle.
It is equally important to be aware of all necessary safety measures while installing your new Air
Ride System. This includes proper lifting and immobilizing of the vehicle and isolation of any
stored energy to prevent personal injury or property damage.
“Engineered to Ride, Built to last”
WARNING:
150 lbf/in ) verify pressure has been relieved and disconnect power to the air ride system
prior to disassembly. Do not allow dirt or grease to enter the system. Always wear
standard protective hand, ear, and eye protection when servicing the air
suspension system.
The air suspension system is under pressure (up to 10 bar, or
Kit contains:
PARTS LIST
P/N QTY DESCRIPTION
21-4238 2 REAR AIR SHOCK
AS-2411RR REV - Page 1
Page 2
2002-2006 CADILLAC ESCALADE ELECTRONIC
REAR AIR SHOCK (INCLUDING ESV & EXT)
KIT AS-2411
Air Shock Removal/Installation:
1.0 Remove the air compressor fuse (Stud 1) (figure A).
Figure A
Use lifting platform (hoist) that is capable of raising the body separately from the
wheels, lift body at the lifting points prescribed by the vehicle manufacturer.
Vehicle slippage can cause danger to life and limb.
2.0 Raise vehicle.
NOTE: Refer to Figure B for steps 3.0- 6.0.
3.0 Disconnect the electrical connector (1).
4.0 Disconnect the air line (2).
5.0 Remove the upper air shock nut and bolt (3).
6.0 Remove the lower air shock nut and bolt (4).
7.0 Remove air shock.
8.0 Removal complete, installation is in the reverse order of removal. Torque upper and
lower air shock bolts to 70 ft-lb.
AS-2411RR REV - Page 2
Page 3
2002-2006 CADILLAC ESCALADE ELECTRONIC
REAR AIR SHOCK (INCLUDING ESV & EXT)
2 1 3
4
KIT AS-2411
AS-2411RR REV - Page 3
Figure B
