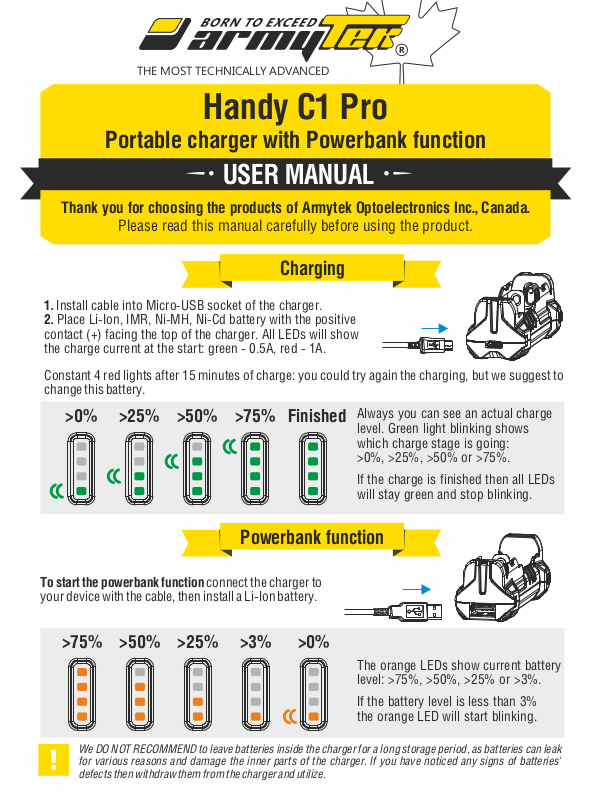

ArmyTek Handy C1 Pro User guide

THE MOST TECHNICALLY ADVANCED

Handy C1 Pro

Portable charger with Powerbank function

USER MANUAL

Thank you for choosing the products of Armytek Optoelectronics Inc., Canada.

Please read this manual carefully before using the product.

Charging

1. Install cable into Micro-USB socket of the charger.

2. Place Li-Ion, IMR, Ni-MH, Ni-Cd battery with the positive

contact (+) facing the top of the charger. All LEDs will show
the charge current at the start: green - 0.5A, red - 1A.

Constant 4 red lights after 15 minutes of charge: you could try again the charging, but we suggest to
change this battery.

>0% >25% >50% >75%

Finished

Powerbank function

To start the powerbank function connect the charger to

your device with the cable, then install a Li-Ion battery.

We DO NOT RECOMMEND to leave batteries inside the charger for a long storage period, as batteries can leak
for various reasons and damage the inner parts of the charger. If you have noticed any signs of batteries'
defects then withdraw them from the charger and utilize.

Always you can see an actual charge
level. Green light blinking shows
which charge stage is going:
>0%, >25%, >50% or >75%.

If the charge is finished then all LEDs
will stay green and stop blinking.

>0%>3%>25%>50%>75%

The orange LEDs show current battery
level: >75%, >50%, >25% or >3%.

If the battery level is less than 3%
the orange LED will start blinking.

Specifications

Included in the set: charger, USB cable, manual.

Input: Micro-USB DC 5V / 1A
Output: 4.2V&1.5V / 1A&0.5A Powerbank: DC 5V / 2.5A
Size / Weight: 3.7"x1.6"x1.2" / 1.4oz (93x32x31mm / 39g)

Warnings

џ Before using charger, read all instructions and caution

markings on the charger, battery and device using battery.

џ To reduce the risk of injury, charge only Li-Ion, IMR, Ni-MH,

Ni-Cd rechargeable batteries.

џ Do not use low-quality batteries when working with

powerbank function.

џ Do not charge primary cells like Alkaline, Zinc Carbon,

Lithium or any batteries other then accepted above, as this
could result in battery explosion, cracking or leaking,
causing property damage and/or personal injury.

џ The product should not be used immediately after it has

been brought from an area of cold temperature to an area of
warm temperature. Condensed water might destroy the
product. Wait until the product adapts to the new ambient
temperature before use.

џ Keep batteries away from fire to prevent explosion.
џ For proper insertion, please observe polarity indicators.
џ For indoor use only. Do not expose to rain or snow.
џ Do not place in or near water or extreme heat.
џ Do not use charger with damaged cord or plug.
џ Do not use charger if it has been damaged in any way.
џ Do not disassemble charger.
џ Disassembly may result in a risk of electric shock or fire.
џ To reduce the risk of electric shock, unplug the charger

from the outlet when not in use.

џ Batteries should be removed from the device if it is not used

for a long period of time to avoid damage through leaking.
Leaking or damaged batteries might cause acid burns when
in contact with skin, therefore use suitable protective gloves
to handle corrupted batteries.

џ Never charge or discharge any battery having evidence of

leakage, expansion/swelling, damaged outer wrapper or

case, color-change or distortion.

џ Please make sure the correct settings are chosen. Incorrect

settings may damage the charger or cause fire or explosion.

џ This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.

џ For connection use an attachment plug adapter of the

proper configuration.

џ Do not expose the device to direct sunlight, heating devices,

open flames; avoid extreme high or extreme low ambient
temperatures and sudden temperature changes.

џ Please operate the charger in a well-ventilated area. Do not

operate or store it in damp area. Keep all the inflammable
volatile substances away from operating area.

џ Avoid mechanical vibration or shock as these may cause

damage to the device.

џ The safe operation temperature for the charger is between -

10 to 40°C, and the safe storage temperature is -20 to 60°C.

џ Do not short-circuit slots or other parts of the device. Do

not allow metal objects come into contact with charger. May
cause electric shock, excessive heat, or fire.

џ Do not place heavy objects on top of the charger. Avoid

unstable locations like areas with strong magnetic fields or
dust. Excessive heat or fire may cause.

џ Do not touch hot surfaces. The rechargeable batteries or the

device may become hot at full load or high power
charging/discharging.

џ This power unit is intended to be correctly oriented in a

vertical or floor mount position.

Service and Warranty

Armytek provides free warranty repair for 5 years from the date of purchase (excluding switches and
connectors which have 2 years warranty). Warranty doesn't cover damage caused by improper usage,

described above in Warnings section.

Web: www.armytek.com Email: [e-mail]

Address: 13-85 West Wilmot St, Richmond Hill, Ontario, L4B 1K7, Canada

Specifications are subject to change without notice.

Armytek Optoelectronics Inc.
