iS1 SmartSystem
User Manual
Armatix iS1 User Manual 1/19 2011-07-01
Masthead
Should you require further information on our products or technical support, please
do not hesitate to contact us.
Armatix GmbH
Feringastraße 4
85774 Unterföhring
Germany
Tel.: +49 89 / 4 27 29 79 - 0
Fax: +49 89 / 4 27 29 79 - 79
info@armatix.de
Managing directors: Bernd Dietel, Ernst Mauch, Guenter-Maximilian Hefner, Franz
Hermann
Company registered offices: Petersberg
Jena County Court
HRB 501907
VAT ID: DE 235056291
Legal disclaimer:
Despite the greatest care taken in the compilation of this document, data can change
even at short notice. We can therefore give no guarantee or assume any liability for
the up-to-dateness, correctness and completeness of the information contained.
Content and layout of the operating manual are protected by copyright. Duplication of
the pages or their contents shall require the prior written approval of ARMATIX
GmbH, insofar as the duplication is not permitted by law.
Copyrights 2011:
Armatix GmbH, Unterföhring.
All rights reserved. Text, illustrations and diagrams and their layout in this operating
manual are protected by copyright laws and other intellectual property rights. The
content of this operating manual must not be copied, distributed, modified or made
accessible to third parties for commercial purposes.
Armatix iS1 User Manual 2/19 2011-07-01
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Armatix iS1 User Manual 3/19 2011-07-01
Contents
1. Introducing....................................................................................................................6
2. Installing drivers...........................................................................................................7
3. Uninstalling drivers ....................................................................................................15
4. Troubleshooting.........................................................................................................16
4.1. Windows XP Forces A Reboot After Installing a Device................................ 16
4.2. Driver Installation Fails And Windows XP Gives Error Code 10................... 16
4.3. Windows XP Displays An Error And Then Terminates Installation...............16
5. Contact Information...................................................................................................18
Appendix A - Revision History..........................................................................................19
Appendix B - Reference....................................................................................................20
Armatix iS1 User Manual 4/19 2011-07-01
List of Figures
Figure 2. 1............................................................................................................................ 8
Figure 2. 2............................................................................................................................ 8
Figure 2. 3............................................................................................................................ 9
Figure 2. 4............................................................................................................................ 9
Figure 2. 5.......................................................................................................................... 10
Figure 2. 6.......................................................................................................................... 10
Figure 2. 7.......................................................................................................................... 11
Figure 2. 8.......................................................................................................................... 11
Figure 2. 9.......................................................................................................................... 12
Figure 2. 10........................................................................................................................ 12
Figure 2. 11........................................................................................................................ 13
Figure 2. 12........................................................................................................................ 13
Figure 2. 13...................................................................................................................... 144
Figure 4. 1
………………………………………………………………………………...177
Armatix iS1 User Manual 5/19 2011-07-01
1. Introducing
This document describes the process of installing the Armatix iS1 device for the
Microsoft Windows XP operating system.
Armatix iS1 User Manual 6/19 2011-07-01
2. Installing drivers
To install the Armatix iS1 device under Windows XP, follow the instructions
below:
• Use the iS1 driver CD or download the latest drivers from the Armatix web site
and unzip them to a location on your PC.
• If you are running Windows XP or Windows XP SP 1, temporarily disconnect
your PC from the Internet. This can be done by either removing the network
cable from your PC or by disabling your network card by going to the "Control
Panel\Network and Dial-Up Connections", right-clicking on the appropriate
connection and selecting "Disable" from the menu. The connection can be reenabled after the installation is complete. This is not necessary under
Windows XP SP 2 if configured to ask before connecting to Windows Update.
Windows XP SP 2 can have the settings for Windows Update changed
through "Control Panel\System" then select the "Hardware" tab and click
"Windows Update".
• Connect the device to a spare USB port on your PC. Once the composite
driver has been installed Windows Found New Hardware Wizard will launch. If
there is no available Internet connection or Windows XP SP 2 is configured to
ask before connecting to Windows Update, the screen shown in Figure 2.1 is
displayed. Select "No, not this time" from the options available and then click
"Next" to proceed with the installation. If there is an available internet
connection, Windows XP will silently connect to the Windows Update website
and install any suitable driver it finds for the device in preference to the driver
manually selected.
Figure 2. 1
Armatix iS1 User Manual 7/19 2011-07-01
• Select "Install from a list or specific location (Advanced)" as shown in Figure
2.2 below and then click "Next".
Figure 2. 2
• Select "Search for the best driver in these locations" and enter the file path in
the combo-box ("C:\CDM 2.02.04" in Figure 2.3 below) or browse to it by
clicking the browse button. Once the file path has been entered in the box,
click next to proceed.
Figure 2. 3
Armatix iS1 User Manual 8/19 2011-07-01
• If Windows XP is configured to warn when unsigned (non-WHQL certified)
drivers are about to be installed, the message dialogue shown in Figure 2.4
will be displayed unless installing a Microsoft WHQL certified driver. Click on
"Continue Anyway" to continue with the installation. If Windows XP is
configured to ignore file signature warnings, no message will appear.
Figure 2. 4
• The screen shown in Figure 2.5 will be displayed as Windows XP copies the
required driver files.
Figure 2. 5
Armatix iS1 User Manual 9/19 2011-07-01

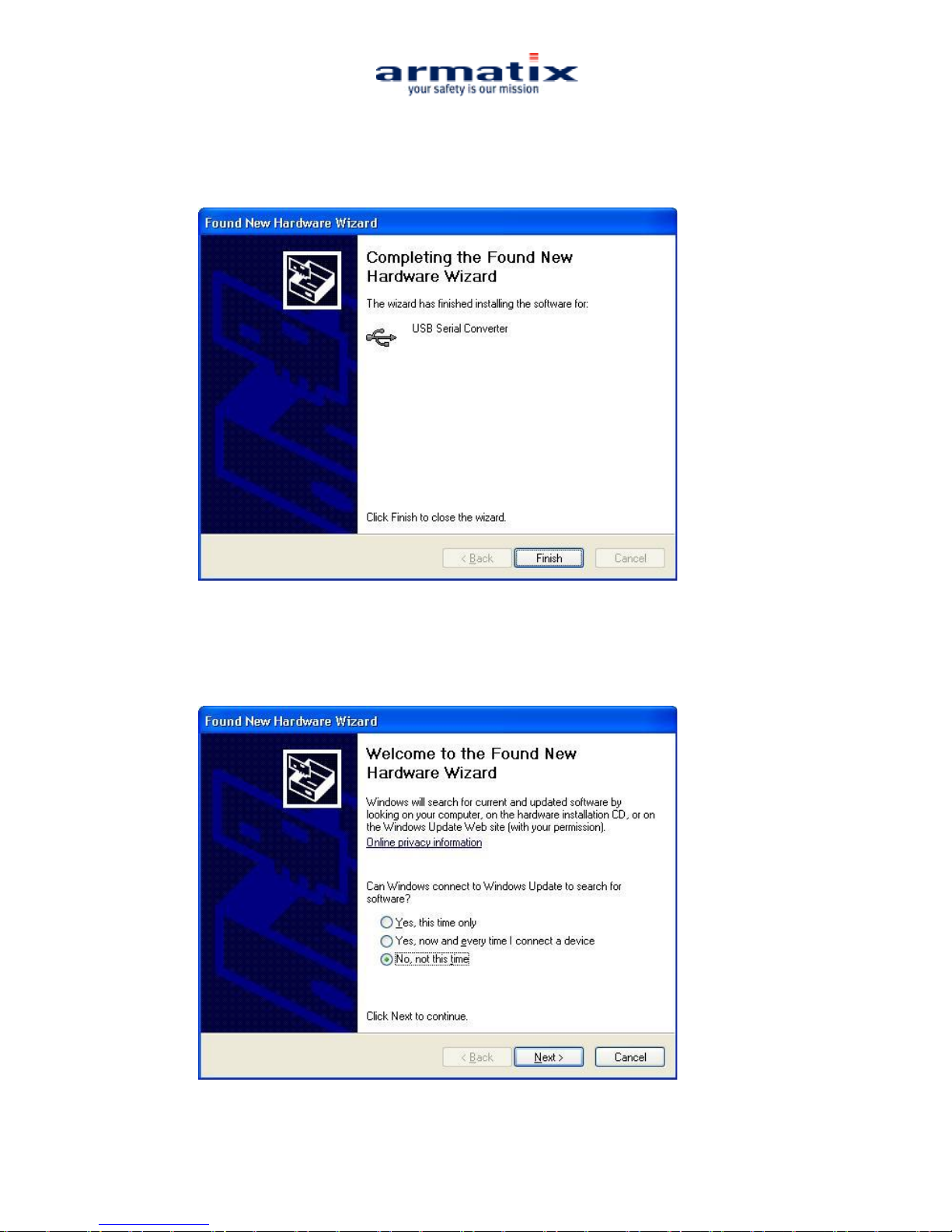

• Windows should then display a message indicating that the installation was
successful (Figure 2.6). Click "Finish" to complete the installation for the first
port of the device.
Figure 2. 6
• The Found New Hardware Wizard will launch automatically to install the COM
port emulation drivers. As above, select "No, not this time" From the options
and click "Next" to proceed with the installation (Figure 2.7).
Figure 2. 7
Armatix iS1 User Manual 10/19 2011-07-01
• Select "Install from a list or specific location (Advanced)" as shown in Figure
2.8 below and then click "Next".
Figure 2. 8
• Select "Search for the best driver in these locations" and enter the file path in
the combo-box ("C:\CDM 2.02.04" in figure 2.9 below) or browse to it by
clicking the browse button. Once the file path has been entered in the box,
click next to proceed.
Figure 2. 9
Armatix iS1 User Manual 11/19 2011-07-01

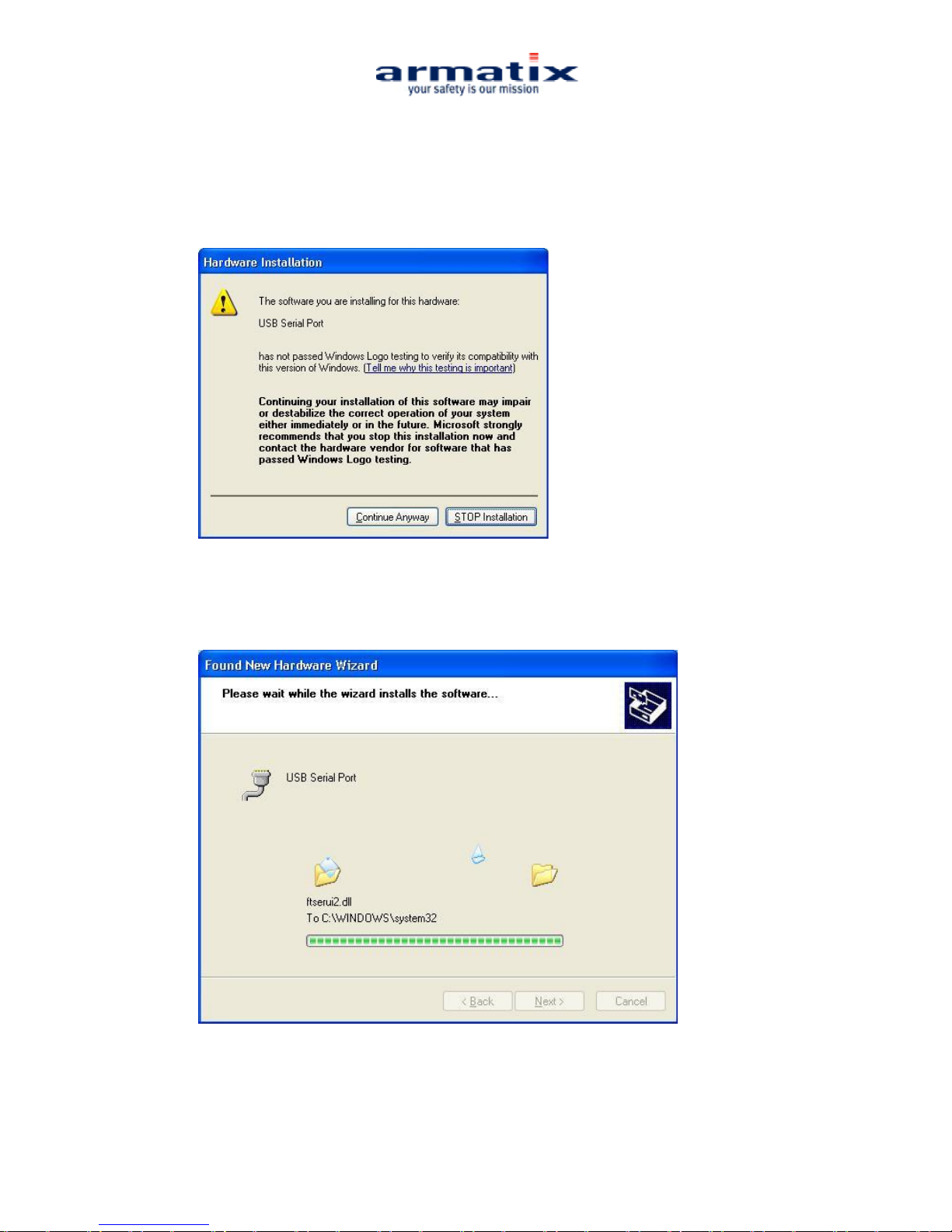

• If Windows XP is configured to warn when unsigned (non-WHQL certified)
drivers are about to be installed, the message dialogue shown in Figure 2.10
will be displayed unless installing a Microsoft WHQL certified driver. Click on
"Continue Anyway" to continue with the installation. If Windows XP is
configured to ignore file signature warnings, no message will appear.
Figure 2. 10
• The screen shown in Figure 2.11 will be displayed as Windows XP copies the
required driver files.
Figure 2. 11

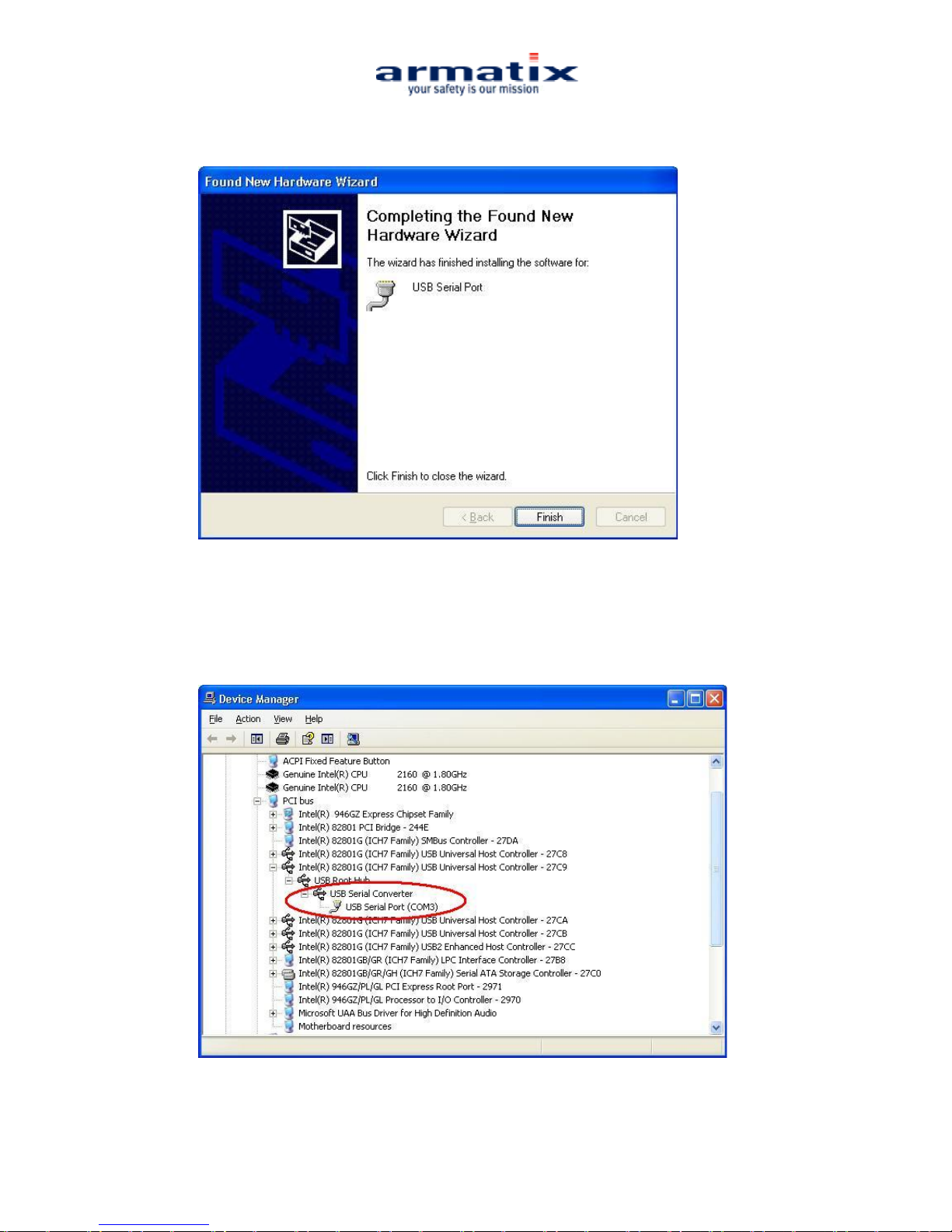

• Windows should then display a message indicating that the installation was
successful (Figure 2.12). Click "Finish" to complete the installation for the first
Armatix iS1 User Manual 12/19 2011-07-01
port of the device.
Figure 2. 12
• Open the Device Manager (located in "Control Panel\System" then select the
"Hardware" tab and click "Device Manger") and select "View > Devices by
Connection", the device appears as a "USB Serial Converter" with an
additional COM port with the label "USB Serial Port" (Figure 2.13).
Figure 2. 13
Armatix iS1 User Manual 13/19 2011-07-01
3. Uninstalling drivers
Devices can be removed using the Device Manager by simply right-clicking
on the device and selecting "Uninstall". This will delete the associated registry
entries for that device only.
Under Windows XP, driver files and OEM INF and PNF files must be removed
manually or by using a custom application. OEM INF and PNF files are located in
the Windows\Inf directory and can be identified by searching for a VID and PID
string matching the device installed e.g. VID_0403&PID_6001. Once the
matching OEM INF files are found (e.g. oem10.inf for FTDIBUS.INF and
oem11.inf for FTDIPORT.INF), the corresponding PNF files must also be
removed (e.g. oem10.pnf and oem11.pnf). Driver files are located in the
Windows\System32 and Windows\System32\Drivers directories.
Armatix iS1 User Manual 14/19 2011-07-01
4. Troubleshooting
4.1. Windows XP Forces A Reboot After Installing a Device
This problem can occur if an application is accessing a file while the New
Hardware Wizard is trying to copy it. This usually occurs with the FTD2XX.DLL
file. Selecting not to restart the computer then unplugging and re-plugging the
device may allow the device to function properly without restarting. Restarting the
machine will allow the device to work correctly.
4.2. Driver Installation Fails And Windows XP Gives Error
Code 10
Windows error code 10 indicates a hardware error or failed driver installation. This
error may appear if a device has insufficient power to operate correctly (e.g.
plugged into a bus powered hub with other devices), or may indicate a more
serious hardware problem. Also, it may be indicative of USB root hub drivers
being incorrectly installed.
4.3. Windows XP Displays An Error And Then Terminates
Installation
If the following screen is displayed with this message, Windows XP has been
configured to block the installation of any drivers that are not WHQL certified.
Figure 4. 1
Armatix iS1 User Manual 15/19 2011-07-01
Two options are available to successfully install the device. Either a certified
version of the driver can be installed (if available) or the driver signing options can
be changed to either warn or ignore to allow the installation to complete.
To change the current driver signing setting, go to "Control Panel\System", click
on the "Hardware" tab and then click "Driver Signing". The desired signing option
may then be selected.
Armatix iS1 User Manual 16/19 2011-07-01
5. Contact Information
Armatix GmbH
Feringastr. 4
D-85774 Unterfoehring
Germany
Tel: +49 (0) 89 4272979 0
Fax: +49 (0) 89 4272979 79
E-Mail: info@armatix.de
Armatix iS1 User Manual 17/19 2011-07-01
Appendix A - Revision History
Version 0.1 First Draft 01/07/2011
Armatix iS1 User Manual 18/19 2011-07-01
Appendix B - Reference
Future Technology Devices International Ltd
Application Note AN_104
FTDI Drivers Installation guide for Windows XP
Web: http://www.ftdichip.com
Armatix iS1 User Manual 19/19 2011-07-01
Loading...
