ARMASIGHT by FLIR
Night Vision Monocular
USER MANUAL
®
SPARK
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
© 2018 FLIR Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted by any electronic medium or in machine-readable form without the prior written permission of FLIR Systems, Inc.
Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Outdoor & Tactical Systems and/or its subsidiaries. All other trademarks, trade names, or company names referenced herein are used for identification only and are the property of their respective owners.
This product is protected by patents, design patents, patents pending, or design patents pending. If you have questions that are not covered in this manual, or need service, contact FLIR OTS customer
support for additional information prior to returning a product.
This documentation is subject to change without notice.
EXPORT INFORMATION
Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited.
2
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
PROPER DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT (EEE)
The European Union (EU) has enacted Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE), which aims to prevent EEE waste from arising; to encourage reuse, recycling, and recover y of EEE waste; and to promote environmental responsibility.
In accordance with these regulations, all EEE products labeled with the “crossed out wheeled bin” either on the product itself or in the product literature must not be disposed of in regular rubbish bins, mixed with regular household or other commercial waste, or by other regular municipal waste collection means. Instead, and in order to prevent possible harm to the environment or human health, all EEE products (including any cables that came with the product) should be responsibly discarded or recycled.
To identify a responsible disposal method where you live, please contact your local waste collection or recycling service, your original place of purchase or product supplier, or the responsible government authority in your area.
Business users should contact their supplier or refer to their purchase contract.
IMPORTANT INSTRUCTIONS AND NOTICES TO THE USER:
Modification of this device without the express authorization of FLIR Commercial Systems, Inc. may void the user’s authority under FCC rules to operate this device.
Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that of the receiver
• Consult the dealer or an experienced radio/television technician for help.
INDUSTRY CANADA NOTICE:
This Class B digital apparatus complies with Canadian ICES-003.
AVIS D’INDUSTRIE CANADA:
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
3
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
LIST OF CONTENTS
TITLE PAGE
Safety Summary 5
1. INTRODUCTION 7
1.1 Purpose of Equipment 7
1.2 Warranty Information and Registration 7
2. DESCRIPTION AND DATA 8
2.1 System Description 8
2.2 Specifications 9
2.3 Standard Components 11
2.4 Optional Equipment 12
2.5 Key Features 14
3. OPERATING INSTRUCTIONS 15
3.1 Installation and Mounting 15
3.2 Controls 21
3.3 Operating Procedures 22
3.4 Storage 23
4. PREVENTIVE MAINTENANCE AND T ROUBLESHOOTING 24
4.1 Preventive Maintenance Checks and Services 24
4.2 Troubleshooting 26
4.3 Identification of Operational Defects 26
4.4 Maintenance 28
APPENDIX 30
A. Spark List of Spare Par ts 30
4
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SAFETY SUMMARY
• Read and follow all instructions
• Read all warnings
• Only use the attachments/accessories specified by the manufacturer
• All service must be provided by the manufacturer
WARNING:
This product contains natural rubber latex which may cause allergic reactions! The FDA
has repor ted an increase in the number of deaths that are associated with an apparent sensitivity to natural latex proteins. If you are allergic to latex, it is a good idea to learn which products contain it and strictly avoid exposure to those products.
WARNING:
• Always make sure your firearm is unloaded before you place the equipment on the firearm. Reconfirm that the chamber is empty if you stop the procedure then resume later. Safe handling rules should be followed at all times.
• The light from the unit infrared (IR) illuminator is invisible to the unaided eye when used in total darkness. However, the light can be detected by other Night Vision Devices (NVD).
• To reduce the risk of detection by another NVD, avoid prolonged activation of the IR illuminator.
• The IR light is more detectable by an NVD when used in smoke, fog and rain. Avoid prolonged activation of the unit IR illuminator in these conditions.
• This product contains natural rubber latex, which may cause allergic reactions.
• The intensifier’s phosphor screen contains toxic materials. Please note the following:
– If the intensifier tube breaks, be extremely careful to avoid inhaling the phosphor screen
material. DO NOT allow the material to come in contact with your mouth, eyes, or any open wounds on the skin.
– If the phosphor screen material comes in contact with your skin, wash it off immediately with
soap and water.
– If you inhale or swallow any phosphor screen material, drink a lot of water, induce vomiting,
and seek medical attention as soon as possible.
5
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
CAUTION:
• The Spark is a precision electron-optical instrument, and must be handled carefully at all times to prevent damage to the device and danger to the user.
• To protect the intensifier tube, do not remove the lens cap of the Spark when the monocular is being operated in daylight conditions, or when the device is not in use.
• Use of the Spark in brightly lit conditions may damage the unit’s intensifier tube.
• Bright light sources such as firelight, headlights, searchlights, etc. can damage the Spark. Avoid exposing the unit to these types of light sources.
• DO NOT attempt to force the controls past their stopping points, as this may cause damage to the mechanisms.
• Before replacing the intensifier tube, confirm that it is no longer covered by warranty.
• Do not store the equipment with the battery still inserted.
• Clean and dry each component of the Spark thoroughly before placing them in the storage case.
NOTES:
• The equipment requires some ambient light (moonlight, starlight, etc.) to operate.
• Performance of the device in nighttime conditions depends on the level of ambient light in the environment. Please remember the following:
– The level of ambient light is reduced by the presence of clouds, shade, or objects that block
natural light (trees, buildings, etc.).
– The equipment is less effective when operated in shadows and other darkened areas.
– The equipment is less effective when operated in rain, fog, sleet, snow, dust or smoke.
– The equipment will not “see” through dense smoke.
• The IR illuminator is intended for increased illumination, as needed, when viewing at a close distance of up to 3m.
• The Spark is not a weapon sight. However, it can be used in conjunction with a collimator dot sight or laser aiming device.
• For the purpose of returning defective components, retain all packaging materials.
6
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SECTION 1
INTRODUCTION
1.1 PURPOSE OF EQUIPMENT
To provide the operator with the abilit y to observe at night under moonlight and starlight conditions.
The Spark can be used as a handheld, head-mounted, helmet-mounted or weapon-mounted device to allow walking, weapon firing, short-range surveillance, map reading, vehicle maintenance, and administering of first aid.
The Spark allows for horizontal and vertical adjustments when mounted to the user’s head or helmet, and is equipped with an infrared light-emitting source (IR illuminator).
1.2 WARRANTY INFORMATION AND REGISTRATION
1.2.1 WARRANTY INFORMATION
1.2.2 PRODUCT REGISTRATION
In order to validate the warranty on your product, the Customer must complete and submit FLIR Outdoor & Tactical Systems’ PRODUCT REGISTRATION FORM on our websit
1.2.3 OBTAINING WARRANTY SERVICE
7
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SECTION 2
DESCRIPTION AND DATA
2.1 SYSTEM DESCRIPTION
The Spark is a hand-held, head-mounted, helmet-mounted, or weapon-mounted night vision system that allows the user to operate it while walking, firing weapons, conducting short-range surveillance, reading maps, conducting vehicle maintenance, or administering first aid in both moonlight and starlight conditions.
The Spark utilizes the principle of intensification of the residual light that is reflected from the surrounding objects. The optical system of the unit consists of an objective lens, an intensifier tube (IT), and an eyepiece.
Exclusive CORE (Ceramic Optical Ruggedized Engine) technology image intensifier tubes are used in the Spark monoculars. While CORE does not contain a micro channel plate (and so by definition lands in the Gen 1 category) that is where the parallels end. Instead of glass, CORE tubes use a specially formulated ceramic compound fused with metal alloys similar to those used in production of Gen 2 and Gen 3 image intensifier tubes. Further advances in CORE have almost removed edge distortion, dramatically increased photo-sensitivity and most importantly, almost doubled resolution up to 70 lp/mm.
A built-in IR illuminator makes it possible to use the unit in low light or total darkness. The Spark allows for ver tical and fore-and-aft adjustment when mounted to the user’s head or helmet,
when focusing the lens, and when focusing the eyepiece.
NOTE:
The equipment requires some light (moonlight, starlight, etc.) to operate. Performance of the device depends upon the level of ambient light in the environment. Please remember the following:
– The level of ambient light in the environment is reduced by the presence of clouds, shade, or
objects that block natural light (trees, buildings, etc.
– The equipment is less effective when operated in shadows and other darkened areas.
– The equipment is less effective when operated in rain, fog, sleet, snow, or smoke.
– Under starlight conditions, particularly in low-contrast environments such as snow-covered
territory, sandy deserts, large bodies of water or grassy hills, the visibility may degrade, thereby disguising or masking changes in terrain.
– The equipment will not “see” through dense smoke.
8
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
2
1
10
11
4
3
5
6
12
9

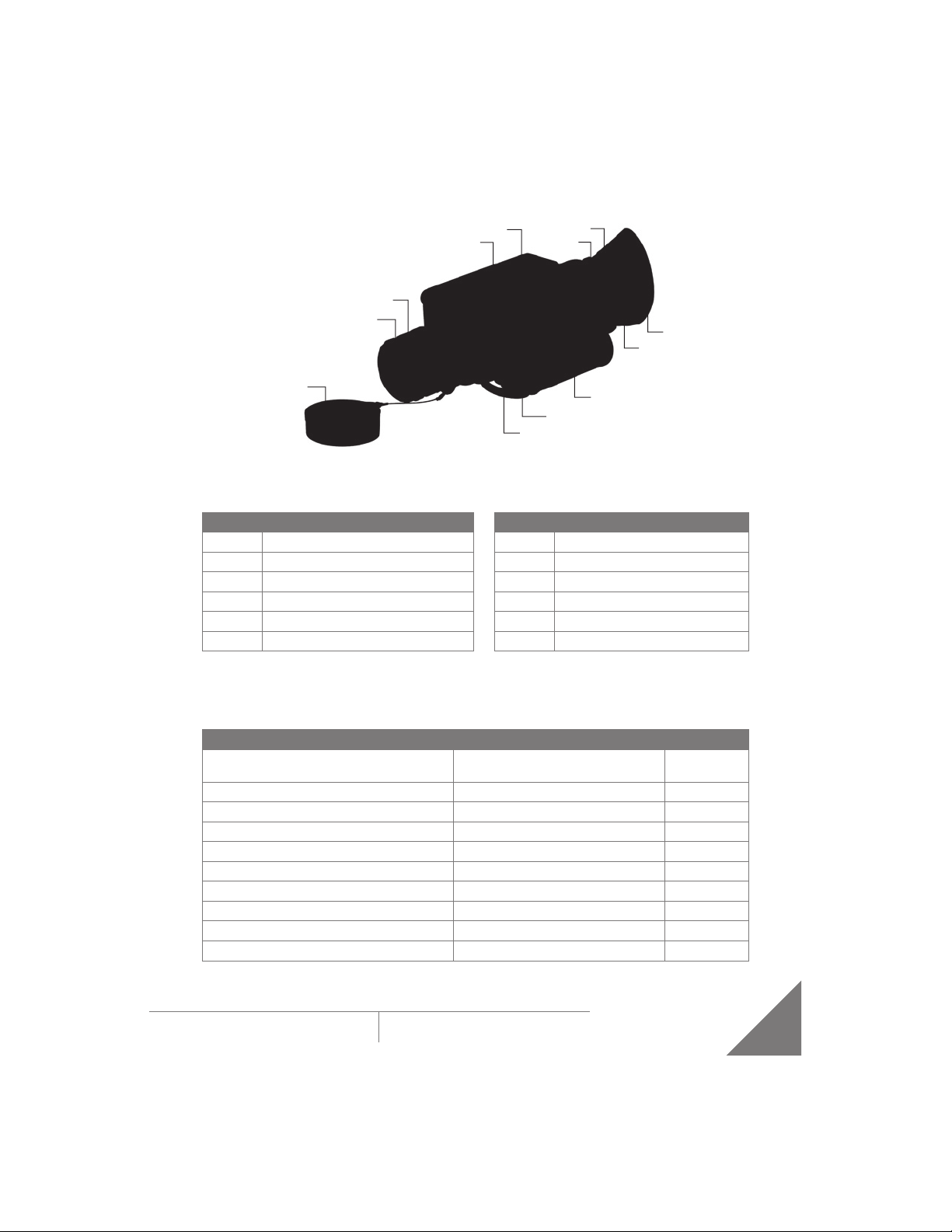

FIGURE 2-1. SPARK NIGHT VISION MONOCULAR
7
8
TABLE 2-1. SPARK SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 Body 7 Battery Compartment 2 Rail 8 IR Illuminator 3 Eyepiece Ring 9 Battery Cap 4 Eyepiece 10 Focus Ring 5 Eyecup 11 Lens 6 Function Switch 12 Lens Cap
2.2 SPECIFICATIONS
TABLE 2-2. MECHANICA L DATA
EQUIPMENT ITEM DIMENSIONS, MM WE IGHT, G
Spark Night Vision Monocular
(145 x 49 x 82 w/o eyecup and lens cap) Flip-up Helmet Mount* 140 x 70 x 90 280 Goggle Kit* 280 x 180 x 80 295 IR850-XLR* 150 x 46 x 46 210 Quick Release Picatinny Mount Adapter #26* 120 x 76 x 13 70 Dual Bridge* 110 x 39 x 19 69 Dovetail to Weaver Transfer Piece* 38 x 21 x 7.5 8 Swing Arm #37* 49 x 46 x 64 50 3x Afocal Lens* Dia 61 x 73 180 5x Afocal Lens* Dia 78 x 90 344
* Optional
181 x 49 x 82
370
9
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
TABLE 2-3 . ELECT RICAL DATA
ITEM DATA
Battery One CR123A Lithium 3V or CR123 type
Continuous Operation* Up to 40 hr at 20°C (68°F)
* With IR illuminator off.
TABLE 2-4. OPTICAL DATA
ITEM DATA
Magnification:
- with 1x Lens
- with 3x Afocal Lens*
- with 5x Afocal Lens* 1X Lens:
- Focal Length
- Lens F/number
- Focus Range FOV:
- with 1x Lens
- with 3x Afocal Lens*
- with 5x Afocal Lens* Exit Pupil Diameter 8 mm Eye Relief 20 mm Eyepiece Diopter Adjustment -5 to +5 diopters Built-in IR Illuminator
- Power
- Illumination Range
- Focus Distance
- Illumination Wavelength
* Optional.
TABLE 2-5. ENVIRONMENTAL DATA
ITEM DATA
Operating Temperature -40 to +50°C Storage Temperature -50 to +70°C Humidity 95%, 25°C to 40°C for 48 hr Illumination Required Natural night illumination
Environmental Rating Water and fog-resistant
rechargeable batteries with voltage 3.2V
1x 3x 5x
35 mm 1:1.7
0.25 m to infinity
35° 11°30’ 7°30’
50 mW 20 m 3 m 810 nm
(overcast starlight to moonlight)
10
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
2.3 STANDARD COMPONENTS
The standard components of the Spark are shown in Figure 2-2 and listed in Table 2-6. The ITEM NO. column indicates the number used to identify items in Figure 2-2.
1
2
3
4
FIGURE 2-2. SPARK STANDARD COMPONENTS
5
6
TABLE 2-6. SPARK STANDARD COMPONENTS
ITE M NO. DESCRIPTION QUANTITY
1 Night Vision Monocular 1 2 Lens Cap 1 3 Eye-cup 1 4 CR123A Lithium Battery 1 5 Operation and Maintenance Manual 1 6 Carrying Case 1
11
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
2.4 OPTIONAL EQUIPMENT
Optional items are shown and listed in Table 2-7. The PART NO. column indicates the primary number used by the manufacturer to identify an item.
TABLE 2-7. SPARK OPTIONAL EQUIPMENT
IMAGE DESCRIPTION PART NO.
3x A-Focal Lens Kit Lens #22 with Adapter #23
5x A-Focal Lens with Adapter #23
ARFS3
ARFS5
Goggle Kit #1
Helmet Mount #3
Helmet Mount #170 (Shroud)
Dual Bridge #197
Swing Arm #37
ANAF3X0023
ANAF5X0023
ANAMRF0003
ANAMRF0005
ANHG000001
ANHM000002
ANHM000170
ANHM000197
ANHG000002
Swing Arm #172
Quick Release Picatinny Mount Adapter #26/ #142
IR850-XLR Detachable Long-Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Rechargeable Battery, and Charger
12
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
ANHM000172
ANAM000004
ANKIXLR017
TABL E 2-7. CONTINUED
IMAGE DESCRIPTION PART NO.
IR850-XLR Doubler
Extended Rail Adapter #85
Universal Camera Adapter #45
Hard Shipping/Storage Case #101
ANAF18X LRM
ANAM000045
ANAM000006
ANHC000001
13
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
2.5 KEY FEATURES
• CORE (Ceramic Optical Ruggedized Engine) technology intensifier tube
• Built-in IR illuminator
• Left or right eye use
• Lightweight
• Compact and robust design
• Easy to operate
• Serviceability under severe conditions
• High-performance
• Highly reliable
• Powered by single CR123 battery
• Head or helmet-mountable for hands-free usage
• Weapon-mountable
• Adaptable for use with cameras
• Compatibility with most weapons, IR laser aiming/ illuminating devices, reflex sights, and scopes
• Water and fog-resistant
• Limited two-year warranty
14
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SECTION 3
OPERATING INSTRUCTIONS
3.1 INSTALLATION AND MOUNTING
CAUTION:
To protect the intensifier tube when the sight is not in use or when it is being operated in daylight, keep the protective lens cap securely fitted over the lens.
3.1.1 BATTERY INSTALLATION
The Spark operates on a single CR123A battery. Install the CR123A battery as follows:
1. Unscrew the battery cap (A) and insert the CR123A batter y (B), observing the polarity markings on the body of the device.
2. Screw the battery cap (A) back on securely.
A
3.1.2 MOUNTING THE SPARK TO A GOGGLE KIT
Mount the Spark to the optional goggle kit as follows (refer to Figure 3-2):
1. Put on the goggle kit. Adjust the goggle kit strap pads until the goggles fit securely around your head. Remove the goggle kit.
2. Loosen the screw (A). While pushing down on the button (B), insert the Spark rail into the guide (C) of the goggle kit bracket. Tighten the screw (A).
B
FIGURE 3-1. BATTERY INSTALLATION
15
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3. Put on the goggle kit, now mounted with the Spark.
4. To adjust the equipment for greater comfort, loosen the screw (A) and move the unit along the guide (C).
5. The goggle kit has a flip-up mechanism. Push the button (D) of the goggle kit bracket and lift the unit up until it reaches its top position.
6. Push the same button (D) to lower the unit into the correct viewing position.
Figure 3-2 shows the Spark in the correct position for the right eye. To readjust the unit for the other eye, remove the unit from the goggle kit bracket. Turn the unit around (180º) and mount it on the bracket through the rail on the second side. With the button (E) pushed, move the unit along the slide-rail (F) until the desired, most comfortable position is reached.
To remove the Spark from the goggle kit, loosen the screw (A), push the button (B), and slide the unit out of the bracket guide (C).
F
E
D
B
A
C
FIGURE 3-2. MOUNTING SPARK TO A GOGGLE KIT
3.1.3 MOUNTING THE SPARK TO A HELMET
An optional flip-up helmet mount can be used to attach the Spark to a helmet. The helmet mount fits the Spark securely onto helmet via a rugged strapping device and grooved hooks. With the helmet mount, the Spark can be positioned directly in front of the user’s eyes, or flipped backwards, out of the field of view.
Mount the Spark to a helmet as follows (refer to Figure 3-3):
1. Attach the mount to the helmet.
2. Adjust and tighten the straps (A).
3. Loosen the screw (B). With the button (C) pushed down, insert the Spark rail into the guide (D) of the helmet mount bracket. Tighten the screw (B).
4. Put on the helmet with the Spark attached.
5. Push the button (F) and move the unit along the slide-rail (G) until the most comfortable position is reached.
16
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6. Adjust the mount for comfortable using. Loosen the screw (B) and move the unit along the guide (D) for eye relief adjustment. Turn the lever (H) and move the unit along vertical slide-rail until the most comfortable vertical position is reached.
7. The helmet mount has a flip-up mechanism. Push the button (E) of the mount bracket and lift the unit up until it reaches its top position.
8. Push the same button (E) to lower the Spark into the proper viewing position.
The Spark can be mounted in position for the right or left eye. To readjust the Spark for other eye, reverse its positioning and reinstall it on the helmet mount bracket. Use the second unit rail located on the opposite side of the unit. Push the button (F) and move the unit along the slide-rail (G) until the most comfortable position is reached.
To remove the Spark from the helmet mount, loosen the screw (B), push down on the button (C), and slide the unit out of the guide (D). To remove the flip-up mechanism from the helmet mount, loosen the lever (H), pull the knob out (I), and slide the flip-up mechanism out of the vertical rail.
H
I
G
E
C
F
B
D
FIGURE 3-3. MOUNTING THE SPARK TO A HELMET
A
3.1.4 MOUNTING THE SPARK TO A WE APON WITH A QUICK-RELEASE WE APON
MOUNT
NOTE:
The Spark is not a weapon sight. However, it can be used in conjunction with a collimator dot sight or laser aiming device.
To mount the Spark to a weapon using an optional quick-release weapon mount (QRM), perform the following (refer to Figure 3-4):
1. While pushing down on the lever holder (C), turn the lever (B) backwards to loosen the QRM clamping device (A).
2. Install the QRM on the weapon rail by inserting the stop (not shown in Figure 3-4) into one of transverse slots of the weapon rail.
17
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
D
A
B
FIGURE 3-4. MOUNTING THE SPARK TO A WEAPON WITH A QUICK-RELEASE WEAPON MOUNT
E
F
I
G
H
E
A
C
B
D
3. To secure the QRM onto the weapon rail, turn the lever (B) forward. Secure the clamping device (A) tightly to the weapon rail. To adjust the force of the lever clamp, loosen or tighten the nut (D) as necessary:
– When the clamping device (A) unlocked, push the lever holder (C) so that the nut (D) gets out of its
hollow.
– To tighten/loosen clamping device, turn the nut (D) CW/CCW, respectively, by one-two increments
(the eight-sided nuts of the AIM clamping devices fit their hollows only if turned in one of the discrete positions), when the holder (C) pushed. Just as the holder (C) released, backmoving springs makes the nut (D) get back into its hollow.
– Check to ensure the clamping device holds weapon/NVM rail firmly.
4. While pushing down on the lever holder (F), turn the lever (E) forward.
5. Install the Spark on the QRM rail by inserting the stop (G) into the transverse slot of the unit rail.
6. Attach the Spark to the QRM rail by turning the lever (E) backwards. Secure the QRM clamping device (H tightly to the Spark rail. To adjust the force of the lever clamp, loosen or tighten the nut (I) as necessary.
3.1.5 MOUNTING AN IR ILLUMINATOR TO THE SPARK
To mount an IR illuminator to the Spark, use the optional Dovetail to Weaver Transfer Piece. Perform the following steps (refer to Figure 3-5):
C
B
A
FIGURE 3-5. MOUNTING AN IR ILLUMINATOR TO THE SPARK
18
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1. Install the transfer piece (A) onto one of the Spark rails.
2. Tighten the fixing screw (B) on the transfer piece.
3. Loosen the IR illuminator fixing screw (C).
4. Mount the IR illuminator on the Weaver rail of transfer piece and tighten the fixing screw (C).
3.1.6 MOUNTING THE SPARK TO A STANDARD US MIL HELMET/ HEADGEAR
ASS EMBLY
To mount the Spark to a Standard US Mil helmet or headgear assembly, use an optional transfer adapter. Perform the following steps (refer to Figure 3-6):
F
C
A
FIGURE 3-6. MOUNTING THE SPARK TO A STANDARD US MIL HELMET/HEADGEAR ASSEMBLY
D
B
C
F
D
G
E
D
1. Push down on the lever (C). Mount the adapter (A) to the Spark rail (B).
2. Align the adapter prism (D) with the helmet/ headgear assembly mount (E). Slide the Spark backwards until its alignment boss is in line with the alignment groove on the helmet/ headgear assembly mount. Push down until the Spark locks into the helmet/ headgear assembly mount.
To dismount the Spark from the helmet/ headgear assembly, push down on the lever (F) and remove the unit.
Push down on the lever (C) and remove the adapter from the Spark rail. The transfer adapter can be adjusted for either the right or left eye. In Figure 3-6, the Spark is shown in
the proper position for the left eye. Readjust the adapter for the right eye as follows:
1. Push down on the lever (C). Remove the adapter from the Spark rail.
2. Loosen the nut (G), and turn the adapter around between the two fixing devices. Retighten the nut (G).
3. Mount the adapter to the other Spark rail located on the opposite side of the unit.
19
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3.1.7 MOUNTING ACCESSORY LENSES TO THE SPARK
To mount the 3x or 5x afocal lens (A) with adapter (B) to the device, screw it into the threading of the standard 1x objective lens (C) of the Spark.
C
A
FIGURE 3-7. MOUNTING ACCESSORY LENS TO SPARK
B
3.1.8 UNIVERSAL CAMERA ADAPTER APPLICATION
To mount the Spark (affixed with a camera or video recorder) to a tripod, you will need a universal camera adapter. Mount the connected devices to a tripod as follows:
D
A
C
B
G
E
FIGURE 3-8. UNIVERSAL CAMERA ADAPTER APPLICATION
F
1. Screw the adapter onto the tripod.
2. Remove the eyecup from the Spark eyepiece.
3. Install the Spark on the adapter rail (A) and tighten the fixing screw (B).
4. Install the camera on the adapter rail (C) and insert the fixing screw (D) into the tripod socket of the camera. Tighten the fixing screw.
5. Loosen the screws one by one. Align the optical axis of the Spark with the camera objective. Tighten the screws (E and F).
6. To focus the image, loosen the screw (G) and adjust the distance between the monocular and the camera’s eyepiece. Tighten the screw (G).
20
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3.2 CONTROLS
3.2.1 CONTROLS
The Spark controls are defined in Table 3-1. The Spark controls are shown in Figure 3-9.
C
FIGURE 3-9. SPARK CONTROLS
TABLE 3-1. SPARK CONTROLS
CONTROL/ INDICATOR FUNCTION
Function Switch (Figure 3-9, A)
Eyepiece Ring (Figure 3-9, B)
Focusing Ring (Figure 3-9, C)
Bi-color LED Indicator (Figure 3-9, D)
OFF position — the unit is off.
ON position — the unit is on (IT powered). Turn the unit on by turning the switch CCW from OFF to ON.
IR position — the unit is on, and the IR illuminator is activated. Activate the IR illuminator by turning the switch CW from ON to the IR position.
Adjusts the unit diopter. The total dioptric range is covered in a 1/2 ring revolution.
Focuses the lens. Adjusts for sharpest view of the scene. The total focus range is covered in a 1/3 ring revolution.
A GREEN glow indicates that the unit is turned on and ready for operation.
A RED glow indicates that the IR illuminator is operating.
D
B
A
CAUTION:
DO NOT over-adjust the controls by forcing them past their stopping points.
21
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3.3 OPERATING PROCEDURES
3.3.1 OPERATING PROCEDURES
These procedures should be performed under nighttime conditions only.
CAUTION:
Use of the Spark brightly lit conditions may damage the unit’s intensifier tube.
1. Verify that the battery is installed as indicated on the monocular body.
2. Make a visual estimation of the illumination level in the viewing area. The required level of illumination is less than 1 lx (late twilight sky conditions).
3. Remove the lens cap and place it over the housing of the lens.
4. Turn the function switch ON. The green indicator light (Fig. 3-9, D) indicates that the unit is ready for operation. After a slight delay, a green glow will appear in the eyepiece of the monocular.
5. Adjust the unit diopter by rotating the ring of the eyepiece.
6. Observe the scene. Rotate the focus ring until the image is clear and sharp.
CAUTION:
Bright sources such as firelight, headlights, searchlights, etc. can damage the Spark. Avoid exposing the unit to these types of light sources.
3.3.2 IR ILLUMINATOR OPERATIONS
CAUTION:
When operating the device in extremely dark conditions, the light from the unit’s IR illuminator will be invisible to the unaided eye. However, the light can be detected by other NVDs.
NOTE:
The IR illuminator is designed to provide additional illumination (when needed) while viewing scenes or targets from a short distance (up to 3m).
22
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
B
A
FIGURE 3-10. IR ILLUMINATOR OPERATIONS
To activate the IR illuminator, turn the monocular on. Flip the function switch (Fig. 3-10, A) CW from ON to the IR position. A red indicator (Fig. 3-10, B) lights when the IR illuminator is turned on.
3.3.3 SPARK SHUT-DOWN
1. Turn the function switch to OFF. The green glow of the viewing area will fade to black.
2. Secure the lens cap over the objective lens.
3. If necessary, remove the unit from the rail (from the scope lens). Remove the unit by following the mounting instructions in reverse.
4. Unscrew the battery cap and take out the battery. Replace the battery cap. Do not store the unit with the battery still in it.
5. Store the unit and all accessories in the case.
3.4 STORAGE
3.4.1 PREPARATIONS FOR STORAGE
Prepare the Spark for storage as follows:
1. Verify that the Spark and all accessories are clean and dry before returning them to the storage case.
2. Secure the cap over the objective lens.
3. Remove the battery.
4. Place the Spark and accessories in the appropriate locations in the case, and close the cover.
23
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SECTION 4
MAINTENANCE AND TROUBLESHOOTING
4.1 PREVENTIVE MAINTENANCE CHECKS AND SERVICES
4.1.1 PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS)
Table 4-1: Preventive Maintenance Checks and Services has been provided so that you can keep your equipment operable and in good condition.
Perform all functional tests in the order listed in Table 4-1. Operating Procedures are detailed in Chapter 3.
A. Cautions
Always observe any CAUTIONS that appear in the table.
B. Explanation of Table Entries SEQ NO. column. Sequence numbers are for reference and appear in the order required to perform
checks and services. LOCATION ITEM TO CHECK/ SERVICE column. Indicates the location and the item to be checked or
serviced.
PROCEDURE column. Details the checking/ servicing procedure. NOT FULLY MISSION CAPABLE IF... column. Indicates what faults will prevent your equipment from
operating successfully.
TABLE 4-1. PREVENTIVE MAINTENANCE CHECKS AND SERVICES
SEQ
LOCATION I TEM T O
NO.
CHECK/ SERVICE
1 Completeness Open the carrying case and inventory items by means
2 Soft Carrying
Case
3 External
Surfaces
4 Lens Cap Inspect for cracked, torn, or missing lens caps. Cap is torn or cut.
of comparing with the data specified in this manual. Shake out loose dirt or foreign material. Inspect for
tears, cuts, excess wear or damage to the mounting clips.
Inspect for cracks or damage. Scratches and gouges are OK if operation is not affected.
PROCEDURE
PRE-OPERATIONAL CHECKS
NOT FULLY MISSION
CAPABLE IF...
Items are missing.
Cracked or damaged.
Cup is not secured to the housing of the lens.
24
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
TABL E 4-1. CON TINUE D
SEQ
LOCATION I TEM T O
NO.
CHECK/ SERVICE
5 Eyecup Inspect for dirt, dust. Inspect for cracked or torn,
6 Battery
Compartment/ Cap
7 Function Switch Check the switch for operation (without a battery). Switch has no definite
8 Lenses Inspect optical surfaces for dir t, fingerprint residue,
9 Focusing Ring Rotate the focusing ring to ensure free movement
10 Eyepiece Ring Rotate the eyepiece ring to make sure the eyepiece
11 Optional
Equipment
CAUTION:
Do not activate the Spark in daylight unless the lens cap is on, or you are operating under dark conditions.
NOTE:
Daylight checks are described below. 12 Function Switch Install the battery. Turn the switch from OFF to ON.
13 Viewed Image Inspect for any operational defects (refer to Part
14 Turn the unit OFF. Verify that the green glow fades
bent, broken or improperly fitting eyecup. If necessary, clean as per Para 4.4.2.
Verify that the battery cap is present. Inspect for corrosion, moisture, corroded or defective contacts. Verify that the o-ring is present.
scratches, chips, or cracks.
(range is approximately 1/3 turn).
is not too tight or too loose. Range is approximately ½ turn.
Inspect optional items for dirt, or corrosion, damage, and missing parts. Check for proper operation. If necessary, clean as detailed in Part 4.4.2.
Look for the green glow in eyepiece (it should appear after a slight delay), and wait about 10 s for image to dis ap pear.
4.3.1: Identification of Operational Defects).
from the eyepieces. Remove the battery. Return the unit and all accessories to the soft
carrying case.
PROCEDURE
OPERATIONAL CHECKS
POST-CHECKS PROCEDURES
NOT FULLY MISSION
CAPABLE IF...
Cup torn or cut.
Cap is missing, contacts damaged or corroded, or o-ring is missing.
stopping points. Switch knob is broken or missing.
Scratches or chips hinder vision with Spark turned on. Cracks are present.
Ring gets stuck or adversely affects the user’s ability to properly focus the unit.
Ring gets stuck, is too loose, or adversely affects the user’s ability to properly adjust the diopter.
Equipment is damaged or parts are missing.
Image is present.
Shading, edge glow, flashing, flickering, and intermittent operation, or excessive cosmetic defects are found.
25
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4.2 TROUBLESHOOTING
4.2.1 OPERATOR TROUBLESHOOTING
The purpose of troubleshooting is to identify the most frequently occurring equipment malfunctions, their probable causes, and the corrective actions required to fix them.
Table 4-2 lists common malfunctions that may occur during the operation or maintenance of the Spark. Perform the tests, inspections, and corrective actions in the order listed in the table.
This table does not list all of the malfunctions that may occur with your device, or all of the tests and corrective actions that may be necessary. If you experience an equipment malfunction
that is not listed, or is not fixed by the corrective actions listed in the table, please contact Customer Service center.
TABLE 4-2. OPERATOR TROUBLESHOOTING
MALFUNC TION PROBABLE CAUSE/ TEST/INSPEC TION CORRECTIVE ACTION
Monocular fails to activate
IR illuminator fails to activate
Poor image quality Check objective lens or eyepiece
Light is visible around the eyecup
Focusing ring cannot be moved
Eyepiece ring cannot be moved
Battery is dead, missing or improperly installed.
Battery contact surfaces or contact springs are dirty or corroded.
Defective image intensifier. Please contact Customer Support. Turn the IR illuminator on in a dark
area. Visually estimate whether or not the observed scene is illuminated.
focus. Check for fogging or dirt on the lens. Clean the lens as detailed in Part 4.4.2. If
Damaged optical components. Please contact Customer Support Check the exit pupil distance value. Readjust for proper eye-relief distance. Check the eyecup resilience. If the eyecup is defective, please contact
Check to see if the focusing ring is bent or broken.
Check to see if the eyepiece ring is bent or broken.
Replace the battery or install it correctly.
Clean the contact surfaces with a pencil eraser and/ or alcohol and cotton swabs.
If the IR illuminator fails to activate, please contact Customer Support.
Refocus the lens.
image quality is still poor, please contact Customer Suppor t.
Customer Suppor t. If damaged, please contact Customer
Support. If damaged, please contact Customer
Support.
4.3 IDENTIFICATION OF OPERATIONAL DEFECTS
4.3.1 OPERATIONAL DEFECTS
Operational defects relate to the reliability of the intensifier, and are an indication of instability. If identified, the user will need to return the Spark immediately. Operational defects include shading, edge glow, flashing, flickering, and intermittent operation.
26
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
A. Shading
If shading is persistent, you will not be able to see a fully circular image (Figure 4-1). Shading is a very dark, high-contrast area with a distinct line of demarcation present, and you cannot see an image through it. Shading always begins on the edge, and will eventually migrate inward until it spans across the entire image area. If you notice shading with your device, please contact Customer Support.
SHADING
FIGURE 4-1. SHADING
NOTE:
Verify that any shading is not the result of improper eye-relief adjustment.
B. Edge Glow
Edge glow is a bright area (it sometimes appears to be sparkling) in the outer portion of the viewing area (see Figure 4-2). To check for edge glow, block out all light from the device by cupping a hand over the lens. If the image tube is displaying edge glow, the bright area will still show up; if edge glow occurs, please contact Customer Support.
EDGE GLOW
FIGURE 4-2. EDGE GLOW
C. Flashing, Flickering, or Intermittent Operation
The image may appear to flicker or flash. If there is more than a single flicker, check for a loose battery adapter or a weak battery. If flickering continues, please contact Customer Support.
4.3.2 COSMETIC BLEMISHES
Cosmetic blemishes are usually the result of manufacturing imperfections. They do not affect the reliability of the image intensifier, and are not normally a cause for returning the Spark. However, some types of cosmetic blemishes can worsen over time and interfere with the user’s ability to properly operate the device during missions. If you believe a cosmetic blemish is cause for returning the device, record the specific nature of the problem on the maintenance forms and use the clock method to identify the position of the blemish and its approximate distance from the center (e.g., 5:00 toward the outside, 2:30 near the center, or 1:00 midway).
27
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
The following are examples of cosmetic blemishes:
A. Bright Spots
A bright spot is a small, non-uniform bright area that may flicker or appear constant (Figure 4-3). Not all bright spots make the Spark rejectable. Cup your hand over the lens to block out all light. If the
bright spot remains please contact Customer Support. Bright spots usually go away when all light is blocked out. Verify that any bright spots are not simply the
result of bright light in the area you are observing. Bright spots are acceptable if they do not interfere with the user’s ability to view the scene or perform missions.
B. Emission points
Emission points are steady or fluctuating pinpoints of bright light in the image area that do not go away when all external light is blocked from the objective lens (Figure 4-3). The position of an emission point within the image area does not move. Not all emission points are cause to return the Spark. Verify that emission points are not simply light sources present in the scene you are observing. Emission points are acceptable if they do not interfere with the user’s ability to perform missions.
EMISSION
POINT
FIGURE 4-3. EMISSION POINTS AND BRIGHT SPOTS
BRIGHT
SPOT
C. Black Spots
Black spots are cosmetic blemishes in the image intensifier or debris between the lenses. Black spots are acceptable as long as they do not interfere with the user’s ability to observe the scene. No action is required if this condition is present, unless the spots inter fere with the operator’s ability to perform missions.
4.4 MAINTENANCE
4.4.1 GENERAL
The section regarding Spark operator maintenance consists of operational tests, inspections for the unit serviceability, cleaning and mounting procedures, troubleshooting, and replacement instructions for a limited number of parts. Maintenance instructions covered elsewhere in this manual (PMCS, troubleshooting, etc.) are not repeated in this section.
CAUTION:
The Spark is a precision electron-optical instrument, and must be handled carefully at all times to prevent damage to the device’s body or mechanisms.
28
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
4.4.2 CLEANING PROCEDURES
CAUTION:
The coating on the demist shield can be damaged if the shield is cleaned while wet, or if it is cleaned with wet lens paper. Clean the shield only when it is dry, and only use dry lens paper.
CAUTION:
Thoroughly dry each item before placing them into the storage case.
Clean the Spark as follows:
1. Gently brush off any dirt from the unit’s body using a clean, soft cloth.
2. Moisten the cloth with fresh water and gently wipe external surfaces (except for glass surfaces).
3. Dry any wet surfaces (except for glass surfaces) with another clean, soft, dry cloth.
4. Using a lens brush, carefully remove all loose dirt from the glass surfaces.
5. Slightly dampen a cotton swab with ethanol. Gently and slowly wipe the lenses. Without touching the lens holders, clean the glass surfaces in circular movements, beginning in the center and moving out towards the edge. Change the cotton swab after each circular stroke. Repeat until the glass surfaces are clean.
6. Clean the battery contact surfaces and contact springs with a pencil eraser and/ or alcohol­dampened cotton swabs.
Clean optional mounting devices with a soft brush (cloth), soap, and water as required. Clean optional lenses as detailed in items 4 and 5 above (except for the demist shield).
4.4.3 BATTERY REMOVAL AND REPLACEMENT
Refer to Part 3.1.1 for battery installation procedures. No special tools are required to replace the battery.
V12-20171127
29
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
APPENDIX
SPARK LIST OF SPARE PARTS
The parts authorized in this list of spare parts are required for operator maintenance. This list includes parts that must be removed in order to replace authorized parts.
ITEM NO. Column indicates the number used to identify items in Figure A-1. PART NO. Column indicates the primary number used by the manufacturer to identify an item; this number
controls the design and characteristics of the item by means of its engineering, specifications, standards, and inspection requirements.
5
8
4
3
1
ITE M NO. DESCRIPTION PART NO.
1 Battery Cap ASSPKBC 2 Battery Cap Retainer ASSPKBCR 3 Lens Cap ASSPKLC 4 Objective Lens Assembly ASSPKOLA 5 Eyepiece Assembly ASSPKEPA 6 Eyecup ASSPKECA 7 Function Switch ASSPKFS 8 Rail ASSPKPR 9 Operation and Maintenance Manual ASSPKOMM
10 Soft Carry Case ASSPKSCC
2
6
7
9
FIGURE A-1. SPARK SPARE PARTS
TABLE A-1. SPARK LIST OF SPARE PARTS
10
30
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
