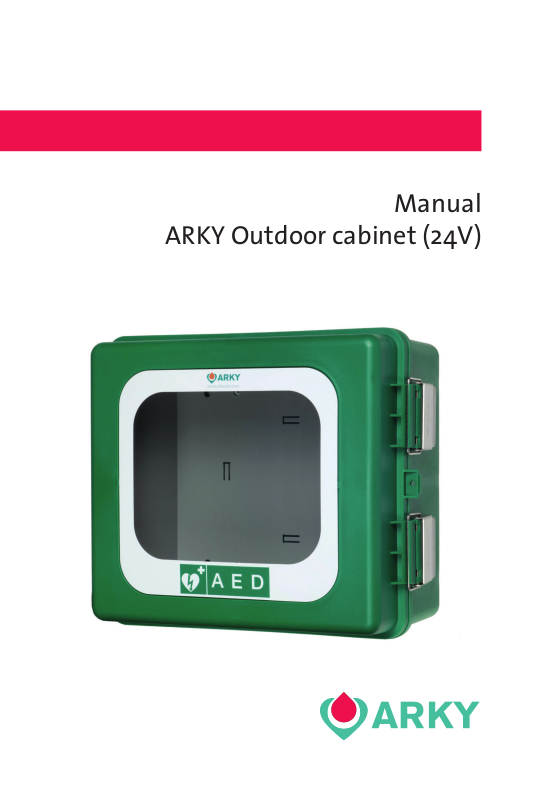

Manual
ARKY Outdoor cabinet (24V)
USE OF THE ARKY OUTDOOR CABINET
IMPORTANT
Please read this manual carefully before installation and use of the
cabinet. For safety reasons the installation of the outdoor cabinet to
the electricity grid should only be carried out by a certified electrician.
The ARKY AED outdoor cabinet is designed for the well-conditioned
outdoor storage of an AED.
An AED should be stored free from moisture and frost. The batteries
will lose their capacity when they cool down below 0°C.
The electronics and metal components of the defibrillator should be
kept dry to make sure the AED functions well at all times. Therefore
the ARKY AED outdoor cabinet is provided with a waterproof
neonprene seal and a heating element with a thermostat.
2
CONTENT
Components 4
Installation of the cabinet 5
Alarm 5
Electrical Assembly 6
Specifications 7
Declaration of conformity 8
3
COMPONENTS
1. Magnet for alarm
2. Hook for elastic band to keep the AED in place
3. Screw
4. Screw cover
5. Eye for padlock/breakaway seal
6. Thermostat
4
INSTALLATION OF THE CABINET
Install the cabinet at a place where it will not be exposed to direct
sunlight and rainfall.
Use the screws to install the cabinet. The screws are fitted with
neoprene rings for a watertight seal.
IMPORTANT
The adapter and cables are not waterproof and should therefore be
stored in a dry, frost free place.

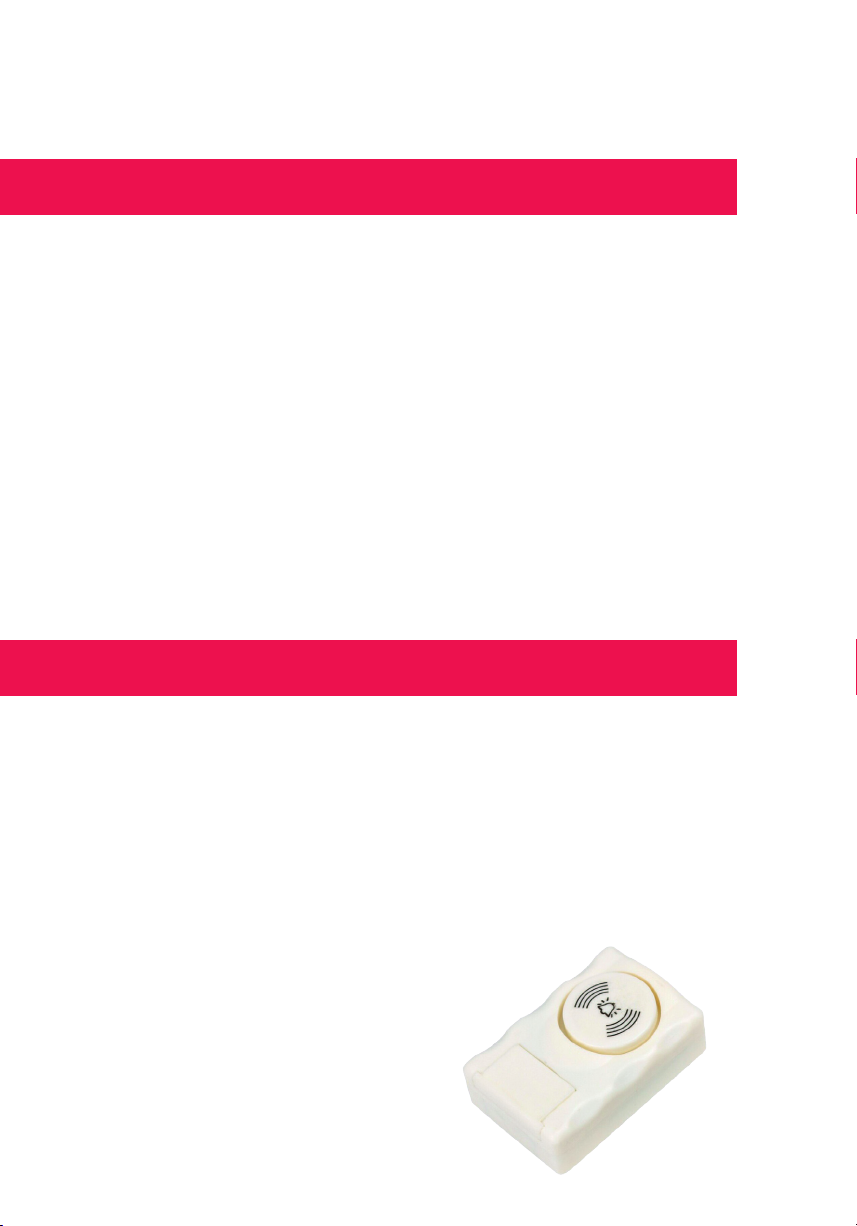

ALARM
The alarm has an on/off switch. To activate the alarm, turn the
black switch on. To de-activate, turn the switch off.
The alarm is provided with three button cell batteries.
To replace these, pull the top cover of the alarm down as indicated
by the arrow.
5
ELECTRICAL ASSEMBLY
The cabinet is supplied with a 55W heating element. A thermostat
controls the temperature in the cabinet and keeps it frost free.
For safety reasons the installation of the outdoor cabinet to the
electricity grid should only be carried out by a certified electrician.
It is important that the cabinet is connected to an electricity grid
with an Earth Leakage Circuit Breaker.
The supplied cable gland is
suitable for a two-core cable
with an outside diameter of 10
mm. Make sure the cable gland
is sufficiently tightened. This
also acts as a strain relief.
Attach the wiring of the cabinet
to the wiring of the adapter by
means of a heat shrink.
6
SPECIFICATIONS
Weight: 3,6 kg
Outside dimensions 34 x 40 x 20 cm (HxWxD)
Inside dimensions 28 x 32 x 18 cm (HxWxD)
ELECTRICAL SUPPLY
Heating element 55W
Feed: AC 100-240 V ~1,5 A 50 ~ 60 Hz
Feed: DC 24V,5A
ALARM
Feed: 3 button cell batteries LR44
7
DECLARATION OF CONFIRMITY
CONFORMITEITSVERKLARING
DECLARATION OF CONFORMITY
Manufacturer: Defibrion bv
Verlengde Bremenweg 12
9723 JV Groningen
Product: AED Outdoor Cabinet
Dit product is ontwikkeld en geproduceerd volgens en in overeenstemming
met de volgende normen en voorschriften:
This product complies with the essential requirements and provisions of following
standards and methods:
Groningen, 01.05.2012
8
EN 60950-22 versie 2006
EN 60950-22 version 2006
en
and
CE
