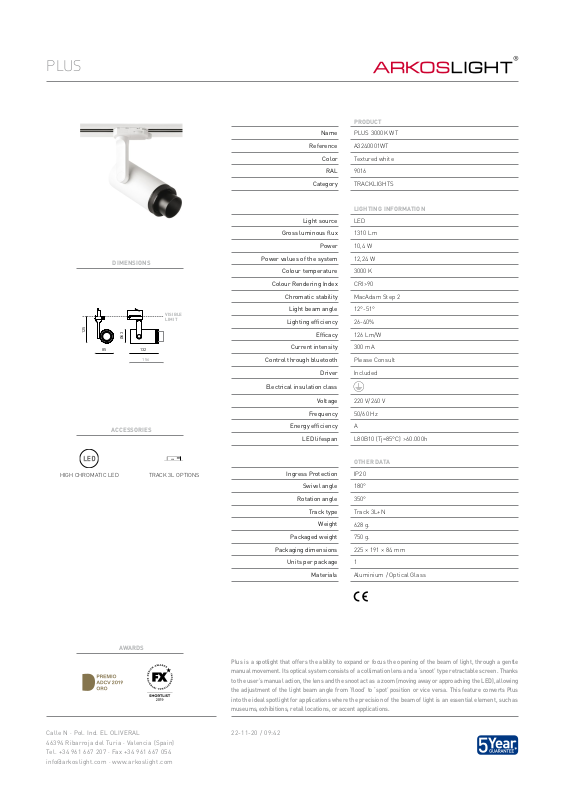

Page 1
PLUS
125
DIMENSIONS
Ø63
85
ACCESSORIES
PRODUCT
Name PLUS 3000K WT
Reference A3240001WT
Color
Category
RAL
Textured white
9016
TRACKLIGHTS
LIGHTING INFORMATION
Light source
LED
Gross luminous flux 1310 Lm
Power 10,4 W
Power values of the system
Colour temperature
Colour Rendering Index
Chromatic stability
VISIBLE
LIMIT
Light beam angle
Lighting efficiency
Efficacy
132
156
Current intensity
Control through bluetooth
Driver
12,24 W
3000 K
CRI>90
MacAdam Step 2
12°-51°
26-40%
126 Lm/W
300 mA
Please Consult
Included
Electrical insulation class
Voltage
Frequency
Energy efficiency
LED lifespan
220 V/240 V
50/60 Hz
A
L80B10 (Tj=85°C) >60.000h
OTHER DATA
HIGH CHROMATIC LED TRACK 3L OPTIONS
Ingress Protection
IP20
Swivel angle 180°
Rotation angle 350°
Track type Track 3L+N
Weight
Packaged weight
628 g.
750 g.
Packaging dimensions 225 × 191 × 84 mm
Units per package 1
Materials Aluminium / Optical Glass
AWARDS
Plus is a spotlight that offers the ability to expand or focus the opening of the beam of light, through a gentle
manual movement. Its optical system consists of a collimation lens and a ‘snoot’ type retractable screen. Thanks
to the user’s manual action, the lens and the snoot act as a zoom (moving away or approaching the LED), allowing
the adjustment of the light beam angle from ‘flood’ to ‘spot’ position or vice versa. This feature converts Plus
into the ideal spotlight for applications where the precision of the beam of light is an essential element, such as
museums, exhibitions, retail locations, or accent applications.
Calle N · Pol. Ind. EL OLIVERAL
22-11-20 / 09:42
46394 Ribarroja del Turia · Valencia (Spain)
Tel. +34 961 667 207 · Fax +34 961 667 054
[email protected] · www.arkoslight.com
Page 2
LIGHTING TECHNICAL DATA
POLAR DIAGRAM CONICAL DIAGRAM
Calle N · Pol. Ind. EL OLIVERAL
46394 Ribarroja del Turia · Valencia (Spain)
Tel. +34 961 667 207 · Fax +34 961 667 054
[email protected] · www.arkoslight.com
22-11-20 / 09:42
Page 3
HIGH CHROMATIC LED
FOR COMMERCIAL PRODUCT SHOWCASING
Vivid Model
Colour Temperature
Reading
Fruits & Vegetables
Bakery
Retail
Cosmetics
Meat
Fish
Seafood
Light Pink4000K2700K 3000K 3500K
For some of its products, Arkoslight offers the possibility to provide them with a special LED,
designed to create an illumination focused on visually promoting goods or products for commercial purposes.
It is a high chromaticity LED, capable of identifying the colour shades that produce a positive psychological
perception of the illuminated object.
This special LED lighting source offers a much more attractive and intense colour range than a conventional
LED, besides being much wider. Technically, this is possible thanks to a special LED setting that includes
a «special saturation parameter» , capable of highlighting the objects colours and materials in such a way that
they seem more attractive within the visible light spectrum. To achieve this performance, in each case, the
appropriate diode and specific phosphor coating are carefully selected.
Calle N · Pol. Ind. EL OLIVERAL
46394 Ribarroja del Turia · Valencia (Spain)
Tel. +34 961 667 207 · Fax +34 961 667 054
[email protected] · www.arkoslight.com
Page 4
TRACK 3L
Ø 100
32
Ø 100
32
60
32
TRACK 3L+N FLUSH MOUNTING*TRACK 3L+N SURFACE & SUSPENDED
TRACK 3L 1m
TRACK 3L 2m
TRACK 3L 3m
A282-01-00- | B | N |
A282-02-00- | B | N |
A282-03-00- | B | N |
WEIGHT BEAR CAPACITY
Distancia de fijación y capacidad de carga.
Distancia fijación recomendada l~ 1000 mm.
Fastening distance and loading capacity.
Recommended fastening distance l~ 1000 mm.
Distance de fixation et capacité de charge.
Distance de fixation recommendée l~ 1000 mm.
Distanza di installazione e capacità di carico.
Distanza consigliata di fissazione l~ 1000 mm.
Befestigungsabstand und Belastbarkeit.
Empfohlener Abstand l~ 1000 mm.
32,5
31,5
TRACK 3L FLUSH 1m
TRACK 3L FLUSH 2m
TRACK 3L FLUSH 3m
ACCESSORIES
FIT MODEL: ACCESSORIES ONLY IN BLACK FINISH
SIX MODEL: ACCESSORIES NOT AVAILABLE
TRACKLIGHT Surface Adapter
0000-55-43- | W |
0000-55-39- | N |
32,5
56
A282-11-00- | B | N |
A282-12-00- | B | N |
A282-13-00- | B | N |
32
Ø 100
NO DIM
1000
COLOUR
100*
200*
5 Kg.
*minimum distance (mm.)
B
RAL 9016
200* 200* 200*
5 Kg. 5 Kg. 5 Kg. 5 Kg.
N RAL 9005
Calle N · Pol. Ind. EL OLIVERAL
46394 Ribarroja del Turia · Valencia (Spain)
Tel. +34 961 667 207 · Fax +34 961 667 054
[email protected] · www.arkoslight.com
100*
TRACKLIGHT Recessed Adapter
0000-55-44- | W |
0000-55-40- | N |
NO DIM
Ø 105
60
Ø 130
Page 5
TRACK 3L
66
SURFACE & SUSPENDED
POLARITY
66
100
160
GROOVE
TRACK 3L Live-End Connector
A282-00-01- | B | N |
A282-00-02- | B | N |
TRACK 3L Central Connector
A282-00-03- | B | N |
TRACK 3L Ceiling Kit
A219-21-06- | B | N |
TRACK 3L Universal Angle
A282-00-15- | B | N |
FLUSH MOUNTING
POLARITY
66
100
66
GROOVE
TRACK 3L Live-End Connector
A282-00-01- | B | N |
A282-00-02- | B | N |
TRACK 3L FLUSH Cover Plate
A282-10-19- | B | N |
Mandatory for installation
TRACK 3L Central Connector
A282-00-03- | B | N |
TRACK 3L FLUSH Cover Plate
A282-10-19- | B | N |
Mandatory for installation
TRACK 3L FLUSH Ceiling Kit
A219-22-06- | B |
TRACK 3L 90º Angle
A282-00-06- | B | N |
A282-00-07- | B | N |
TRACK 3L FLUSH Corner Cover Plate
A282-10-20- | B | N |
TRACK 3L 90º Angle
A282-00-06- | B | N |
A282-00-07- | B | N |
66
TRACK 3L T Joint
A282-00-16- | B | N |
100
A282-00-17- | B | N |
Mandatory for installation
TRACK 3L FLUSH Corner Cover Plate
66
TRACK 3L T Joint
A282-10-20- | B | N |
Mandatory for installation
A282-00-16- | B | N |
100
A282-00-17- | B | N |
SURFACE & SUSP. / FLUSH MOUNTING
TRACK Contact Joint
TRACK 3L Mechanical Joint
A282-00-04- | B | N |
A219-21-11- | B | N |
TRACK End
A219-20-02- | B | N |
1500
TRACK 3L Suspension Kit
A219-21-10- | B | N |
At least 2 units needed
M6
TRACK Clamp Kit for M6 ROD
A219-21-21- | B |
TRACK Bending Tool
A282-00-00
COLOUR
B
RAL 9016
N RAL 9005
For tracks its lenght has been modified
Calle N · Pol. Ind. EL OLIVERAL
46394 Ribarroja del Turia · Valencia (Spain)
Tel. +34 961 667 207 · Fax +34 961 667 054
[email protected] · www.arkoslight.com
FIFTY Track Clamp Kit
A219-21-21- | B |
