Arkon MARS-3100R-S User Manual
User Manual
MARS-3100R/S
Industrial Tablet PC
Copyright
The documentation and the software included with this product are copyrighted 2007
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For outof-warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.
Part No. 2006310002 Edition 3
Printed in Taiwan April 2008
MARS-3100R/S User Manual ii
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications when shielded
cables are used for external wiring. We recommend the use of shielded cables. This
kind of cable is available from Advantech. Please contact your local supplier for
ordering information.
CE
This product has passed the CE test for environmental specifications. Test conditions
for passing included the equipment being operated within an industrial enclosure. In
order to protect the product from being damaged by ESD (Electrostatic Discharge)
and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products.
FCC Class B
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
! Reorient or relocate the receiving antenna.
! Increase the separation between the equipment and receiver.
! Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
! Consult the dealer or an experienced radio/TV technician for help.
FM
This equipment has passed the FM certification. According to the National Fire Protection Association, work sites are classified into different classes, divisions and
groups, based on hazard considerations. This equipment is compliant with the specifications of Class I, Division 2, Groups A, B, C and D indoor hazards.
iii MARS-3100R/S User Manual
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE
Directive 1999/5/EC:
EN 60950-1: 2001
Safety of information technology equipment
IEEE Std. 1528: 2003
Recommended practice for determining the peak spatial-average specific
absorption rate (SAR) in the human head from wireless communications
devices: Measurement Techniques.
ANSI/IEEE C95.3: 2002
IEEE recommended practice for the measurement and computations of radio
frequency electromagnetic fields with respect to human exposure to such
fields, 100kHz-300GHz.
EN 300 328 V1.7.1 (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
transmission systems; Data transmission equipment operating in the 2,4 GHz
ISM band and using wide band modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
EN 301 893 V1.2.3 (2003-08)
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN;
Harmonized EN covering essential requirements of article 3.2 of the R&TTE
Directive
2005/513/EC, Commission Decision of 11 July 2005 on the harmonised use
of radio spectrum in the
5 GHz frequency band for the implementation of wireless access systems
including radio local area networks (WAS/RLANs)
EN 301 489-17 V1.2.1 (2002-08) and EN 301 489-1 V1.4.1 (2002-08)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission
systems and 5 GHz high performance RLAN equipment
MARS-3100R/S User Manual iv
This device is a 2.4 GHz wideband transmission system (transceiver),
intended for use in all EU member states and EFTA countries under the
following conditions and/or with the following restrictions:
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting
up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France
and in some areas the RF output power may be limited to 10 mW EIRP in the
frequency range of 2454 – 2483.5 MHz. For detailed information the end-user
should contact the national spectrum authority in France.
This device is a 5 GHz wideband transmission system (transceiver), intended
for use in all EU member states and EFTA countries under the following
conditions and/or with the following restrictions:
This device may only be used indoors in the frequency bands 5150 – 5250
MHz and 5250 – 5350 MHz.
In France and Luxembourg a limited implementation of the frequency bands
5150 – 5250 MHz and 5250 – 5350 MHz. In Luxermbourg it is not allowed to make
use of the frequency band 5470 – 5725 MHz. End-users are encouraged to contact
the national spectrum authorities in France and Luxembourg in order to obtain the
latest information about any restrictions in the 5 GHz frequency band(s).
0560
v MARS-3100R/S User Manual
Cesky [Czech] [Advantech] tímto prohlašuje, _e tento [MARS-3100S] je ve shodì se základ-
ními po_adavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES.
Dansk [Danish] Undertegnede [Advantech] erklærer herved, at følgende udstyr [MARS-3100S]
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [Advantech], dass sich das Gerät [MARS-3100S] in Überein-
stimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab [Advantech] seadme [MARS-3100S] vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [Advantech], declares that this [MARS-3100S] is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/
EC.
Español [Spanish] Por medio de la presente [Advantech] declara que el [MARS-3100S] cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [Advantech] ?ΗΛ?ΝΕΙ ΟΤΙ [MARS-3100S]
ΣΥΜΜΟΡΦ?ΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙ??ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ?ΙΑΤΑΞΕΙΣ ΤΗΣ Ο?ΗΓΙΑΣ 1999/5/ΕΚ.
Français [French] Par la présente [Advantech] déclare que l'appareil [MARS-3100S] est con-
forme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano [Italian] Con la presente [Advantech] dichiara che questo [MARS-3100S] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski Ar ðo [Advantech] deklarç, ka [MARS-3100S] atbilst Direktîvas 1999/5/EK
bûtiskajâm prasîbâm
[Latvian] un citiem ar to saistîtajiem noteikumiem.
Lietuvių [Lithuanian] Šiuo [Advantech] deklaruoja, kad šis [MARS-3100S] atitinka esminius reikala-
vimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaart [Advantech] dat het toestel [MARS-3100S] in overeenstem-
ming is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Malti [Maltese] Hawnhekk, [Advantech], jiddikjara li dan [MARS-3100S] jikkonforma mal-
htigijiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar [Hungarian] Alulírott, [Advantech] nyilatkozom, hogy a [MARS-3100S] megfelel a vonat-
kozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [Advantech] oœwiadcza, ¿e [MARS-3100S] jest zgodny z zasad-
niczymi wymogami oraz pozosta³ymi stosownymi postanowieniami Dyrek-
tywy 1999/5/EC.
Português [Portuguese] [Advantech] declara que este [MARS-3100S] está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] [Advantech] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in
ostalimi relevantnimi doloèili direktive 1999/5/ES.
Slovensky [Slovak] [Advantech] týmto vyhlasuje, _e [tip opreme] spåòa základné po_iadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] [Advantech] vakuuttaa täten että [tip opreme] tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska [Swedish] Härmed intygar [Advantech] att denna [tip opreme] står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
MARS-3100R/S User Manual vi
Technical Support and Assistance
1. Visit the Advantech web site at www.advantech.com/support where you can
find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software,
etc.)
– A complete description of the problem
– The exact wording of any error messages
Warnings, Cautions and Notes
Warning! Warnings indicate conditions, which if not observed, can cause personal
injury!
Caution! Cautions are included to help you avoid damaging hardware or losing
data. e.g.
There is a danger of a new battery exploding if it is incorrectly installed.
Do not attempt to recharge, force open, or heat the battery. Replace the
battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's
instructions.
Note! Notes provide optional additional information.
Document Feedback
To assist us in making improvements to this manual, we would welcome comments
and constructive criticism.
Please send all such - in writing to: support@advantech.com
vii MARS-3100R/S User Manual
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
15. The power cord or plug is damaged.
16. Liquid has penetrated into the equipment.
17. The equipment has been exposed to moisture.
18. The equipment does not work well, or you cannot get it to work according to the
user's manual.
19. The equipment has been dropped and damaged.
20. The equipment has obvious signs of breakage.
21. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY GO BELOW -10° C (-4° F) OR ABOVE 55° C
(140° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.
22. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.
23. The sound pressure level at the operator's position according to IEC 704-1:1982
is no more than 70 dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech
disclaims all responsibility for the accuracy of any statements contained herein.
Wichtige Sicherheishinweise
1. Bitte lesen sie Sich diese Hinweise sorgfältig durch.
2. Heben Sie diese Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie
Keine Flüssig-oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch
zur Reinigung.
4. Die NetzanschluBsteckdose soll nahe dem Gerät angebracht und leicht
zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen
oder Fallen könnte Verletzungen hervorrufen.
7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor überhit-
zung schützt. Sorgen Sie dafür, daB diese Öffnungen nicht abgedeckt werden.
8. Beachten Sie beim. AnschluB an das Stromnetz die AnschluBwerte.
9. Verlegen Sie die NetzanschluBleitung so, daB niemand darüber fallen kann. Es
sollte auch nichts auf der Leitung abgestellt werden.
10. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten.
11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom
Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung
vermieden.
12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten
in das Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag auslösen.
13. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen
Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.
14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen
und von einer qualifizierten Servicestelle zu überprüfen:
15. Netzkabel oder Netzstecker sind beschädigt.
16. Flüssigkeit ist in das Gerät eingedrungen.
17. Das Gerät war Feuchtigkeit ausgesetzt.
18. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder
Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
19. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
20. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
21. VOSICHT: Explisionsgefahr bei unsachgemaben Austausch der Batterie.Ersatz
nur durch densellben order einem vom Hersteller empfohlene-mahnlichen Typ.
Entsorgung gebrauchter Batterien navh Angaben des Herstellers.
22. ACHTUNG: Es besteht die Explosionsgefahr, falls die Batterie auf nicht fach-
männische Weise gewechselt wird. Verfangen Sie die Batterie nur gleicher oder
entsprechender Type, wie vom Hersteller empfohlen. Entsorgen Sie Batterien
nach Anweisung des Herstellers.
23. Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt
70dB(A) oder weiger.
Haftungsausschluss: Die Bedienungsanleitungen wurden entsprechend der IEC704-1 erstellt. Advantech lehnt jegliche Verantwortung für die Richtigkeit der in
diesem Zusammenhang getätigten Aussagen ab.
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from
damage.
! To avoid electrical shock, always disconnect the power from your PC chassis
before you work on it. Don't touch any components on the CPU card or other
cards while the PC is on.
! Disconnect power before making any configuration changes. The sudden rush
of power as you connect a jumper or install a card may damage sensitive electronic components.
Product Labelling
Contents
Chapter 1 Introduction..........................................1
1.1 Welcome ................................................................................................... 2
1.2 About this Manual ..................................................................................... 2
1.3 System Specifications ............................................................................... 3
Table 1.1: System Specifications ................................................ 3
1.4 Environmental Standards .......................................................................... 4
Table 1.2: Environmental Standards........................................... 4
Chapter 2 Getting Started.....................................5
2.1 Check the Package ................................................................................... 6
Figure 2.1 Mars 3100R/S and Accessories .............................. 6
2.2 General Views of the Tablet PC ................................................................ 7
2.2.1 Tablet front view............................................................................ 7
Figure 2.2 Front view................................................................ 7
2.2.2 Tablet back view ........................................................................... 7
Figure 2.3 Back view ................................................................ 7
2.2.3 Tablet front edge view................................................................... 8
Figure 2.4 Front edge view ....................................................... 8
2.2.4 Tablet back edge view .................................................................. 8
Figure 2.5 Rear edge view........................................................ 8
2.2.5 Tablet right edge view................................................................... 8
Figure 2.6 Right edge view....................................................... 8
2.2.6 Tablet left edge view ..................................................................... 8
Figure 2.7 Left edge view ......................................................... 8
2.3 LED Signals .............................................................................................. 9
Figure 2.8 Status LEDs............................................................. 9
2.3.1 Power ON/OFF LED ..................................................................... 9
2.3.2 Battery status LED: ....................................................................... 9
2.3.3 HDD status LED:......................................................................... 10
2.3.4 Wireless LAN ON/OFF LED:....................................................... 10
2.4 Buttons .................................................................................................... 11
Figure 2.9 Buttons on the front bezel...................................... 11
2.4.1 Key button................................................................................... 11
2.4.2 Display rotation button ................................................................ 11
2.4.3 5-way navigation button .............................................................. 11
2.4.4 Hotkey buttons ............................................................................ 11
2.5 Powering the tablet PC ........................................................................... 12
2.5.1 Battery Power ............................................................................. 12
Figure 2.10 Inserting the battery pack ...................................... 12

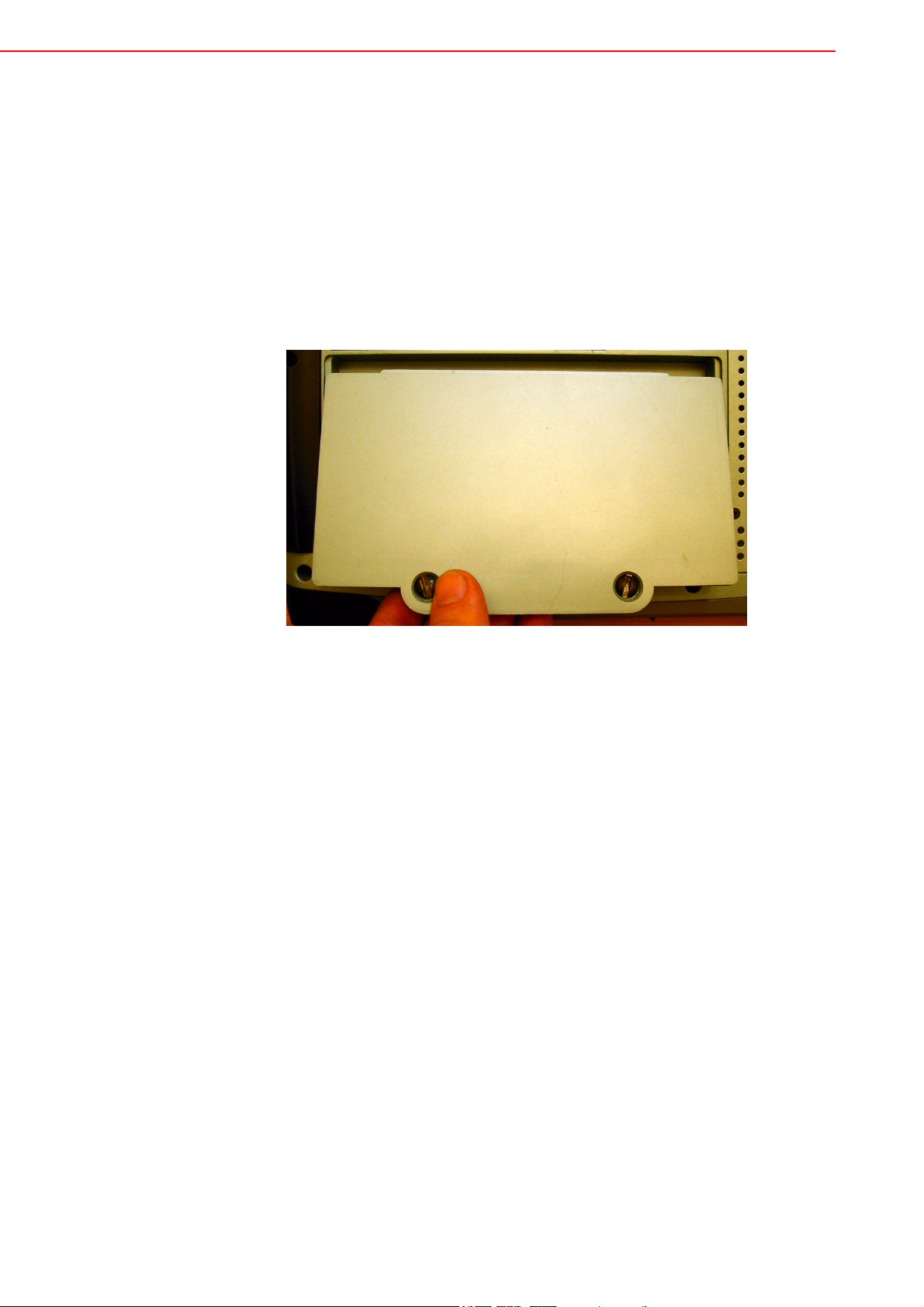

Figure 2.11 Replacing the screws ............................................ 12
Figure 2.12 Inserting the DC jack ............................................. 13
2.5.2 AC Power.................................................................................... 14
2.6 Starting the tablet PC .............................................................................. 14
Figure 2.13 Auto touchscreen calibration ................................. 14
2.7 Manual Touchscreen Calibration ............................................................ 15

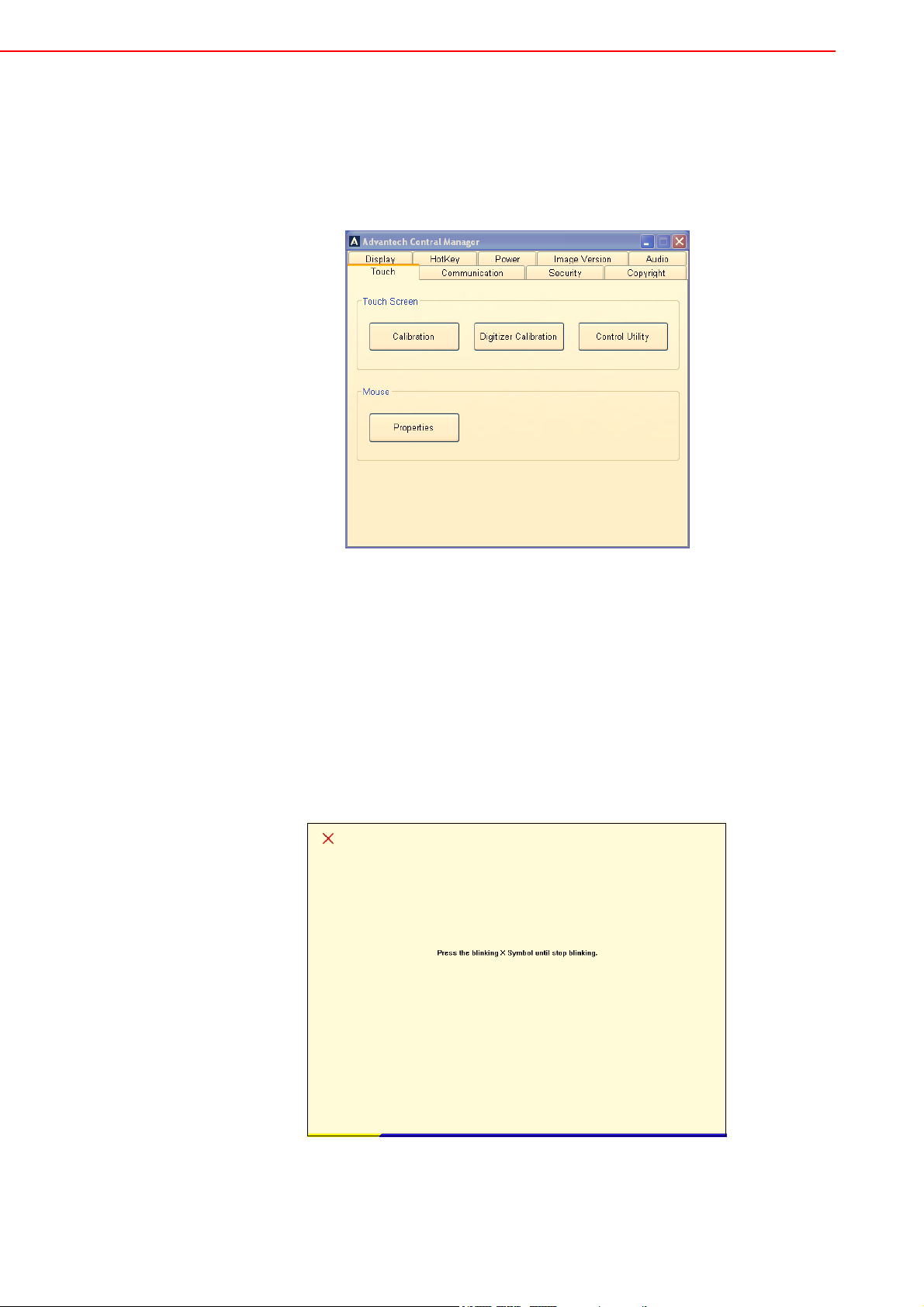

Figure 2.14 Accessing the Configuration Utility........................ 15
Figure 2.15 Calibrating the touchscreen................................... 15

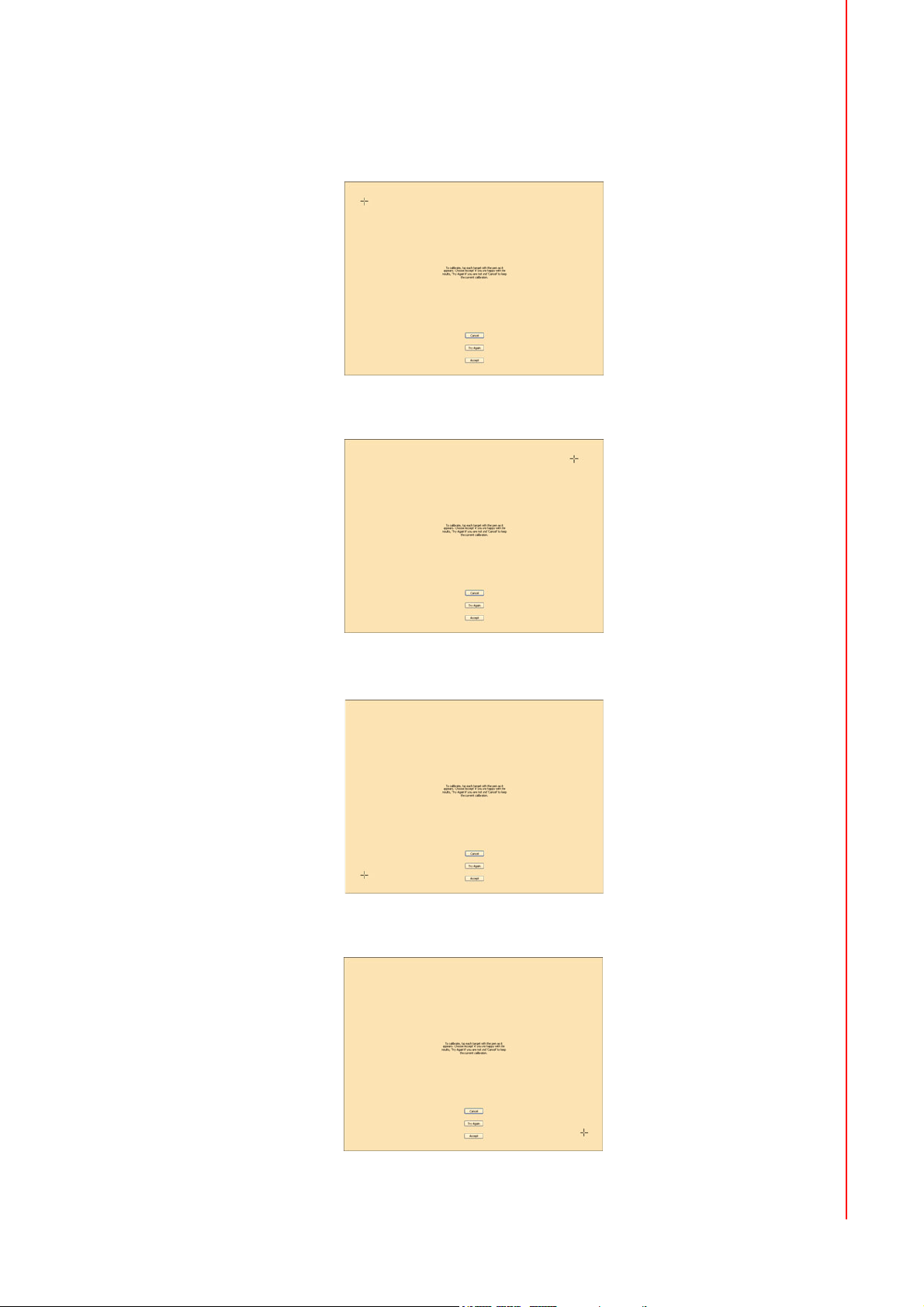

Figure 2.16 4 points calibration................................................. 15
Figure 2.17 Draw test ............................................................... 16
2.8 Using the Pen.......................................................................................... 17

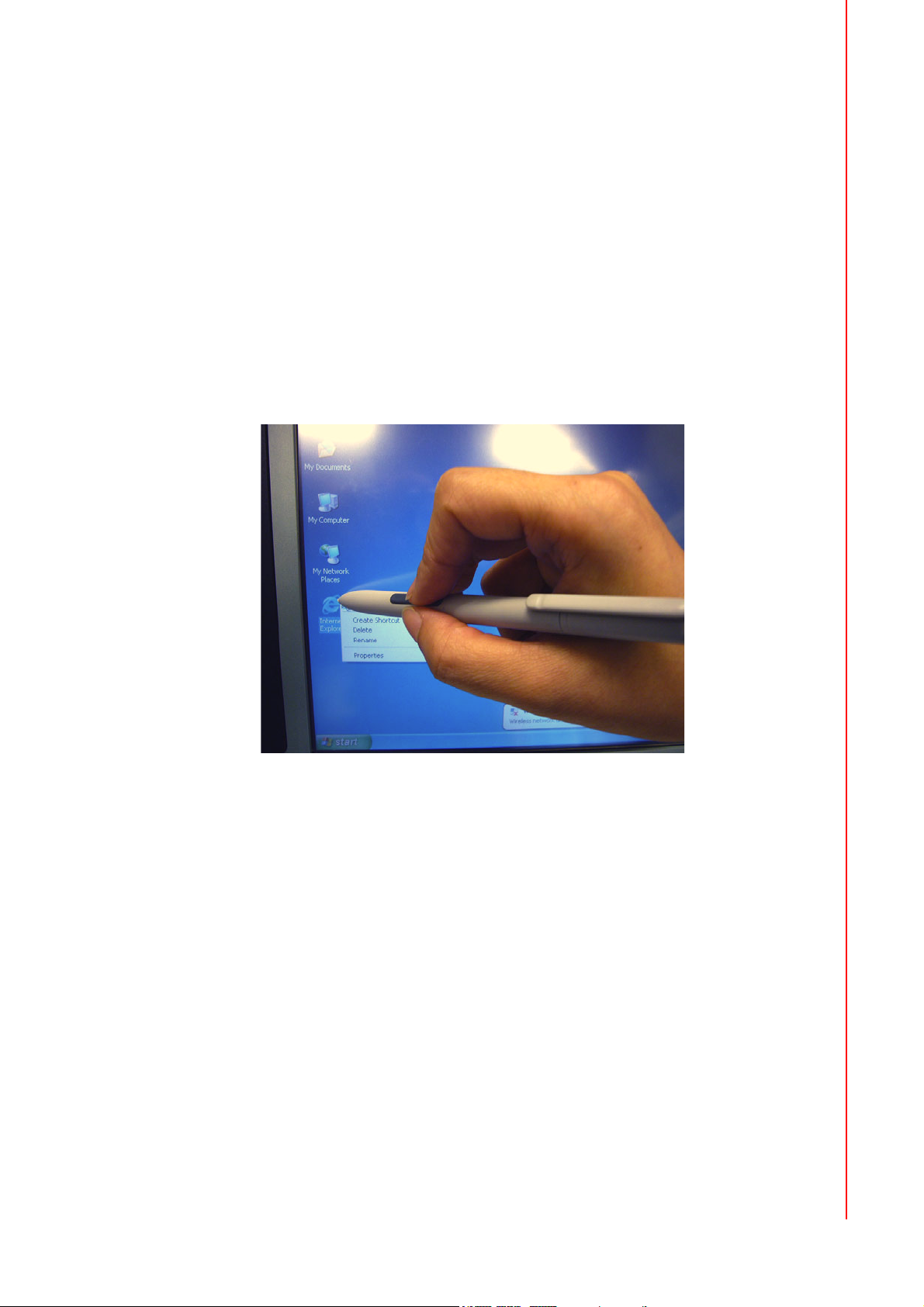

Figure 2.18 Using the pen ........................................................ 17
2.9 Connecting Peripherals........................................................................... 18
2.9.1 USB ports.................................................................................... 18
xi MARS-3100R/S User Manual
Figure 2.19 USB port................................................................ 18
2.9.2 COM ports .................................................................................. 18
Figure 2.20 COM port............................................................... 18
2.9.3 Audio jacks ................................................................................. 19
Figure 2.21 Audio Jacks (Red: input and Green: output) ......... 19
2.9.4 VGA port..................................................................................... 19
Figure 2.22 VGA port................................................................ 19
2.9.5 LAN port...................................................................................... 20
Figure 2.23 LAN port ................................................................ 20
2.10 Setting the Time and Date ...................................................................... 20
2.11 Power Management................................................................................ 20
2.11.1 Suspend...................................................................................... 20
2.11.2 Resuming.................................................................................... 21
Chapter 3 Advantech Central Manager ............ 23
3.1 Overview ................................................................................................. 24
Figure 3.1 Central manager icons .......................................... 24
Figure 3.2 Copyright page...................................................... 24
3.2 Display .................................................................................................... 25
3.2.1 Rotation ...................................................................................... 25
Figure 3.3 Display menu......................................................... 25

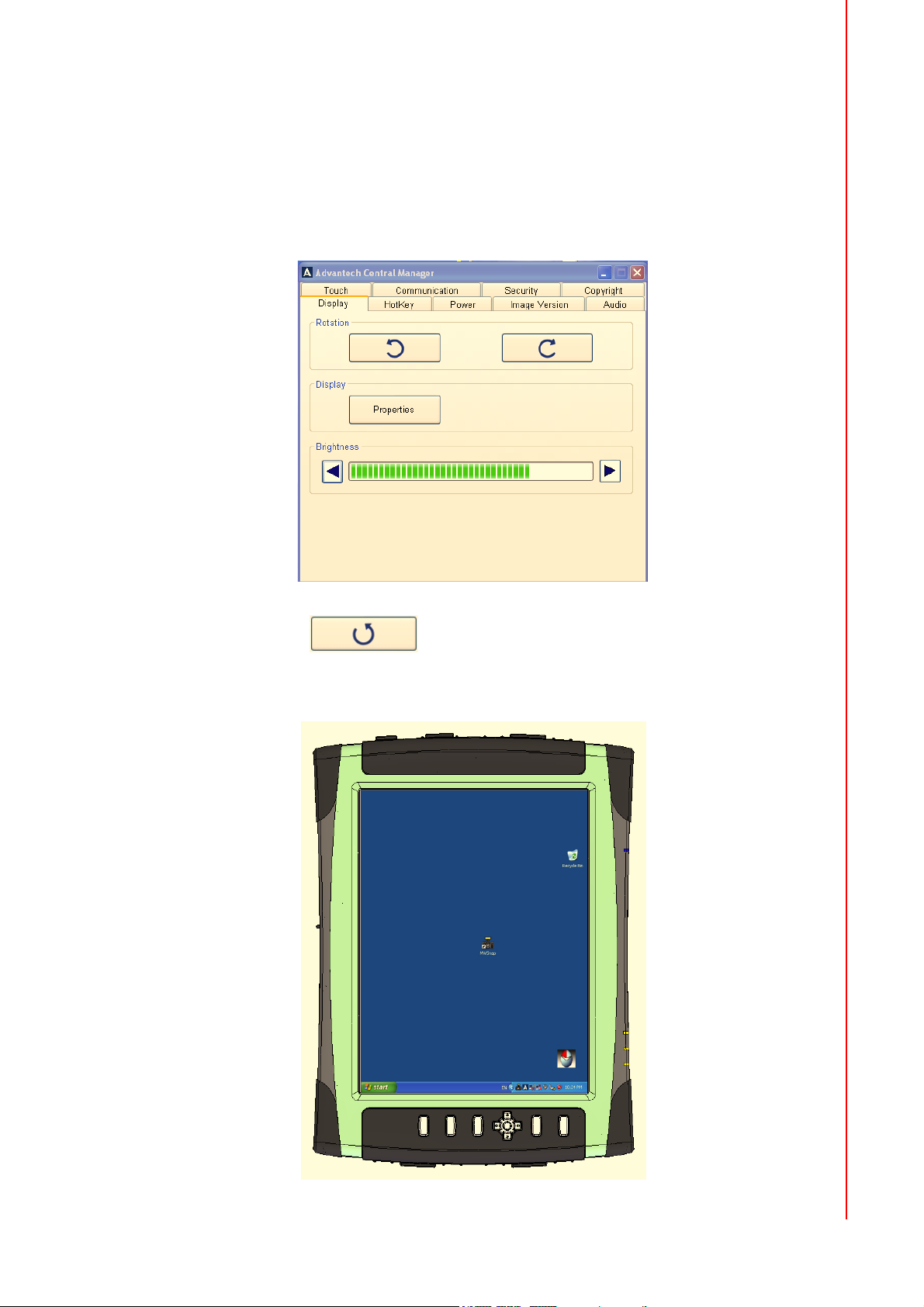

Figure 3.4 Vertical display mode ............................................ 25
Figure 3.5 Horizontal display mode........................................ 26
3.2.2 Rotation button ........................................................................... 26
3.2.3 Properties ................................................................................... 26
Figure 3.6 Display properties menu........................................ 26
3.2.4 Brightness adjustments (MARS-3100R only) ............................. 27

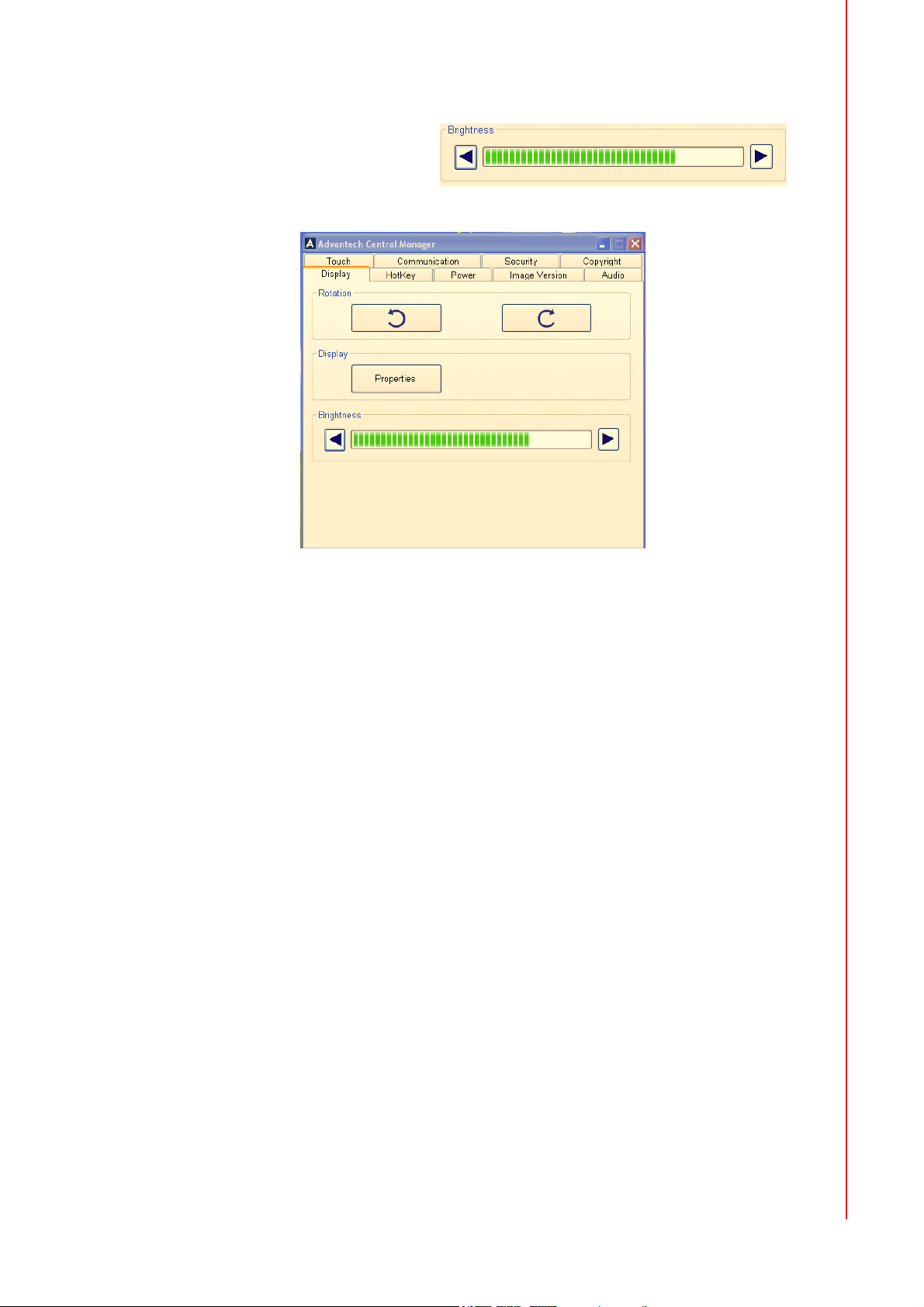

Figure 3.7 Brightness adjustment........................................... 27
3.3 Using Hotkey Buttons ............................................................................. 28

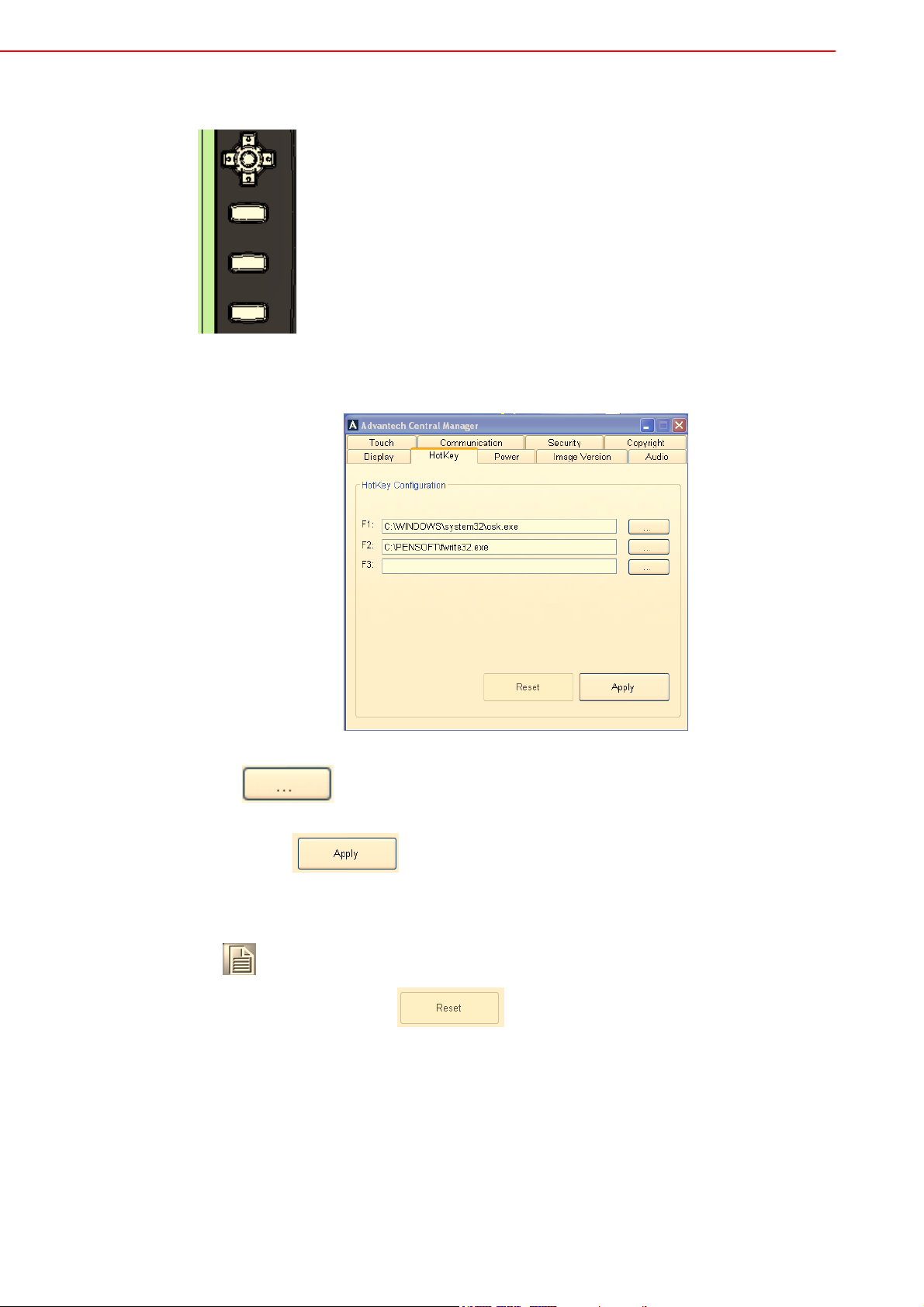

Figure 3.8 Three hotkey buttons............................................. 28
Figure 3.9 Hotkey menu ......................................................... 28
3.4 Power...................................................................................................... 29

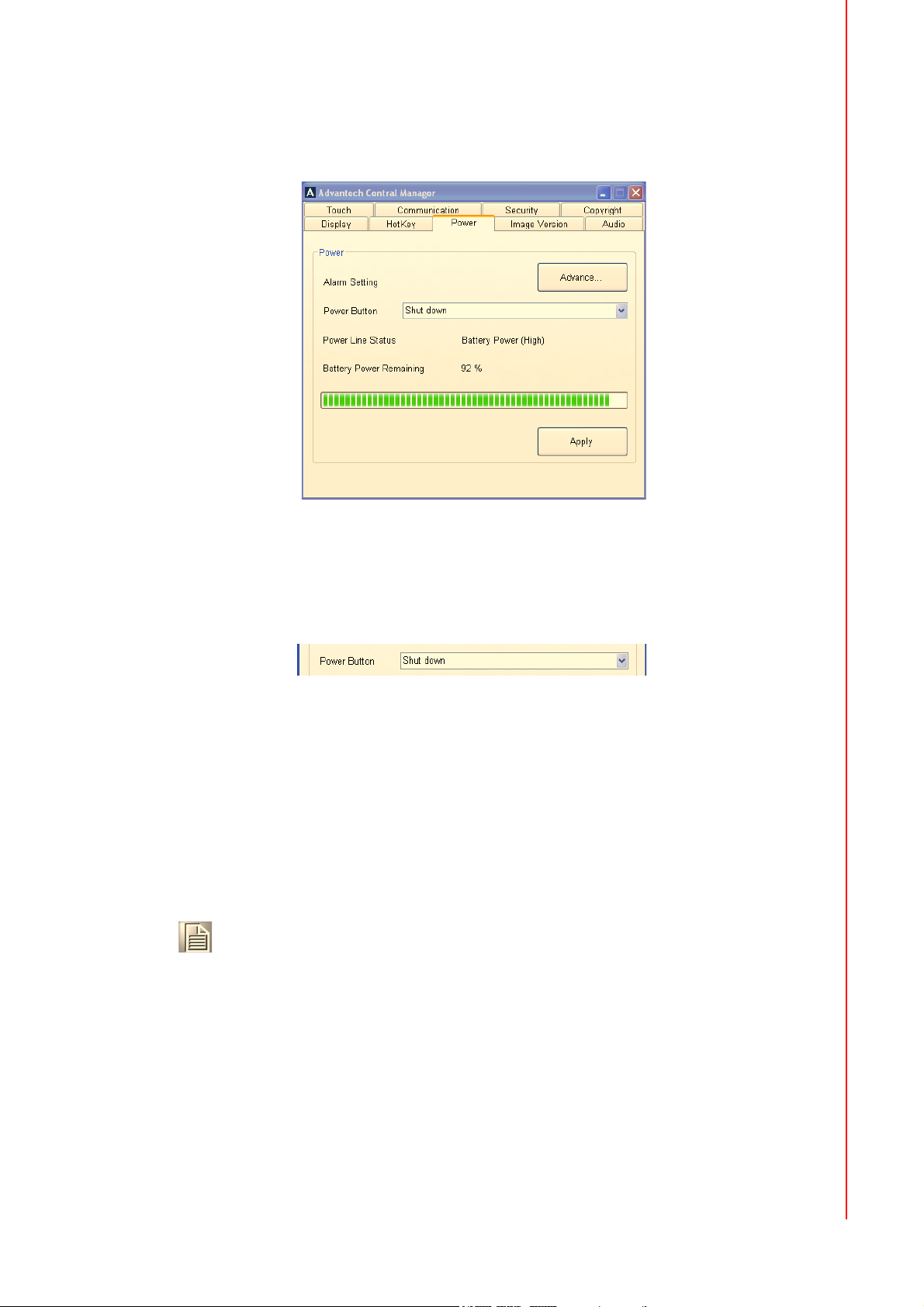

Figure 3.10 Power menu .......................................................... 29
3.4.1 Power button settings ................................................................. 29
3.4.2 Advanced Power settings ........................................................... 31
Figure 3.11 Advanced power settings ...................................... 31
Figure 3.12 Six power schemes ............................................... 31
Figure 3.13 Power alarm options.............................................. 33
Figure 3.14 Low battery alarm options ..................................... 33

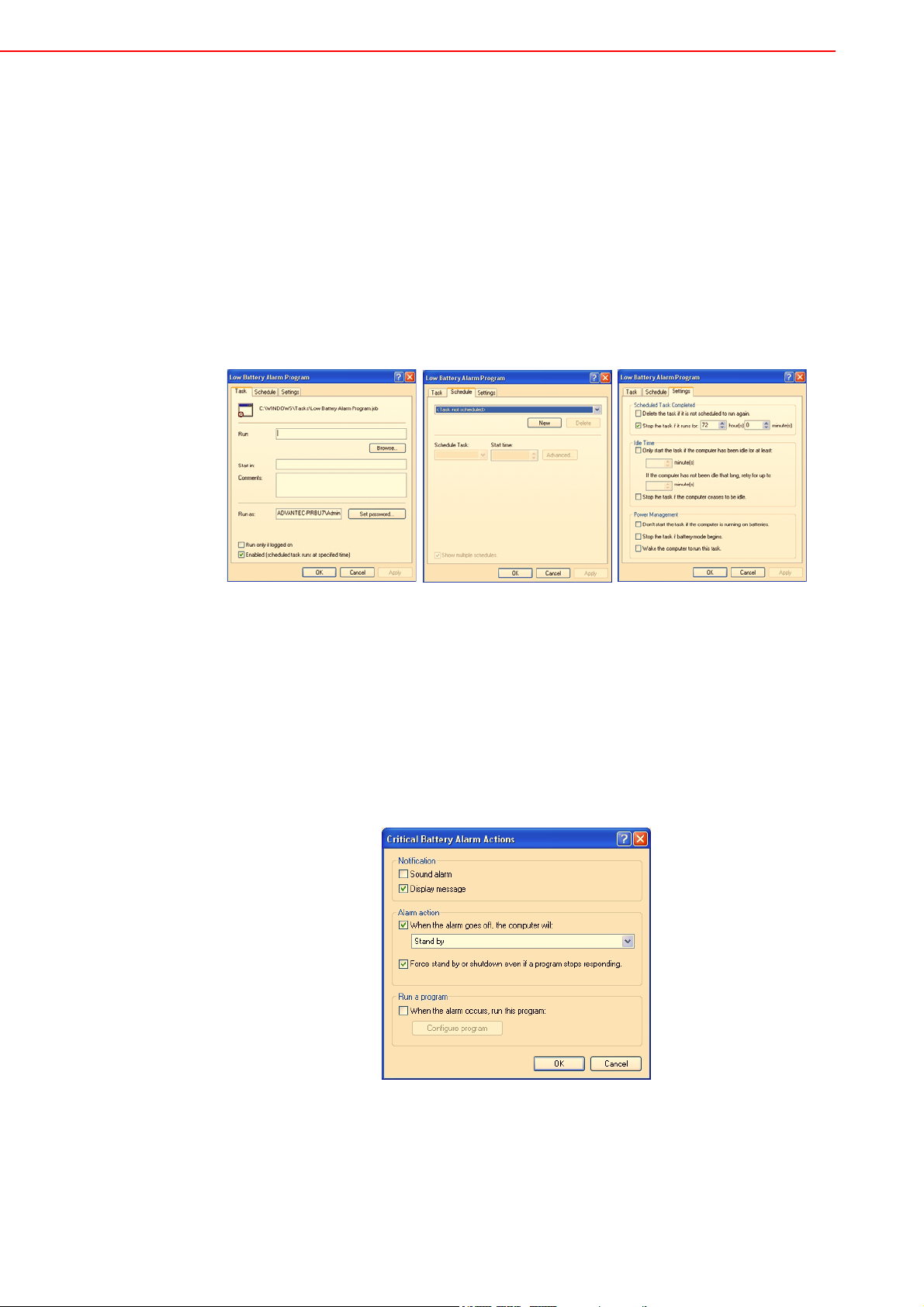

Figure 3.15 Run a program configuration dialog boxes............ 34
Figure 3.16 Critical battery alarm options................................. 34
Figure 3.17 Power meter.......................................................... 35
Figure 3.18 Detailed battery information .................................. 35
Figure 3.19 Advanced power-saving........................................ 36
Figure 3.20 Hibernate............................................................... 37
3.5 Image Version......................................................................................... 38
Figure 3.21 Image version........................................................ 38
3.6 Audio....................................................................................................... 39
Figure 3.22 Main audio menu................................................... 39
3.6.1 Sounds and Audio Devices Properties ....................................... 39
Figure 3.23 Audio menu ........................................................... 40
Figure 3.24 Volume and advanced buttons.............................. 40
Figure 3.25 Playback volume control ....................................... 40

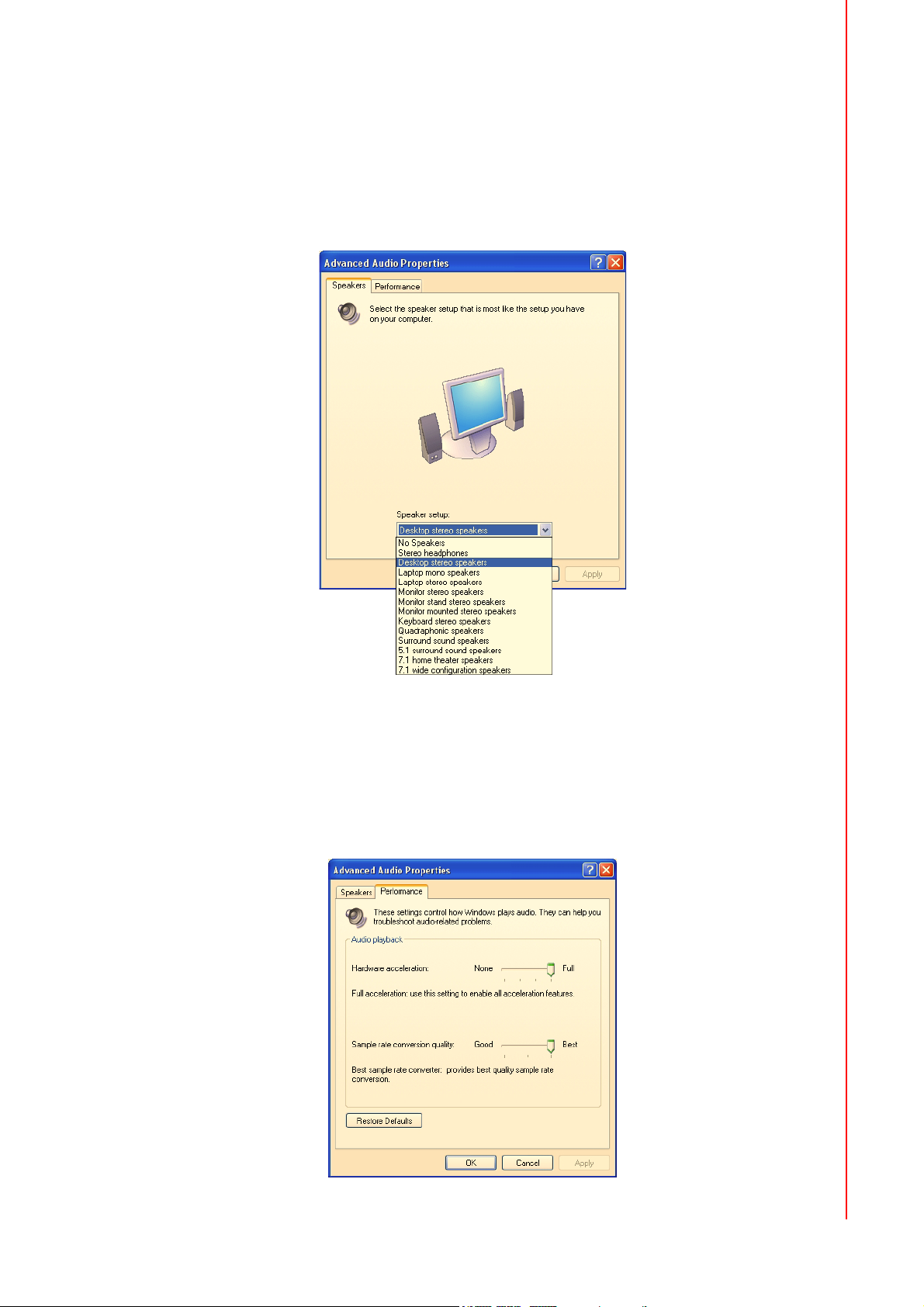

Figure 3.26 Speaker properties................................................ 41
Figure 3.27 Performance properties......................................... 41
Figure 3.28 Sound recording menu.......................................... 42
Figure 3.29 Recording controls ................................................ 42
Figure 3.30 Advanced controls for microphone........................ 42
MARS-3100R/S User Manual xii
Figure 3.31 MIDI music playback ............................................. 42
Figure 3.32 Volume menu ........................................................ 43
Figure 3.33 Speaker volume..................................................... 43

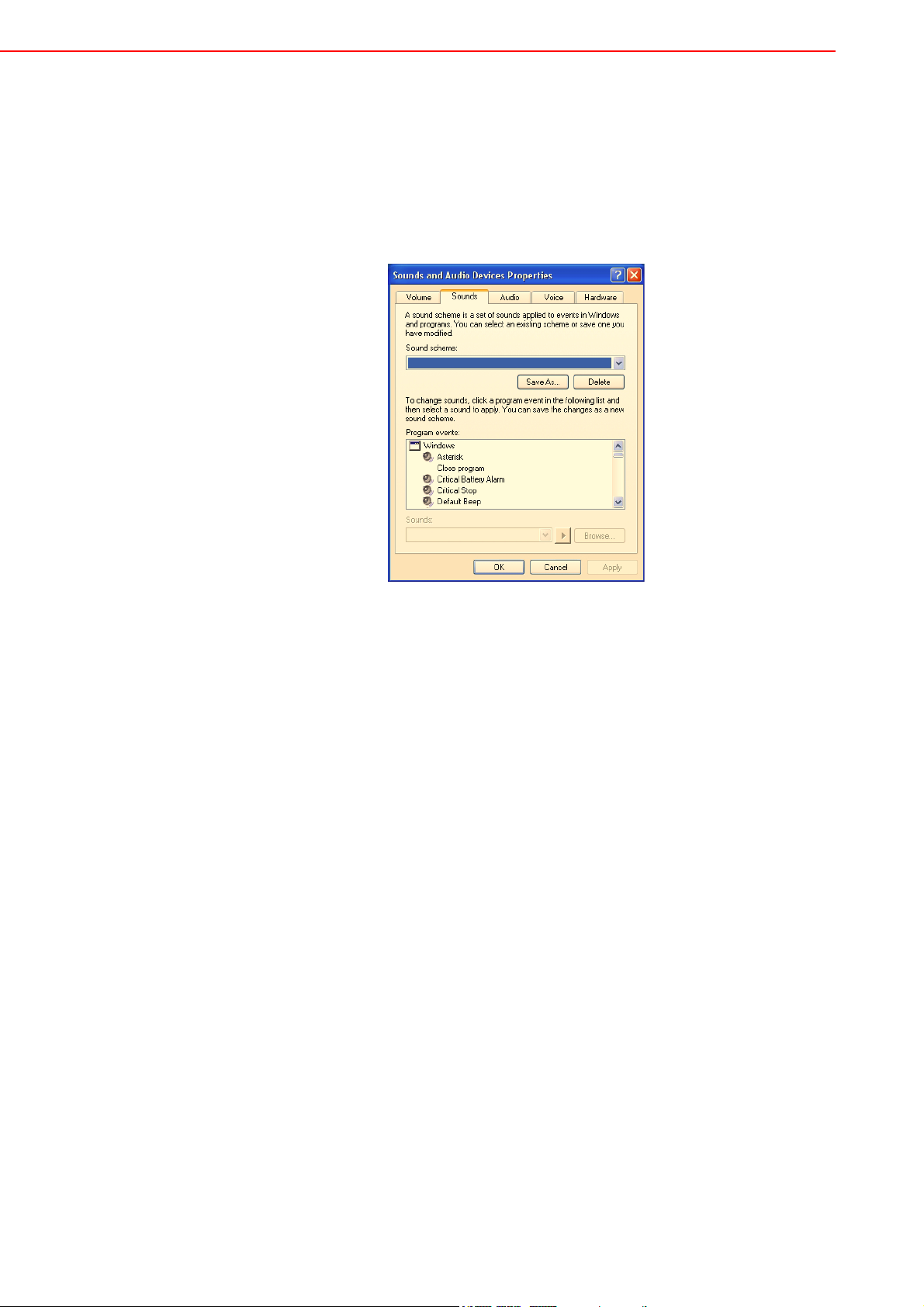

Figure 3.34 Sounds menu ........................................................ 44

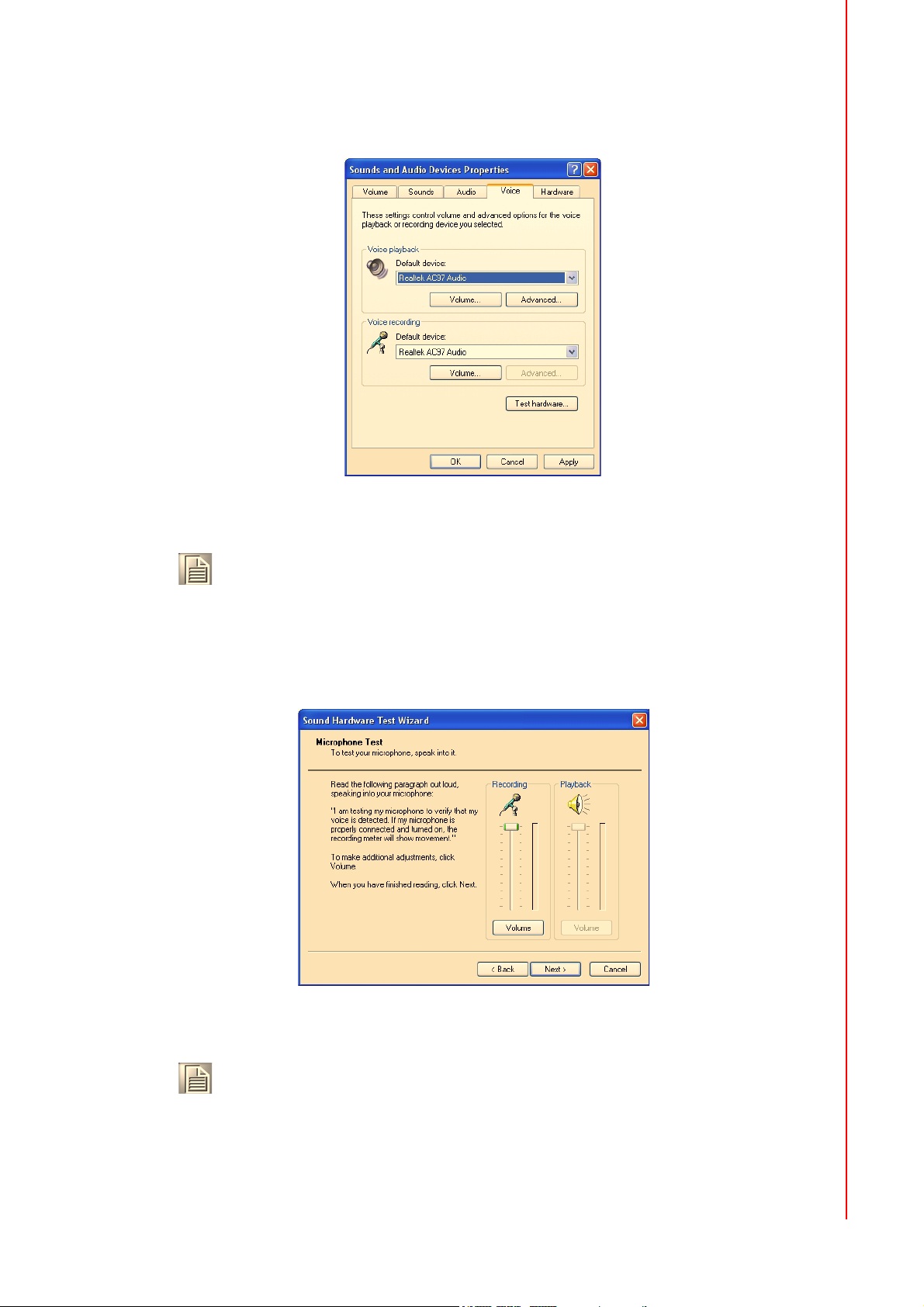

Figure 3.35 Voice menu............................................................ 45
Figure 3.36 Hardware test for microphone level....................... 45
Figure 3.37 Hardware menu..................................................... 46
Figure 3.38 General menu........................................................ 46
Figure 3.39 Properties menu .................................................... 47
Figure 3.40 Driver menu........................................................... 47
Figure 3.41 Driver details.......................................................... 47
3.7 Touch ...................................................................................................... 48
Figure 3.42 Touch menu........................................................... 48
3.7.1 Touchscreen ............................................................................... 48
Figure 3.43 Touchscreen calibration ........................................ 48
Figure 3.44 Digitizer Calibration Step 1.................................... 49
Figure 3.45 Digitizer Calibration Step 2.................................... 49
Figure 3.46 Digitizer Calibration Step 3.................................... 49
Figure 3.47 Digitizer Calibration Step 4.................................... 49

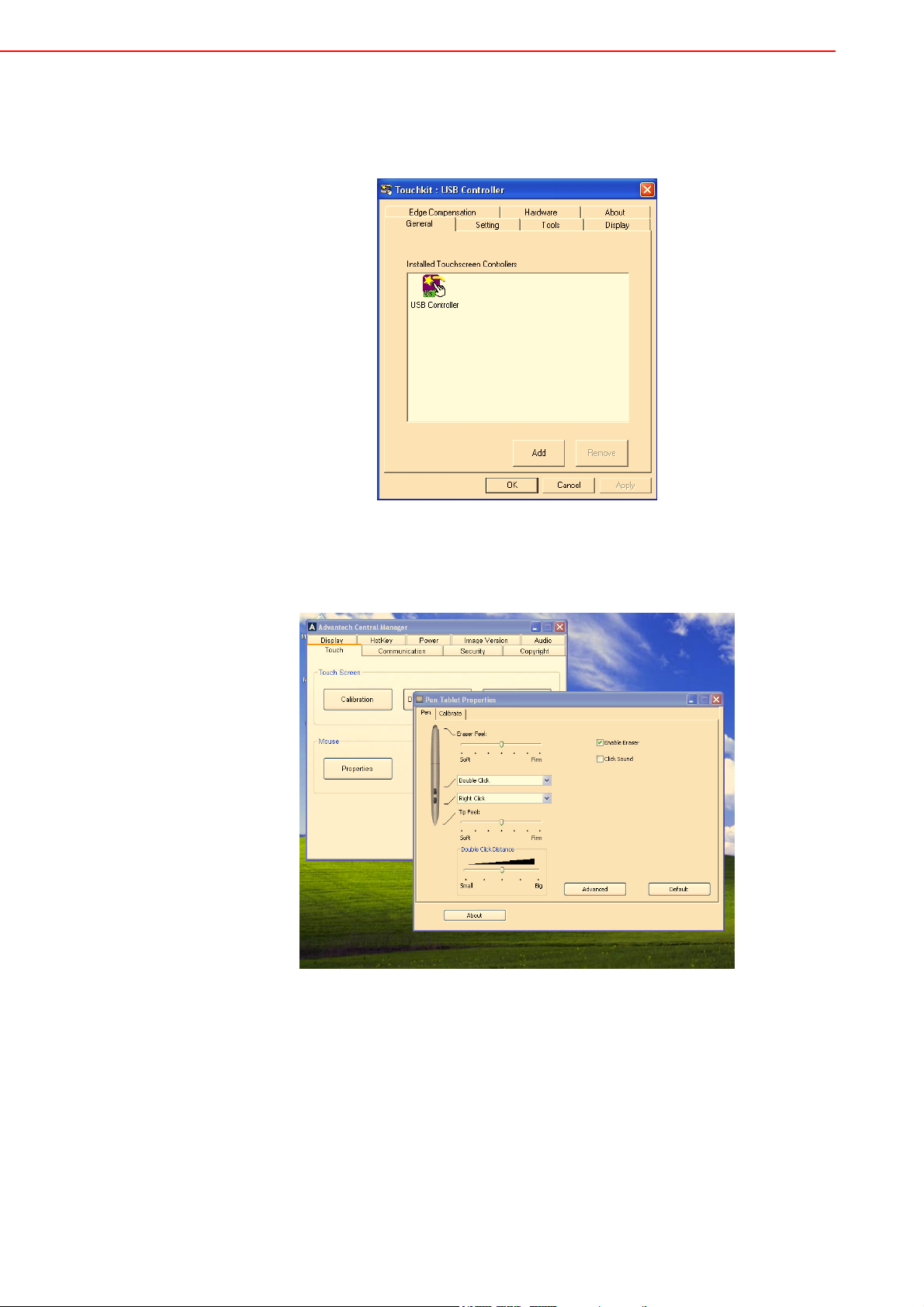

Figure 3.48 Touchkit USB controller......................................... 50
Figure 3.49 Pen tablet properties menu ................................... 50
3.7.2 Mouse ......................................................................................... 51
Figure 3.50 Buttons menu ........................................................ 51

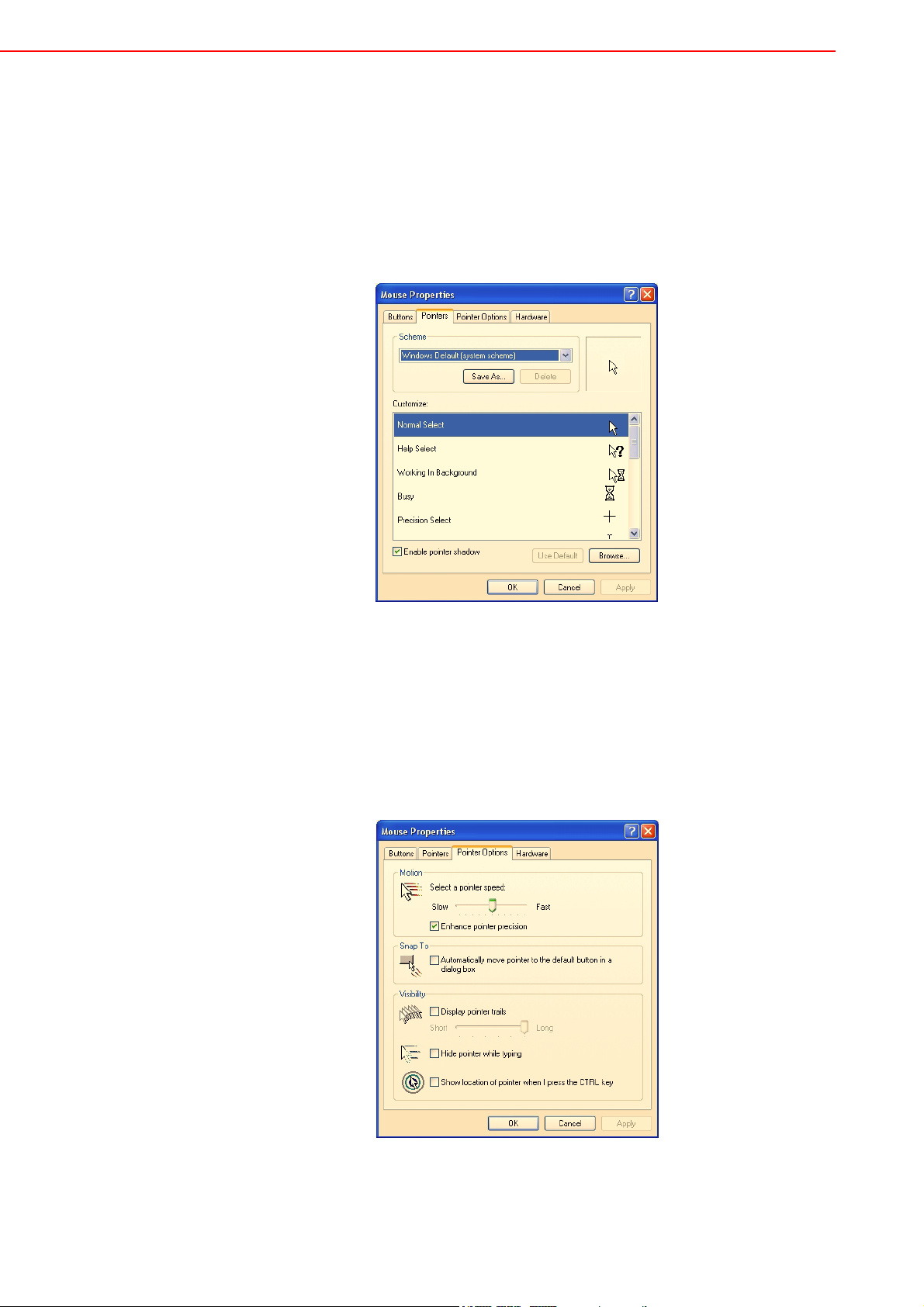

Figure 3.51 Pointers menu ....................................................... 52
Figure 3.52 Pointer options menu............................................. 52

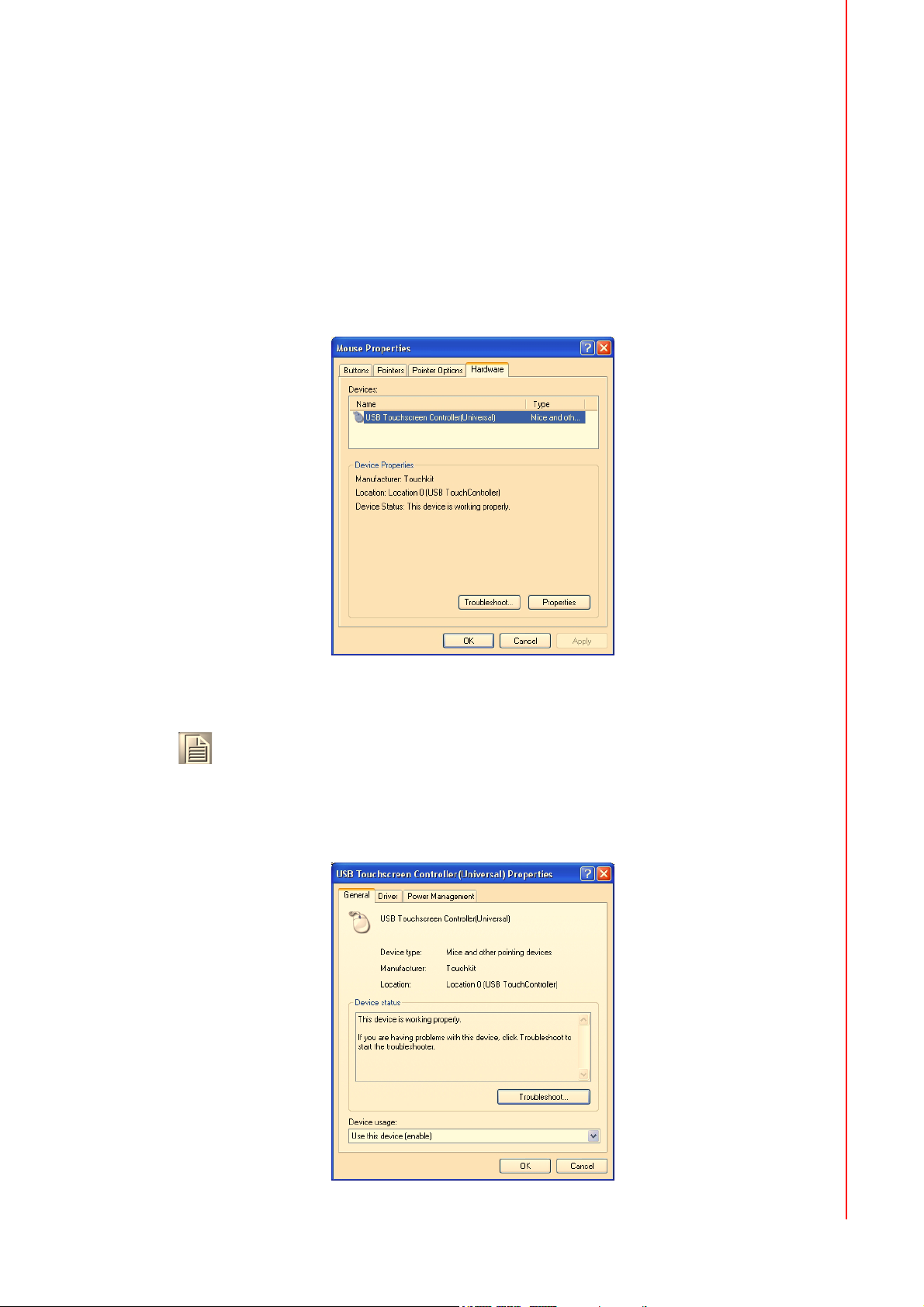

Figure 3.53 Mouse hardware menu.......................................... 53
Figure 3.54 General USB properties ........................................ 53
Figure 3.55 USB driver properties ............................................ 54
Figure 3.56 USB power management ...................................... 54
3.8 LAN ......................................................................................................... 55
3.8.1 Properties.................................................................................... 55
Figure 3.57 Network connections ............................................. 55
3.9 Security ................................................................................................... 56

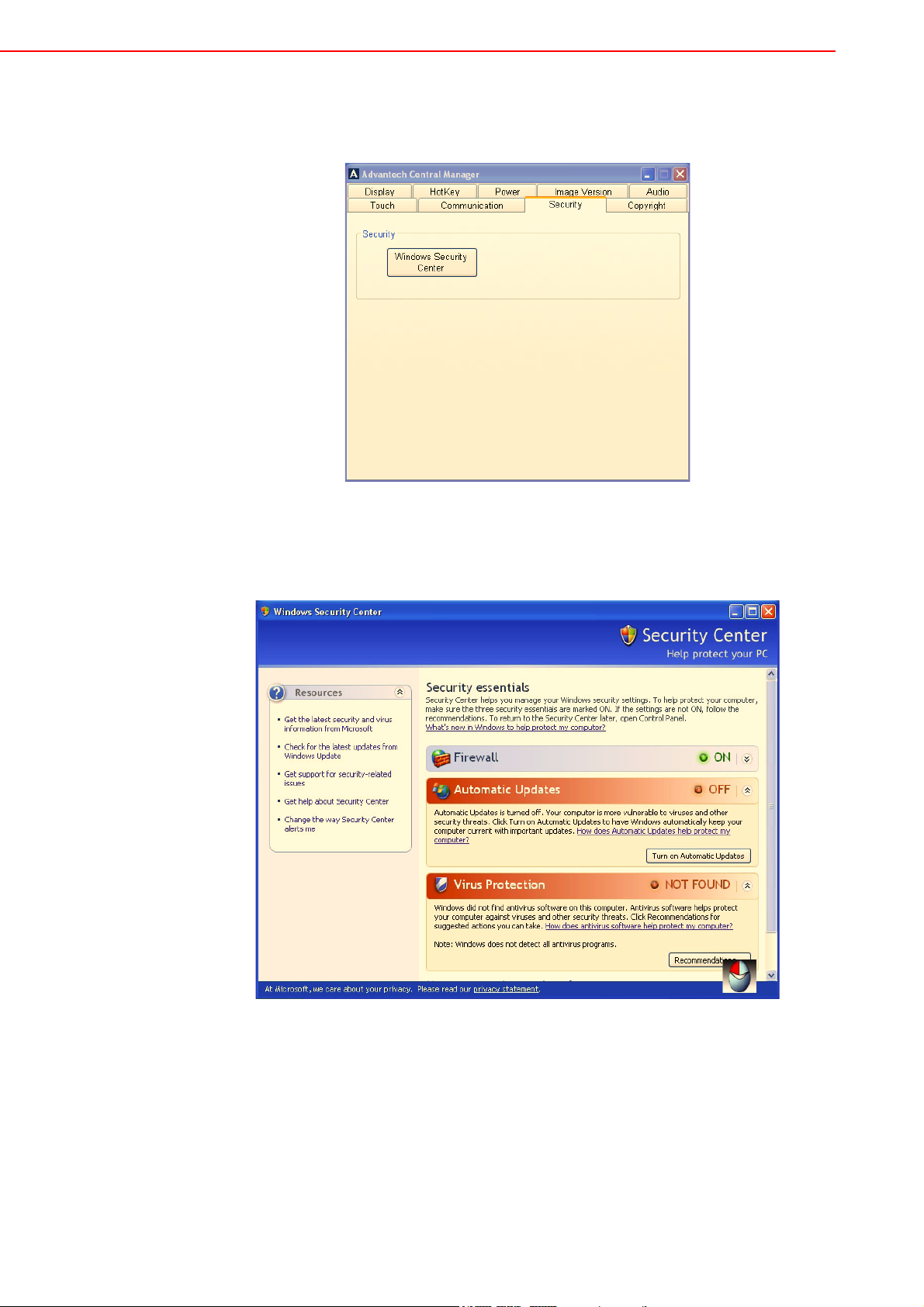

Figure 3.58 Security menu........................................................ 56
Figure 3.59 Security center....................................................... 56
Chapter 4 Maintenance and Troubleshooting ..57
4.1 Care, Storage and Cleaning.................................................................... 58
4.1.1 Protect the computer from damage ............................................ 58
4.1.2 Maintain good connections ......................................................... 58
4.1.3 Prevent thermal stress ................................................................ 58
4.1.4 Storing the computer................................................................... 58
4.1.5 Caring for the touchscreen display ............................................. 58
4.1.6 Cleaning the computer................................................................ 59
4.2 Replacing Components........................................................................... 60
4.2.1 Battery......................................................................................... 60
Figure 4.1 Removing the battery pack.................................... 60
4.2.2 HDD (or CF card)........................................................................ 61

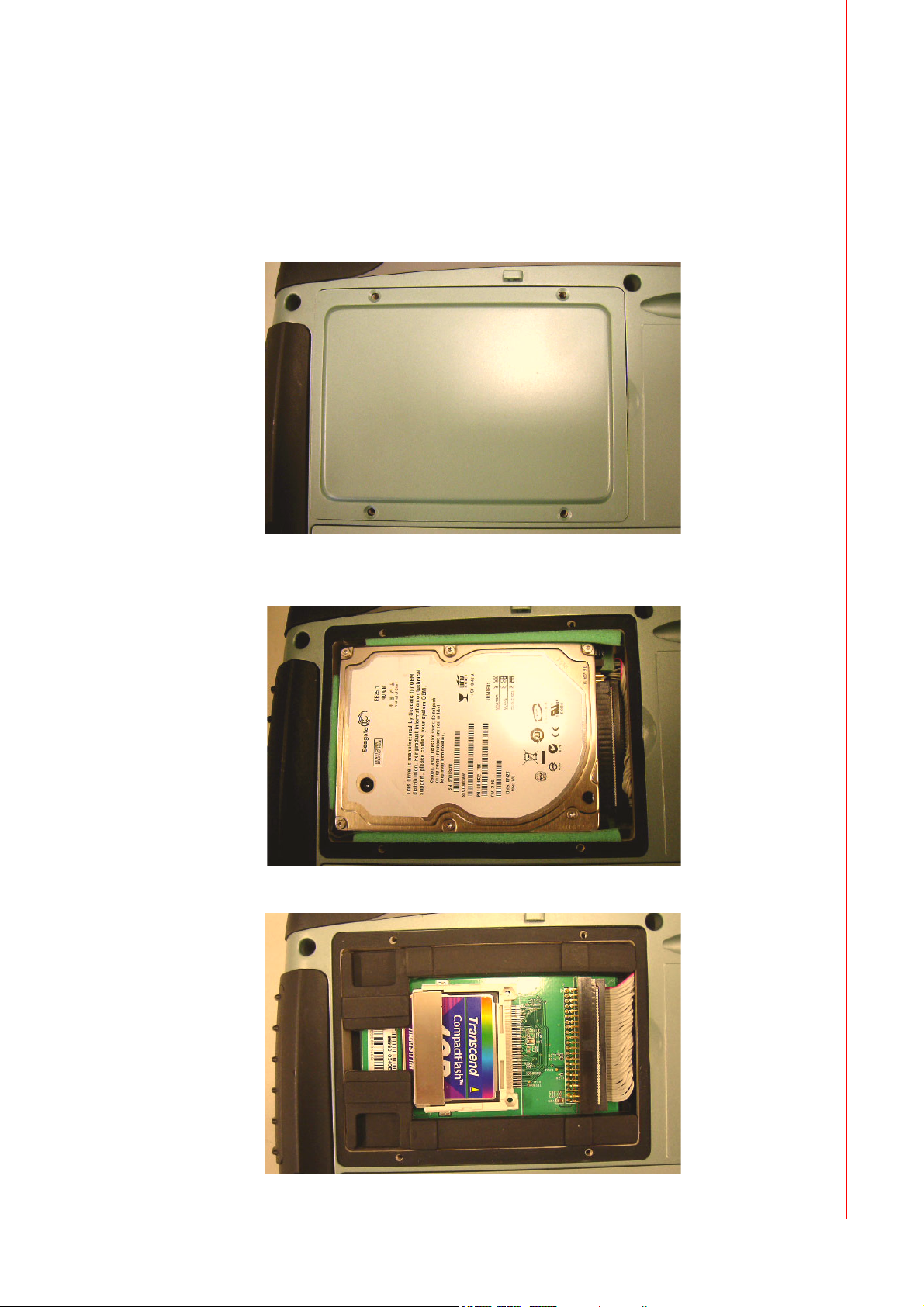

Figure 4.2 HD / CF Card Port ................................................. 61
Figure 4.3 Hard Disk Drive ..................................................... 61
Figure 4.4 CF card.................................................................. 61
Figure 4.5 Correct Removal of the HDD................................. 62
Figure 4.6 Incorrect removal of the HDD ................................ 62
Figure 4.7 Unplugging the cable connector............................ 62

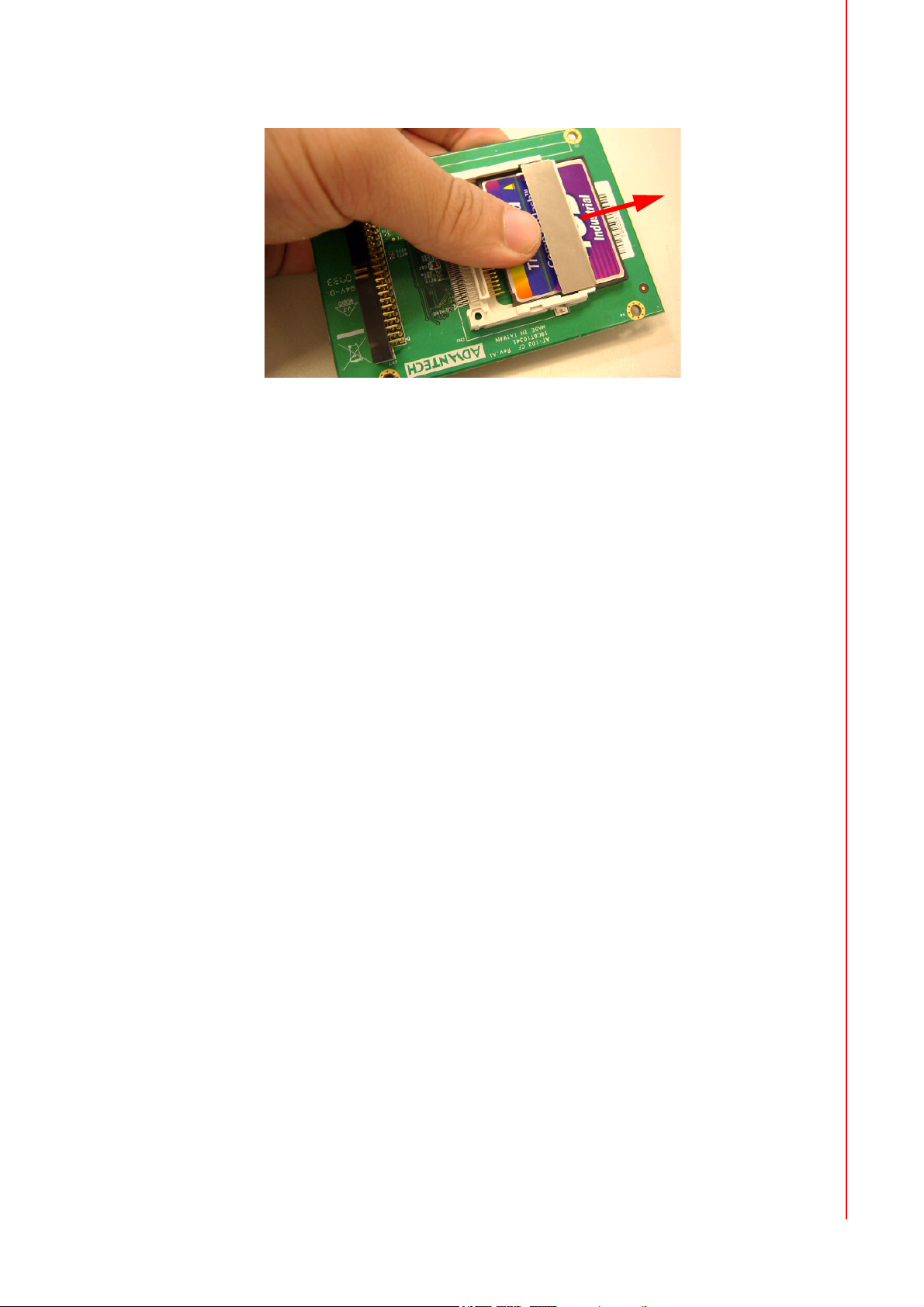

Figure 4.8 Removing the CF card........................................... 63
4.3 Troubleshooting ...................................................................................... 64
4.3.1 Computer will not start ................................................................ 64
4.3.2 Computer does not resume operation after suspension............. 64
xiii MARS-3100R/S User Manual
4.3.3 Computer will not enter into suspension mode........................... 64
4.3.4 Computer will not shut down....................................................... 64
4.3.5 Display remains off, or is not bright ............................................ 64
4.3.6 Computer touchscreen does not respond to the pen.................. 64
4.3.7 Headphones do not emit, or volume is too low........................... 64
4.3.8 Peripherals do not respond......................................................... 64
4.3.9 The amber battery status LED is always on ............................... 65
4.3.10 The amber battery status LED is blinking ................................... 65
4.3.11 The amber battery status LED is blinking quickly ....................... 65
4.4 OS System Maintenance and Re-Installation ......................................... 66
4.4.1 MARS-3100S.............................................................................. 66
4.4.2 MARS-3100R.............................................................................. 66
Figure 4.9 Welcome to Windows XP...................................... 66
Figure 4.10 XP setup icon ........................................................ 67
Figure 4.11 Install Windows XP................................................ 67
4.5 How to using Digitizer Touch? ................................................................ 67
Appendix A GPRS Setting..................................... 69
A.1 Setting Up the Modem ............................................................................ 70

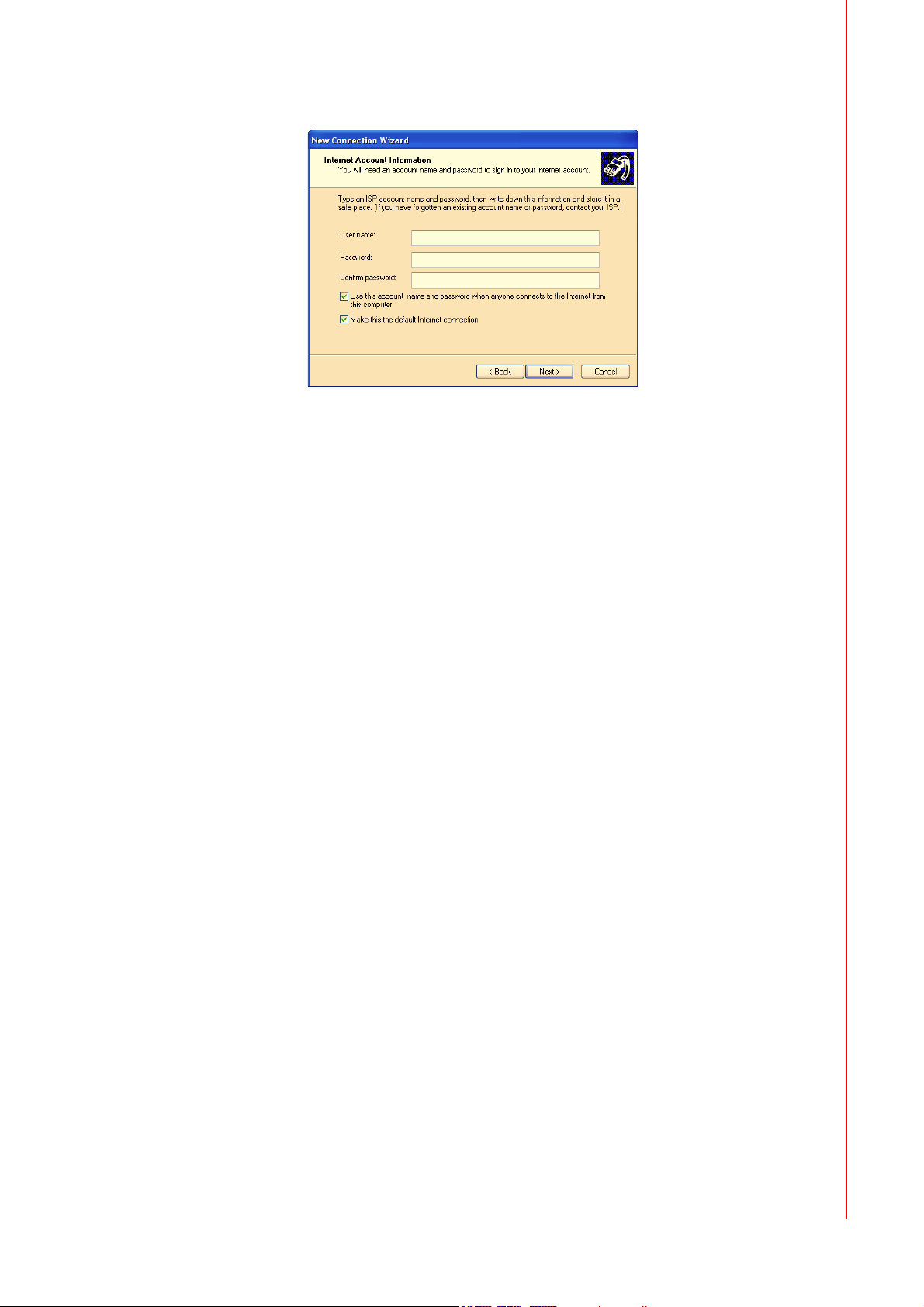

A.2 Setting Up an Internet Connection.......................................................... 74

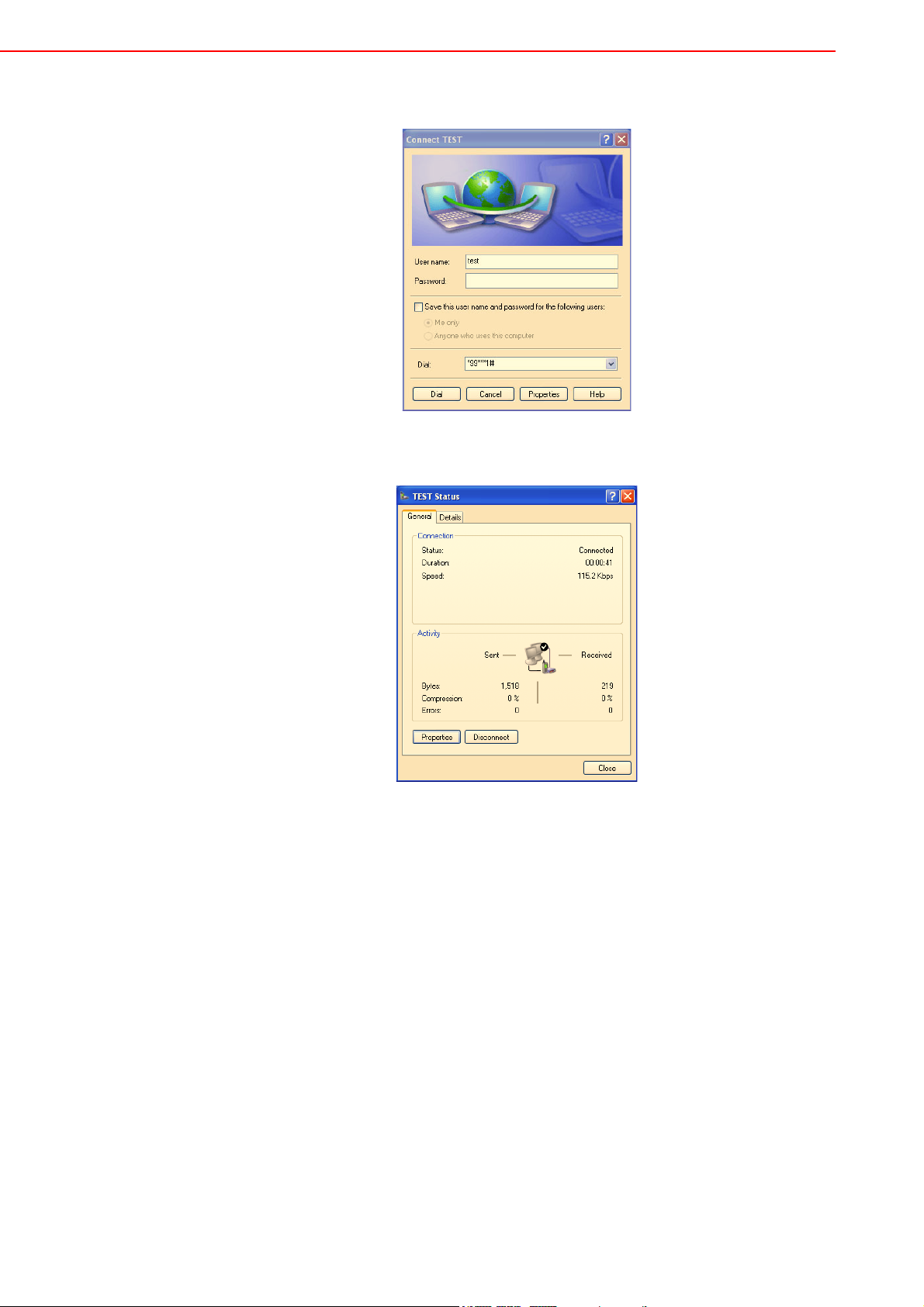

A.3 Connect to the Internet by GPRS ........................................................... 78
INDEX 1
MARS-3100R/S User Manual xiv
Chapter 1
1 Introduction
This chapter gives basic data
about the specifications and use
of the MARS-3100R/S Tablet PC.
Sections include:
! Welcome
! About this Manual
! System Specifications
! Environmental Standards
1.1 Welcome
Congratulations on selecting the MARS-3100R/S Rugged Tablet PC, supported by
Microsoft Windows® XP Embedded. This unique tablet PC offers a special combination of features that make it an ideal partner for a wide range of applications.
The main features of the MARS-3100R/S are:
!
AMD® LX800, 500MHz, or Intel® Pentium Duo® Core Ultra Low Voltage U2500
1.2Ghz
! Graphical performance: AMD LX800 built-in, or Intel 945GME
! 10.4” SVGA / XGA TFT monitor built-in
! 2.5” shock mounted HDD or Industrial CF card for storage
! Internal mini-PCI and SmartBay (optional GSM/GPRS)
! 5-way navigation key and 3 programmable function keys
! Multiple I/O ports: 2x USB2.0, (1x USB 2.0 for MARS-3100S), 1x COM, 1x LAN
and 1x VGA
! Full-featured Hi-resolution audio support with audio jacks and an integrated
speaker
1.2 About this Manual
The following chapters contained in this manual are:
! Chapter 1: Introduction - General information about the tablet PC.
! Chapter 2: Getting Started - Basic functions of the tablet PC.
! Chapter 3: The Central Manager - Using the system management software
included with the tablet PC.
! Chapter 4: Maintenance and Troubleshooting - How to maintain, calibrate
and replace components; a troubleshooting FAQ details how to diagnose and
correct typical problems.
! Appendix A: GPRS Setting - How to set up the GPRS software connection for
the MARS-3100R/S.
MARS-3100R/S User Manual 2
1.3 System Specifications
The MARS-3100R/S meets the following specifications. Unless otherwise noted, all
the specifications listed below are subject to change without prior notification.
Table 1.1: System Specifications
Features MARS-3100S MARS-3100R
OS
Dimension W × D × H
Weight
Panel
Touchscreen
CPU
DRAM
L2 cache
Chipset
Graphic
Storage
Keypad
MS XP Embedded MS XP Professional
10.4” SVGA TFT 10.4” XGA TFT
Resistant touchscreen
AMD LX800
500MHz
256/512MB DDR400 (One
memory module support)
128 K 1 MB
AMD CS5536 Intel 945GME
AMD LX800 with shared
memory
4G CF (2.5" shock mounted
HDD option)
5-way navigation key; 3x function key (programmable)
Chapter 1 Introduction
293 x 210 x 38mm
2.1 kg
(Sunlight readable option)
Digitizer / Resistant touchscreen
Intel Pentium Duo Core Ultra
Low Voltage U2500 1.2Ghz
1GB DDRII533 (One memory
module support)
Intel 945GME with shared
memory
2.5” shock mounted HDD (CF storage option)
Communication and Navigation
Wireless
WAN
PAN
I/O
Microphone Jack
Headset Jack
RS232
USB
RJ-45
DC-in
VGA D_sub connector
Docking / Port Replicator
Audio
AC97 Audio I/F
Speaker
Power
Battery
Battery Life
Charging Time
Backup Battery
Adapter
Bluetooth V2.0/EDR (optional)
USB2.0 x 1 USB2.0 x 2
AC97 Audio I/F HD Audio I/F
Removable 11.1V@3600mAh Li-ion battery pack; warm swappable
Auto-switching 100-240V, 50 ~60 Hz; supplies 19VDC at 3.42A
802.11 a/b/g
SmartBay option GSM/GPRS/EDGE
Bluetooth V2.0/EDR (default)
Yes
Yes
Yes (COM 3)
10/100 Base-T
Yes
Yes
Yes
One integrated speaker
3 hour battery life
2.5 hours to 90%
7.2V, 120mAh
3 MARS-3100R/S User Manual
1.4 Environmental Standards
Table 1.2: Environmental Standards
Environmental Operational Parameters
Operation
Temperature
0° C to 50° C -10° C to 55° C*
( MIL-STD 810F Methods 501.4 and 502.4 )
* Battery mode:
0°C @ 50% Battery capacity.
* Adapter mode: Any
Storage Temperature
Thermal Shock
Operational Humidity
Storage Humidity
IP Rating
Drop
Shock and Pressure
Mechanical Shock
Vibration
Low Pressure
Agency Approvals
-20° C to 60° C -40° C to 75° C
( MIL-STD 810F Methods 501.4 and 502.4 )
1.5° C < 5° C / minute over 0° C
to 50° C verified during
MILSTD810F testing
0% to 95% non-condensing MIL-STD810F Method 507.4
0% to 95% non-condensing MIL-STD810F Method 507.4
IP-54
3 foot high free drop survival limit, (test surface: concrete, base unit
only). According to MIL-STD-810F, Method 516.5
20g, 11ms, Terminal sawtooth, operating.
40g, 11ms, Terminal sawtooth, non-operating
MIL-STD-810F method 516.5
- Operation
By CF: MIL-STD 810F Methods 514.5C-3
By HDD: MIL-STD 810F Methods 514.5C-1
- Non-operation
0.04g^2/Hz, 20Hz - 1000Hz, -6dB/octave 1000Hz - 2000Hz,
MIL- STD-810F method 514.5C-17
-15,000 ft.: in accordance with MIL-STD810F; Method 500.4, Procedure I
1.5°C < 5° C / minute over -10° C
to 55° C verified during
MILSTD810F testing
EMC
EMS
Safety
MARS-3100R/S User Manual 4
- EN55022 Class B
- EN55011 Class A
- FCC Part15 Class B
- DOC Class B
- Contact: 4Kv/ Air: 8Kv, EN55024
- UL / cUL, UL60950-1
- CB, IEC/EN60950-1
Chapter 2
2 Getting Started
This chapter details basic
functions of the tablet PC and how
to use it for the first time.
Sections include:
! Check the Package
! General Views of the Tablet PC
! LED Indicator Signal Table
! Powering the tablet PC
! Starting the tablet PC
! Manual Touchscreen
Calibration
! Using the Pen
! Connecting Peripherals
! Setting the Time and Date
! Power Management
! Resetting System Defaults
! Disposing of Used Batteries
2.1 Check the Package
Each new MARS-3100R/S comes equipped with a range of product accessories and
materials.
Figure 2.1 Mars 3100R/S and Accessories
A summary of the package contents:
! MARS-3100R/S
! Battery pack
! Adapter
! Pen (for MARS-3100S) or Digitizer Pen (for MARS-3100R)
! Windows XP Professional Recovery Media CD (for MARS-3100R)
! Quick start guide
MARS-3100R/S User Manual 6
2.2 General Views of the Tablet PC
2.2.1 Tablet front view
Chapter 2 Getting Started
Front bezel buttons
2.2.2 Tablet back view
HDD Cover
Figure 2.2 Front view
Pen & Holder
Heatsink Cover
Battery Pack
Figure 2.3 Back view
7 MARS-3100R/S User Manual
2.2.3 Tablet front edge view
Speaker Docking Port
Figure 2.4 Front edge view
2.2.4 Tablet back edge view
Power On/Off Switch WLAN On/Off Switch
Figure 2.5 Rear edge view
2.2.5 Tablet right edge view
USB Port
(for MARS-3100R only)
Figure 2.6 Right edge view
2.2.6 Tablet left edge view
Audio In
Audio Out
COM Port (COM3) SIM Slot
(for GSM/GPR/EDGE
models only)
DC Power Jack
VGA Port
RJ45 Port
Figure 2.7 Left edge view
MARS-3100R/S User Manual 8
USB Port
2.3 LED Signals
The MARS-3100R/S is equipped with a set of Light Emitting Diodes (LEDs) located
along the top edge of the front bezel.
Power On/Off LED
HDD Status LED
2.3.1 Power ON/OFF LED
! Dark: System is turned OFF
! Static Green: System is turned ON.
! Blinking Green: System is in standby mode.
Note! See section 2.11.1 for more information about using Suspend Function.
Chapter 2 Getting Started
Battery Status LED WLAN On/Off LED
Figure 2.8 Status LEDs
2.3.2 Battery status LED:
! Dark:
– Battery is fully charged (if the system is powered by adapter).
– Battery capacity is sufficient and above the “Low Battery Alarm” (if the system
is powered by battery).
(Default for the “Low Battery Alarm” is less than 10% of normal capacity.)
! Static Amber:
– Battery is under-charging (if the system is powered by adapter).
Note! The Battery status LED will go off and become dark when the battery is
fully charged (100%).
! Blinking Amber:
– Battery is under 10% of normal capacity.
Note! 10% of total available battery power is the default value for triggering the
low battery alarm. Users can change this value; refer to Chapter 3.4.2.2.
! Quick Blinking Amber:
– Battery error. Replace the battery.
Note! 1. Battery errors indicate the temperature of the battery is out of
acceptable range. Place the MARS-3100 in a normal environment.
2. The battery may defective. Contact technical support office.
9 MARS-3100R/S User Manual
2.3.3 HDD status LED:
! Dark: HDD is idle.
! Blinking: HDD is active.
Note! Prevent any shocks or vibrations whenever the HDD status LED is blink-
ing. Violent shocks may cause damage to the HDD, and data loss.
2.3.4 Wireless LAN ON/OFF LED:
! Dark: Wireless LAN is disabled
! Static Green: Wireless LAN is enabled
MARS-3100R/S User Manual 10
2.4 Buttons
Chapter 2 Getting Started
Key button
R
F 1
F 2
F 3
Figure 2.9 Buttons on the front bezel
2.4.1 Key button
The Key button functions as equivalent to the “Ctrl + Alt + Del” key combination under
the MARS-3100S/R default OS environment, Windows XP Embedded or Windows
XP Professional.
2.4.2 Display rotation button
Display rotation button
5-way navigation button
Hotkey buttons
The rotation button is the hotkey for rotating the display on the screen.
2.4.3 5-way navigation button
The 5-way navigation button function as directional arrow keys: “Up,” “Down,”
“Right,” and “Left.” The navigation button is useful for navigating controls in various
applications. Pressing the center part of the button is equivalent to hitting the “Enter”
key.
2.4.4 Hotkey buttons
The F1 to F3 buttons are programmable hotkeys.
Note! See Chapter 3.2.2, 3.3 for more information about setting up hotkeys
and using buttons.
11 MARS-3100R/S User Manual
2.5 Powering the tablet PC
2.5.1 Battery Power
The MARS-3100R/S tablet PC is supplied with a powerful rechargeable battery. To
install and maintain the battery, or if it needs to be replaced, follow the instructions in
this section.
Caution! Do not attempt to replace the battery with any others than the models
recommended and manufactured specifically for this tablet PC.
Note! Before using MARS-3100 Tablet PC, please connect the adapter into
MARS-3100R/S to charge the battery and backup battery at least
24Hrs.
2.5.1.1 Installing a Battery
The battery is designed specifically for installation with the MARS-3100R/S tablet PC. It
fits exactly into the back of the PC and delivers precisely the exact voltage required to
power the unit. Under normal conditions, a fully charged battery will power the PC for up
to
3 hours
! To install or replace the battery:
1. Turn off the MARS-3100R/S
2. Disconnect any peripheral devices from the MARS-3100R/S.
3. Unfasten the two large flathead screws and remove the battery.
4. Insert the new battery pack.
. Normally, it requires
2.5 hours
to fully charge a new battery.
Figure 2.10 Inserting the battery pack
5. Fasten the two flathead battery cover screws.
Figure 2.11 Replacing the screws
MARS-3100R/S User Manual 12
2.5.1.2 Charging the battery using a power adapter
1. Connect the AC cord to a power source.
2. Plug the AC power cord into the receptacle on the DC power adapter.
3. Insert the DC jack into the receptacle on the left side of the tablet PC.
Figure 2.12 Inserting the DC jack
4. After inserting the DC jack, the LED indicator will light (RED) indicating that bat-
tery charging is functional and normal.
Chapter 2 Getting Started
2.5.1.3 Swapping the battery pack
If the battery is exhausted, it can be hot-swapped for a fully charged battery without
interrupting current work.
1. Get another fully charged battery on hand.
2. Save all current files and data.
3. Put the MARS-3100 into Standby Mode. (See 2.11.1)
4. Release the two large flathead screws and remove the battery.
5. Replace the battery and refasten the two large flathead screws.
6. Resume operation of the system. (See 2.11.2)
Note!
Caution! If more than 3 minutes duration elapses between Step 4 and Step 5,
2.5.1.4 Disposing of Used Batteries
The battery supplied with the MARS-3100RS is a rechargeable, Lithium Ion dry cell.
Dispose of used batteries in accordance with local government regulations. Under
Federal, state, or local law, it may be illegal to put batteries in the trash. Contact your
system administrator or the municipal solid waste disposal department for info. The
battery should be delivered to a reputable recycler or governmental agency, which
are adequately equipped to recycle the chemicals inside the battery. If the battery
wears out, order a new one.
1. After removing the battery, the system will still be powered by an inter-
nal backup battery. It can maintain system power for only
2. Before using the hot-swapped battery function, plug the adapter into
MARS-3100R/S to charge the internal backup battery at least 24 hrs.
removing and replacing the battery, any unsaved data will be lost.
3 minutes
.
13 MARS-3100R/S User Manual
2.5.2 AC Power
The MARS-3100R/S can be powered exclusively with the supplied AC 19V adapter.
It is not recommended to use any other adapter than the one supplied with the tablet
PC.
2.6 Starting the tablet PC
1. Press the power button once to turn on the tablet PC.
2. After powering up for the first time, the system prompts the user to engage the
touchscreen calibration.
3. Follow the onscreen instructions to calibrate the touchscreen.
Note! The user may need to press the power button longer than 1 second for
battery only mode.
Caution! 1. Don't press the button longer than 4 seconds; it will cause the
MARS-3100R/S to shutdown immediately and crash data on the
HDD.
2. The Power LED will illuminate (Green) if the system is powered.
Figure 2.13 Auto touchscreen calibration
MARS-3100R/S User Manual 14
2.7 Manual Touchscreen Calibration
1. To initiate touchscreen calibration manually, navigate via the start command
and click on the icon, Configuration Utility.
Figure 2.14 Accessing the Configuration Utility
2. In the Tools dialog, click on 4 Points Calibration to align the touchscreen.
Chapter 2 Getting Started
Figure 2.15 Calibrating the touchscreen
3. Follow the onscreen instructions to calibrate the touchscreen.
Figure 2.16 4 points calibration
15 MARS-3100R/S User Manual
4. Return to the Tools dialog; select Linearization for 9 points linearization, and fol-
low the onscreen instructions; then, return to the Tools dialog again and try the
Draw Test.
Figure 2.17 Draw test
MARS-3100R/S User Manual 16
