Tools you will need for this install

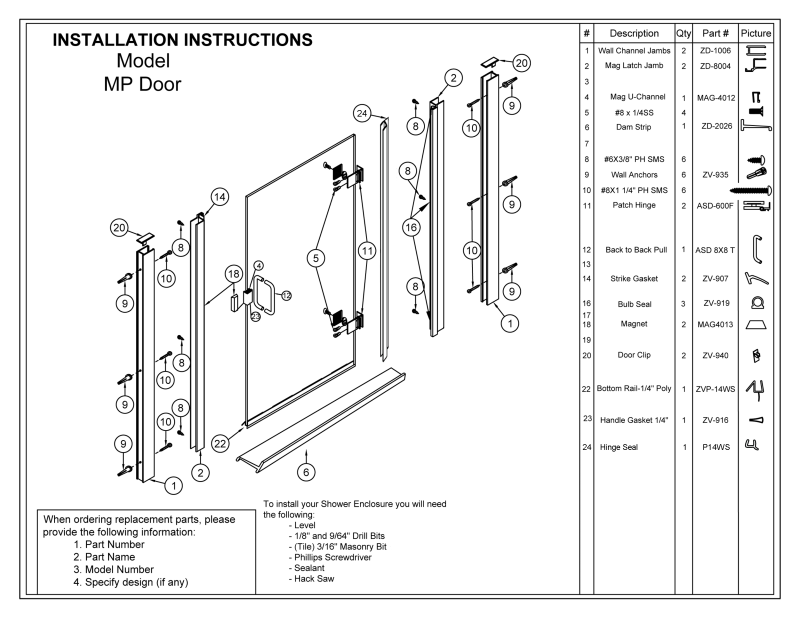

Exploded View drawing of shower door
3/16” Masonry drill bit (use 9/64” drill
bit for fiberglass)
1/8” drill bit
Drill
4’ Level
Saw (Electric Chop saw or Hacksaw)
Side cutting pliers
#2 Phillips drill bit
#2 Phillips screwdriver
Tape Measure
Pencil or Pen
Caulking Gun
1-Tube of 100% Clear Silicone (no latex!)
Vacuum Cleaner or Brush for clean up
Glass Cleaner and Paper Towels
Rubber Mallet
File
Arizona Corporate Office
2801 W. Indian School Rd
Phoenix, AZ 85017
800-255-1901 PH
602-447-8208 FAX
Florida
8100-1 Westside Industrial Dr
Jacksonville, FL 32219
855-695-8899 PH
904-786-9025 FAX
Illinois
2601 Bond St #1
University Park, IL 60484
800-861-6120 PH
708-235-0729 FAX
Oregon
2057 Lars Way
Medford. OR 97501
866-773-7905 PH
541-773-7909 FAX
Colorado
3871 Revere Street
Denver, CO 80239
866-574-1766 PH
303-574-1775 FAX
Utah
2594 S. 3600 West Suite A
West Valley City, UT 84119
877-402-5007 PH
801-972-3111 FAX
Installation Instructions for
Model MP Door
Note:
These instructions will refer to the item #’s in the Exploded View drawing. For example, #1, #2, #3 etc…
Please read through all of the instructions to get an over-view before you install the shower door.
1) Find the centerline of where the unit will be
installed. This will usually be the center of the
curb of the shower pan. Place a centerline mark
at each end of the curb where it meets the wall.
This mark will also represent the center of the
ZD1006 Wall Jamb (#1). Place the wall jamb
against the wall and on top of the centerline
marks
plumb, then mark the installation holes with a
pen or pencil
the other jamb. Now drill the 6 holes with a
3/16” masonry bit (9/64” for fiberglass, & without anchors). Then insert the 6)-ZV935 screw
anchors (#9) in the holes. Fasten the ZD1006
wall jambs in place using the #8X1-1/4 Phillips
Pan Head screws provided (#10)
(A). Use a level to position the jamb
(A2). Repeat this procedure for
(B).
2) Slide the ZD8004 “Magnetic Latch Jamb” (#2)
over the latch side wall jamb. (
two ZD8004’s. The “Magnetic Latch Jamb” is
not
attached to the Door Glass.) Next install the
door by sliding the ZD8004 “Door Hinge Jamb”
(#2) over the hinge side wall jamb. Do not fas-
ten the door at this point
Note: There are
(C).
3) Note
at this point to adjust and hold the door in place
from the outside while you drill and fasten the
latch jamb and the hinge jamb from the inside).
First you will need to attach the MAG4012 (#4).
by placing the ZV 916 for ¼” glass (#23) over the
edge of the glass then tapping the MAG4012
over the gasket and on to the glass with a rubber mallet aligning it to the magnet on the latch
jamb.(See
align the edge of the door glass parallel with the
latch jamb leaving a 1/16” gap between the
ZD8004 and the MAG4012
by drilling the six holes on the inside of the unit
where the jambs are pre-drilled using an 1/8”
drill bit and secure with the 6-#6X3/8” Pan
Head screws (#8)
: (It will be helpful to have an assistant
(F) for help). Square up the door and
(D). Attach the door
(E)
4) Attach the ASD 8X8 Handle (#12). Take the
two stud head mounting screws and sleeve one
clear washer on each screw. Next, insert the
clear grommets into the holes in the door. From
the outside of the door, push the thread of the
screws through the grommets in the holes in
the glass. On the inside of the door, sleeve a
clear washer onto the screws. Take the pull that
has the threaded hole in the end and begin to
thread the top screw into it and then the bottom screw. Tighten the stud head screws down
with a screwdriver (not a drill). This pull will be
on the inside of the door. Place the remaining
pull, with the large holes and set screw, onto
the stud heads of the screws. Tighten the set
screws with Allen wrench provided.
(F).
Place a small amount of silicone on the legs
5)
of the 2-ZV940 Door Clips (#20) and place down
into the top of the 1006’s to cap the opening.
You may have to trim them to fit with side cut-
(G).
ters
6) Measure in-between the ZD8004 “Magnetic
Latch Jamb” and the ZD8004 “Door Hinge Jamb”
on top of the curb where the door is going to
sit. Cut the ZD2026 to this dimension. Run a
bead of silicone underneath the ZD2026 then
set in place between the two ZD8004’s. Use
tape to hold in place, preferably blue tape
(H).
7) Cut the Bottom Poly Rail (ZVP-14WS for 1/4”
glass (#22)) then push over the bottom edge of
the glass. Run a cap bead of silicone on the inside where the glass and poly meet to prevent
water seeping down into the sweep between
the glass and poly. (
door will close completely, notch out the section of plastic that makes contact with the
ZD8004 “Magnetic Latch Jamb”)
Note: to ensure that the
(I).
Run a bead of silicone on the inside and out-
8)
side where the wall jamb meets the shower
wall. Inspect the install and caulk any gap that
might let water through
(J).
