A-Rival sQale User Guide

User Manual Body Analyser

Thank you for choosing an a-rival product. A good choice. Just in case that you are facing any problems with your device,please call our support/service hotline +49 (0)511 / 123 83 506,

send us an e-mail to support@first-servicecenter.de or visit us on http://a-rival.de/facebook/

The detailed manual is also available

in German on our website: www.a-rival.de

Table of Contents

Environment

Safety Information ............................................................................................................................................................................................ 4

Your Scale and Its

Efficient Use of Your Scale.......................................................................................................................................................................................................... 6

Overview............................................................................................................................................................................................................ 7

Device Components .................................................................................................................................................................................................................... 7

LCD ............................................................................................................................................................................................................................................. 8

Initial Start-Up

General Instructions .................................................................................................................................................................................................................... 9

Insert the Batteries ...................................................................................................................................................................................................................... 9

Pair-Up ...................................................................................................................................................................................................................................... 10

Select Measurement Unit .......................................................................................................................................................................................................... 11

Start Measuring

Daily Measurement ................................................................................................................................................................................................................... 12

Data Management

Data Transmission

Troubleshooting

Error Prompt When Measuring

When Data Transmitting............................................................................................................................................................................................................ 15

Specifications

Technical Data

Appendix

Table of Body Fat Level (Unit: %) ............................................................................................................................................................................................. 17

Table of Body Water Level (Unit: %) ......................................................................................................................................................................................... 17

Maintenance

Guarantee ........................................................................................................................................................................................................ 22

................................................................................................................................................................................................... 9

............................................................................................................................................................................................... 12

........................................................................................................................................................................................... 13

.................................................................................................................................................................................................................... 13

............................................................................................................................................................................................. 14

................................................................................................................................................................................................. 16

.................................................................................................................................................................................................... 18

.............................................................................................................................................................................................. 6

Please do read the user manual carefully and thoroughly so as to

ensure

manual well

further

problems.

Important info for the disposal of waste

(applicable in the countries of the European Union and other European countries with separate collection systems)

On the device, the packaging or accompanying manuals for the product, the symbol of the crossed out wheeled bin indicates that this

product must not be disposed of with normal household waste!

Important info for disposal of batteries

(applicable in the countries of the European Union and other European countries with separate battery collection systems)

On the battery, the packaging or accompanying manuals for the product, the symbol of the crossed out wheeled bin indicates that the batteries in this product should not be disposed of with normal household waste!

The chemical symbols for lead (Pb), mercury (Hg) and Cd below the crossed out wheeled bin indicates that the lead, mercury and cadmium content of the battery is higher than those laid down in the EC Directive 2006/66 reference values. If batteries are not disposed of properly, they can cause harm to human health or the environment.

for

They also contribute to the proper disposal of the unit to protect the environment and the health of those around you. It helps protect natural resources, recycling of materials, reduce the consumption of raw materials! Disconnect electrical waste from other waste and dispose it on with your local, free return system. For recycling information, please contact your local Civic Office, your household waste disposal service, the shop where you purchased the product or the manufacturer.

They also contribute to the proper disposal of the battery / batteries to protect the environment and the health of those around you. It helps protect natural resources, recycling of materials, reduce the consumption of raw materials! Separate batteries from other waste and dispose of it please them through your local, free battery return system. For recycling information, please contact your local Civic Office, your household waste disposal service, the shop where you purchased the product or the manufacturer.

reference in case you have

the safe usage of this product, and keep the

Safety Information

Safety and Usage Information

The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows:

Symbol for “FOLLOW INSTRUCTIONS FOR USE

Symbol for “NOTE ON IMPORTANT INFORMATION”

The Bluetooth Combination Mark

Symbol for “MANUFACTURE DATE”

Symbol for “SERIAL NUMBER”

Symbol for “DIRECT CURRENT”

Symbol for “INDOOR USE ONLY“

Symbol for “MANUFACTURER”

Symbol for “COMPLIES WITH EU REQUIREMENTS”

Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice”

CAUTION

A-rivals Body Analyzer offers you a seamless way to manage your health. Please be aware that this device is designed for adults’ self-measuring and self-monitoring body fat level. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a disease or taking medications that affect your water levels. The accuracy of readings for these patients has not been verified. Specific medical advice should be obtained from a physician. The scale is equipped with data transmission function. It may emit electromagnetic energy so as to perform its intended function. Nearby portable and mobile RF communications equipment can affect the performance of the scale. Portable and mobile RF communications equipment can affect the measuring accuracy of the scale. Be aware that misuse of electrical equipments can cause electric shock, burns, fire and other hazards. Warning that the scale should not be used adjacent to or stacked with other equipment. WARNING: No modifications of this equipment is allowed. During using the Analyzer, the patient will contact with the surface and the electrode of the Analyzer. The device doesn’t need to be calibrated in two years lifetime. This device is contraindicated for any female subject who may be suspected of, or is pregnant. Besides provided inaccurate readings, the affects of this device on the fetus are unknown. This device is contraindicated for any person who is connected to a wearable or implantable electronic device or instrument such as a pacemaker or defibrillator.

INDICATIONS FOR USE

Environment

The a-rivals Body Analyzer measures weight and use bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle mass in generally healthy adults 18 years of age or older. It is intended for use in the domestic setting only and not for diagnostic and / or therapeutic purposes.

Your Scale and Its

To ensure your safety as well as the service life of your scale, please avoid using the scale under the following circumstances:

 Concurrent use of this device and implantable medical electronic instruments, e.g. Cardiac Pacemaker  Concurrent use of this device and wearable medical electronic instruments, e.g. electrocardiograph  Concurrent use of this device and other medical electronic instruments for life support, e.g. mechanical heart  Slippery floor such as tile floor  Jumping onto the platform immediately after bath or with wet hands  Near a cell phone or microwave oven

Avoid storage in the following locations:

 Where there is water  Where the device may be exposed to extreme temperatures, humidity, moisture, direct sunlight, dust, or salt air  Where there is risk of shock or drop  Where you store chemicals or full of corrosive gases  Where in reach of the infants or children

Efficient Use of Your Scale

To ensure the accuracy of measurement, please follow below instructions when you start measurement.

 Place the scale on a flat, hard surface. Soft surface such as carpet will affect the performance of the scale.  Step onto the platform with bare feet. Stand still and keep full contact with the electrodes until the measurement is complete.  Start measurement at least two hours after Getting up or Dinning.  Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning.  Always start measurement in the same time slot and on the same scale located on the same flat, hard surface.

Overview

Device Components

Display

Electrode Electrode

UNIT Button

Battery Compartment

Note: Your weight is displayed directly on the scale. For the display of muscle mass, bone mass, water percentage and body fat percentage you need the a-rival app. You can download the App from the App Store or Google Play for free.

The a-rival App requires min. iPhone 4S/iOS 6.0 and above. If you use an Android device you need Bluetooth Smart support and min. Android 4.3.

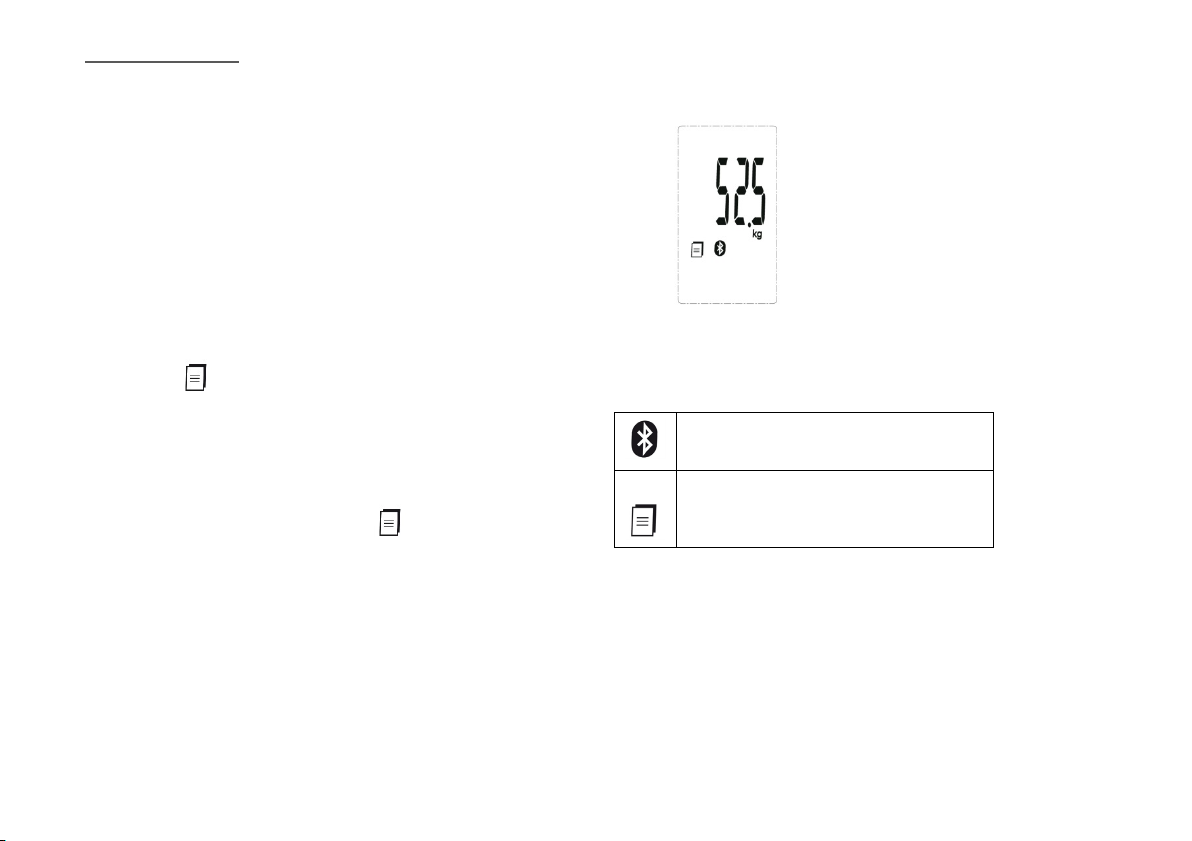

LCD

st Stone

lb Pound

kg Kilogram

Successful Bluetooth Connection

Data transmitting / pending to transmit to App.

Low Battery

Initial Start-Up

General Instructions

A-rivals Glass Body Analyzer applies BIA (Bio-impedance Analysis) technology. A small amount of weak current flows through the human body so as to detect the bio-impedance and estimate body fat. The electrical current is small and may not be felt. This BIA technology is safe, non-invasive, toxic-free and harmless. It also possesses the characteristics of simple operation and abundant information.

The current mentioned above is less than 1mA. However, please be aware that anyone with a wearable or implantable medical electronic instrument, such as a pacemaker, must avoid using this device. The intended use of this device is for adult’s indoor use only.

Insert the Batteries

Open the battery door in the back of the scale.

Insert the batteries (4 x 1.5V AAA) into the battery compartment according to the polarity indications marked inside the compartment. * The digits “8888” will be shown on the LCD.

Close the battery door and wait until the digits “0.0kg” are shown on the LCD.

When the symbol appears, the device will power off. Then you shall replace with a new set of batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with the new one.

Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage. Please refer to the local ordinances and

recycling instructions regarding disposal of the worn batteries.

CAUTION

Pair-Up

 Turn on Bluetooth and the App.  Press and hold “UNIT” button in the back of the scale to start pair-up.

Symbol and Symbol will be shown on the LCD alternatively,

indicating

If SUCCEED, symbol will be shown on the LCD.

If FAIL, symbol “E1” will be shown on the LCD.

pair-up is proceeding.

Select Measurement Unit

With batteries correctly installed, press the button in the back of the scale to select measurement unit. The default measurement unit is “kilogram”. You can choose between kilogram, stone and pound.

Start Measuring

Daily Measurement

With original SENSE ON patent technology, the scale will automatically switch on as you step on the platform barefooted.

Stand still and keep full contact with the electrodes, the unit “ kg” blinks, then the weight is locked, until the LCD stops displaying moving “o”, the LCD

When your scale is successfully paired with your mobile device and the Bluetooth is ON, the scale will process data transmission automatically.

(Please refer to Data Transmission

will display the weight.

for more details.)

Data Management

Data Transmission

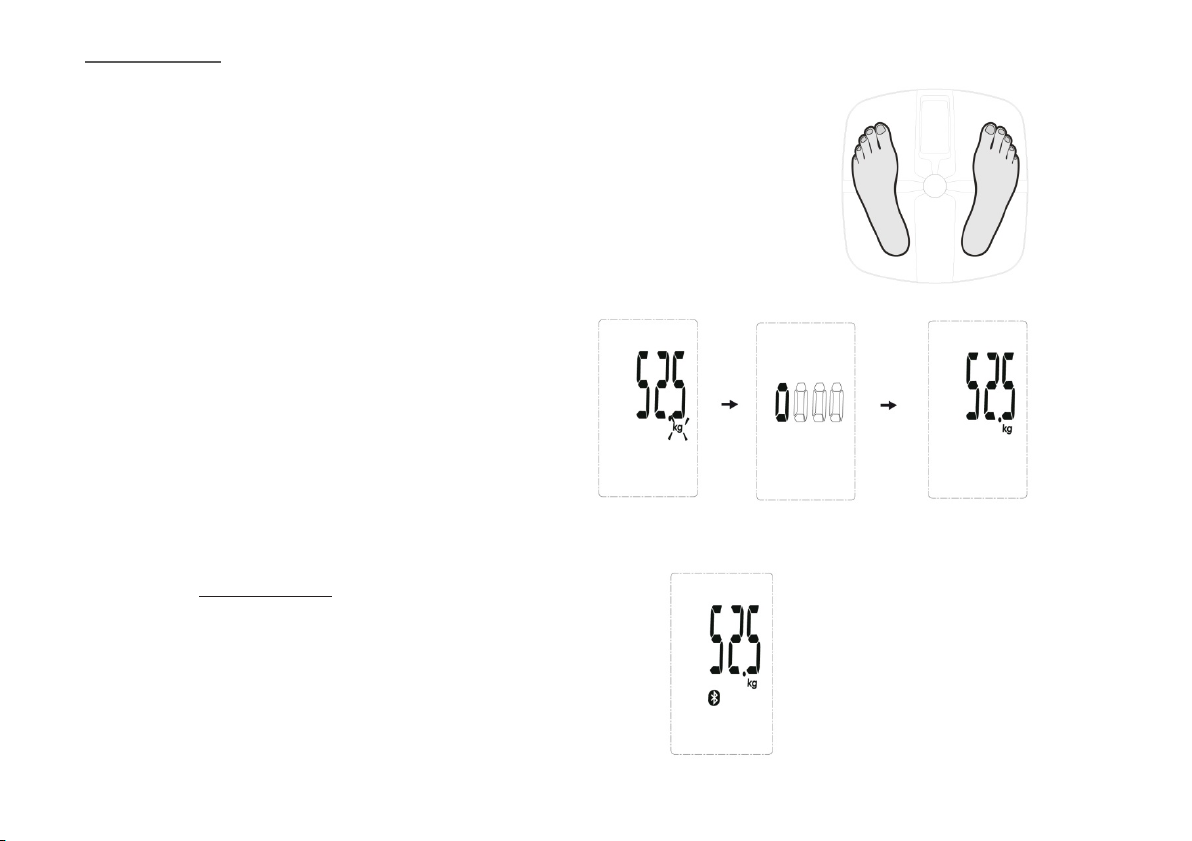

With the scale successfully pair-up with your mobile device, the measurement data will be automatically transmitted to your mobile device via Bluetooth.

The Symbol will disappear after successful data transmission, and you may check your personal measurement data on your mobile device.

If the data transmission fails, the symbol will remain. The pending measurement data will be temporarily kept in the scale and transmitted to your mobile device when next connected to the app.

Successful Bluetooth Connection

Data transmitting to app:

-If SUCCEED, the symbol disappears;

-If FAIL, the symbol remains.

Troubleshooting

Error Prompt

Error Description Solution

Overload. The device will power off. Stop using this scale for measurement.

Low Battery. The device will power off.

Failure of pairing up.

When Measuring

Problem Root Cause Solution

Abnormal measuring results:

- Too high; OR

- Too low OR

- Huge difference between two

recent measurements.

Incorrect posture.

The device is located on the soft ground such as a carpet OR on a rugged surface.

Cold body that may results in bad blood circulation.

Replace all four batteries at the same time. Please purchase the authorized batteries for replacement.

Please check below items:

- Bluetooth is ON.

- App Collector is ON.

- Both devices are within the transmission distance of Bluetooth.

Please step on the platform barefooted and stand still.

Please place the device on a flat, hard surface.

Warm up your hands and feet to resume blood circulation and then measure again.

Problem Root Cause Solution

Abnormal measuring results:

- Too high OR

- Too low OR

- Huge difference between two

recent measurements.

No display on LCD when the device powers on.

CANNOT proceed to analyze body fat.

The device powers off automatically

When Data Transmitting

Problem Root Cause Solution

Data transmission failed.

Cold Electrodes.

Either your hands or your feet are too dry.

Batteries not yet installed.

Worn batteries.

Step onto the platform wearing socks or shoes.

Low battery.

Bluetooth is OFF.

The App is OFF. Start your app.

Out of range of Bluetooth transmission.

Place the device in a warm room for a while and then measure again.

Wipe your feet with a damp cloth, keeping them slightly damp when starting measurement.

Install the batteries. (Please refer to Insert the Batteries).

Replace all four batteries at the same time. Please purchase the authorized batteries for replacement.

Please keep barefooted during the measurement, and keep full contact with the electrodes as well.

Replace all four batteries at the same time. Please purchase the authorized batteries for replacement.

Turn ON the Bluetooth via “Setting >> General >> Bluetooth”.

Place your mobile device closer to the scale.

Specifications

Technical Data

Product Name sQale, Glass Body Analyzer

Dimension Scale: 320 x 330 x 27.2 mm

Net Weight Approximately 1.75kg (Excluding the dry cells)

Display Digital LCD with White Backlight

Measurement Unit Kilogram (kg) / Stone (st) / Pound (lb)

Measurement Range 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb

Division 0,1kg - 0,2 lb/1lb (≥20st) - 0,2 lb

Accuracy

Working Environment

0-50kg: ± 0,3kg; 50-100kg: ± 0,4kg; 100-150kg: ± 0,5kg; 150-180kg: ± 0,7kg

Temperature: 0°C to 40°C Humidity: ≤90% RH

Storage Environment Temperature: -20° C to 60°C

Power Source 6V (Four AAA-size Batteries) not included

Turn on Method SENSE ON technology

Auto-OFF

The scale will turn off after about 10 seconds if there is no operation.

Accessories User Manual

Mode of Operation Continuous Operation

About the Accuracy of This Product

This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer. Please refer to the above table for the descriptions on accuracy. This product is specially designed for body fat analysis as well as weight measurement. This is not a medical device. It should NOT be used by anyone during the process of transaction for verification of goods’ weight.

Appendix

Table of Body Fat Level (Unit: %)

Man / Sportsman

Age

Low Normal High V. High Low Normal High V. High

20-29 <13 13,1-20 20,1-23 >23 <19 19,1-28 28,1-31 >31

30-39 <14 14,1-21 21,1-24 >24 <20 20,1-29 29,1-32 >32

40-49 <16 16,1-23 23,1-26 >26 <22 22,1-30 30,1-33 >33

50-59 <17 17,1-24 24,1-27 >27 <23 23,1-31 31,1-34 >34

60+ <18 18,1-25 25,1-28 >28 <24 24,1-32 32,1-35 >35

Table of Body Water Level (Unit: %)

Source: Derived fr. Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal Clin Nutr 1999, 69833-841

Gender

Men

Women

Woman / Sportswoman

Body Fat

Optimal Total Body Water

Percentage Range

4-14 70-63

15-21 63-57

22-24 57-55

≥25 55-37

4-20 70-58

21-29 58-52

30-32 52-49

≥33 49-37

Percentage Range

Health Tips - About Body Fat

Fat is essential for human body. It can not only store energy and protect viscera, but also regulate body temperature and maintain normal physiological function of human body. However, too much body fat is harmful to human body. It is always accompanied by Fatty Liver, diabetes, coronary heart disease, etc. Therefore self-measuring and self-monitoring body fat level are beneficial to your health. Since we can’t judge body fat level simply by our weight, this body fat analyzer, with BIA (Bio-impedance Analysis) technology applied, is an accurate device that offers a quick and comfortable way to obtain your body fat level.

Maintenance

When carrying out usual maintenance, please ensure practice of the following Do’s and Don’ts:

PDO use a dry soft cloth to wipe the dust.

PDO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt.

PThen use a dry soft cloth to dry up the device.

PDON’T wash the device with water or immerse it in water.

PDON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of discolor or malfunction.

PDON’T disassemble this device. If you have any problems, please contact the manufacturer.

(Please refer to Warranty

for contact information)

Guarantee

Please keep the proof of purchase for this device for the entire duration of the guarantee period, as it must be produced in the event of any claim.

You (as the end user) receive a 24-month guarantee from the date of sale. The article has been manufactured using the most modern production methods and subjected to strict quality controls.

In the event of any defects during the guarantee period please contact the dealer where you purchased it or the manufacturer.

Hotline: +49 (0)511 - 123 83 506 or: support@first-servicecenter.de

The guarantee does not cover damage caused by improper use or external influence (water, falling, sunlight, breakage or impact).

Declaration of Conformity

Hereby Baros GmbH declares, that the device BS01 is in compliance with the essential requirements and other relevant regulations of Directive 1999/5/EC. The Declaration of Conformity can be found at: www.a-rival.de

User information/Contact

If your device has a defect or you have problems with it, please contact our Service & Support Centre.

1. Use only the original packaging

2. Add a detailed error description

3. Add your full name and address and a copy of your purchase receipt

4. Stamp and send the package to us (sufficient postage)

Address of our Service Center: First Service Center, Kleine Düwelstr. 21, DE-30171 Hannover/Germany

A-Rival sQale User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
