C-260
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
Data Sheet

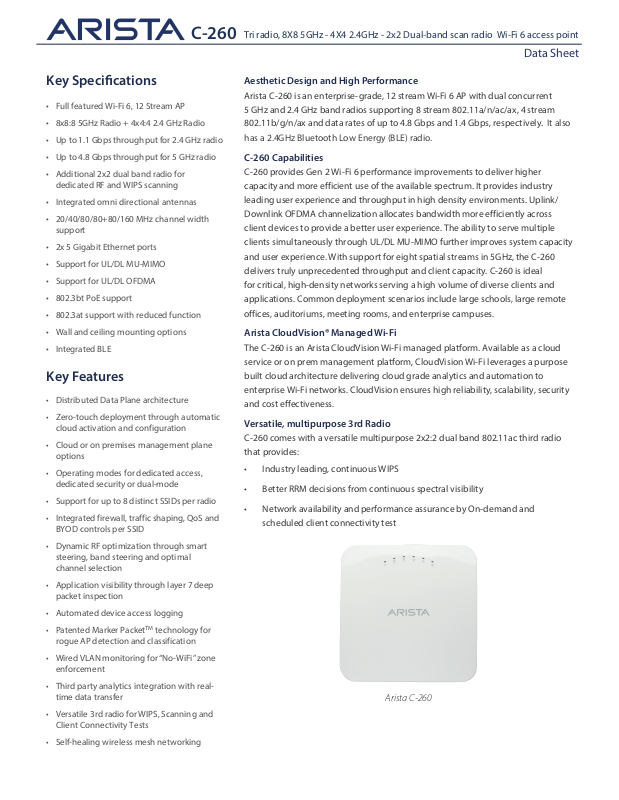

Key Specications
• Full featured Wi-Fi 6, 12 Stream AP
• 8x8:8 5GHz Radio + 4x4:4 2.4 GHz Radio
• Up to 1.1 Gbps throughput for 2.4 GHz radio
• Up to 4.8 Gbps throughput for 5 GHz radio
• Additional 2x2 dual band radio for
dedicated RF and WIPS scanning
• Integrated omni directional antennas
• 20/40/80/80+80/160 MHz channel width
support
• 2x 5 Gigabit Ethernet ports
• Support for UL/DL MU-MIMO
• Support for UL/DL OFDMA
• 802.3bt PoE support
• 802.3at support with reduced function
• Wall and ceiling mounting options
• Integrated BLE
Key Features
• Distributed Data Plane architecture
• Zero-touch deployment through automatic
cloud activation and configuration
• Cloud or on premises management plane
options
• Operating modes for dedicated access,
dedicated security or dual-mode
• Support for up to 8 distinct SSIDs per radio
• Integrated firewall, traffic shaping, QoS and
BYOD controls per SSID
• Dynamic RF optimization through smart
steering, band steering and optimal
channel selection
• Application visibility through layer 7 deep
packet inspection
• Automated device access logging
• Patented Marker PacketTM technology for
rogue AP detection and classification
• Wired VLAN monitoring for “No-WiFi” zone
enforcement
• Third party analytics integration with realtime data transfer
• Versatile 3rd radio for WIPS, Scanning and
Client Connectivity Tests
• Self-healing wireless mesh networking
Aesthetic Design and High Performance
Arista C-260 is an enterprise-grade, 12 stream Wi-Fi 6 AP with dual concurrent
5 GHz and 2.4 GHz band radios supporting 8 stream 802.11a/n/ac/ax, 4 stream
802.11b/g/n/ax and data rates of up to 4.8 Gbps and 1.4 Gbps, respectively. It also
has a 2.4GHz Bluetooth Low Energy (BLE) radio.
C-260 Capabilities
C-260 provides Gen 2 Wi-Fi 6 performance improvements to deliver higher
capacity and more efficient use of the available spectrum. It provides industry
leading user experience and throughput in high density environments. Uplink/
Downlink OFDMA channelization allocates bandwidth more efficiently across
client devices to provide a better user experience. The ability to serve multiple
clients simultaneously through UL/DL MU-MIMO further improves system capacity
and user experience. With support for eight spatial streams in 5GHz, the C-260
delivers truly unprecedented throughput and client capacity. C-260 is ideal
for critical, high-density networks serving a high volume of diverse clients and
applications. Common deployment scenarios include large schools, large remote
offices, auditoriums, meeting rooms, and enterprise campuses.
Arista CloudVision® Managed Wi-Fi
The C-260 is an Arista CloudVision Wi-Fi managed platform. Available as a cloud
service or on prem management platform, CloudVision Wi-Fi leverages a purpose
built cloud architecture delivering cloud grade analytics and automation to
enterprise Wi-Fi networks. CloudVision ensures high reliability, scalability, security
and cost effectiveness.
Versatile, multipurpose 3rd Radio
C-260 comes with a versatile multipurpose 2x2:2 dual band 802.11ac third radio
that provides:
• Industry leading, continuous WIPS
• Better RRM decisions from continuous spectral visibility
• Network availability and performance assurance by On-demand and
scheduled client connectivity test
Arista C-260
Page 2
C-260
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
Data Sheet
Access
C-260 provides Wi-Fi networks that require less time and resources to deploy and maintain compared to traditional devices, resulting in
signicant cost savings.
• Plug and play provisioning using either Cloud or On-premise deployments - Arista Access Points take less than two minutes to activate
and congure after connecting to the cloud
• Support for up to eight individual SSIDs per radio providing maximum exibility in network design
• Network controls like NAT, Firewall and QoS implemented at the Access Point, ensuring faster and more reliable networks
• Continuous scanning of all 2.4 GHz and 5 GHz channels by a dedicated 2x2 third radio provides a dynamic, 360 degree view of the RF
environment to assist in RF optimization and client handling
• Network availability and performance assurance using the third radio as a client to conduct on-demand and scheduled connectivity and
performance tests
• Smart steering addresses sticky client issues by automatically pushing clients with low data rates to a better access point
• Band steering manages channel occupancy, pushing clients to the 5 GHz channel for optimal throughput
• Smart load balancing distributes load evenly across neighbouring APs to optimize the use of network resources
• Arista Wi-Fi’s distributed data plane architecture continues to serve users and secure the network even if connection with the
management plane is interrupted
• Interference avoidance from LTE/3G small/macro cells in commonly used TDD/FDD frequency bands
Security
C-260 oers complete visibility and control of the wireless airspace ensuring network integrity while actively protecting users without
manual intervention.
• C-260 is equipped with industry leading fully integrated wireless intrusion prevention capabilities
• Multifunction third radio provides uninterrupted spectrum scanning or client emulation for always on security coverage alongside
dedicated 2.4G/5G client radios.
• Arista’s patented Marker PacketsTM help accurately detect rogue access points on any network while minimizing false positives
• Third radio used as a dedicated security sensor for 24x7x365 scanning and automated over-the-air (OTA) prevention
• Deterministic rogue AP detection and prevention by monitoring all WiFi and non-WiFi VLANs.
• Over-the-air and on-the-wire prevention techniques assure automatic and reliable threat prevention to keep unauthorized clients
and rogue APs off the network without impacting authorized connections.
• Access Points autonomously scan for wireless threats and enforce security policy even if disconnected from the cloud management
plane
• VLAN monitoring enables a virtual connection to non-WiFi networks for complete network rogue detection and prevention
Analytics
The C-260 collects telemetry on connected and unconnected WiFi clients and supports immersive guest network experiences that help
Arista’s customers develop and reinforce the relationship with their end customers.
• Reports of customer footfall, demographic, loyalty and other analytics provide insightful and actionable information.
• Supports proximity marketing programs that trigger when certain devices are present, which includes automatic messaging vis MMS
in-browser notications and real time notications sent to 3rd party systems that alert to the presence of enrolled devices.
Page 3
C-260
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
Property
Physical Dimensions 230mm x 230mm x 45mm/9.1” X 9.1” X 1.77”
Weight 1.390kg / 3 lb
Operating Temperature 0
Storage Temperature -40
o
C ~ +40oC (+32oF ~ +104oF)
o
C ~ +70oC (-40oF ~ +158oF)
Data Sheet
MTBF
Humidity 0-95% non-condensing
Power Consumption
Chipset
Processor and RAM
Physical security
Port Description Connector Type Speed/Protocol
Power 12V DC
LAN1
5 GbE, 802.3bt compliant
PoE, MACsec capable*
187,948 hr @40°C
331,563 hr @25°C
35.2 W (max) / 15.8 W (min) / 30.0 W (avg)
Qualcomm IPQ8078 2.2GHz quad core ARM processor
with QCN5054 x2 and QCN5024
QCA9882 (multipurpose third radio)
1 GB RAM and 512 MB Flash
Kensington lock slot
5.5 mm overall diameter / 2.1 mm
center pin hole
RJ-45
N/A
100M/1G/2.5G/5G Ethernet
LAN2
Console
USB USB 2.0 port USB Type-A • Future use
Reset
* MACsec capabilities will be activated via a future software update.
5 GbE, 802.3bt compliant
PoE, MACsec capable*
terminal session via serial
connection
USB 2.0 Reset to factory
default settings port
RJ-45
RJ-45
Pin hole push
button
100M/1G/2.5G/5G Ethernet
• RS 232 Serial (115200 bits
per second)
• Data bits:8; Stop bits: 1
• Parity: None
• Flow Control: None
Hold down and power cycle
the device to reset
Page 4
C-260
Operational Specications
Input Power
Number of Radios
Max Clients Supported 1024 (512 clients per radio) (dependent upon use cases)
MU-MIMO 8X8 on 5GHz radio and 4X4 on 2.4GHz radio
Number of Spatial Streams 8 for 5GHz radios, 4 for 2.4 GHz radio, 2 for multipurpose radio
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
12V DC (5.5mm overall diameter/2.1mm center pin hole)
802.3bt power - Full function
802.3at power - Reduced Function (No USB; Tx power reduced by 3dB for both radios)
2 access radios; one 4x4:4 2.4GHz and one 8x8:8 5GHz radio for simultaneous dual band
access.
1 multi-function 2x2 radio for continuous WIPS and client connectivity tests
Data Sheet
RF Transmit Power
80+80MHz Non-Contiguous Channel
Bonding
Bandwidth Agility Yes
Small Cells Interference Mitigation (pico-
cells, femtocells, microcells)
Frequency Bands
Dynamic Frequency Selection
WiFi Specications
Frequency Band Scanning Transmission
5GHz Band
1
26dBm on 5GHz radio (max) and 23dBm on 2.4GHz radio (max)2
Yes
Yes
2.4-2.4835 GHz, 5.15-5.25 GHz; (UNII-1), 5.25-5.35 GHz, 5.47-5.6 GHz, 5.650-5.725 GHz (UNII-2),
5.725-5.85 GHz (UNII-3)
Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding
certications.
IEEE 802.11a/n/ac/ax
All regions
5.15 ~ 5.25 GHz
5.25 ~ 5.35 GHz
5.47~ 5.725 GHz
5.725~ 5.825 GHz
USA & Canada
(FCC/IC)
5.15 ~ 5.25 GHz
5.25 ~ 5.35 GHz
5.725~ 5.825 GHz
Europe
(ETSI)
5.15 ~ 5.25 GHz
5.25 ~ 5.35 GHz
5.47~ 5.725 GHz
Dynamic Frequency Selection
Modulation Type OFDM / OFDMA
Peak Data Rates Up to 4.8 Gbps
Antenna Integrated modular high eciency PIFA antenna x8 (peak gain: 6.1 dBi)
1
Total conducted output power across all Tx chains.
2
Actual power for Tx will depend on Country Regulatory Domain
DFS and DFS2
Page 5
Frequency Band
C-260
Scanning Transmission
All regions
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
IEEE 802.11b/g/n/ax
USA & Canada
(FCC/IC)
Data Sheet
Europe
(ETSI)
2.4 GHz Band
Modulation Type DSSS / OFDM / OFDMA
Peak Data Rates Up to 1.1Gbps
Antenna Integrated modular high eciency PIFA antenna x4 (peak gain:4.92 dBi)
Receive Sensitivity
5 GHz
Mode Rate Sensitivity (dBm)
6 Mbps -92
802.11a
54 MBps -75
11n_HT20
11n_HT40
11ac_VHT20
2400 ~ 2483.5 MHz 2400 ~ 2473.5 MHz 2400 ~ 2483.5 MHz
2.4 GHz
Mode Rate Sensitivity (dBm)
802.11b
MCS 0 -93
802.11g
MCS 7 -75
MCS 0 -90
11n_HT20
MCS 7 -73
MCS 0 -95
11n_HT40
MCS 8 -70
1 Mbps -98
11 Mbps -90
6 Mbps -93
54 MBps -77
MCS 0 -95
MCS 7 -76
MCS 0 -91
MCS 7 -73
11ac_VHT40
11ac_VHT80
11ax_HE20
11ax_HE40
11ax_HE80
MCS 0 -90
MCS 9 -68
MCS 0 -87
MCS 9 -63
MCS 0 -93
MCS 11 -64
MCS 0 -91
MCS 11 -62
MCS 0 -87
MCS 11 -59
11ac_VHT20
MCS 0 -95
MCS 8 -72
MCS 0 -91
11ac_VHT40
MCS 9 -70
MCS 0 -94
11ax_HE20
MCS 11 -65
MCS 0 -91
11ax_HE40
MCS 11 -63
Page 6
Aggregate Transmit Power
C-260
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
Data Sheet
5 GHz
Mode Rate Power (dBm)
802.11a
802.11n_HT20
802.11n_VHT40
802.11ac_VHT20
802.11ac_VHT40
802.11ac_HT80
6 ~ 18 Mbps 26
24 ~ 54 Mbps 25
MCS 0 ~ 4 26
MCS 5 ~ 7 25
MCS 0 ~ 4 26
MCS 5 ~ 7 24
MCS 0 ~ 4 26
MCS 5 ~ 7 25
MCS 8 ~ 9 24
MCS 0 ~ 4 26
MCS 5 ~ 7 24
MCS 8 ~ 9 23
MCS 0 ~ 4 26
MCS 5 ~ 7 23
MCS 8 ~ 9 22
2.4 GHz
Mode Rate Power (dBm)
802.11b 1 ~ 11 Mbps 23
6 ~ 18 Mbps 23
802.11g
24 ~ 54 Mbps 21
MCS 0 ~ 4 23
802.11n_HT20
MCS 5 ~ 7 21
MCS 0 ~ 4 22
802.11n_HT40
MCS 5 ~ 7 20
MCS 0 ~ 4 23
MCS 5 ~ 7 21
802.11ax_HE20
MCS 8 ~ 9 20
MCS 10 ~ 11 16
MCS 0 ~ 4 22
MCS 5 ~ 7 20
802.11ax_HE40
MCS 8 ~ 9 20
MCS 10 ~ 11 17
802.11ax_HE20
802.11ax_HE40
802.11ax_HE80
MCS 0 ~ 4 26
MCS 5 ~ 7 25
MCS 8 ~ 9 24
MCS 10- 11 21
MCS 0 ~ 4 26
MCS 5 ~ 7 24
MCS 8 ~ 9 23
MCS 10- 11 21
MCS 0 ~ 4 26
MCS 5 ~ 7 23
MCS 8 ~ 9 22
MCS 10 ~ 11 19
Page 7

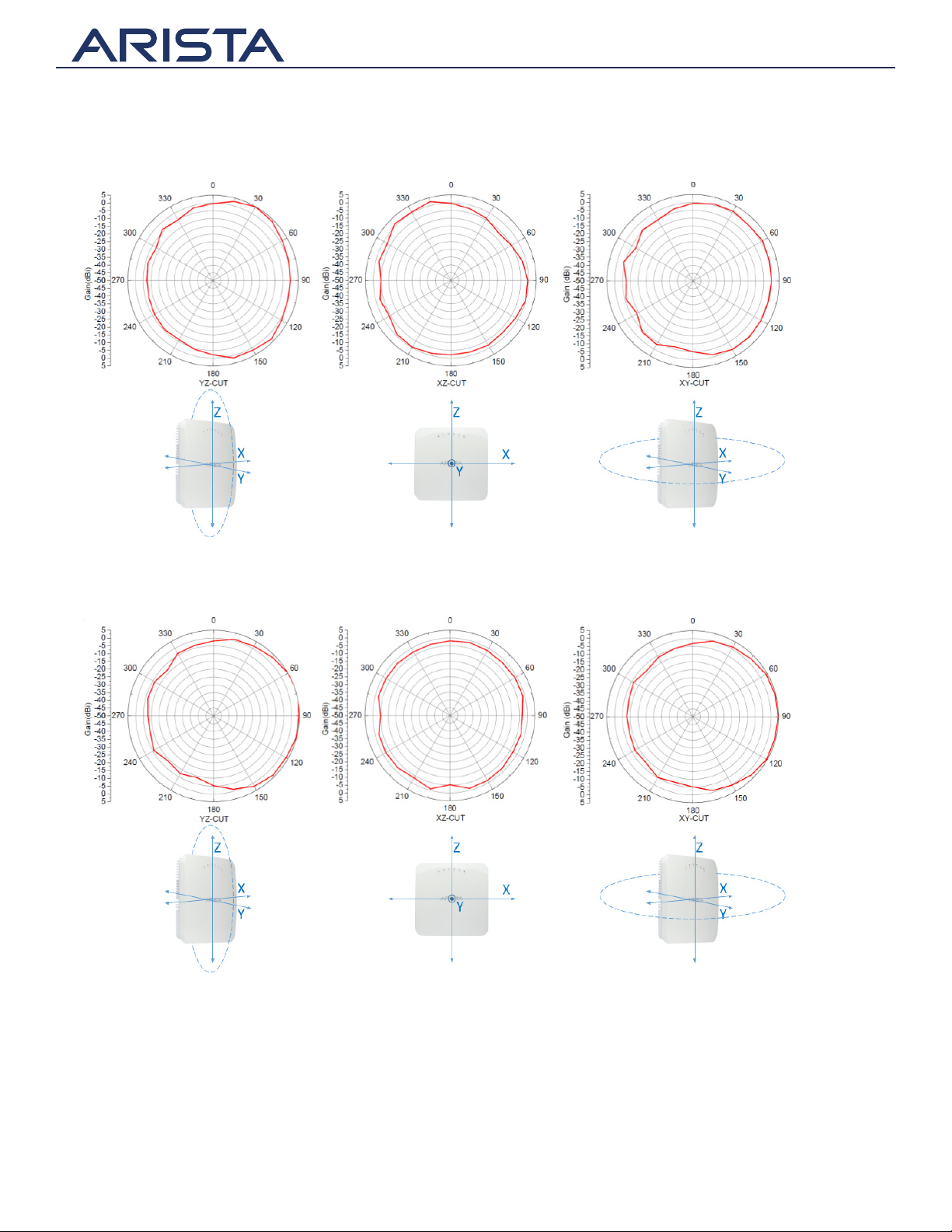

Radiation Patterns
2.4 GHz - Peak Gain: 4.92dBi
C-260
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
Data Sheet
5 GHz - Peak Gain: 6.1dBi
Page 8
Data Sheet
C-260
Tri radio, 8X8 5GHz - 4X4 2.4GHz - 2x2 Dual-band scan radio Wi-Fi 6 access point
Headquarters
5453 Great America Parkway
Santa Clara, California 95054
408-547-5500
Support
408-547-5502
866-476-0000
Sales
408-547-5501
866-497-0000
Regulatory Specifications RF and Electromagnetic Compatibility (EMC)
Country Certication
USA
Canada
FCC Part 15.247, 15.407, 15B
ICES-003, RSS-247, RSS-102
Europe
*For complete country certification records, please visit the site: https://www.arista.com/en/support/product-certificate
Safety & Environmental
USAUSA, Canada
European Union (EU)
European Union (EU)
China
China
Taiwan
Taiwan
Ordering Information Access Point
Part Number Description
AP-C260 C-260 8x8 tri radio 802.11ax (WiFi 6) access point with internal antennas
AP-C260-SS-5Y C-260 AP with 5 years bundled Cognitive Cloud SW subscription
AP-C260-SS-3Y C-260 AP with 3 years bundled Cognitive Cloud SW subscription
EN 300 328, EN 300 440, EN 301 893, EN 301 489 , EN 55024, EN 55032, EN 55035
Countries covered under Europe certification: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands,
Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom.
Country Certication
UL/cUL 62368, UL 2043
EN 62368, RoHS
GB/T 26125 RoHS
CNS 14336, CNS 15663 RoHS
Mounting Options
For details of mounting options, see the Access Points Mounting Brackets Guide
Power Supply
Part Number
PWR-AP-W4
PWR-AP-PLUS-NA
Copyright 2021 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista,
the Arista logo and EOS are trademarks of Arista Networks. Other product or service names may be trademarks or
service marks of others.
Description%
Universal AC power supply for C-230, 12VDC, 3.3A
One port 802.3at PoE+ injector for use with all Access Point models. Includes USA power cord.
Not for outdoor use.
www.arista.com
April 6, 2021
Loading...
