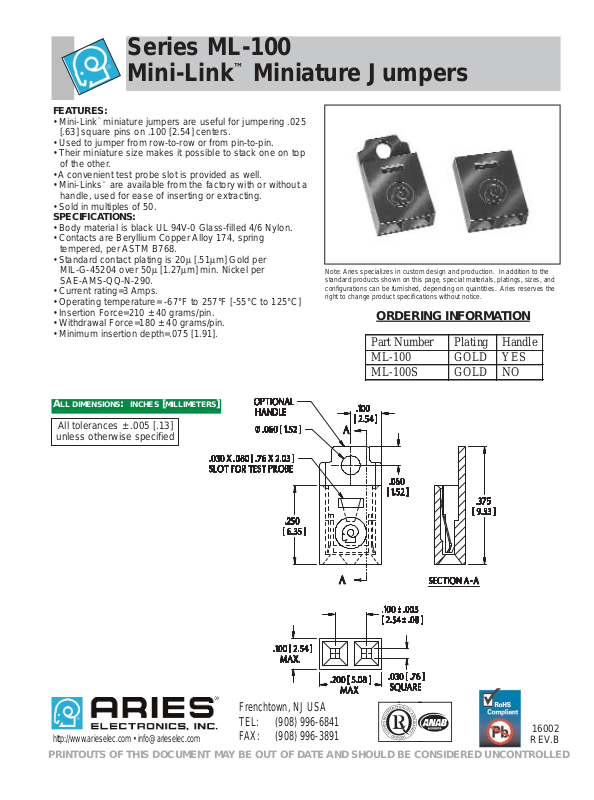

Series ML-100
Mini-Link

™

Miniature Jumpers

Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.

FEATURES:

• Mini-Link

™

miniature jumpers are useful for jumpering .025

[.63] square pins on .100 [2.54] centers.

• Used to jumper from row-to-row or from pin-to-pin.

• Their miniature size makes it possible to stack one on top
of the other.

• Aconvenient test probe slot is provided as well.

• Mini-Links

™

are available from the factory with or without a

handle, used for ease of inserting or extracting.

• Sold in multiples of 50.

SPECIFICATIONS:

• Body material is black UL 94V-0 Glass-filled 4/6 Nylon.

• Contacts are Beryllium Copper Alloy 174, spring
tempered, per ASTM B768.

• Standard contact plating is 20μ [.51μm] Gold per
MIL-G-45204 over 50μ [1.27μm] min. Nickel per
SAE-AMS-QQ-N-290.

• Current rating=3 Amps.

• Operating temperature= -67°F to 257°F [-55°C to 125°C]

• Insertion Force=210 ± 40 grams/pin.

• Withdrawal Force=180 ± 40 grams/pin.

• Minimum insertion depth=.075 [1.91].

ALL DIMENSIONS: INCHES [MILLIMETERS]

All tolerances ± .005 [.13]

unless otherwise specified

ORDERING INFORMATION

Part Number

Plating

Handle
ML-100

GOLD

YES
ML-100S

GOLD

NO

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

16002

REV.B
