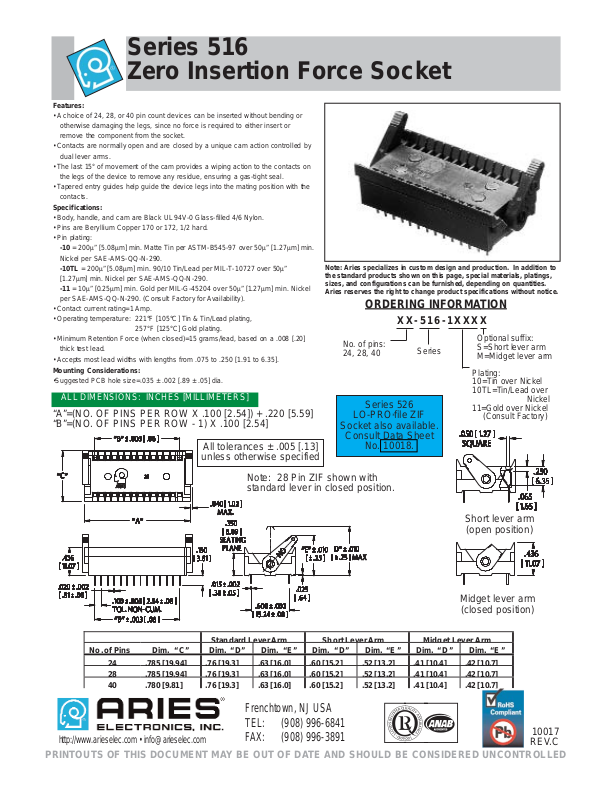

Series 516
Zero Insertion Force Socket

Note: Aries specializes in custom design and production. In addition to
the standard products shown on this page, special materials, platings,
sizes, and configurations can be furnished, depending on quantities.
Aries reserves the right to change product specifications without notice.

Features:

• Achoice of 24, 28, or 40 pin count devices can be inserted without bending or
otherwise damaging the legs, since no force is required to either insert or
remove the component from the socket.

• Contacts are normally open and are closed by a unique cam action controlled by
dual lever arms.

• The last 15° of movement of the cam provides a wiping action to the contacts on
the legs of the device to remove any residue, ensuring a gas-tight seal.

• Tapered entry guides help guide the device legs into the mating position with the
contacts.

Specifications:

• Body, handle, and cam are Black UL94V-0 Glass-filled 4/6 Nylon.

• Pins are Beryllium Copper 170 or 172, 1/2 hard.

• Pin plating:

-10 = 200μ” [5.08μm] min. Matte Tin per ASTM-B545-97 over 50μ” [1.27μm] min.
Nickel per SAE-AMS-QQ-N-290.

-10TL = 200μ” [5.08μm] min. 90/10 Tin/Lead per MIL-T-10727 over 50μ”
[1.27μm] min. Nickel per SAE-AMS-QQ-N-290.

-11 = 10μ” [0.25μm] min. Gold per MIL-G-45204 over 50μ” [1.27μm] min. Nickel
per SAE-AMS-QQ-N-290. (Consult Factory for Availability).

• Contact current rating=1 Amp.

• Operating temperature: 221°F [105°C] Tin & Tin/Lead plating,

257°F [125°C] Gold plating.

• Minimum Retention Force (when closed)=15 grams/lead, based on a .008 [.20]
thick test lead.

• Accepts most lead widths with lengths from .075 to .250 [1.91 to 6.35].

Mounting Considerations:

•Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

All tolerances ± .005 [.13]

unless otherwise specified

Note: 28 Pin ZIF shown with
standard lever in closed position.

“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .220 [5.59]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]

Short lever arm

(open position)

Midget lever arm

(closed position)

ORDERING INFORMATION

XX-516-1XXXX

No. of pins:
24, 28, 40

Series

Optional suffix:
S=Short lever arm
M=Midget lever arm

Plating:
10=Tin over Nickel
10TL=Tin/Lead over

Nickel

11=Gold over Nickel

(Consult Factory)

No. of P ins

Dim. “C”

Dim. “D”

Dim. “E”

Dim. “D”

Dim. “E”

Dim. “D”

Dim. “E”

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

10017

REV.C

Series 526

LO-PRO

®

file ZIF

Socket also available.

Consult Data Sheet

No. 10018.
