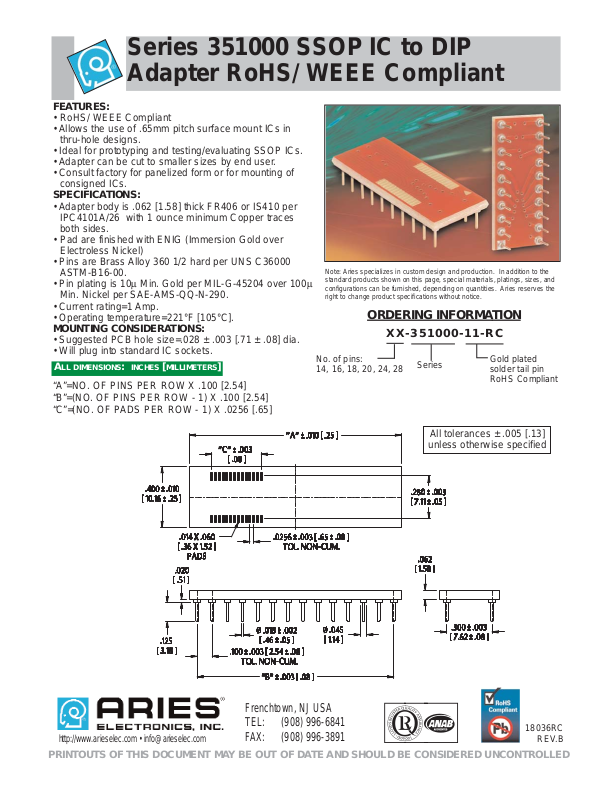

Series 351000 SSOP IC to DIP
Adapter RoHS/ WEEE Compliant

Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.

FEATURES:

• RoHS/ WEEE Compliant

• Allows the use of .65mm pitch surface mount ICs in
thru-hole designs.

• Ideal for prototyping and testing/evaluating SSOP ICs.

• Adapter can be cut to smaller sizes by end user.

• Consult factory for panelized form or for mounting of
consigned ICs.

SPECIFICATIONS:

• Adapter body is .062 [1.58] thick FR406 or IS410 per
IPC4101A/26 with 1 ounce minimum Copper traces
both sides.

• Pad are finished with ENIG (Immersion Gold over
Electroless Nickel)

• Pins are Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-00.

• Pin plating is 10μ Min. Gold per MIL-G-45204 over 100μ
Min. Nickel per SAE-AMS-QQ-N-290.

• Current rating=1 Amp.

• Operating temperature=221°F [105°C].

MOUNTING CONSIDERATIONS:

• Suggested PCB hole size=.028 ± .003 [.71 ± .08] dia.

• Will plug into standard IC sockets.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ORDERING INFORMATION

All tolerances ± .005 [.13]

unless otherwise specified

“A”=NO. OF PINS PER ROW X .100 [2.54]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
“C”=(NO. OF PADS PER ROW - 1) X .0256 [.65]

XX-351000-11-RC

No. of pins:
14, 16, 18, 20, 24, 28

Series

Gold plated
solder tail pin
RoHS Compliant

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

18036RC

REV.B
