ARIES 0600 User Manual

Note: Aries specializes in custom design and production. In addition to
the standard products shown on this page, special materials, platings,
sizes, and configurations can be furnished, depending on quantities.
Aries reserves the right to change product specifications without notice.

FEATURES:

• Aries Strip-Line headers are available with either fork or post
style coined contacts. Consult Data Sheet No.12036 for
pin=line headers with screw machine contacts.

• “Break” feature allows header to be cut to the number of posi­tions desired.

• Side-to-side and end-to-end stackable.

SPECIFICATIONS:

• Body material is black UL 94-V0 Glass-filled 4/6 Nylon.

• Coined contacts are Brass,1/2 hard

• Contact plating:
“0”= 200μ” min. Matte Tin plating per ASTM B545-97 over
50μ” min Nickel per QQ-N-290.
“1”=10μ” min Gold per MIL-G-45204 over 50μ” min Nickel per
QQ-N-290.
“0TL”=200μ” min Tin/Lead 90/10 per MIL-T-10727 over 50μ”
min Nickel per QQ-N-290.

• Contact current rating =2 Amps.

• Operating temperature=221°F [105°C] Tin & Tin/lead plating,

=257°F [125°C] Gold plating.

• Fork contact accepts up to .025 [.64] diameter leads.

MOUNTING CONSIDERATIONS:

• Suggested PCB hole size=.035+.002 [.89 +

.05] dia.

XX-0600-XX

ORDERING INFORMATION

No. of pins:

1 to 25

Series

Pin style:
1=Fork pin
2=Post pin

Plating:
0=Tin
0TL= Tin/Lead
1=Gold

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

12034

REV.C

“A”=NO. OF PINS PER ROW X .100 [2.54]
“B”=(NO. OF PINS PER ROW - 1) X.100 {2.54}

Consult Data Sheet No. 12036
for pin line headers with screw

machine contacts

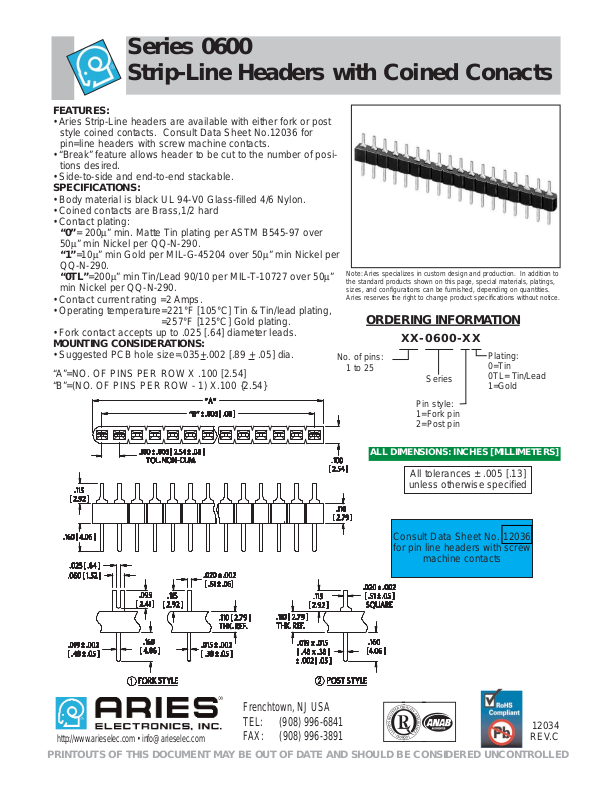

Series 0600
Strip-Line Headers with Coined Conacts

All tolerances ± .005 [.13]

unless otherwise specified

ALL DIMENSIONS: INCHES [MILLIMETERS]
