Page 1
APV
Owner/Operator Manual
Manuel Du Propriétaire/Utilisateur
995049 – Self-Propelled
Models
(SN 000101 +)
995051 – Push
(SN 000101 +)
E10
ENGLISH
FRANÇAIS
The use of any gasoline exceeding 10% ethanol (E10) or
10% MTBE will void the product warranty.
L’utilisation d’une essence contenant plus de 10% d’éthanol
(E10) ou de 10% de MTBE annulent la garantie.
04674900A 10/13
Printed in USA
Page 2
TABLE OF CONTENTS
Figure 1
1. Unit Model & Serial Number Label
1
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . 6
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . 10

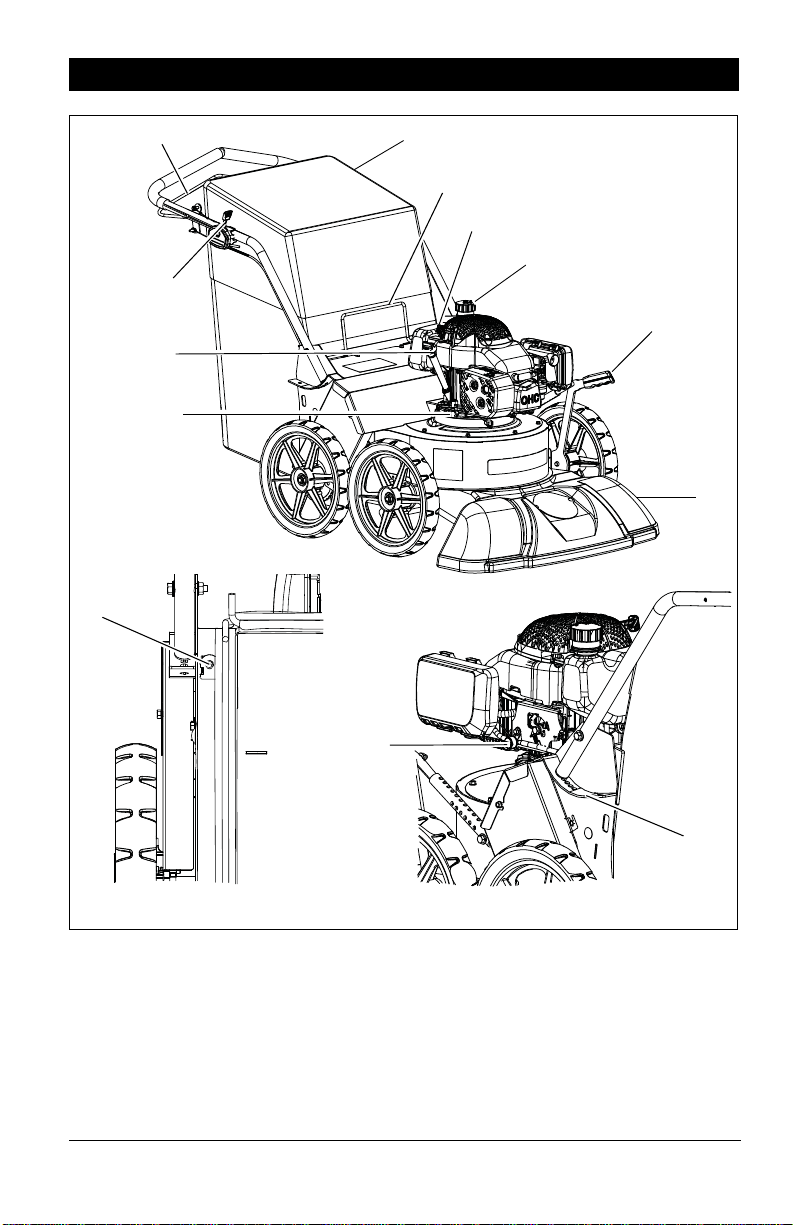

CONTROLS AND FEATURES . . . . . . . 12
OPERATION . . . . . . . . . . . . . . . . . . . . . 13
MAINTENANCE SCHEDULE . . . . . . . . 19
STORAGE. . . . . . . . . . . . . . . . . . . . . . . 20
INTRODUCTION
TROUBLESHOOTING . . . . . . . . . . . . . 21
SERVICE PARTS . . . . . . . . . . . . . . . . . 22
SPECIFICATIONS. . . . . . . . . . . . . . . . . 22
ACCESSORIES. . . . . . . . . . . . . . . . . . . 22
WARRANTY . . . . . . . . . . . . . . . . . . . . . 21
THE MANUAL
Before operating unit, carefully and
completely read the manual. The contents
provide you with an understanding of safety
instructions and controls during normal
operation and maintenance.
ENGINE MANUAL
The engine on this unit is covered by a
separate manual specific to the engine. This
manual is included in the literature package
that shipped with the unit. Refer to this
manual for engine service recommendations.
If the engine manual is unavailable, contact
the engine manufacturer for a replacement.
MODEL AND SERIAL NUMBERS
When ordering replacement parts or making
service inquiries, know the model and serial
numbers of the unit.
Numbers are located on the product
registration form in the unit literature
package. They are also printed on a label
located on the unit. See
Figure 1.
• Record unit model and serial numbers
here.
• Record engine model and serial
numbers here.
PRODUCT REGISTRATION
The Ariens Dealer should register the product
at the time of purchase. Registering helps
Ariens process warranty claims or contact
you with the latest service information.
Claims meeting requirements during the
limited warranty period will be honored,
whether or not the product registration card is
returned with proof of purchase.
Customer Note: If the Dealer does not
register your product, please complete, sign
and return the product registration card to
Ariens or go to www.ariens.com.
UNAUTHORIZED REPLACEMENT
PARTS
Use only Ariens replacement parts. The
replacement of any part on this unit with
anything other than an Ariens authorized
replacement part may adversely affect the
performance, durability and safety of this unit
and may void the warranty. Ariens disclaims
liability for any claims or damages, whether
warranty, property damage, personal injury or
death arising out of the use of unauthorized
replacement parts.
NOTE: A Parts Manual may be downloaded
from www.ariens.com.
EN - 2
Page 3
DELIVERY
Customer Note: If this product was
purchased without complete assembly and
instruction by a retailer, it is your
responsibility to read and understand all
instructions in this manual. If you do not
understand or have difficulty following the
instructions, contact your Ariens Dealer for
assistance. To locate your nearest Dealer, go
to www.ariens.com.
WARNING: Improper assembly or
adjustments can cause serious
injury.
Before Operat ing Unit
1. Make sure all assembly has been
properly completed.
2. Understand all safety precautions
provided in the manuals.
3. Review control functions and operation
of the unit. Do not operate the unit
unless all controls function as described
in this manual.
4. Review recommended maintenance and
adjustments.
5. Review Limited Warranty policy.
6. Complete a product registration card
and return it to Ariens Company or
register the product at www.ariens.com.
DISCLAIMER
Ariens reserves the right to discontinue,
change and improve its products at any time
without notice or obligation to the purchaser.
The descriptions and specifications contained
in this manual were current at the time of
printing. Equipment described within this
manual may be optional. Some illustrations
may not be applicable to your unit.
EN - 3
Page 4
SAFETY
WARNING: This machine is capable
of crushing or amputating body
parts. It is capable of throwing
objects. Failure to observe the safety
instructions in the manuals and on
decals could result in serious injury
or death.
Slopes are a major factor related to
slip and fall accidents. Operation on
all slopes requires extra caution.
Tragic accidents can occur if the
operator is not alert to the presence
of children. Never assume that
children will remain where you last
saw them.
Gasoline is extremely flammable
and the vapors are explosive; handle
with care.
Stop engine and allow moving parts
to stop before leaving operator’s
position.
Read these safety rules and follow them
closely. Failure to follow these rules could
lead to loss of control of machine, severe
personal injury or death to you or bystanders.
It may also result in damage to property or
machine.
SAFETY ALERT SYMBOL
These are safety alert
symbols. They mean:
• ATTENTION!
• YOUR SAFETY IS
INVOLVED!
When you see this symbol:
• BECOME ALERT!
• OBEY THE
MESSAGE!
SIGNAL WORDS
The safety alert symbols above and signal
words below are used on decals and in this
manual.
Read and understand all safety messages.
1. Danger
DANGER: Indicates an
IMMINENTLY HAZARDOUS
SITUATION! If not avoided, WILL
RESULT in death or serious injury .
2. Warning
WARNING: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided, COULD
RESULT in death or serious injury.
3. Caution
CAUTION: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY
RESULT in minor or moderate injury.
It may also be used to alert against
unsafe practices.
4. Notice
NOTICE: Indicates information or procedures
that are considered important but not hazard
related. If not followed property damage
could result.
5. Important
IMPORTANT: Indicates general reference
information worthy of special attention.
SAFETY DECALS
This machine is capable of crushing or
amputating body parts. It is capable of
throwing objects. Failure to observe the
following safety instructions could result in
serious injury or death.
The safety decals on the machine are visual
reminders of the important safety information
found in this manual. All messages found on
the machine must be fully understood and
carefully followed. Safety decals found on the
machine are explained below.
Always replace missing or damaged safety
decals. Replacement decal information is in
the Parts Manual for your machine. Decals
can be ordered from your Dealer.
See Figure 2 for safety decal locations.
EN - 4
Page 5
Safety Decal Identification
07700109
Figure 2
1
Safety Decal Description
1. DANGER!
Danger!
Read and understand the
Operator’s Manual before
operating unit.
Wear appropriate hearing
protection.
Stay away from rotating
parts.
Keep hands and feet away
from all rotating or moving
parts.
Shut off engine and read
manual before servicing or
making adjustments to unit.
NEVER direct discharge
toward people, pets or
property. Thrown objects
can cause injury or
damage.
Keep children and others
away from unit while unit is
in operation.
RULES FOR SAFE OPERATION
This machine is capable of crushing or
amputating body parts. It is capable of
throwing objects. Failure to observe the
following safety instructions could result in
serious injury.
The following safety instructions are based
on the B71.6 specifications of the American
National Standards Institute in effect at the
time of production.
Training
Read, understand and follow all instructions
on the machine and in the manual(s) before
operating this unit. Be thoroughly familiar
with the controls and the proper use of the
equipment. Know how to stop the unit and
disengage the controls quickly.
Never allow children to operate the
equipment. Never allow adults to operate
the equipment without proper instruction,
including actual operation.
Keep the area of operation clear of all
persons, particularly small children and pets.
Keep children under watchful care of a
responsible adult. Be alert and shut off unit if
children enter area.
EN - 5
Page 6
Keep in mind that the operator or user is
responsible for accidents or hazards
occurring to other people, their property and
themselves.
Always disconnect spark plug before
assembly, maintenance or service.
Unintentional engine start up can cause
death or serious injury.
Preparation
Always be aware of traffic when operating
along streets or curbs.
Always check overhead and side clearances
carefully before operation.
Complete a walk-around inspection of the
machine to understand the machine, your
work area and all safety decals.
Thoroughly inspect the area where the
equipment is to be used and remove all
foreign objects, such as pets, doormats,
sleds, boards, toys, wires and debris.
Thrown objects can cause injury.
Inspect equipment before operation.
Replace any worn or damaged parts.
Never attempt to make any adjustments
while the engine (motor) is running (except
when specifically recommended by
manufacturer).
Personal Protection
Do not operate the equipment without
wearing adequate outer garments and
safety goggles. Avoid loose-fitting clothing
and use protective footwear that will improve
footing on slippery surfaces.
Do not wear jewelry or loose-fitting clothing
that can get caught in moving parts. Tie back
hair that may get caught in moving parts.
Wear adequate safety gear to protect eyes,
face and head from objects that may be
thrown from unit. Wear safety glasses with
side shields, appropriate hearing protection
and protective gloves.
Fuel
Warning: Fuel is highly flammable. Take the
following precautions:
• Store fuel in containers specifically
designed for this purpose.
• Refuel outdoors only and do not
smoke while refueling.
• Add fuel before starting the engine.
Never remove the cap on the fuel
tank or add fuel while the engine is
running or when the engine is hot.
• Never fill containers inside a vehicle
or on a truck or trailer bed with a
plastic liner. Always place containers
on the ground, away from your
vehicle, before filling.
• When practical, remove gas-powered
equipment from the truck or trailer
and refuel it on the ground. If this is
not possible, then refuel such
equipment on a trailer with a portable
container, rather than f rom a gasoline
dispenser nozzle.
• Keep the nozzle in contact with the
rim of the fuel tank or container
opening at all times, until refueling is
complete. Do not use a nozzle lockopen device.
• Replace all fuel tank and container
caps securely.
• If fuel is spilled, do not attempt to
start the engine, but move the
machine away from the area of
spillage and avoid creating any
source of ignition until fuel vapors
have disappeared.
• Wipe up spilled fuel. If fuel is spilled
on clothing, change clothing
immediately.
Do not operate the engine (motor) in a
confined space where dangerous carbon
monoxide fumes can collect. Open the
outside doors; exhaust fumes are
dangerous.
Fuel is highly flammable and its vapors are
explosive. Handle with care. Use only an
approved gasoline container with an
appropriately sized dispensing spout.
No smoking, No sparks, No flames. Always
allow engine to cool before removing fuel
cap or servicing.
Check fuel supply before starting engine.
Never fill fuel tank when engine is running or
hot from operation.
EN - 6
Page 7
Do not mix oil with gasoline.
Do not overfill. Allow about 1/2" of tank
space for fuel expansion.
Do not overfill! This equipment and/or its
engine may include evaporative emissions
control system components, required to
meet EPA and/or CARB regulations, that will
only function properly when the fuel tank has
been filled to the recommended level.
Overfilling may cause permanent damage to
evaporative emissions control system
components. Filling to the recommended
level ensures a vapor gap required to allow
for fuel expansion. Pay close attention while
filling the fuel tank to ensure that the
recommended fuel level inside the tank is
not exceeded. Use a portable gasoline
container with an appropriately sized
dispensing spout when filling the tank. Do
not use a funnel or other device that
obstructs the view of the tank filling process.
Replace fuel cap securely and clean up
spilled fuel.
Never fill fuel tank indoors. Always drain fuel
outdoors away from ignition sources.
Never store the machine with fuel in the fuel
tank inside a building where ignition sources
are present, such as hot water and space
heaters, clothes dryers and the like. Allow
the engine to cool before storing in an
enclosure.
Operation
Start the engine (motor) carefully according
to the manufacturer’s instructions. Keep
hands and feet away from inlet and
discharge areas.
Do not put hands or feet near or under
rotating parts or at inlet or discharge
openings. Moving and/or rotating parts can
cut off body parts, such as fingers or a hand.
Always keep hands away from all pinch
points.
Keep children and pets away. Never allow
bystanders near the unit while running.
Do not touch machine parts which might be
hot from operation. Allow parts to cool
before attempting to maintain, adjust or
service.
Check for weak spots on docks, ramps or
floors. Avoid uneven work areas and rough
terrain. Stay alert for hidden hazards.
Exercise extreme caution when operating on
or crossing gravel drives, walks or roads.
Stay alert for hidden hazards or tr affic. Do
not carry passengers.
Remove hearing protection and watch for
traffic when operating near roadways.
Never pick up or carry machine while engine
is running.
Walk; never run.
Exercise caution to avoid slipping or falling.
Never operate the machine at high transport
speeds on hard or slippery surfaces.
After striking a foreign object, stop the
engine (motor), remove spark plug wire and
wait for all moving parts to come to a
complete stop. Thoroughly inspect the
machine for any damage and repair the
damage before restarting and operating the
machine.
If machine jams or hose becomes clogged,
stop the engine and allow moving parts to
completely stop. Use only a wooden stick to
remove debris.
If the machine vibrates abnormally, stop
engine (motor) and check immediately for
the cause. Vibration is generally a warning
sign of trouble.
Stop the engine (motor) whenever you leave
the operating position, when making any
repairs, adjustments or inspections, and
before unclogging the discharge chute.
Take all possible precautions as
recommended by the manufacturer when
leaving the machine unattended.
Before cleaning, repairing or inspecting,
shut off the engine (motor) and make certain
that all moving parts have come to a
complete stop. Disconnect the spark plug
wire and keep the wire away from the plug to
prevent accidental starting.
Do not operate the engine (motor) in a
confined space where dangerous carbon
monoxide fumes can collect. Open the
outside doors; exhaust fumes are
dangerous.
Never operate machine without proper
guards, plates or other safety protective
devices in place. Always keep protective
structures, guards, and panels in good
repair and securely fastened. Never modify
or remove safety devices.
Do not operate machine without collection
bag attached.
EN - 7
Page 8
Turn off engine when installing or removing
block-off plate.
Do not overload the machine by attempting
to chip or shred any material beyond
manufacturer’s recommendation.
Do not vacuum large amounts of sand or
gravel. These items are heavy and may
cause unit to become unstable and tip.
Do not vacuum flammable liquids, such as
gasoline, kerosene, diesel fuel, paint thinner,
etc.
Do not vacuum burning or smoldering
materials, such as cigars, cigarettes, ashes
or cinders.
Do not vacuum airborne combustibles, dust
from wood, paper, metal, glass, wire, etc.
Do not vacuum areas that have recently
been treated with fertilizers, pesticides or
herbicides. Follow the chemical
manufacturer's safety instructions regarding
contact with treated areas.
Do not operate on a paved, gravel or hard
surface without collection bag attached.
Discharged material may bounce from a
hard surface.
Do not change the engine govenor settings
or overspeed the engine.
Use extreme caution when reversing or
pulling machine toward you. Always back up
slowly and look down and behind before and
while backing.
Do not tilt machine when starting engine.
Use only attachments and accessories
approved by the manufacturer of the
machine.
This product is equipped with an internal
combustion type engine. Do not use unit on
or near any unimproved, forest- or brushcovered land unless exhaust system is
equipped with a spark arrester meeting
applicable local, state or federal laws. A
spark arrester, if used, must be maintained
in effective working order by operator.
Never operate machine without good
visibility or light.
Do not operate machine while under the
influence of alcohol, drugs or medication.
Safe operation requires complete and
unimpaired attention at all times.
Before installing or removing collection bag,
shut off engine and allow all moving parts to
completely stop.
Empty collection bag after each use. Do not
leave debris in bag while stored.
Decomposed debris may generate enough
heat to catch fire.
Slope Operation
Exercise extreme caution when operating on
slopes. Do not attempt to operate on steep
slopes.
Do not operate on slopes with greater than a
20° grade.
Avoid starting or stopping on a slope. Do not
park unit on a slope unless absolutely
necessary. When parking on a slope always
block the wheels to prevent unit from rolling.
Do not operate near drop-offs, ditches, or
embankments. Unit can suddenly turn over if
a wheel is over the edge of a cliff or ditch, or
if an edge caves in.
Be prepared to react to an emergency when
operating on slopes:
• Release drive control lever.
• Turn off engine.
Maintenance and Storage
Secure unit so it will not tip over during
maintenance.
Before inspecting or servicing machine, shut
off engine, disconnect wire from spark plug
and allow moving parts to completely stop.
Allow hot parts to cool.
Keep machine, attachments and
accessories in safe working condition.
Check engine-mounting bolts and other
hardware at frequent intervals for proper
tightness to be sure the equipment is in safe
working condition. If components are worn
or damaged, replace with manufacturer’s
recommended parts.
Check discharge area frequently for wear
and/or deterioration.
Adjust and service as required. All motion of
drive wheels and moving parts must stop
quickly when control levers are released.
Always maintain unit in safe operating
condition. Damaged or worn out muffler can
cause fire or explosion.
EN - 8
Page 9
Keep engine and fuel storage area free of
Figure 3
Operator Zone
debris, such as grass, leaves or excessive
grease. Clean up oil or fuel spills.
Never store the machine with fuel in the fuel
tank inside a building where ignition sources
are present, such as hot water and space
heaters, clothes dryers and the like. Allow
the engine to cool before storing in an
enclosure or covering the unit.
Follow the manufacturer’s recommendations
for safe loading, unloading and storage of
machine.
Always refer to operator's manual for
important details if the machine is to be
stored for an extended period.
If fuel tank has to be drained, do this
outdoors.
Maintain or replace safety and instruction
labels as necessary.
Towing/Transporting
Always shut off engine and close fuel shutoff valve or drain fuel when transporting unit
on a truck or trailer.
Use extra care when loading or unloading
unit onto trailer or truck. Secure unit chassis
to transport vehicle. Never secure from rods
or linkages that could be damaged. Do not
transport machine while engine is running.
OPERATOR ZONE
This unit is designed to be operated by one
person located in the operator zone. See
Figure 3.
Accessories
Use only Ariens Company-recommended
attachments that are appropriate to your use
and can be used safely in your application.
EN - 9
Page 10

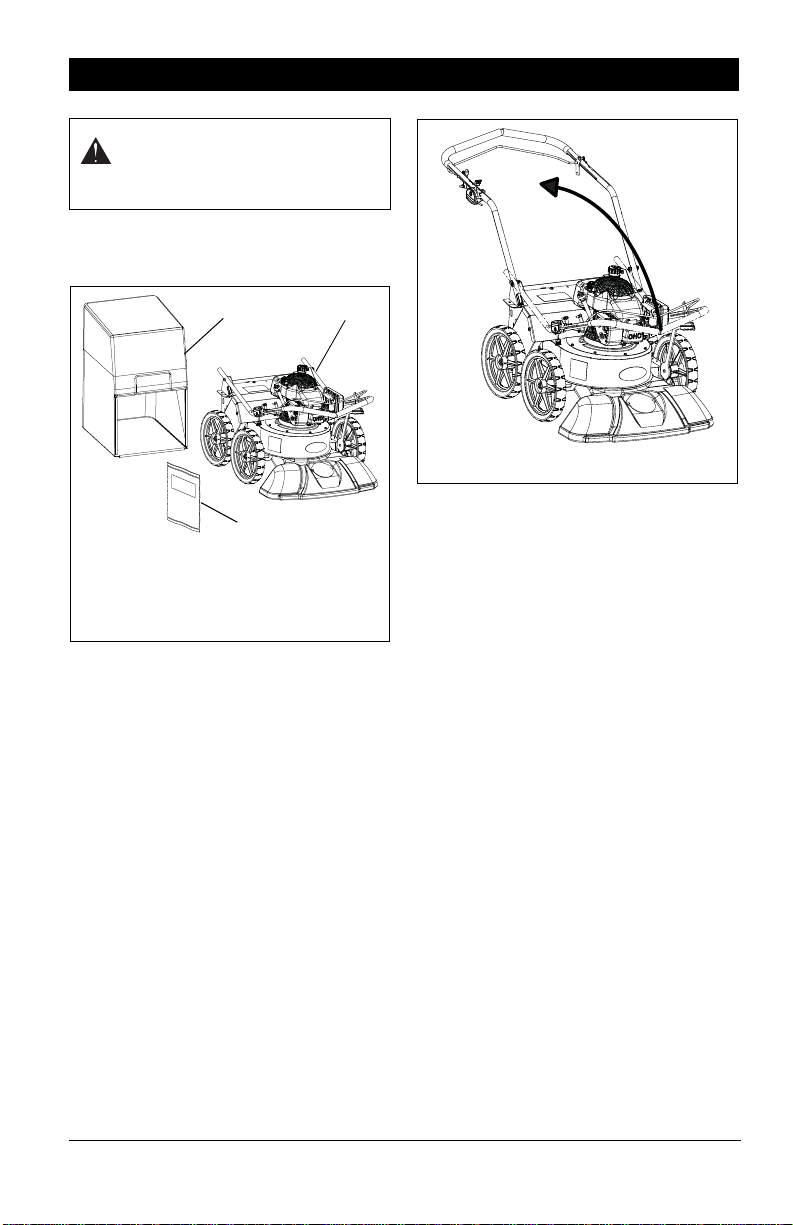

CAUTION: A VOID INJURY. Read
Figure 4
1
2
3
1. APV Unit
2. Collection Bag
3. Literature Pack
Figure 5
and understand the entire
SAFETY section before
proceeding.
CARTON CONTENTS
See Figure 4.
ASSEMBLY
2. Hook bottom of collection bag under unit
frame and move bag handle forward and
upward to attach collection bag. See
Collection Bag on page 12.
3. Check engine oil level and add oil if
necessary. See
4. Fill fuel tank. See Fuel Tank on page 13.
Engine Oil on page 14.
ASSEMBLY
1. Push down on handlebar adjustment bar
and rotate handlebar to desired position.
See
Handlebar Adjustment Bar on page 12
and Height Adjustment Handle on
page 12.
Figure 5. See Drive Control Bar /
EN - 10
Page 11
CONTROLS AND FEATURES
1
5
7
8
9
10
3
12
11
6
4
2
13
Figure 6
1. Drive Control / Handlebar Adjustment
Bar
2. Throttle / Choke Control Lever
3. Oil Fill & Dipstick
4. Oil Drain Plug
5. Collection Bag
6. Collection Bag Handle
7. Recoil Starter Handle
8. Fuel Tank & Cap
9. Height Adjustment Handle
10. Vacuum Inlet
11.Handlebar Adjustment Bracket
12. Fuel Shut-off Valve
13. Interlock Switch
EN - 11
Page 12

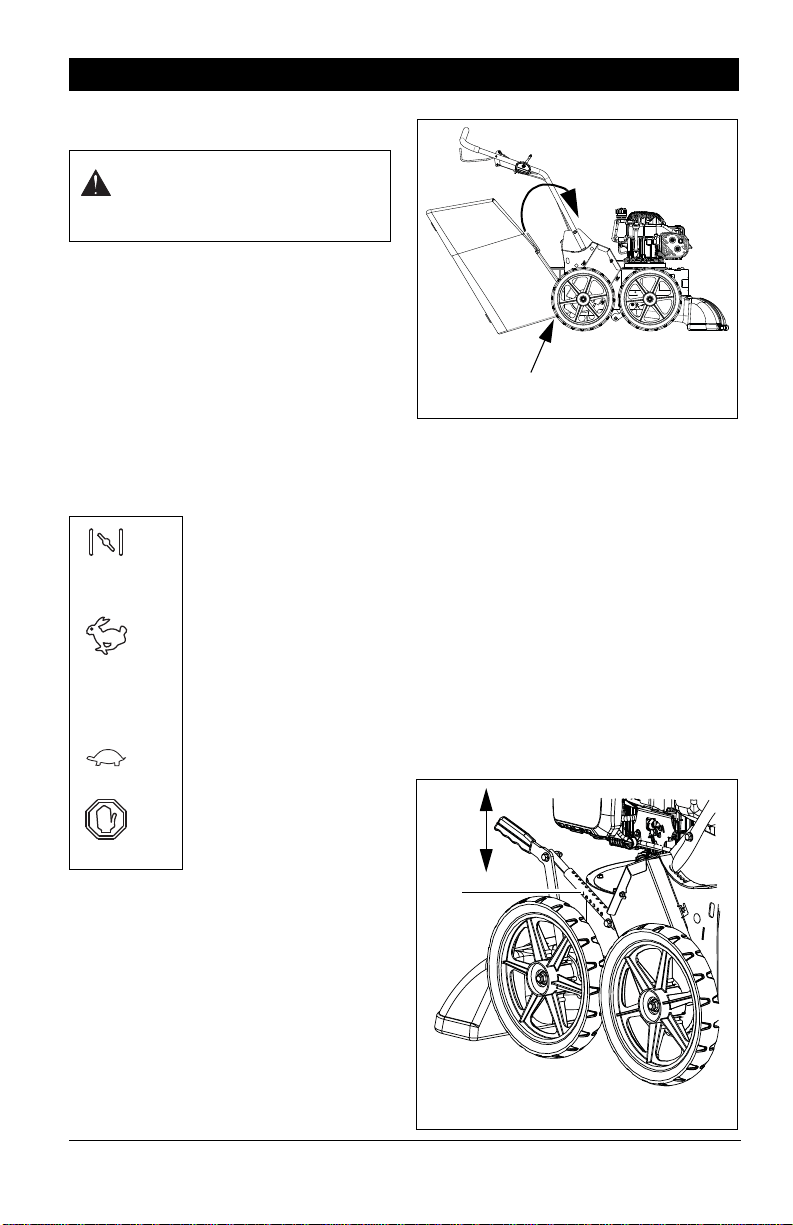

OPERATION
2
4
1
3
Figure 7
1
2
Figure 8
1
1. Pin Hole Locations
CONTROLS AND FEATURES
WARNING: AVO ID INJURY.
Read and understand the entire
SAFETY section before
proceeding.
See Figure 6 for all controls and features
locations.
Drive Control Bar / Handlebar
Adjustment Bar
(Item 1)
Model 995049: Hold the drive control bar
against the handlebar to engage traction.
Push down on handlebar adjustment bar to
adjust handlebar height. See
Adjustment Bracket on page 13.
Throttle / Choke Control Lever
(Item 2)
Push choke lever to FULL
FULL
CHOKE
FAST
SLOW
CHOKE (1) to start a cold
engine. Pull lever to the
rear as engine temperature
rises.
Move throttle lever to FAST
(2) to increase engine
speed.
Move throttle lever to
SLOW (3) to decrease
engine speed.
Handlebar
IMPORTANT: Bag must be in proper position
to engage interlock switch and start engine.
Recoil Starter Handle
(Item 7)
When pulled, handle will start engine.
IMPORTANT: Do not let handle snap back
against engine.
Height Adjustment Handle
(Item 9)
To adjust the height of operation, push down
on height adjustment handle and remove pin
from pin hole. See
• To raise height, push down on handle
to desired height and insert pin.
• To lower height, lift handle to desired
height and insert pin.
Figure 8.
Move throttle lever to STOP
STOP
Collection Bag
(Item 5)
Empty collection bag when full and after each
use.
1. T o remove bag, li ft collection bag handle
(Item 6) upward and backward.
2. T o attach bag, hook bottom of bag under
unit frame and move bag handle forward
and upward. Make sure bag engages
the interlock switch for proper starting
and operation. See
(4) to shut off engine.
Figure 7.
EN - 12
Page 13

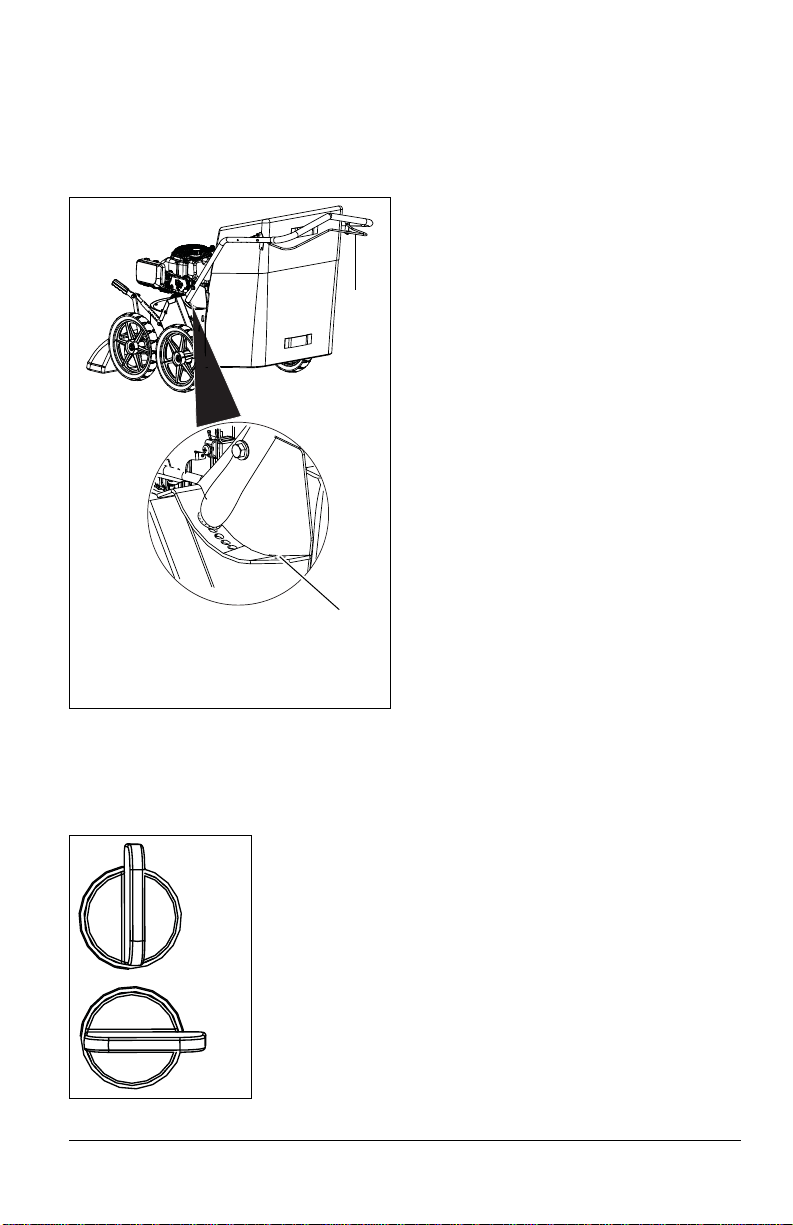

Handlebar Adjustment Bracket
Figure 9
2
1
1. Handlebar Adjustment Bar
2. Storage Position Hole
1
2
(Item 11)
To adjust handlebar position, push down on
handlebar adjustment bar
handlebar to desired position and release
bar. Make sure locking pin is fully seated in
bracket hole. See
(Item 1), move
Figure 9.
Fuel Shut-off Valve
(Item 12)
IMPORTANT: The fuel shut-off valve MUST
be closed (OFF) before transporting the unit.
The valve has two positions:
1. OFF
Use this position
to service,
transport or store
the unit.
2. ON
Use this position
to run the unit.
Interlock Switch
(Item 13)
The interlock switch engages when the
collection bag is attached, allowing the unit to
start and continue running. Unit will shut off if
switch is not activated.
IMPORTANT: Bag must be in proper position
to engage the interlock switch. See
Bag on page 12.
Collection
GASOLINE
IMPORTANT: Always use gasoline that
meets the following guidelines:
• Clean, fresh gasoline.
• A minimum of 87 octane/87 AKI (91
RON). High altitude use may require a
different octane. See Engine Manual.
• Gasoline with up to 10% ethanol
(gasohol) or up to 10% MTBE (methyl
tertiary butyl ether) is acceptable.
• Use of any gasoline other than those
approved above may void the engine
warranty. If gas pumps are not marked
for the content of alcohol or ethers,
check ethanol and MTBE levels with
the fuel supplier.
• Do not modify the fuel system to use
different fuels.
• Never mix oil and gasoline.
NOTICE: All gasoline is not the same. If the
engine experiences starting or performance
problems after using a new gasoline, switch
to a different fuel provider or fuel brand.
IMPORTANT: Excessively oxygenated or
reformulated fuels (fuels blended with
alcohols or ethers) can damage the fuel
system or cause performance problems. If
any undesirable operating problems occur,
use a gasoline with a lower percentage of
alcohol or ether.
Fuel Tank
To add fuel:
1. Turn engine off and let cool for at least
three minutes.
2. Clean fuel cap and surrounding area to
prevent moisture and debris from
entering fuel tank.
3. Remove fuel cap and fill fuel tank to
bottom of filler neck. See
SPECIFICATIONS on page 19 for fuel
tank capacity. Do not overfill.
IMPORTANT: See Engine Manual for correct
type and grade of fuel.
4. Clean up any spilled fuel. Replace fuel
cap and tighten.
EN - 13
Page 14
ENGINE OIL

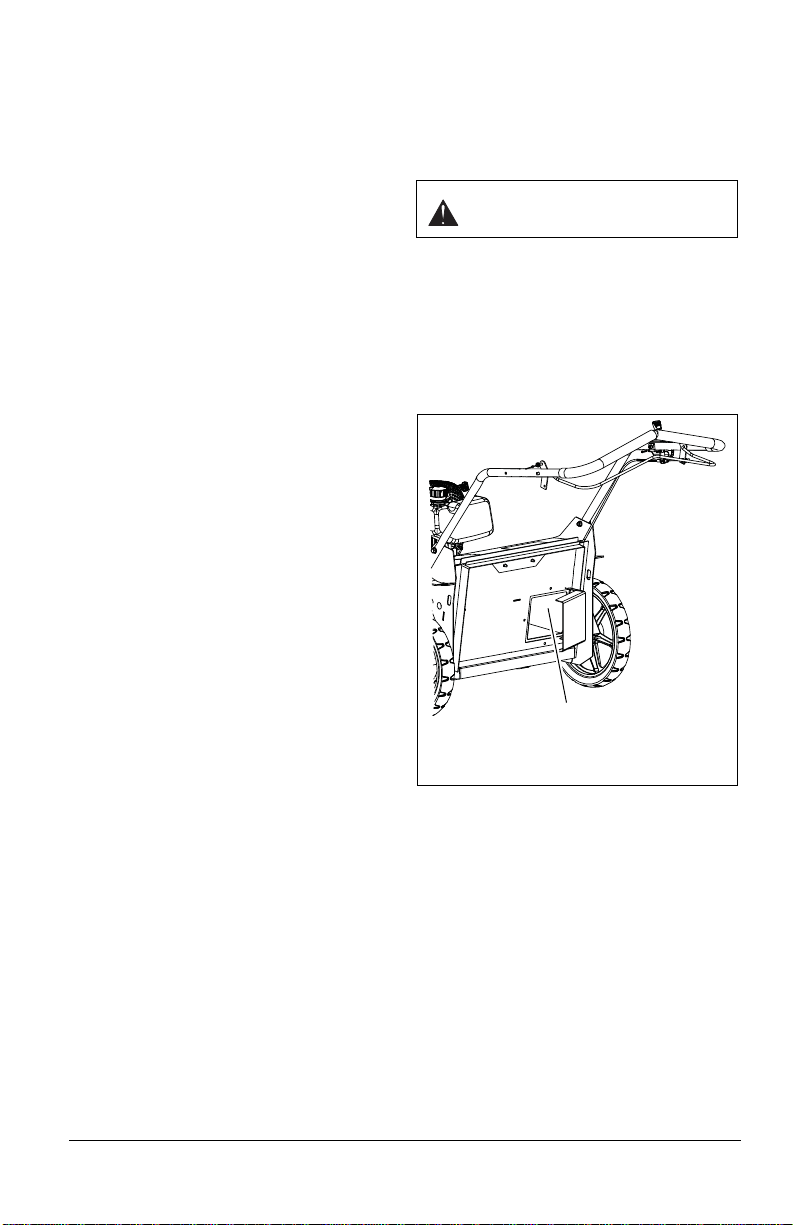

Figure 10
1
1. Discharge Chute
IMPORTANT: Make sure engine is level
when checking oil.
To check oil level:
1. Turn engine off and let cool for at least
three minutes.
2. Remove cap from oil fill.
3. Check oil level on dipstick. Oil level must
be maintained at safe operating level.
SPECIFICATIONS on page 19. See
See
Engine Manual for detailed information.
4. Replace cap.
To add oil:
1. Turn engine off and let cool for at least
three minutes.
2. Remove cap from oil fill and add oil. Do
not overfill. See Engine Manual.
3. Replace cap.
4. Clean up any spilled oil.
OPERATION
For Best Performance
Operate with vacuum inlet as close to ground
as possible without blocking airflow.
Under extremely dusty conditions, empty and
clean bag frequently.
Start Engine
1. Check oil level. See Engine Oil on
page 14.
2. Make sure collection bag is properly
attached. See
page 12 and Interlock Switch on
page 13.
3. Open fuel shut-off valve.
4. Move throttle cont ro l le ver to FAST.
IMPORTANT: If engine is cold, move throttle
control lever to FULL CHOKE. Do not apply
choke to a warm engine.
5. Slowly pull recoil starter handle until
engine compression makes pulling
difficult. Let starter rewind a little and
then pull smoothly and quickly.
6. Repeat Step 5 as needed.
7. Gradually move throttle control lever out
of FULL CHOKE position after engine
starts.
IMPORTANT: If engine does not start after
three attempts, see
on page 18.
Stop Engine
1. Release drive control bar.
2. Move throttle contro l le ver to STOP.
Collection Bag on
TROUBLESHOOTING
3. Remove hearing protection and listen for
all moving parts to completely stop.
4. If finished with unit, close fuel shut-off
valve.
CLEARING CLOGS
WARNING: AVOID INJURY.
Never use hands to clear clogs.
1. If discharge clogs, STOP THE ENGINE
IMMEDIATEL Y and disconnect the spark
plug wire from the spark plug. W ait for all
moving parts to completely stop.
2. Empty and clean collection bag if
overfilled. While bag is removed, use a
stick to clear any debris from discharge
chute. See
Figure 10.
ADJUSTING DRIVE BELT
TENSION
Model 995049
If unit starts to slow (especially while moving
uphill) or seems to be losing power, adjust
tension on the drive belt.
1. Loosen four screws on transmission
cover and slide cover forward to remove.
2. Remove two screws on belt cover and
remove cover. Retain hardware.
3. Engage drive control bar. The extension
spring will lengthen. See
Figure 11.
EN - 14
Page 15

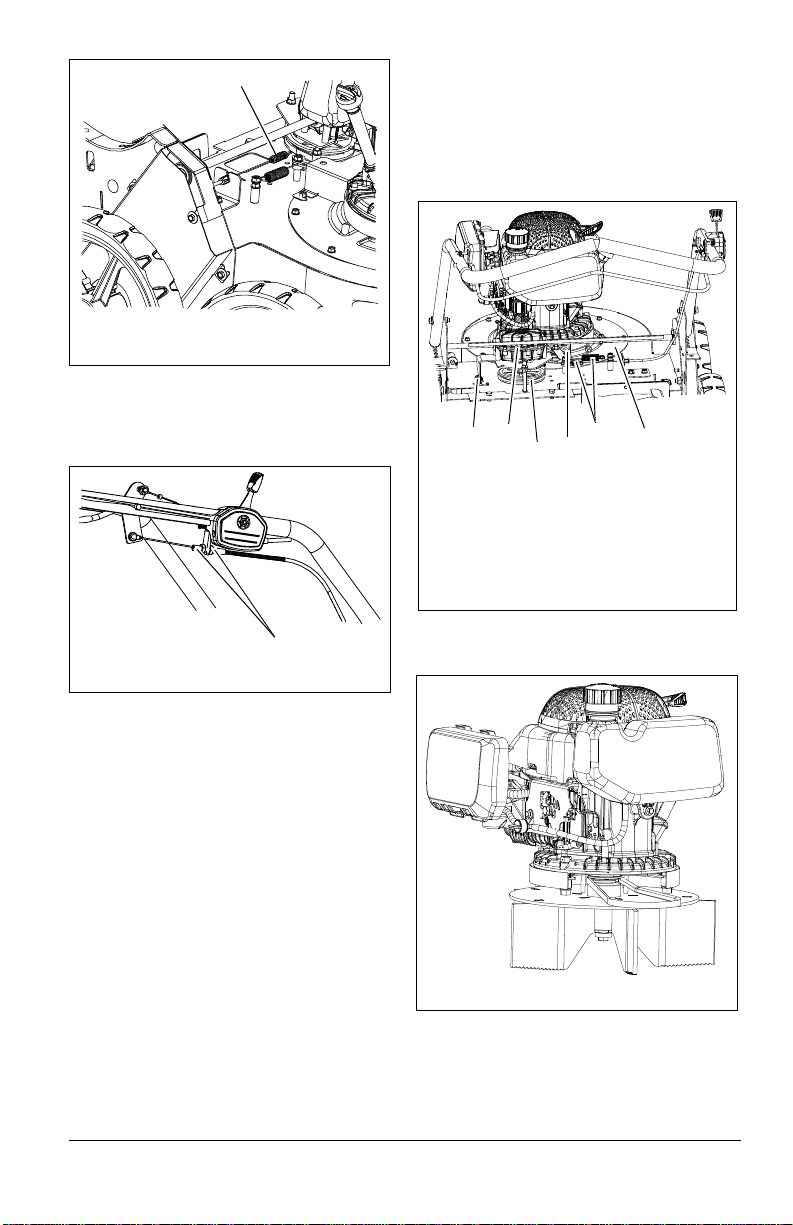

4. Set the drive control tension at the point
Figure 11
1
1. Spring
Figure 12
Adjust here.
Figure 13
1
2
3
4
5
6
1. Springs
2. Idler
3. Block-off Plate and Spring
4. Transmission
5. Transmission Sheave
6. Engine Mounting Plate
Figure 14
when the spring first begins to lengthen
by tightening or loosening the nuts on
the drive control cable. See
Figure 12.
5. Remove belt from transmission sheave.
6. Rotate transmission toward engine.
7. Remove screws from engine mounting
plate and lift engine from unit. Retain
hardware.
IMPORTANT: DO NOT remove impeller
assembly from engine.
8. Remove belt from engine sheave. See
Figure 14.
NOTICE: For maximum belt life, use the
minimum amount of tension needed for unit
to operate properly. Over-tensioning leads to
premature belt failure.
5. Reinstall belt cover using hardware
removed in Step
6. Reinstall transmission cover using
hardware from Step
REPLACING DRIVE BELT
Model 995049
See Figure 13.
1. Loosen four screws on transmission
2. Remove two screws on belt cover and
3. Disconnect springs from idler and drive
4. Remove block-off plate from frame.
cover and slide cover forward to remove.
remove cover. Retain hardware.
control cable and rotate idler away from
engine mounting plate.
Retain plate, spring and hardware.
2.
1.
9. Install new belt on engine sheave.
10. Reinstall engine on unit and secure with
screws removed in Step
11.Install belt on transmission sheave and
rotate transmission away from engine.
EN - 15
7.
Page 16
12. Reinstall spring and block-off plate using
hardware removed in Step
13. Attach springs to idler and rotate idler
into position.
14. Reinstall belt cover using hardware
removed in Step
15. Reinstall transmission cover using
hardware from Step
2.
4.
.
TRANSPORTING UNIT
1. Always shut off engine and close fuel
shut-off valve when transporting on a
truck or trailer.
MAINTENANCE SCHEDULE
2. Use extra care when loading or
unloading onto truck or trailer.
3. Secure unit chassis to transport vehicle.
Never secure from rods or linkages that
could be damaged.
4. Do not transport unit while engine is
running.
WARNING: AVOID INJURY. Read
and understand the entire
SAFETY section before
proceeding.
IMPORTANT: Proper maintenance can
prolong the life of unit. The following chart
shows the recommended service schedule.
Interval Task Action
Check and clean
collection bag.
Each Use
Clean unit. Remove debris with a soft-bristled brush. Do not
Check engine oil. See Engine Oil on page 14.
Follow engine
maintenance schedule.
Every 10 Hours Check fasteners. Check all fasteners. Replace missing or
As Needed Lubricate throttle
control cable.
Remove and vigorously shake bag or use
compressed air to remove dust and debris.
Check bag for wear or deterioration. Replace
worn or damaged bag with Ariens original
replacement bag only.
IMPORTANT: If necessary, use a pressure
washer to clean bag. Allow bag to completely dry
before use. It may be useful to have a spare bag
available.
use harsh abrasives or cleaners.
Perform scheduled engine maintenance. See
Engine Manual for detailed instructions.
damaged fasteners. Tighten all nuts and bolts to
correct torque values.
Add a few drops of oil to throttle control cable
and wire for smooth operation.
EN - 16
Page 17
STORAGE
SHORT TERM
Clean unit thoroughly with mild soap and lowpressure water. Never spray unit with highpressure water. Do not use abrasives,
solvents or harsh cleaners.
Inspect unit for visible signs of wear,
breakage or damage and repair as needed.
Keep all nuts, bolts and screws properly
tightened and know unit is in safe working
condition.
Do not store unit outdoors. Store in a cool,
dry, protected area.
Protect bare-metal areas with a light coat of
oil or anti-rust compound.
Collection bag may be stored in position on
unit.
LONG TERM
Perform all short term storage items.
Touch up all scratched painted surfaces.
Matching touch-up paint is available from
your Dealer.
Remove all fuel from fuel tank and carburetor
(run dry). See Engine Manual.
Remove all debris from collection bag.
Decomposed debris may generate enough
heat to catch fire.
Fuel Stabilizer
Gasoline left in the fuel system for extended
periods without a stabilizer will deteriorate,
resulting in gum deposits in the system.
These deposits can damage the carburetor
and the fuel hoses, filter and tank. Prevent
deposits from forming in the fuel system
during storage by adding a quality fuel
stabilizer to the fuel. Follow the
recommended mix ratio found on the fuel
stabilizer container.
To treat the fuel system for storage:
1. Add fuel stabilizer (Ariens part number
00592900) according to manufacturer’s
instructions.
2. Run engine for at least 10 minutes after
adding stabilizer to allow it to reach the
carburetor.
Never store the engine with fuel in the fuel
tank inside of a building with potential
sources of ignition.
To Take Unit Out of Storage
1. See Engine Service Manual to prepare
engine for service.
2. Put fresh, clean fuel in fuel tank.
3. Begin maintenance schedule.
EN - 17
Page 18
TROUBLESHOOTING
Problem Probable Cause Correction
Fuel tank empty. Fill fuel tank with fuel. See Fuel Tank on page 13.
Engine will not
start.
Vacuu m fails to
pick up debris.
Engine runs
briefly and stops.
Vacuum will not
self-propel (if
equipped).
Throttle is in STOP
position.
Buildup of dirt and
residue around
govenor/carburetor.
Interlock switch is not
engaged.
Collection bag is full. Shut off engine and empty bag. See Collection
Clog in vacuum inlet. Shut off engine and check for clog in discharge
Polluted fuel supply. Replace with clean fuel. See Fuel Tank on
Interlock switch is not
engaged.
Drive control bar is not
engaged.
Drive belt is worn or
broken.
Drive belt cable is out of
adjustment or broken.
Move throttle control lever to desired position.
Use FAST to start a warm engine; use FULL
CHOKE to start a cold engine.
Clean around govenor/carburetor.
Ensure collection bag is properly installed. See
Collection Bag on page 12 and Interlock Switch
on page 13. See Dealer for repair.
Bag on page 12.
chute or vacuum inlet. See
page 14.
page 13.
Ensure collection bag is properly installed. See
Collection Bag on page 12 and Interlock Switch
on page 13. See Dealer for repair.
Engage the drive control bar. See Drive Control
Bar / Handlebar Adjustment Bar on page 12.
Replace belt. See Replacing Drive Belt on
page 15.
Adjust cable. See Adjusting Drive Belt Tension on
page 14.
Clearing Clogs on
EN - 18
Page 19
SERVICE PARTS
See your authorized Ariens dealer for
genuine OEM service parts.
Part No. Qty Description
00592900 AR Fuel Stabilizer (4 oz)
04675700 1 Felt Bag
21100122 1 Spark Plug
21100120 1 Air Filter
See your authorized Ariens dealer to add
these optional accessories to your unit.
Part No. Description
79529400 Hose Kit
79529600 Mesh Bag Kit
ACCESSORIES
SPECIFICATIONS
Model Number 995049 995051
Model Self-Propelled Push
Starter Recoil
Engine
Engine Subaru
Engine Model Number EA190V
Engine Size 189cc
Max RPM 3800
Oil Capacity: Pt. (L) 1.3 (0.6)
Fuel Tank Capacity: Qt. (L) 1.28 (1.2)
Fuel Octane Rating See Engine Manual
Size and Weight
Length: in. (cm) 53 (134.6)
Width: in. (cm) 31.25 (79.4)
Height: in. (cm) 18.25 (46.4)
Weight: lbs. (kg) 170 (77.1) 152 (68.9)
EN - 19
Page 20
Sno-Thro®, Sno-Tek® and
Chore Performing Equipment
Limited Warranty
Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely, Parker, and Countax
brand chore performing equipment (including Sno-Thro
1/1/2013 will be free from defects in material and workmanship for the time period noted in the chart below.
Equipment put to personal use around a single household or residence is considered “Consumer Use”;
equipment put to any business use (agricultural, commercial, or industrial) or used at multiple locations is
considered “Commercial Use.” If any product is rented or leased, then the duration of these warranties shall
be 90 days after the date of purchase.
An authorized Ariens dealer (Ariens brand products), Gravely dealer (Gravely brand products), Parker dealer
(Parker brand products), or Countax dealer (Countax brand products) will repair any defect in material or
workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions
set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser
except as noted below.
Warranty
Code
PA Log Splitters, Brushes, String Trimmers, Edgers 3 Years 90 Days
PB Professional Powered Brushes 3 Years 1 Year
PC Tillers 2 Years 90 Days
Vacuums, Blowers, Sweepers, Truck Loaders,
PD
Lawn Rakes, Sprayers, Aerators, etc.
PE Pressure Washer, Generators 3 Years 1 Year
SA
Professional Sno-Thro
Compact, Deluxe, Platinum, AMP™ Sno-Thro®,
SB
Path-Pro
SC
Sno-Tek
UA Utility Vehicles 1 Year 1 Year
N/A Service (Replacement) Parts 90 Days (no labor) 90 Days (no labor)
Product Group
®
®
®
®
and Sno-Tek® equipment) purchased on or after
Warranty Period
Consumer Use
1 Year 1 Year
3 Years 1 Year
3 Years 90 Days
2 Years 90 Days
Warranty Period
Commercial Use
Special Extensions
The chart below details special extensions to this warranty:
Warranty
Code
SA
SB
SB
Warranty Exception
Cast Iron Auger
Gear Case
Cast Iron Auger
Gear Case
Batteries for AMP™
®
Sno-Thro
Warranty
Period
5 Years All
5 Years Consumer
2 Years Consumer 100% first year; prorated second year.
Use Detail
5 Years for all users including
Commercial
5 Years for Consumer use;
1 Year for Commercial Use
Sno-Chore 2013EN - 20
Page 21
Exceptions and Limitations
The chart below details special exceptions to this warranty:
Warranty
Code
SA, SB,
Warranty Exception
All Batteries 1 Year All Prorated
All Belts, Muff ler, Tires None Commercial
Cloth, Plastic, and
Rubber Components
All
(Including Belts and
Cables)
Idlers
SC
All Engines
Warranty
Period
Maximum
2 Years
Maximum
2 Years
See Engine
Manufacturer ’s
Warranty
Use Detail
These components are not covered
when used commercially.
Warranty is limited to 2 years for
consumer use. (1 year for warranty
code "PD".) Except as noted above,
All
these components are covered for
defect, not for wear.
Warranty is limited on idlers to
All
2 years for consumer us e.
Engines are covered by engine
manufacturer’s warranty. Refer to
All
engine manufacturer’s warranty
statement.
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must complete the product registration card in the literature package and return it to Ariens
Company, or register the unit online at www.ariens.com, www.gravely.com, www.countax.com or
www.parkersweeper.com.
To obtain warranty service, the original purchaser must:
• Perform the maintenance and adjustments explained in the Owner's Manual.
• Promptly notify Ariens or an authorized Ariens, Gravely, Parker or Countax service representative of
the need for warranty service.
• Transport the product to and from the place of warranty service at owner's expense.
• Have the warranty service performed by an authorized Ariens, Gravely, Parker or Countax service
representative.
To Find an Authorized Service Representative:
In the U.S. and Canada:
Use the dealer locator on our websites: www.ariens.com • www.gravely.com
Or contact us by mail or by phone:
In the U.S., Ca n a da , M ex i co , Ca r i bb ea n,
Central and South America:
Ariens Company
655 W. Ryan Street
Brillion, WI 54110
Phone: (920) 756 - 4688
www.ariens.com
In Europe, Asia, Africa or
the Middle East:
Countax Ltd, Countax House
Great Haseley, Oxfordshire,
OX44 7PF
Phone: 0800 597 7777
www.countax.com
In Australia or New Zealand:
Ariens Company
Building 2
6 Wedgewood Rd.
Hallam, Victoria 3803 Australia
Phone: (03) 9796 4244
1800 335 489
www.ariens.com.au
Sno-Chore 2013EN - 21
Page 22
Exclusions – Items Not Covered by This Warranty
• Parts that are not genuine Ariens, Gravely, Parker or Countax service parts are not covered by this
warranty and may void the warranty.
• Damages resulting from the installation or use of any part, accessory, or attachment which is not
approved by the Ariens Company for use with product(s) identified herein are not covered by this
warranty.
• The following maintenance, service and replacement items are not covered by this warranty unless
they are noted in the Limitations section above: lubricants, spark plugs, oil, oil filters, air filters, fuel
filters, brake linings, brake arms, brake shoes, skid shoes, scraper blades, shear bolts, mower
blades, mower vanes, brushes, headlights, light bulbs, knives, cutters, and single-stage impellers.
• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which
requires repair is not covered by this warranty.
• Use of gasoline blends exceeding 10% ethanol voids any and all warranties.
• Products are designed to the specifications in the area that the product was originally distributed.
Different areas may have significantly different legal and design requirements. This warranty is lim
ited to the requirements in the area in which the unit was originally distributed. Ariens Company
does not warrant this product to the requirements of any other area. Warranty service is limited to
service within the area originally distributed.
• In countries other than the United States and Canada, contact the Ariens Company dealer for warranty policies that govern within your country. Rights may vary from country to country and within
any one country.
• Normal Wear: This warranty does not cover repair when normal use has exhausted the useful life of
a part such as a high pressure hose, spray wand, nozzles, trigger handle, supply hoses, quick cou
plers, gaskets, valves, pistons, pump valve assemblies, o-rings, water and oil seals.
Special Exclusions on Utility Vehicles
The following uses void the warranty terms on Utility Vehicles (Warranty Code UA):
• Renting or leasing the utility vehicle.
• Using the utility vehicle to tow or carry loads in excess of the limits specified in the Owner/Operator
Manual.
• Modifying the utility vehicle with parts and accessories that are not genuine or authorized Ariens or
Gravely parts or accessories.
• Modifying the utility vehicle without express written authorization from Ariens Company.
• Operating the utility vehicle when it has not been completely and properly assembled and
pre-delivered by an authorized Gravely dealer.
Disclaimer
Ariens Company may from time to time change the design of its products. Nothing contained in this warranty
shall be construed as obligating Ariens Company to incorporate such design changes into previously
manufactured products, nor shall such changes be construed as an admission that previous designs were
defective.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company's liability under this warranty, and under any implied warranty that may exist, is limited to
repair of any defect in workmanship, and repair or replacement of any defective part. Ariens Company shall
not be liable for incidental, special, or consequential damages (including lost profits). Some states do not
allow the exclusion of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
AUSTRALIAN CONSUMER LAW
The following applies solely to warranties subject to Subsection 102(1) of the Australian Consumer Law: Our
goods come with guarantees that cannot be excluded by the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and failure does not amount to a major failure.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express or implied, other than what is expressly made in this
warranty. If the law of your state provides that an implied warranty of merchantability, or an implied
warranty of fitness for particular purpose, or any other implied warranty, applies to Ariens Company,
then any such implied warranty is limited to the duration of this warranty. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from region to region.
-
-
Sno-Chore 2013EN - 22
Page 23
Page 24
655 West Ryan Street
Brillion, WI 54110
920-756-4688
Fax 920-756-2407
www.ariens.com
Loading...
