Sno-Thro 921 Series
E10
Parts Manual
®
Models
921013 – Deluxe 30
(SN 075000 +)
921017 – Deluxe 24 Platinum
(SN 075000 +)
921018 – Deluxe 30 Platinum
(SN 075000 +)
921022 – Deluxe 28
(SN 075000 +)
921023 – Deluxe 28 Track
(SN 075000 +)
921027 – Deluxe 28
(SN 000101 +)
921031 – Deluxe 24
(SN 075000 +)
921034 – Deluxe 28
(SN 075000 +)
921314 – Deluxe 28
(SN 000101 +)
921315 – Deluxe 30
(SN 000101 +)
921316 – Deluxe 28 Track
(SN 000101 +)
921317 – Deluxe 24 Track
(SN 000101 +)
921318 – Deluxe 24
(SN 000101 +)
The use of any gasoline exceeding 10% ethanol (E10) or 10% MTBE will void the product warranty.
L’utilisation d’une essence contenant plus de 10% d’éthanol (E10) ou de 10% de MTBE annulent la
garantie.
El uso de cualquier otro tipo de gasolina con un porcentaje superior al 10% de etanol (E10) o al 10% de
MTBE invalidará la garantía del producto.
04336000D 2/13
Printed in USA
THE MANUAL
PRODUCT REGISTRATION
Before you operate your unit, carefully and completely
read manuals supplied with the unit. The contents will
provide you with an understanding of safety instructions
and controls during normal operation and maintenance.
For your safety and the safety of others always read,
understand, and follow all DANGER, WARNING, and
CAUTION messages found in manuals and on safety
decals.
Hardware descriptions are given in decimals.
Decimals to Fractions
.063 1/16 .563
.125 1/8 .625
.188 3/16 .688
.250 1/4 .750
.313 5/16 .813
.375 3/8 .875
.438 7/16 .938
.500 1/2 1.00
9/16
5/8
11/16
3/4
13/16
7/8
15/16
1
SERVICE AND REPLACEMENT PARTS
When ordering replacement parts or making service
inquiries, know the Model and Serial numbers of your
unit and engine.
Numbers are located on the product registra tio n ca rd in
the unit literature package. They are printed on a serial
number label, located on the frame of your unit.
• Record Unit Model and Serial numbers here:
The Ariens dealer must register the product at the time of
purchase. Registering the product will help the company
process warranty claims or contact you with the latest
service information. All claims meeting requirements
during the limited warranty period will be honored,
whether or not the product registration card is returned.
Keep a proof of purchase if you do not register your unit.
Customer Note: If Dealer does not register your product,
please fill out, sign and return the product registration
card to Ariens or go to www.ariens.com.
YOUR SATISFACTION IS IMPORTANT
Questions? Please follow these helpful steps:
1. Refer to the manuals supplied with your unit.
They will guide you through safe and proper
operation and maintenance.
They contain specifications on your unit.
If your questions are not answered in these manuals,
go to step number two.
2. Contact Your Dealer.
Our dealers will be happy to supply any service or
advice required to keep your unit operating at peak
efficiency.
A factory trained staff is available to support your
equipment needs. They stock genuine Ariens parts
and lubricants manufactured with the same precision
and skill as the original.
If your questions are not resolved by the support
staff, ask for the manager or owner.
When contacting your Dealer supply your mo del and
serial numbers.
• Record Engine Model and Serial numbers here:
UNAUTHORIZED REPLACEMENT PARTS
Use only Ariens replacement parts. The replacement of
any part on this vehicle with anything other than an
Ariens authorized replacement part may adversely affect
the performance, durability , or safety of this unit and may
void the warranty. Ariens disclaims liability for any claims
or damages, whether warranty, property damage,
personal injury or death arising out of the use of
unauthorized replacement parts.
TO SPEED PARTS ORDERING:
1. Know the model and serial numbers of your unit.
2. Know the part number required.
3. Know the quantity required.
4. Know the part description.
2
MODELS
Domestic
Model 921013 (Deluxe 30)
30” Sno-Thro, 120V Electric Start
Serial No. 075000 and up
TABLE OF CONTENTS
DECALS
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Model 921017 (Deluxe 24 Platinum)
24” Sno-Thro, 120V Electric Start
Serial No. 075000 and up
Model 921018 (Deluxe 30 Platinum)
30” Sno-Thro, 120V Electric Start
Serial No. 075000 and up
Model 921022 (Deluxe 28)
28” Sno-Thro, 120V Electric Start
Serial No. 075000 and up
Model 921023 (Deluxe 28 Track)
28” Sno-Thro, 120V Electric Start
Serial No. 075000 and up
Model 921027 (Deluxe 28)
28” Sno-Thro, 120V Electric Start
Serial No. 000101 and up
Model 921031 (Deluxe 24)
24” Sno-Thro, 120V Electric Start
Serial No. 075000 and up
Model 921034 (Deluxe 28)
28” Sno-Thro, 120V Electric Start
Serial No. 075000 and up
ENGINE AND DRIVE
Engine and Belt Drive . . . . . . . . . . . . . . . . . . . . . . . . 6
Friction Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wheels and Axles . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FRAME AND HOUSING
Track and Axles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Handlebars and Controls . . . . . . . . . . . . . . . . . . . . . 16
Handlebars, Lever Controls, Panel and Dash . . . . . 18
Chute and Auger . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Discharge Chute . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Gear Case – Cast Iron. . . . . . . . . . . . . . . . . . . . . . . 26
ELECTRICAL
Electrical and Wiring Diagram . . . . . . . . . . . . . . . . . 28
International
Model 921314 (Deluxe 28)
28” Sno-Thro, 240V Electric Start
Serial No. 000101 and up
Model 921315 (Deluxe 30)
30” Sno-Thro, 240V Electric Start
Serial No. 000101 and up
Model 921316 (Deluxe 28 Track)
28” Sno-Thro, 240V Electric Start
Serial No. 000101 and up
Model 921317 (Deluxe 24 Track)
24” Sno-Thro, 240V Electric Start
Serial No. 000101 and up
Model 921318 (Deluxe 24)
24” Sno-Thro, 240V Electric Start
Serial No. 000101 and up
3
DECALS
0800071608000716
08000519B
3
2
4
1
5
6
All Models
Item Part No. Qty. Description
1 08000713 1 Decal, Control, Deluxe Pin Lock Axle (921031, 318)
08000714 1 Decal, Control, Deluxe Remote Axle (921022)
08000715 1 Decal, Control, Deluxe Track (921023)
08000817 1 Decal, Control, Deluxe Track, Heated Hand Grips (921316, 317)
08000716 1 Decal, Control, Deluxe Remote Axle, Heated Hand Grips (921013, 027, 034)
08000801 1 Decal, Control, Deluxe, Auto Diff Axle (921314)
08000717 1 Decal, Control, Platinum (921017, 018)
08000818 1 Decal, Control, Deluxe, Auto Diff Axle, Heated Hand Grips (921315)
2 08000519 1 Decal, Danger, Rotating Parts
3 08000520 1 Decal, Danger
4 08000640 1 Decal, Housing, 30 (921013, 018, 315)
08000701 1 Decal, Housing, 28 (921022, 023, 027, 034, 314, 316)
08000702 1 Decal, Housing, 24 (921017, 031, 317, 318)
5 08000636 1 Decal, Deluxe 30 (921013, 315)
08000635 1 Decal, Platinum 24 (921017)
08000634 1 Decal, Platinum 30 (921018)
08000510 1 Decal, Deluxe 28 (921022, 023, 027, 034, 314, 316)
08000332 1 Decal, Deluxe 24 (921031, 317, 318)
6 08000630 1 Decal, Ariens Gear (921017, 018)
4
NOTES
5
ENGINE AND BELT DRIVE
20
17
41
19
17
18
21
22
17
31
39
27
16
16
23
1
24
17
37
6
7
38
40
4
3
2
17
26
16
27
28
30
13
5
14
15
44
45
46
47
51
48
49
50
45
54
42
52
43
55
56
53
34
36
35
32
33
29
57
25
58
67
63
61
6
9
60
62
8
10
60
59
11
12
25
12
9
8
64
65
66
45
52
All Models
Item Part No. Qty. Description
1 04456159 1 Frame
2 00492359 1 Cover, Bottom
3 07009000 6 Nut, Retainer .25-20 x .56
4 05900019 6 Bolt, Hex Washer Head .25-20 x .75
5 00493600 1 Arm, Traction Idler
6 05958500 2 Bolt, Hex .38-16 x 1.75
7 06436200 1 Washer, Flat, Steel .406 x .812 x .065
8 05500106 2 Bushing, Sleeve
9 06542000 2 Nut, Locking Top Flange .38-16
10 01213100 1 Spacer
11 02457400 1 Idler
12 06435700 2 Washer, Flat Steel .38 x .875 x .083
6
ENGINE AND BELT DRIVE
Item Part No. Qty. Description
All Models
13 05952400 1 Bolt, Hex .31-18 x 1.50
14 06500011 2 Nut, Locking Center Jam .31-18
15 08300528 1 Spring
16 05500026 3 Bushing, Polyliner
17 07400034 7 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
07400034 9 Screw, Tapping, Hex Washer Head Thread Rolling .25-20 x .50 (921013, 022, 027, 034)
18 00373051 1 Bracket, Cable Pulley
19 07300012 1 Pulley, Cable
20 07000021 1 Bolt, Shoulder
21 06543500 1 Nut, Locking Top Flange .25-20
22 06900505 1 Cable
23 00494051 1 Shift Fork
24 05500028 1 Bushing, Polyliner
25 06437200 3 Washer, Flat Steel .344 x .688 x .065
26 00495051 1 Bracket, Idler Arm
27 06425300 2 Washer, Flat Steel .531 x 1.00 x .063
28 05500107 1 Bushing, Sleeve
29 02956767 1 Idler Arm
30 08300326 1 Spring
31 01987100 1 Arm, Clutch
32 05500037 1 Bushing, Sleeve
33 05717600 1 Ring, Retaining, External .250 x .010
34 06200111 1 Bolt, Round Head Square Short Neck .38-16 x 1.75
35 07333500 1 Idler, Flat
36 06537200 1 Nut, Locking Center Jam .38-16
37 00657551 1 Bracket, Brake Mount
38 52000500 1 Arm, Brake with Pad (Includes Items 60 and 62)
39 06400005 1 Washer, Wave
40 08300103 1 Spring
41 00956051 1 Bracket, Cable Mount (921013, 022, 027, 034)
42 03880851 1 Baffle (921017, 022, 023, 027, 034, 031, 317, 318)
03880751 1 Baffle (921013, 018, 034, 314, 315, 316)
43 00188400 2 Strap, Engine Bolt (921017, 022, 023, 027, 034, 031, 317, 318)
00392000 2 Strap, Engine Bolt (921013, 018, 314, 315, 316)
44 08200811 1 Engine, Briggs & Stratton Polar Force 1150, 120V (921017, 022, 023, 027, 031)
08200503 1 Engine, Briggs & Stratton Polar Force 1450, 240V (921314, 316)
08200814 1 Engine, Briggs & Stratton Polar Force 1650, 120V (921013, 018)
08200504 1 Engine, Briggs & Stratton Polar Force 1650, 240V (921315)
08200805 1 Engine, Briggs & Stratton Polar Force 1150, 240V (921317, 318)
08200708 1 Engine, Briggs & Stratton Polar Force 1450, 120V (921034)
45 06307400 6 Washer, Locking .312 x .097
46 05947300 2 Bolt, Hex .31-24 x .75
47 03882100 1 Finger, Belt
48 03967900 1 Sheave, Auger (SN 000101-082000,921027, 314, 315, 316, 317, 318; SN.075000-082000, 921013, 017, 018,
04498700 1 Sheave Auger (SN 08200 & up)
49 06308800 1 Washer, Locking .38 x .094
50 05901307 1 Bolt, Hex .38-24 x 2.25
51 03966900 1 Sheave, Drive (SN 075000-082000,92103, 317, 318, 022, 031; SN 000101-082000, 921027, 034, 314, 318)
04503200 1 Sheave, Drive (SN 082000 & up, 921023; SN 000101-082000, 921316, 317)
04409100 1 Sheave, Drive (SN 082000 & up 921013, 018, 022, 027, 034, 031, 314, 315, 318)
04542600 1 Sheave, Drive (SN 082000 & up 921023, 316, 317)
52 06529200 4 Nut, Hex .31-18
53 04083900 1 Cover, Belt
54 06909400 1 J-Clamp
55 07200111 1 V-Belt, Drive (921013, 017, 018, 022, 027, 031, 034, 314, 315, 318)
07200114 1 V-Belt, Drive (921023, 316, 317)
56 07200514 1 V-Belt, Matched Set, Auger
57 06443000 1 Washer, Flat Steel 1.062 x 2.0 x .134 (SN 000101-082000 921314, 315, 316 SN 075000-082000 921013, 018)
06400924 1 Washer, Flat Nylon (SN 082000 & up 921013, 018, 034, 314, 315, 316)
58 03815251 1 Baffle (921013, 018, 034, 314, 315, 316)
59 07400108 2 Screw, Tapping Captive .25-20 x .50
60 06800028 4 Rivet, Pop .187 (Included with Item 38)
61 06944800 2 Spring Clip
62 00180500 1 Pad, Brake (Included with Item 38)
63 07500023 2 Plug, Hole (921013, 017, 018, 022, 027, 031, 034, 314, 315, 318)
64 07500130 1 Key, Rotary – Briggs & Stratton
65 21547500 1 Spark Plug (921017, 022, 023, 027, 034, 031, 317, 318)
21550500 1 Spark Plug (921013, 018, 034, 314, 315, 316)
66 07500215 1 Fuel Cap – Briggs & Stratton (921017, 022, 023, 027, 031, 317, 318)
07500216 1 Fuel Cap – Briggs & Stratton (921013, 018, 034, 314, 315, 316)
67 06602700 1 Key, Square .25 x .625 x .25 SAE 8630 (921023, 316, 317)
(921017, 018, 023, 031, 314, 315, 316, 317, 318)
022, 023, 031)
7
FRICTION DRIVE
9
8
10
11
21
23
17
20
19
20
22
18
16
24
22
27
22
26
25
8
16
12
6
5
13
14
15
10
9
8
7
1
4
32
31
2
28
30
29
3
33
5
34
34
All Models
8
FRICTION DRIVE
All Models
Item Part No. Qty. Description
1 00657059 1 Frame Bracket
2 06543100 1 Nut, Locking Top Flange .31-18
3 06212200 1 Bolt, Round Head Square Short Neck .31-18 x .62
4 52105000 1 Plate, Swing Assembly
5 03374500 2 Support Bushing, Swing Gate
6 06944800 1 Spring Clip
7 05500113 1 Spacer
8 07400034 7 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
9 00383000 2 Flange, Bearing
10 05435200 2 Bearing
11 04092600 1 Sprocket, Pinion
12 04149500 1 Shaft, Hex (921013, 017, 018, 022, 027, 031, 034, 314, 315, 318)
04512800 1 Shaft, Hex Track (921023, 316, 317)
13 00383100 1 Carrier, Friction Disc
14 00170800 1 Friction Disc
15 07400009 3 Screw, Tapping Serrated Round Head Torx .31-18 x .50
16 06714500 4 Pin, Spring Clip
17 05500035 1 Bushing, Sleeve
18 00657900 1 Shaft, Pinion (921013, 017, 018, 022, 027, 031, 034, 314, 315, 318)
04512900 1 Shaft, Pinion Track (921023, 316, 317)
19 00190600 1 Sprocket/Gear (Included in Item 33)
20 05500111 2 Bushing, Flange (Included in Item 33)
21 02466200 1 Chain, Roller
22 06436100 3 Washer, Flat Steel .630 x 1.005 x .062 (921013, 022, 027, 034)
06436100 1 Washer, Flat Steel .630 x 1.005 x .062 (921017, 018, 023, 031, 314, 315, 316, 317, 318)
23 07061300 1 Zerk, Fitting .25 x .125 Drive In
24 05800205 1 Pin, Groove Type E .125 x 1.00
25 00503500 1 Tab, Anti-Rotation
26 00391200 1 Lever, Lock Arm (921013, 022, 027, 034)
27 00391300 1 Spring (921013, 022, 027, 034)
28 08300036 1 Spring
29 06437200 1 Washer, Flat Steel .344 x .688 x .065
30 06713500 1 Pin, Hair, Internal .08 x .18 x 1.18
31 06439200 2 Washer, Flat Steel .505 x 1.00 x .062
32 05500029 1 Bushing, Sleeve (921017, 018, 023, 031, 314, 315, 316, 317, 318)
33 52601500 1 Sprocket/Gear with Bushings (Includes Items 19 and 20)
34 07414200 3 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .75
9

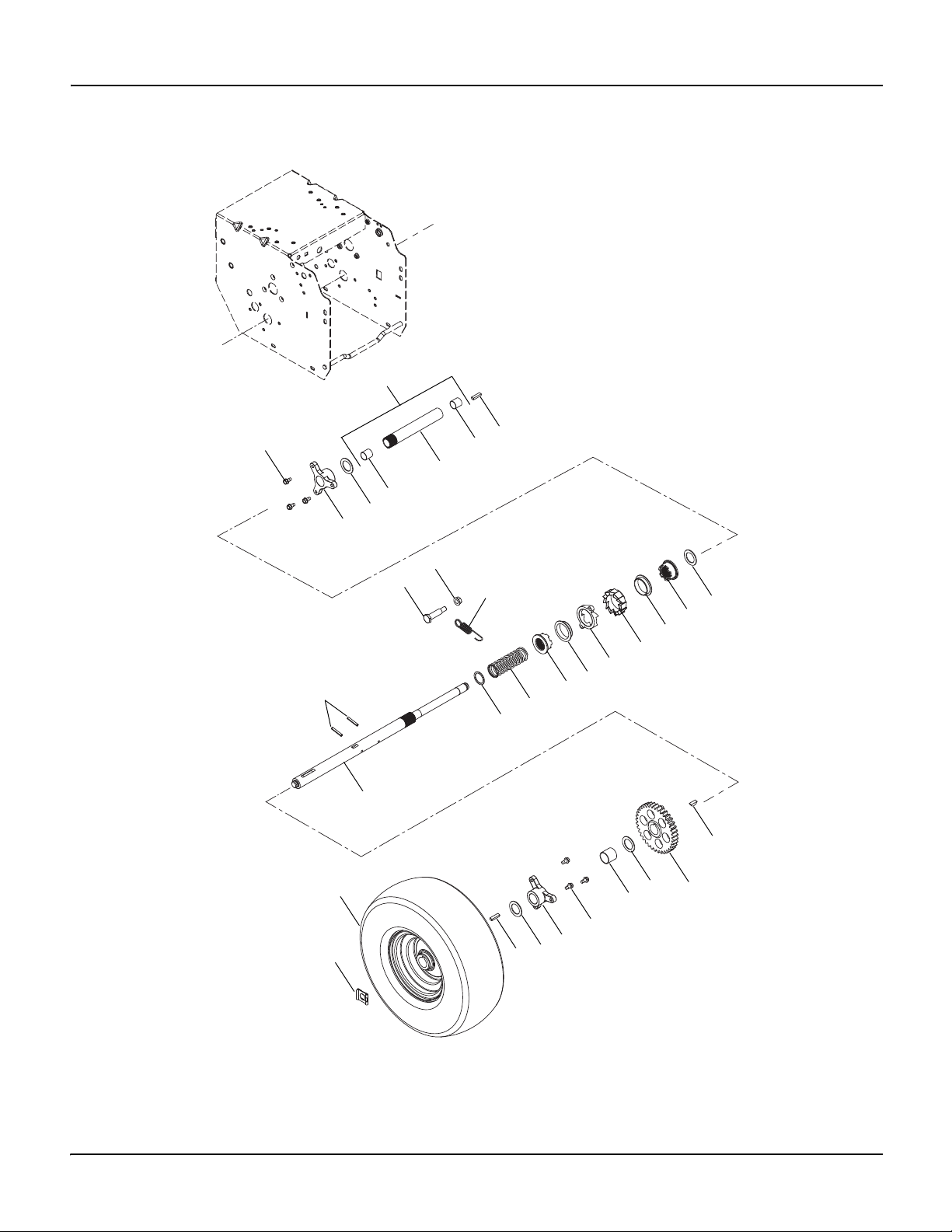

WHEELS AND AXLES
10
1
3
8
14
9
7
8
12
13
5
16
6
5
4
2
21
5
19
22
20
11
15
2
21
5
18
17
18
19
7
23
Model 921013, 022, 027, 034
10
WHEELS AND AXLES
Model 921013, 022, 027, 034
Item Part No. Qty. Description
1 06542000 1 Nut, Locking Top Flange .38-16
2 07400034 6 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
3 08300023 1 Spring
4 05500122 1 Bushing, Sleeve
5 06436300 4 Washer, Flat Steel 1.010 x 1.505 x .062
6 00371000 1 Gear
7 00386900 2 Dog Clutch, Sliding
8 00391100 2 Bushing, Flange
9 00387000 1 Gear, Ratchet
10 05901432 1 Bolt, Shoulder
11 00865600 1 Axle, Long
12 06400332 1 Washer, Flat Steel 1.010 x 1.250 x .068
13 00427700 1 Spring
14 00387100 1 Gear, Clutch
15 05800300 2 Pin, Roll .188 x 1.25
16 06601200 1 Key, Woodruff .25 x .750 x .313 SAE91
17 00865700 1 Axle, Short (Included in Item 23)
18 05500023 2 Bushing, Sleeve (Included in Item 23)
19 06600002 2 Key, Rectangular .25 x .188 x 1.00
20 05700001 2 Clip, Snap
21 05500829 2 Bushing, Axle
22 07100917 2 Tire/Wheel Assembly, 15 x 5.00-6 K398A (921022)
07100815 AR Tire, 15 x 5.00-6 K398A (921022)
07100227 1 Tire/Wheel Assembly, Right Hand 15 x 5.00-6 K478 (921013, 027, 034)
07100228 1 Tire/Wheel Assembly, Left Hand 15 x 5.00-6 K478 (921013, 027, 034)
07100726 AR Tire, 15 x 5.00-6 K478 (921013, 027)
23 52101100 1 Axle, Short with Bushings (Includes Items 17 and 18)
11
WHEELS AND AXLES
1
2
3
4
7
6
8
4
5
3
9
9
11
10
10
12
13
5
3
3
Model 921017, 018, 314, 315
Item Part No. Qty. Description
1 07100227 1 Tire/Wheel Assembly Right Hand 15 x 5.00-6 K478
07100228 1 Tire/Wheel Assembly Left Hand 15 x 5.00-6 K478
07100726 AR Tire, 15 x 5.00-6 K478
2 05700001 2 Clip, Snap
3 06436300 4 Washer, Flat Steel 1.010 x 1.505 x .062
4 05500829 2 Bushing, Axle
5 07400034 6 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
6 00866000 1 Differential Assembly
7 00865900 1 Axle, Short (Included in Item 11)
8 00865800 1 Axle, Long
9 06600002 2 Key, Rectangular .25 x .188 x 1.00
10 05500023 2 Bushing, Sleeve (Included in Item 11)
11 52101200 1 Axle with Bushings (Includes Items 7 and 10)
12 05500122 1 Bushing, Sleeve
13 05800300 1 Pin, Roll .188 x 1.25
12
WHEELS AND AXLES
1
2
3
4
3
4
5
9
10
6
7
8
3
5
3
Model 921031, 318
Item Part No. Qty. Description
1 07100918 2 Tire/Wheel Assembly, 15 x 5.00-6 K398A (921031)
07100225 1 Tire/Wheel Assembly Right Hand 15 x 5.00-6 K478 (921318)
07100226 1 Tire/Wheel Assembly Left Hand 15 x 5.00-6 K478 (921318)
07100815 AR Tire, 15 x 5.00-6 K398A (921031)
07100726 AR Tire, 15 x 5.00-6 K478 (921318)
2 07015800 2 Pin-Lok
3 06436300 4 Washer, Flat Steel 1.010 x 1.505 x .062
4 05500829 2 Bushing, Axle
5 07400034 6 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
6 06601200 1 Key, Woodruff .25 x .750 x .313 SAE 91
7 00371000 1 Gear
8 05500122 1 Bushing, Sleeve
9 00658100 1 Shaft, Axle
10 05800300 2 Pin, Roll .188 x 1.25
13
TRACK AND AXLES
PS0820
8
2
1
4
9
5
7
10
12
14
13
11
15
16
17
13
19
5
6
20
22
21
23
22
8
3
24
28
27
28
26
25
25
13
30
31
29
32
18
3
3
Model 921023, 316, 317
14
TRACK AND AXLES
Model 921023, 316, 317
Item Part No. Qty. Description
1 00669700 2 Track
2 00670351 2 Wheel, Drive
3 06543500 18 Nut, Locking Top Flange .25-20
4 05700001 2 Clip, Snap
5 03293600 4 Wheel, Bogie
6 06219900 6 Bolt, Round Head Square Neck .25-20 x .75
7 03275800 1 Axle, Front
8 05946800 12 Bolt, Hex .25-20 x .75
9 06436300 2 Washer, Flat, Steel 1.010 x 1.505 x .062
10 03375751 1 Side Plate, Right Hand
11 07000040 2 Bolt, Eye
12 03293700 1 Axle, Rear
13 06543100 8 Nut, Locking Top Flange .31-18
14 01305900 1 Flange Bushing
15 05946900 1 Bolt, Hex .31-18 x 1.00
16 03291500 1 Shaft, Axle
17 00371000 1 Gear
18 06530300 4 Nut, Locking, Nylon .63-18
19 00660751 2 Runner, Guide
20 06215700 4 Bolt, Round Head Square Neck .31-18 x .75
21 06534800 2 Nut, Locking Center Flange .38-16
22 05400706 4 Bearing
23 03375851 1 Side Plate, Left Hand
24 03389051 2 Plate, Bearing Spacer
25 05500122 3 Bushing, Sleeve
26 06601200 1 Key, Woodruff .25 x .750 x .313 SAE 91
27 05800300 1 Pin, Roll .188 x 1.25
28 06600002 2 Key, Rectangular .25 x .188 x 1.00
29 03293851 1 Stop, Height Adjuster
30 06200008 3 Bolt, Round Head Square Short Neck .31-18 x 1.25
31 01103100 3 Spacer
32 03294151 1 Plate, Height Adjuster
15
HANDLEBARS AND CONTROLS
31
1
16
26
3
29
8
4
7
6
26
17
24
23
14
10
13
11
25
12
37
15
34
28
9
28
33
13
14
24
36
32
7
20
19
18
19
30
27
26
3
31
33
12
2
34
21
27
30
16
17
24
23
29
8
5
6
7
22
19
28
38
19
35
39
35
All Models
16
HANDLEBARS AND CONTROLS
All Models
Item Part No. Qty. Description
1 04318151 1 Handlebar, Upper, Right Hand (921022, 023, 031, 314, 318)
52610200 1 Handlebar, Upper, Right Hand with Heated Hand Grip (921013, 017, 018, 027, 034, 315, 316, 317)
2 04318251 1 Handlebar, Upper, Left Hand (921022, 023, 031, 314, 318)
52610300 1 Handlebar, Upper, Left Hand with Heated Hand Grip (921013, 017, 018, 027, 034, 315, 316, 317)
3 04310100 2 Clutch Paddle Block
4 04310551 1 Clutch Handle, Right Hand
5 04310451 1 Clutch Handle, Left Hand
6 04320600 2 Rod, Paddle Mount
7 07400034 3 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
8 07500103 2 Edging, Clutch Handle
9 52104400 1 Control Panel with Decal (921013, 027, 034)
52104500 1 Control Panel with Decal (921017, 018)
52104300 1 Control Panel with Decal (921022)
52104600 1 Control Panel with Decal (921023)
52103900 1 Control Panel with Decal (921031, 318)
52105100 1 Control Panel with Decal (921315)
52105200 1 Control Panel with Decal (921314)
52105300 1 Control Panel with Decal (921316, 317)
10 06444000 1 Washer, Flat Steel .406 x 1.00 x .188
11 04320200 1 Lever, Shift
12 05963300 2 Bolt, Hex .38-16 x 2.00
13 08335700 2 Spring
14 06542000 2 Nut, Locking Top Flange .38-16
15 04320300 1 Lever, Deflector
16 04322100 2 Cam, Interlock
17 06714500 2 Pin, Spring Clip
18 04320400 1 Interlock Arm
19 05500020 4 Bushing, Polyliner
20 04320500 1 Rod, Pivot
21 04304400 1 Dash Bezel
22 04323300 1 Shift Bezel
23 06437300 2 Washer, Flat Steel .281 x .62 x .065
24 06701900 3 Pin, Hair, Internal .06 x .18 x .77
25 06220100 1 Bolt, Round Head Extra Long Square Neck .25-20 x 1.25 (921013, 022, 023, 027, 034, 316, 317)
06220100 2 Bolt, Round Head Extra Long Square Neck .25-20 x 1.25
(921017, 018, 031, 314, 315, 318)
26 06543500 3 Nut, Locking Top Flange .25-20 (921013, 022, 023, 027, 034, 316, 317)
06543500 4 Nut, Locking Top Flange .25-20 (921017, 018, 031, 314, 315, 318)
27 06209300 2 Bolt, Round Head Extra Long Square Neck .25-20 x 2.00
28 07400107 6 Screw, Tapping Hex Head Boss #10 x .50
29 08300527 2 Spring
30 06212100 2 Bolt, Round Head Square Neck .31-18 x 1.50
31 06543100 2 Nut, Locking Top Flange .31-18
32 08337000 1 Spring
33 07500209 2 Knob
34 07518700 2 Handle Grip (921022, 023 , 031, 314, 318)
35 07500211 2 Sleeve, Clutch Handle
36 05501012 1 Bushing, Sleeve
37 06439300 1 Washer, Flat Steel .380 x 1.50 x .062
38 04307600 1 Headlight Assemb ly (Includes item 39)
39 00432600 1 Bulb, Light
17

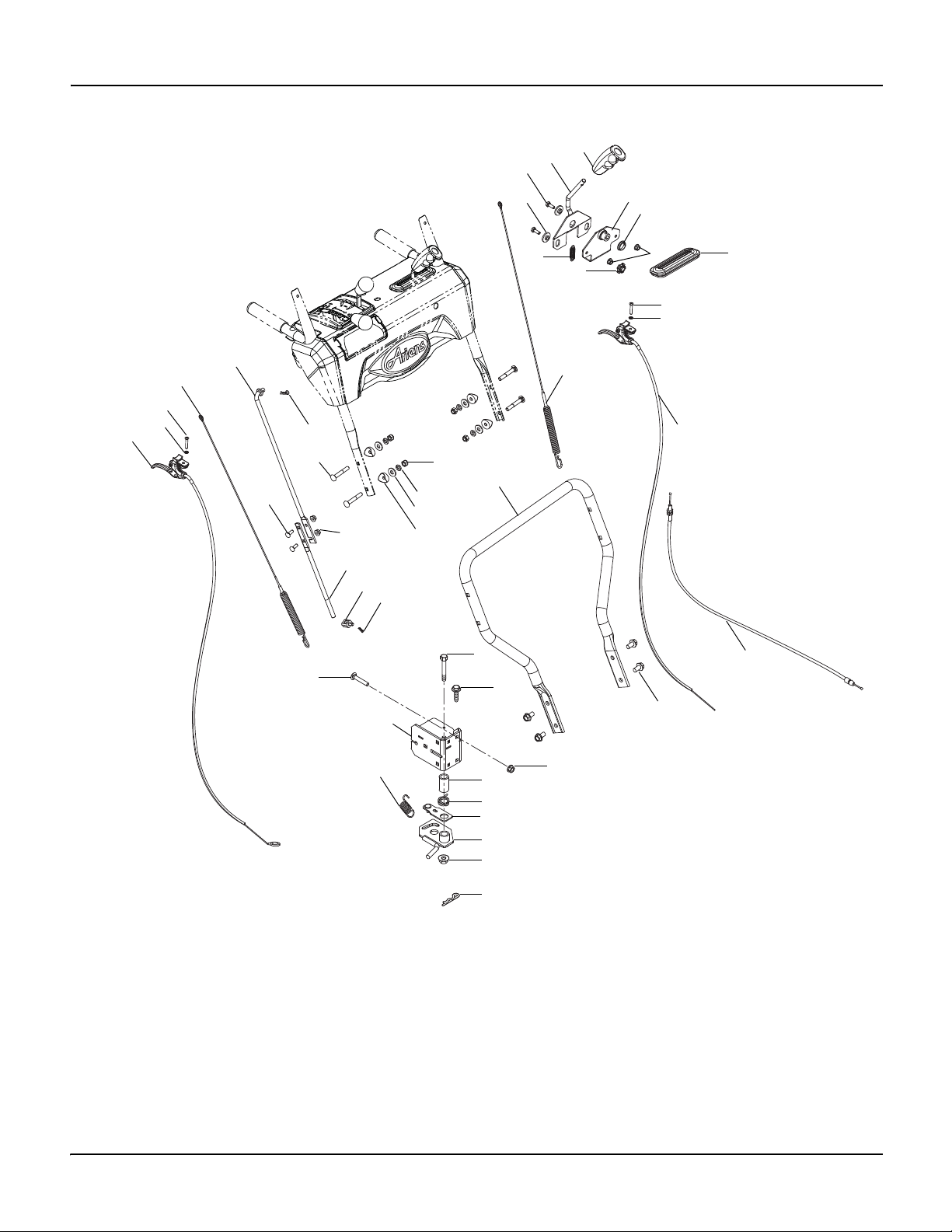

HANDLEBARS, LEVER CONTROLS, PANEL AND DASH
10
9
1
2
14
12
13
7
6
5
4
3
11
8
16
22
25
18
19
20
21
23
24
17
15
11
26
14
31
28
36
40
41
35
32
27
33
34
30
29
39
38
37
41
40
All Models
18
HANDLEBARS, LEVER CONTROLS, PANEL AND DASH
All Models
Item Part No. Qty. Description
1 00866251 1 Handlebar, Lower
2 07028500 4 Bolt, Serrated Hex Flange Washer Head .38-16 x .75
3 06221600 4 Bolt, Round Head Square Neck .31-18 x 2.25
4 07500005 4 Spacer, Handlebar
5 06435700 4 Washer, Flat Steel .38 x .875 x .083
6 06307400 4 Washer, Locking .312 x .097
7 06530200 4 Nut, Locking Nylon .31-18
8 06900502 1 Cable, Traction
9 06900439 1 Cable, Auger
10 04336367 1 Rod, Shift, Upper
11 06713500 2 Pin, Hair, Internal .08 x .18 x 1.18
12 04343867 1 Rod, Shift, Lower
13 06219900 2 Bolt, Round Head Square Neck .25-20 x .75
14 06543500 2 Nut, Locking Top Flange .25-20 (921013, 017, 018, 022, 031)
06543500 6 Nut, Locking Top Flange .25-20 (921023, 316, 317)
15 03293951 1 Bracket, Height Adjuster (921023, 316, 317)
16 06219900 4 Bolt, Round Head Square Neck .25-.20 x .75 (921023, 316, 317)
17 08300103 1 Spring (921023, 316, 317)
18 05500106 1 Bushing, Sleeve (921023, 316, 317)
19 08300015 1 Spring (921023, 316, 317)
20 03376200 1 Arm, Overtravel (921023, 316, 317)
21 03294000 1 Lock, Height Adjuster (921023, 316, 317)
22 05958500 1 Bolt, Hex .38-16 x 1.75 (921023, 316, 317)
23 06534800 1 Nut, Locking Center Flange .38-16 (921023, 316, 317)
24 06701900 1 Pin, Hair, Internal .06 x .18 x .77 (921023, 316, 317)
25 07400034 1 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50 (921023, 316, 317)
26 00386700 1 Pivot, Shift Rod
27 05500027 1 Bushing, Polyliner (921017, 018)
28 04318600 1 Grommet (921017, 018)
29 00184800 1 Mount, Chute Control (921017, 018)
30 04321800 1 Lever, Chute Control (921017, 018)
31 07500205 1 Control Handle (921017, 018)
32 06543500 2 Nut, Locking Top Flange .25-20 (921017, 018)
33 05500004 2 Bushing, Flange (921017, 018)
34 05946800 2 Bolt, Hex .25-20 x .75 (921017, 018)
35 08310900 1 Spring (921017, 018)
36 04322700 1 Bushing, Crank
37 06900509 1 Cable, Remote Wheel (921013, 022, 027, 034)
38 06900421 1 Cable, Chute Lock (921017, 018)
39 06900510 1 Cable, Track (921023, 316, 317)
40 06100007 1 Screw, Machine, Oval Head .25-20 x 1.50 (921013, 022, 023, 027, 034, 316, 317)
41 06305200 1 Washer, Lock, Internal .25 (921013, 022, 023, 027, 034, 316, 317)
19
30
29
28
27
26
25
34
35
33
34
32
7
22
21
20
19
24
23
12
11
9
10
31
4
4
3
8
4
3
2
3
4
1
10
5
6
10
15
16
13
14
17
18
18
14
13
16
39
40
36
38
37
12
11
9
CHUTE AND AUGER
All Models
20
CHUTE AND AUGER
All Models
Item Part No. Qty. Description
1 04319151 1 Bracket, Gearcase Support, Left Hand
2 04319251 1 Bracket, Gearcase Support, Right Hand
3 06200118 3 Bolt, Round Head Square Short Neck .31-18 x .62
4 06543100 8 Nut, Locking Top Flange .31-18 (921017, 022, 023, 027, 031, 034, 314, 316, 317, 318)
06543100 10 Nut, Locking Top Flange .31-18 (921013, 018, 315)
5 06307200 2 Washer, Locking, External .326 x .599 x .031
6 05947200 2 Bolt, Hex .31-18 x .50
7 52101900 1 Housing, Blower with Decal, 30" (921013, 018, 315)
52103300 1 Housing, Blower with Decal, 28" (921022, 023, 027, 034, 316, 317)
52101700 1 Housing, Blower with Decal, 24" (921017, 031, 317, 318)
8 00661159 1 Blade, Scraper, 30" (921013, 018, 315)
04145959 1 Blade, Scraper, 28" (921022, 023, 027, 034, 316, 317)
00658559 1 Blade, Scraper, 24" (921017, 031, 317, 318)
9 02483859 2 Skid Shoe
10 06212000 4 Bolt, Round Head Square Short Neck .38-16 x 1.00
11 06435900 4 Washer, Flat Steel .438 x 1.00 x .083
12 06529600 4 Nut, Locking Center .38-16
13 00659200 2 Support, Rake Bushing
14 07400034 6 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
15 52103000 1 Rake, Left Hand with Zerk, 30" (921013, 018, 315)
52103400 1 Rake, Left Hand with Zerk, 28" (921022, 023, 027, 034, 316, 317)
52102600 1 Rake, Left Hand with Zerk, 24" (921017, 031, 317, 318)
16 05500114 2 Bushing, Flange
17 52103100 1 Rake, Right Hand with Zerk, 30" (921013, 018, 315)
52103500 1 Rake, Right Hand with Zerk, 28" (921022, 023, 027, 034, 316, 317)
52102700 1 Rake, Right Hand with Zerk, 24" (921017, 031, 317, 318)
18 07061300 2 Zerk, Fitting .25 x .125 Drive In
19 00428700 1 Bearing Flange
20 05409300 1 Bearing (921013, 017, 018, 022 , 027, 031, 034, 314, 315, 318)
05400713 1 Bearing (921023, 316, 317)
21 01014200 1 Bearing Flange
22 06529700 3 Nut, Locking Center .25-20
23 00485551 1 Impeller
24 05803700 2 Pin, Roll .250 x 1.75
25 07001612 2 Nut, Threaded Insert .38-16
26 00268702 1 Pulley Hub
27 06307400 1 Washer, Locking .312 x .097
28 05947300 1 Bolt, Hex .31-24 x .75
29 00268700 1 Pulley, Attachment
30 07411500 3 Screw, Tapping Hex Washer Head Thread Rolling .31-18 x .50
31 06200209 5 Bolt, Scraper Blade (921017, 022, 023 , 027, 031, 034, 314, 316, 317, 318)
06200209 7 Bolt, Scraper Blade (921013, 018, 315)
32 00170300 1 Mount, Snow Clean Out
33 00170200 1 Device, Snow Clean Out
34 06800028 4 Rivet, Pop -.187
35 00600100 1 Baffle
36 52100100 2 Shear Bolt Service Assembly
37 06529800 2 Nut, Locking Center .31-18 (Included in Item 36)
38 06436300 2 Washer, Flat Steel 1.010 x 1.505 x .062
39 05501109 1 Bushing, Sleeve
40 07400030 4 Screw, Tapping Hex Washer Head Thread Rolling .31-18 x .50
21
DISCHARGE CHUTE
12
11
13
14
1
20
19
2
9
5
4
8
7
6
3
21
22
22
16
15
10
25
23
17
18
24
Model 921013, 022, 023, 027, 031, 034, 314, 315, 316, 317, 318
22
DISCHARGE CHUTE
Model 921013, 022, 023, 027, 031, 034, 314, 315, 316, 317, 318
Item Part No. Qty. Description
1 00658351 1 Pedestal, Chute
2 52609000 1 Chute, Discharge with Cap and Decal
3 01123800 2 Friction Washer
4 00398000 1 Plate, Friction
5 08320900 1 Spring
6 06400917 1 Washer, Flat Steel .406 x 1.25 x .10
7 03222900 1 Chute Gear
8 06224400 1 Bolt, Round Head Square Neck .38-16 x 2.50
9 06542000 1 Nut, Locking Top Flange .38-16
10 01972451 1 Bracket, Pinion Gear (Included in Item 12)
11 05500021 1 Bushing, Polyliner (Included in Item 12)
12 52000100 1 Pinion Gear Assembly (Includes Items 10, 11, 13 and 23)
13 03224300 1 Pushnut (Included in Item 12)
14 06714500 1 Pin, Spring Clip
15 07400034 2 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
16 04456500 1 Gear Cover w/Spare Shear Bolts
17 00389000 1 Rod, Deflector Cap
18 08300013 1 Spring
19 06308800 2 Washer, Locking .38 x .094
20 05958500 2 Bolt, Hex .38-16 x 1.75
21 00956500 1 Rod, Chute Crank
22 07500020 2 Knob, Crank
23 06400009 1 Washer, Thrust .625 x 1.00 x .03 (Included in Item 12)
24 06900406 1 Cable, Deflector
25 07400104 1 Screw, Tapping Large Hex Washer Head Thread Rolling .25-20 x .50
23
DISCHARGE CHUTE
20
21
2
17
3
9
8
1
6
5
14
15
13
12
16
9
11
10
4
23
22
19
18
7
24
25
Model 921017, 018
24
DISCHARGE CHUTE
Model 921017, 018
Item Part No. Qty. Description
1 03897451 1 Pedestal, Chute
2 52602200 1 Chute, Discharge with Cap and Decal
3 03898700 1 Gear, Chute, Locking
4 00184300 1 Gear, Chute
5 06308800 2 Washer, Locking .38 x .094
6 05958500 2 Bolt, Hex .38-16 x 1.75
7 05952500 1 Bolt, Hex .25-20 x 1.50
8 05500920 1 Bushing, Flange
9 06543500 2 Nut, Locking Top Flange .25-20
10 06441400 2 Washer, Flat Steel .754 x 1.125 x .062
11 05500027 1 Bushing, Polyliner
12 06222300 1 Bolt, Round Head Square Neck .25-20 x 1.50
13 05500024 1 Bushing
14 00180900 1 Arm, Locking
15 08300014 1 Spring
16 06426600 1 Washer, Flat Steel .281 x 1.000 x .063
17 06400904 1 Washer, Flat Nylon .515 x 1.375 x .093
18 00261700 1 Cover, Gear
19 07400034 1 Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
20 00389000 1 Rod, Deflector Cap
21 08300013 1 Spring
22 04507700 1 Rod, Chute Rotation
23 06713500 1 Pin, Hair Internal .08 x .18 x 1.18
24 06900406 1 Cable, Deflector
25 52104700 1 Holder, Spare Shear Bolts
25
GEAR CASE – CAST IRON
21
20
9
10
18
17
4
3
2
7
22
14
6
8
23
13
12
19
11
1
5
15
16
25
8
24
All Models
26
GEAR CASE – CAST IRON
All Models
Item Part No. Qty. Description
1 04276900 1 Gear Case
2 04282500 1 Gasket
3 04280351 1 Cover, Top
4 05901509 4 Bolt, SEMS .31-18 x .50
5 05501025 1 Bushing, Flange
6 05600511 1 Seal, Oil
7 06436300 1 Washer, Flat Steel 1.010 x 1.505 x .062
8 52104000 1 Worm Shaft and Worm Gear Set
9 05501024 1 Bushing, Flange
10 05600512 1 Seal, Oil
11 05501027 1 Bushing, Flange
12 04302900 1 Cover, Front
13 05501033 1 Bushing, Flange
14 06400332 1 Washer, Flat Steel 1.010 x 1.250 x .068
15 04323700 1 Bushing Retainer
16 05600510 1 Seal, Oil
17 06400920 1 Washer Seal
18 07400110 1 Screw, Tapping Hex Washer Head Rolock .38-16 x .50
19 05702100 1 Ring, Retaining, Internal 1.750 x .062
20 04277100 1 Thrust Collar
21 05800208 1 Pin, Straight .250 x 1.12 6150
22 06608800 1 Key, Woodruff .25 x .875 Hardened
23 00485400 1 Shaft, Rake
24 52104100 1 Gear Case Assembly (Includes Items 1 – 23)
25 00068800 1 Gear Lube, 8 oz Bottle
27
ELECTRICAL AND WIR ING DIA G RAM
PS0900
YELLOW
(013, 023, 031)
RED (022)
YELLOW
(013, 023, 031)
WHITE (022)
B
A
B
A
2
3
921022, 023, 031, 314, 318
921013, 017, 018, 027, 034, 315, 316, 317
4
8
9
9
8
7
5
6
3
1
921022, 023, 031, 314, 318
921013, 017, 018, 027, 034, 315, 316, 317
2
1
All Models
28
ELECTRICAL AND WIR ING DIA G RAM
All Models
Item Part No. Qty. Description
1 04307600 1 Headlight Assembly (Includes Item 2)
2 00432600 1 Bulb, Light
3 04329600 1 Wire Harness, Light and Heated Hand Grips (921013, 017, 018, 027, 034, 315, 316, 317)
04329500 1 Wire Harness, Light (921022, 023, 031, 314, 318)
4 02485700 1 Switch, On/Off Heated Hand Grips (921013, 017, 018, 027, 034, 315, 316, 317)
5 06310900 1 Washer, Locking Internal .563 x .040 (921013, 017, 018, 027, 034, 315, 316, 317)
6 06403800 1 Washer, Flat Steel .505 x .875 x .024 (921013, 017, 018, 027, 034, 315, 316, 317)
7 09207600 1 Boot, Switch (Optional) (921013, 017, 018, 027, 034, 315, 316, 317)
8 07500015 2 Heated Hand Grip (921013, 017, 018, 027, 034, 315, 316, 317)
9 06800038 4 Rivet, Pop #43 .125 x .313 (921013, 017, 018, 027, 034, 315, 316, 317)
29
655 West Ryan Street
Brillion, WI 54110
920-756-4688
Fax 920-756-2407
www.ariens.com
Loading...
