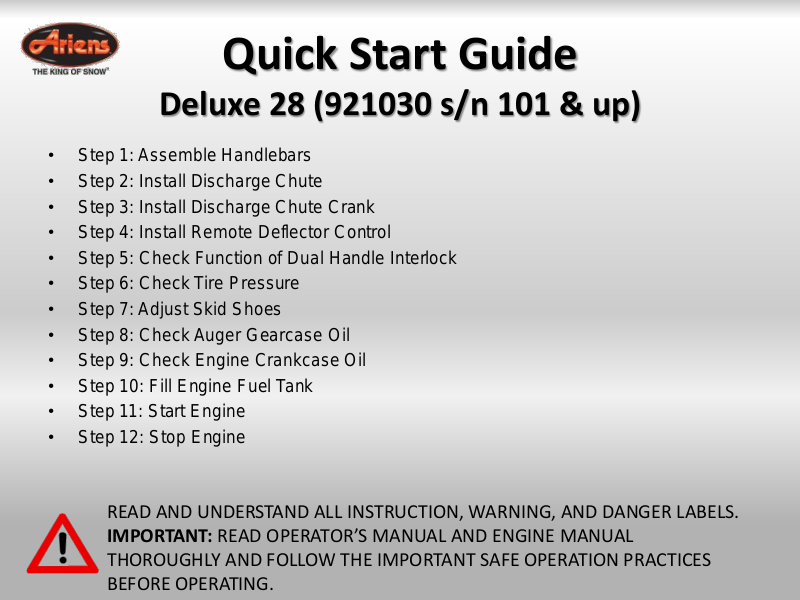

Quick Start Guide

Deluxe 28 (921030 s/n 101 & up)

• Step 1: Assemble Handlebars

• Step 2: Install Discharge Chute

• Step 3: Install Discharge Chute Crank

• Step 4: Install Remote Deflector Control

• Step 5: Check Function of Dual Handle Interlock

• Step 6: Check Tire Pressure

• Step 7: Adjust Skid Shoes

• Step 8: Check Auger Gearcase Oil

• Step 9: Check Engine Crankcase Oil

• Step 10: Fill Engine Fuel Tank

• Step 11: Start Engine

• Step 12: Stop Engine

READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.

IMPORTANT: READ OPERATOR’S MANUAL AND ENGINE MANUAL

THOROUGHLY AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES
BEFORE OPERATING.

Step One: Assemble Handlebars

NOTE: The Ariens company has made changes to

packaging that affects this serial number range.

If the upper handlebars on your unit came already

attached please disregard the following six slides.

Not attached Attached

Step One: Assemble Handlebars

(Unfold Lower Handlebar)

IMPORTANT: Be sure to block wheels or secure unit so it does not
move during assembly.

1. Rotate lower handlebar out from unit so lower handlebar
mounting holes align with mounting holes on the unit frame.

2. Secure lower handlebar to unit using two 3/8 in x 3/4 in. hex
head serrated flange grade 5 bolts.

3. Tighten all four bolts to 25-42 lbf-ft (33,9-56,9 N∙m)

NOTE: This slide applies to

UNATTACHED handlebars ONLY

Step One: Assemble Handlebars

(Attach Upper Handlebar Assembly)

1. Attach upper handlebar assembly to lower handlebar using

two sets of the handlebar hardware. One set to attach each

side of the handlebars.

NOTE: DO NOT tighten hardware. Allow upper handlebar
assembly to hang from the lower handlebars for the next step.

NOTE: This slide applies to

UNATTACHED handlebars ONLY

Step One: Assemble Handlebars

(Attach Control Cables)

1. Hook spring end of attachment control cable to the clutch

arm.

2. Hook spring end of the traction control cable to the cable
eyelet on back of frame.

NOTE: Make sure the cable remains in the groove of the pulley.

NOTE: This slide applies to

UNATTACHED handlebars ONLY

Step One: Assemble Handlebars

(Unfold Upper Handlebar)

NOTE: This slide applies to

UNATTACHED handlebars ONLY

1. Rotate handlebar into operating position.
NOTE: Be careful not to damage cable spring hooks when rotating

handlebar upward.

2. Install the remaining handlebar hardware attaching the upper
handlebar assembly to the lower handlebar.

3. Tighten all hardware.

4. Remove packaging around shift rod.

5. Rotate shift rod into place and tighten hardware.

6. Connect shift rod to speed selector arm and adjust as
specified. See Selector Adjustment in the Owners Manual.

7. Adjust attachment cable as specified. See Attachment
Clutch/Brake Adjustment in the Owners Manual.

8. Adjust the traction cable as specified. See Traction Drive
Clutch Adjustment in the Owners Manual.

Assembly)

Step One: Assemble Handlebars

(Connect Headlight Wire Harness)

NOTE: The headlight wire harness comes attached to the upper
handlebar assembly.

1. Route the wire harness along the interior of the right side
handlebar.

2. Connect to the engine electrical plug.

3. Press cable anchor into mounting hole in the frame near the
engine electrical plug.

4. Secure the wire harness to the handlebars using the cable
ties attached to the wire harness.

NOTE: This slide applies to

UNATTACHED handlebars ONLY

Step One:

Assemble Handlebar

1. Remove the lower and loosen the upper hardware on the
handlebar assembly.

2. Loosen the hardware on the shift rod.

3. Put the speed selector lever in the sixth forward position.

4. Rotate the handlebar into operating position.

NOTE: Be careful not to damage cable spring hooks when rotating
handlebar upward.

5. Install and tighten the hardware on the handlebar assembly
and shift rod.

NOTE: This slide applies to

ATTACHED handlebars ONLY

Step Two:

Install Discharge Chute

1. Grease underside of discharge chute ring (if not already
greased).

2. Remove mounting hardware from auger housing.

3. Install discharge chute over opening in the auger housing.
Finger tighten the mounting hardware removed above.

NOTE: Leave discharge chute pedestal loose to help install the
chute crank.

Step Three: Install

Discharge Chute Crank

1. Remove the gear cover from top of chute pedestal.

2. Insert the short end of the chute crank into the hole in the front

of the control panel.

NOTE: Be careful not to damage nylon bushing when attaching
crank to the dash.

3. Connect the chute crank to the pinion gear on chute with

hairpin.

4. Replace gear cover on top of chute pedestal.

5. Orient the chute and pedestal to its most vertical position and

tighten pedestal hardware to 15 – 31 lbf-ft (20 – 42 N•m).

Step Four: Install Remote

Deflector Control Cable

1. Connect the barrel cable end to the chute deflector cable anchor

before clipping the cable to the discharge chute cable bracket.

2. Route deflector remote cable along the left side of the chute

pedestal.

3. Insert the barrel on the cable end into the bracket on left side of

chute deflector.

4. Hold seal out of the way while routing the cable through the bracket

on the left side of the discharge chute, and then push the cable
fitting into the bracket.

5. Push the seal securely over the end on the cable fitting to prevent

water from entering the cable.

6. Check deflector travel. Adjust nut on cable end under handlebar to

obtain full travel, if necessary see Remote Deflector Control in
Owners Manual.

Step Five:

Check Function of Dual Handle Interlock

Without the engine

running, press down
(engage) both clutch
levers. Release
attachment clutch lever.

Attachment clutch should

remain engaged until
traction clutch lever is
released, then both

clutches must disengage.

If they do not, contact your
dealer for repairs.

Step Six:

Check Tire Pressure

Check tire pressure and

adjust to the pressure
listed on tire sidewall.

Step Seven:

Adjust Skid Shoes

IMPORTANT: Skid shoes
should be adjusted as
conditions require. Allow

1/8 in. (3mm) between

scraper blade and hard
smooth surfaces. Allow 7/8
in (22 mm) between
scraper blade and uneven

or gravel surfaces. (See

Skid Shoes in Owners
Manual).

Step Eight:

Check Auger Gearcase Oil

Check oil level in auger

gearcase
(see Check Auger
Gearcase in Owners
Manual).

Step Nine:

Check Engine Crankcase Oil

(Ariens AX)

IMPORTANT: The engine

is shipped with 5W-30 oil
in crankcase. Refer to
engine manual for
detailed instructions.

Step Ten:

Fill Engine Fuel Tank

(Ariens AX)

Fill fuel tank. DO NOT

OVERFILL! See
FILLING FUEL TANK in
Owners Manual.

Step Eleven: Starting the

Engine (Ariens AX)

Starting Engine / Step A:

Choke

Turn throttle all the

way up. Turn
choke ON.

Starting Engine / Step B:

Rocker Switch

Push rocker switch

to RUN position.

Starting Engine / Step C:

Fuel Shut Off Valve

Turn fuel petcock

to ON position.

Starting Engine / Step D:

Key

Install Safety Key

Switch. Insert ignition
key into slot but DO
NOT turn the key. Be

sure ignition key snaps

into place.

Starting Engine / Step E:

Prime

Prime system: 3

primes maximum. DO
NOT over prime
system. Make sure to

cover the vent hole on

primer bulb before the
primer bulb is
compressed. Hold the

primer bulb in the

compressed position for
one full second each
time you press it.

Repeat for a total of 3

primes.

Starting Engine / Step F:

(Manual Start)

Grasp rope handle. Pull

slowly until resistance
is felt, then pull rope
firmly and quickly to

start engine and avoid

kickback.

Starting Engine / Step F:

(Electric Start)

Use a 3-wire extension

cord and plug cord into
starter motor adaptor
first. Then plug cord

into wall receptacle.

Use appropriately sized
extension cord (10AWG
or larger) to prevent

damage to electric

starter.

Starting Engine / Step G:

(Electric Start)

Press and hold

starter button.

Note: Do not hold

the electric starter
button down for
more than 5
seconds. Wait at
least 1 minute
before additional

starting attempts.

Starting Engine / Step H:

Warm up

Allow the engine to

warm up for 1-2
minutes, move the
choke control to the
CHOKE OFF
position.

Additional Resources

• Refer to Owners Manual and Engine Manual

• Contact Ariens Company

www.ariens.com
