AMP 24
Owner/Operator Manual
Manuel Du Propriétaire/Utilisateur
916003 – AMP 24
Model
ENGLISH
FRANÇAIS
03982600C 6/10
Printed in USA
TABLE OF CONTENTS
Figure 1
Serial Number Label
OS2505
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . 8
CONTROLS and FEATURES. . . . . . . . 12
OPERATION . . . . . . . . . . . . . . . . . . . . . 13
MAINTENANCE . . . . . . . . . . . . . . . . . . 18
SERVICE AND ADJUSTMENTS . . . . . 20
INTRODUCTION
STORAGE. . . . . . . . . . . . . . . . . . . . . . . 29
SERVICE PARTS . . . . . . . . . . . . . . . . . 31
ACCESSORIES. . . . . . . . . . . . . . . . . . . 31
TROUBLESHOOTING . . . . . . . . . . . . . 29
SPECIFICATIONS. . . . . . . . . . . . . . . . . 32
WARRANTY . . . . . . . . . . . . . . . . . . . . . 33
NON-ENGLISH MANUALS
Manuals in languages other than English may
be obtained from your Dealer. Visit your
dealer or www.ariens.com for a list of
languages available for your equipment.
Manuals printed in languages other than
English are also available as a free download
on our website:
http://www.ariens.com
MANUALES EN IDIOMAS
DIFERENTES DEL INGLES
Puede obtener manuales en idiomas
diferentes del inglés en su distribuidor. Visite
a su distribuidor o vaya a www.ariens.com
para obtener una lista de idiomas disponibles
para su equipo.
También puede imprimir manuales en
idiomas diferentes del inglés descargándolos
gratuitamente de nuestra página Web:
http://www.ariens.com
MANUELS NON ANGLAIS
Des manuels dans différentes langues sont
disponibles chez votre revendeur. Rendezvous chez votre revendeur ou allez sur le site
www.ariens.com pour consulter la liste des
langues disponibles pour votre équipement.
Les manuels imprimés dans des langues
différentes de l'anglais sont également
disponibles en téléchargement gratuit sur
notre site Web :
http://www.ariens.com
All reference to left, right, front, or rear are
given from operator standing in operation
position and facing the direction of forward
travel.
MODEL AND SERIAL NUMBERS
When ordering replacement parts or making
service inquiries, know the Model and Serial
numbers of your unit.
Numbers are located on the product
registration form in the unit literature
package. They are printed on a serial number
label, located on the frame of your unit.
• Record Unit Model and Serial
numbers here.
MANUAL
Before operation of unit, carefully and
completely read your manual. If used
improperly, this unit could be dangerous and
cause personal injury or property damage.
The contents will provide you with safety
instructions for the safe use of your unit
during normal operation and maintenance.
GB - 2
PRODUCT REGISTRATION
The Ariens dealer must register the product
at the time of purchase. Registering the
product will help the company process
warranty claims or contact you with the latest
service information. All claims meeting
requirements during the limited warranty
period will be honored, whether or not the
product registration card is returned. Keep a
proof of purchase if you do not register your
unit.
Customer Note: If the dealer does not
register your product, please fill out, sign, and
return the product registration card to Ariens
or go to www.ariens.com.
UNAUTHORIZED REPLACEMENT
PARTS
Use only Ariens replacement parts. The
replacement of any part on this vehicle with
anything other than an Ariens authorized
replacement part may adversely affect the
performance, durability, or safety of this unit
and may void the warranty. Ariens disclaims
liability for any claims or damages, whether
warranty, property damage, personal injury or
death arising out of the use of unauthorized
replacement parts. To locate your nearest
Ariens Dealer, go to www.ariens.com on the
internet.
DISCLAIMER
Ariens reserves the right to discontinue,
make changes to, and add improvements
upon its products at any time without public
notice or obligation. The descriptions and
specifications contained in this manual were
in effect at printing. Equipment described
within this manual may be optional. Some
illustrations may not be applicable to your
unit.
DELIVERY
Customer Note: If you have purchased this
product without complete assembly and
instruction by your retailer, it is your
responsibility to:
1. Read and understand all assembly
instructions in this manual. If you do not
understand or have difficulty following
the instructions, contact your nearest
Ariens Dealer for assistance. Make sure
all assembly has been properly
completed.
NOTE: To locate your nearest Ariens Dealer,
go to www.ariens.com on the Internet.
WARNING: Improper assembly or
adjustments can cause serious
injury.
2. Understand all Safety Precautions
provided in the manuals.
3. Review control functions and operation
of the unit. Do not operate the Sno-Thro
unless all controls function as described
in this manual.
4. Review recommended lubrication,
maintenance and adjustments.
5. Review Limited Warranty Policy.
6. Fill out a Product Registration Card and
return the card to the Ariens Company or
go to www.ariens.com.
GB - 3
SAFETY
Figure 2
OS2500
1
2
3
OL1801
WARNING: To avoid injury to hands
and feet, always disengage clutches,
stop drive motor, turn off and remove
key from switch and wait for all
movement to stop before unclogging
or working on snow thrower.
Hand contact with the rotating
impeller is the most common cause of
injury associated with snow throwers.
Never use your hand to clean out the
discharge chute.
Keep hands and feet away from
auger and impeller.
SAFETY ALERTS
Look for these symbols to point
out important safety precautions.
They mean:
Attention!
Personal Safety Is
Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions, for the benefit of yourself and
others. Understand and follow all safety
messages. Be alert to unsafe conditions and
the possibility of minor, moderate, or serious
injury or death. Learn applicable rules and
laws in your area. Always follow the practices
set forth in this manual.
REQUIRED OPERATOR
TRAINING
Original purchaser of this unit was instructed
by the seller on safe and proper operation. If
unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any
needed safety training before operation.

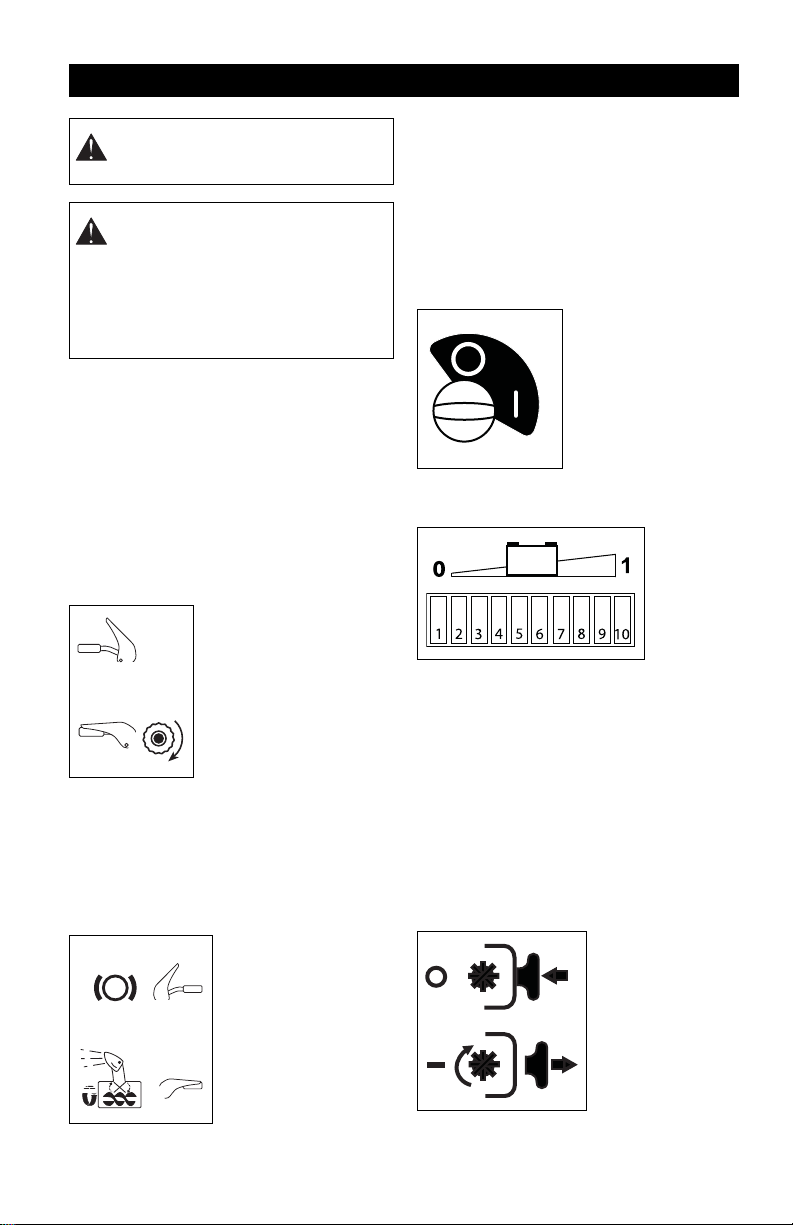

SAFETY DECALS AND
LOCATIONS
ALW AYS replace missing or damaged Safety
Decals. Refer to figure below for Safety Decal
locations.
DANGER: IMMINENTLY
HAZARDOUS SITUATION! If not
avoided, WILL RESULT in death or
serious injury.
WARNING: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, COULD RESULT in death or
serious injury.
CAUTION: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, MAY RESULT in minor or
moderate injury. It may also be used
to alert against unsafe practices.
NOTATIONS
NOTE: General reference information for
proper operation and maintenance practices.
IMPORTANT: Specific procedures or
information required to prevent damage to
unit or attachment.
1. WARNING!
Read Owner/Operator Manual.
GB - 4
Keep people away from unit while
OL4370
OL0910
OL4010
OL4690
OS6610
OS2080
operating. Keep children out of
work area and under watchful care
of a responsible adult.
Never direct discharge towards
persons or property that may be
injured or damaged by thrown
objects.
Stop drive motor, remove key,
read manual before making any
repairs or adjustments.
Wear appropriate hearing
protection.
ONLY use clean-out tool to clear
blockages. NEVER use your
hands.
2. DANGER!
ROTATING PARTS! ONLY use
clean-out tool to clear blockages.
NEVER use your hands. High
speed impeller rotates below
discharge opening. Wait for all
moving parts to stop before
removing clogs or servic ing.
3. DANGER!
ROTATING PARTS.
Keep clear of auger while unit is
running.
• Read Operator’s Manual.
• Allow operation only by
properly trained adult,
never children.
• Stop drive motor and
remove key prior to leaving
the operator’s position for
any reason.
• Keep all controls, guards
and safety devices properly
serviced and functional.
• Never direct discharge
towards persons or
property that may be
injured or damaged by
thrown objects.
SAFETY RULES
Read, understand, and follow all safety
practices in Owner/Operator Manual before
beginning assembly or operating. Failure to
follow instructions could result in personal
injury and/or damage to unit.
ALWAYS disconnect batteries before
assembly, maintenance or service.
Unintentional drive motor start up can cause
death or serious injury.
Complete a walk around inspection of unit
and work area to understand:
• Work area • Your unit • All safety decals
ALWAYS check overhead and side
clearances carefully before operation.
ALWAYS be aware of traffic when operating
along streets or curbs.
Keep children and people away. Keep
children out of work area and under watchful
care of a responsible adult.
NEVER allow children to operate or play on
or near unit. Be alert and shut off unit if
children enter area.
DO NOT allow adults to operate unit without
proper training. Only trained adults may
operate unit. Training includes actual
operation.
Keep area of operation clear of all toys, pets,
and debris. Thrown objects can cause injury.
Check for weak spots on docks, ramps or
floors. Avoid uneven work areas and rough
terrain. Stay alert for hidden hazards.
GB - 5
DO NOT operate near drop-offs, ditches, or
embankments. Unit can suddenly turn over if
a wheel is over the edge of a cliff or ditch, or if
an edge caves in.
Falling snow, fog, etc. can reduce vision and
cause an accident. Operate unit only when
there is good visibility and light.
NEVER operate unit after or during the use of
medication, drugs or alcohol. Safe operation
requires your complete and unimpaired
attention at all times.
NEVER allow anyone to operate this unit
when their alertness or coordination is
impaired.
DO NOT operate unit without wearing
adequate winter outer garments. Wear
adequate safety gear, including safety
glasses with side shields, and protective
gloves. Wear proper footwear to improve
footing on slippery surfaces.
DO NOT wear loose clothing or jewelry and
tie back hair that may get caught in rotating
parts.
Protect eyes, face and head from objects that
may be thrown from unit. Wear appropriate
hearing protection.
Avoid sharp edges. Sharp edges can cut.
Moving parts can cut off fingers or a hand.
ALWAYS keep hands and feet away from all
rotating parts during operation. Rotating parts
can cut off body parts.
NEVER place your hands or any part of your
body or clothing inside or near any moving
part while unit is running.
ALWAYS keep hands away from all pinch
points.
DO NOT touch unit parts which might be hot
from operation. Allow parts to cool before
attempting to maintain, adjust or service.
Never direct discharge towards persons or
property that may be injured or damaged by
thrown objects. Use extreme caution on
gravel surfaces. Stay alert for hidden hazards
or traffic. Adjust skid shoes so Scraper Blade
does not contact gravel.
DO NOT throw snow any higher than
necessary.
Deflected materials can cause injury and
property damage.
Always stand clear of the discharge area
when operating this unit.
ALWAYS disengage attachment, stop unit,
allow moving parts to stop and remove key
before leaving operator’s position.
ROTATING IMPELLER CAN CAUSE
SERIOUS INJURY. NEVER ATTEMPT TO
UNCLOG OR CLEAN UNIT WHILE AUGER
IS RUNNING.
Read, understand, and follow all instructions
in the manual and on the machine before
starting.
Understand:
• How to operate all controls.
• The functions of all controls.
• How to STOP in an emergency.
ALWAYS allow unit to adjust to outdoor
temperatures before clearing snow.
Always be sure of your footing, especially
when operating in reverse or leaving the
operator’s position. Walk, never run during
operation.
DO NOT overload the machine capacity by
attempting to operate or to clear snow at too
fast a rate.
Slow down and turn corners slowly.
Do not operate in reverse unless absolutely
necessary. ALWAYS back up slowly. Always
look down and behind before and while
backing.
Disengage attachment drive when traveling
from one work area to another.
Abnormal vibrations are a warning of trouble.
Striking a foreign object can damage unit.
Immediately stop unit. Remove key and wait
for all moving parts to stop. Disconnect
batteries. Inspect unit and make any
necessary repairs before restart.
Before cleaning, removing clogs or making
any inspections, repairs, etc.: disengage
clutch(es), stop unit, remove key, allow
moving parts to stop. Allow hot parts to cool.
Run auger a few minutes after clearing snow
to prevent freeze-up.
Disengage attachment when not in use.
Adjust skid shoes to clear gravel or crushed
rock surfaces safely.
Never leave a unit unattended with key in.
ALWAYS disengage attachment and remove
key to prevent unauthorized use.
Never carry passengers.
Check clutch and brake operation frequently.
Adjust and service as required. All motion of
drive wheels and auger/impeller must stop
quickly when control levers are released.
GB - 6
DO NOT operate on steep slopes. DO NOT
clear snow across the face of slopes. Keep all
movement on slopes slow and gradual. DO
NOT make sudden changes in speed or
direction. Use a slow speed to avoid stops or
shifts on slopes. Avoid starting or stopping on
a slope.
DO NOT park unit on a slope unless
absolutely necessary. When parking on a
slope always block the wheels.
ALWAYS remove key when transporting unit
on a truck or trailer.
Use extra care when loading or unloading
unit onto trailer or truck.
Secure unit chassis to transport vehicle.
NEVER secure from rods or linkages that
could be damaged.
Keep unit free of ice or other debris.
Before tipping unit up onto housing, remove
batteries. Ensure unit is secure and will not
tip over during maintenance.
ALWAYS keep protective structures, guards,
and panels in good repair, in place and
securely fastened. NEVER modify or remove
safety devices.
ALWAYS maintain unit in safe operating
condition. Check components frequently. If
worn or damaged, replace with
manufacturer’s recommended parts.
Keep all hardware properly tightened. Check
shear bolts frequently.
Maintain or replace safety and instruction
labels, as necessary.
For extended storage, clean unit thoroughly.
Use only attachments or accessories
designed for your unit.
Do NOT put batteries in fire or mutilate.
Explosive Gases! NO flames, NO sparks, NO
smoking, near batteries.
A frozen battery can explode and result in
death or serious injury. DO NOT charge
batteries if frozen. Thaw the battery before
connecting to charger.
Poisonous battery fluid contains sulfuric acid.
Contact with skin, eyes or clothing can cause
severe chemical burns.
ALWAYS wear safety glasses and protective
gear near batteries.
ALWAYS keep batteries out of reach of
children.
Battery posts, terminals and related
accessories contain lead and lead
compounds, chemicals known to the State of
California to cause cancer and reproductive
harm. Wash hands after handling.
Charge batteries in an open, well-ventilated
area, away from spark and flames. Unplug
charger before connecting or disconnecting
to charging port. Remove key while unit is
connected to charger.
GB - 7
WARNING: AVOID INJURY. Read
Figure 3
1. Sno-Thro
Unit
2. Discharge
Chute
3. Chute Crank
4. Hex Key
5. Literature
Pack with
Extra Shear
Bolts
1
2
4
3
5
Figure 4
OS2515
1
2
3
1. Shift Rod
2. Upper and Lower Handlebar
Hardware
3. Shift Rod Hardware
4. Handlebar
4
OS2520
and understand the entire Safety
section before proceeding.
WARNING: Dropping or tipping over
boxed unit could result in personal
injury or damage to unit.
PACKAGE CONTENTS
ASSEMBLY
2. Loosen the hardware on the shift rod.
3. Put the speed selector lever in the sixth
forward position.
4. Rotate the handlebars into operating
position.
NOTE: Be careful not to damage cable spring
hooks when rotating handlebars upward.
5. Install and tighten the hardware on the
handlebar assembly.
6. Tighten the hardware on the shift rod.
Make sure that the rod is correctly
seated before tightening.
.
ASSEMBLY
Tools Required:
• Pliers
• Hex Key (Included)
• Open-End Wrenches: 3/8, 7/16, 1/2,
9/16 in. and/or Adjustable Wrench
•Tire Gauge
Unfold Handlebar
Figure 4
1. Remove the lower and loosen the upper
hardware on the handlebar assembly.
GB - 8
Install Discharge Chute
Figure 5
4
3
2
OS2025
1. Mounting Hardware
2. Discharge Chute
3. Discharge Chute Ring
4. Chute Pedestal
1
OS2026
Figure 6
1
1. Battery Connectors
2. Power Harness Connectors
3. Front Battery
4. Rear Battery
3
4
2
2
Figure 5
1. Gre ase underside of discharge chute
ring (if not already greased).
2. Re move mounting hardware from the
bottom of the chute pedestal.
3. Install discharge chute over opening in
the auger housing and secure pedestal
to auger housing with hardware
removed in step 2.
Connect Batteries
Figure 6
The battery connectors are located under the
battery cover. To connect batteries:
1. Ensure that the power and PTO
switches are in the OFF position.
2. Remove two hex socket head screws
from each side of battery cover. Use hex
key provided in literature pack.
3. Rotate cover toward handlebar. Use
care not to place tension on wires.
4. Connect two batteries to power harness
leads. Ensure that connectors are fully
seated and lock in place.
5. Install battery cover. To prevent damage
to cover do not overtighten hex socket
head screws.
WARNING: ALWAYS disconnect the
batteries before performing
maintenance on unit.
IMPORTANT: Both batteries must be
disconnected to fully remove power from the
electrical system.
IMPORTANT: Battery cover also acts as the
hold-down for the batteries. DO NOT operate
unit without the cover securely installed with
all hardware.
Install Discharge Ch ute Crank
Figure 7
1. Slide chute crank through the opening in
the control panel.
NOTE: Be careful not to damage nylon
bushing when attaching crank to the dash.
2. Connect the chute crank to the pinion
gear on chute with spring clip pin.
GB - 9
Install Remote Deflector Cable
Figure 7
1. Chute Crank
2. Control Panel
3. Pinion Gear
4. Spring Clip Pin
1
2
3
4
OS2535
OS2536
Figure 8
1. Remote Deflector Cable
2. Remote Deflector Control
3. Cable Clip
4. Wire Cable Hook
5. Cable Mounting Bracket
1
3
2
4
5
(Figure 8 and 9)
1. Slide cable through clip on top of
discharge chute pedestal Figure 8.
2. Bend clip closed around cable.
3. Using the wire hook attached to the
deflector cable, hook cable to discharge
chute crank.
.
4. Pull rubber seal cap away from snap
fitting.
5. Install snap fitting into cable bracket’s
upper mounting hole.
NOTE: The cable mounting bracket located
underneath the control panel contains two
mounting holes. Use only the upper mounting
hole; the one closest to the dash.
6. Position rubber seal cap over the top of
snap fitting.
7. Move deflector control lever to forward
most position.
8. Attach cable eye to pin on bottom of
deflector control lever.
NOTE: Hold down chute deflector cap, if
needed, for more cable slack.
9. Secure cable eye to control lever with
washer and hairpin.
10. Test controls to be sure deflector works
properly.
NOTE: If deflector does not follow full range
of travel See Remote Discharge Deflector
Control Adjustment on page 21.
GB - 10
.
1. Upper Mounting
Hole
2. Snap Fitting
3. Rubber Seal
Cap
4. Hairpin
5. Washer
6. Cable Eye
2
1
3
4
6
5
Figure 9
Charge Batteries
The batteries MUST be charged for a
minimum of 7 hours before the first use.
See Pre-Start on page 15.
IMPORTANT: The unit MUST be connected
to the battery charger whenever it is not in
use. Failure to keep batteries fully charged
will reduce battery life and void battery
warranty.
Check Function of Dual Handle
Interlock
With power switch in the off position, press
down (engage) both clutch levers. Release
pressure on attachment clutch (right side)
lever. The attachment clutch should remain
engaged until traction clutch lever is
released, then both clutches must disengage.
If they do not, contact your Dealer for repairs.
Check Tire Pressure
Check tire pressure and adjust to the
pressure listed on tire sidewall.
CAUTION: Avoid injury! Explosive
separation of tire and rim parts is
possible when they are serviced
incorrectly:
• Do not attempt to mount a tire
without the proper equipment
and experience to perform the
job.
• Do not inflate the tires above
the recommended pressure.
• Do not weld or heat a wheel
and tire assembly. Heat can
cause an increase in air
pressure resulting in an
explosion. Welding can
structurally weaken or deform
the wheel.
• Do not stand in front or over
the tire assembly when
inflating. Use a clip-on chuck
and extension hose long
enough to allow you to stand
to one side.
Check Auger Gearcase Oil
Check oil level in auger gearcase (see Check
Auger Gearcase on page 19).
Check Function of all Controls
Ensure unit runs and performs properly. Refer
to Operation.
Run-in Attachment Belt
1. Run unit according to Starting and Shut
Off on page 17.
2. Engage attachment clutch lever and run
attachment for about 15 minutes.
3. Stop unit, wait for all moving parts to
stop, and remove key.
4. Adjust clutch idler according to
Attachment Clutch/Brake Adjustment on
page 25.
GB - 11
CONTROLS AND FEATURES
Figure 10
1
2
4
5
6
7
8
9
10
11
12
13
14
20
19
18
15
16
17
3
1. Attachment Clutch Lever
2. Speed Selector
3. Remote Deflector Lever
4. Traction Drive Clutch Lever
5. Chute Crank
6. Discharge Chute Deflector
7. Discharge Chute
8. Impeller
9. Auger
10. Scraper Blade
11. A uger G earcas e
12. Clean-out Tool
13. Axle Lock Pin
14. Skid Shoe(s)
15. Belt Cover
16. Battery Cover
17. Charging Port
18. Key/Power Switch
19. Battery Level Indicator
20. PTO Switch
GB - 12
WARNING: AVOID INJURY. Read
OL2701
1
2
OL2691
1
2
1
2
_
+
1
2
and understand the entire Safety
section before proceeding.
WARNING: To avoid injury to hands
and feet, always disengage clutches,
move PTO and power switches to
OFF position, and wait for all
movement to stop before unclogging
or working on snow thrower.
Keep hands and feet away from
auger and impeller.
CONTROLS AND FEATURES
See Figure 10 for all Controls and Features
locations.
Dual Handle Interlock
When attachment clutch and then traction
drive clutch are engaged, the attachment
clutch will remain engaged (lever down) if
released. T o stop at tachment, release traction
drive clutch and both clutches will disengage.
Traction Drive Cl utch – Left-Hand
Lever
Squeeze the traction drive
clutch lever against the
handlebar (1) to engage
wheel drive for propelling
unit. Forward speed will
vary according to snow
depth and moisture
content.
Release lever (2) to stop
movement.
NOTE: When traveling to or from the area to
be cleared, press down on the handlebars
enough to raise the front of the unit slightly off
the surface. Engage the traction drive clutch
without engaging the attachment drive clutch.
Attachment Clutch – Right-Hand
Lever
Squeeze Attachment
Clutch Lever against
handlebar (1) to
engage attachment.
Release both clutch
levers (2) to disengage
power and apply brake
to attachment.
OPERATION
IMPORTANT: If the belt squeals when the
attachment clutch lever is engaged, the
impeller may be frozen in the auger housing.
Immediately release the attachment clutch
lever and move the unit into a heated area to
thaw.
NOTE: If belt squeals when impeller turns
freely, see Attachment Drive Belt
Replacement on page 23.
Power Switch
Operate power switch
with a removable key.
Power switch has two
positions: ON (1), and
OFF (2).
Always remove key
when unit is
unattended or
connected to battery
charger.
Battery Level Indicator
When the
power
switch is in
the ON
position
one LED
will light,
indicating
the relative
charge remaining in the batteries. When the
batteries are fully charged (1) LED 10 or 9 will
be lit.
During operation the lit LED will change,
moving down the indicator scale as the
batteries discharge.
When the batteries charge are nearly
depleted (0) LED 1 and 2 will flash alternately.
NOTE: The battery level indicator will only
reset once the batteries have been fully
charged.
Power Take-Off (PTO) Switch
Pull out to start
drive motor (1) and
push in to stop
drive motor (2).
GB - 13
Speed Selector
OS2581
6 112
Forward
(6) Fastest
(1) Slowest
Reverse
(1) Slow
(2) Fast
Figure 11
OS2550
1. Snow Clean-Out Tool
1
Position the Speed Selector in the
appropriate speed notch to control forward
and reverse travel.
IMPORTANT: DO NOT change motion from
forward to reverse with clutch engaged.
Forward speed can be changed without
declutching.
Snow Clean-Out Tool
Figure 11
WARNING: Hand contact with the
rotating impeller is the most common
cause of injury associated with snow
throwers. Never use your hand to
clean out the discharge chute.
3. Remove the snow clean-out tool (1) from
the auger housing and use it to remove
the clog from the discharge chute.
4. Replace the snow clean-out tool on the
auger housing.
Remote Discharge Chute
Deflector Control
ALWAYS position discharge chute deflector
at a safe angle before engaging the auger.
Place deflector into position before operation.
DO NOT throw snow any higher than
necessary.
Place deflector remote in a forward notch to
throw snow lower. Place deflector remote in a
rearward notch to throw snow higher
Discharge Chute
Discharge chute rotates 200°.
ALWAYS position discharge chute in safe
direction and angle, away from operator and
bystanders, before engaging auger.
Discharge Chute Crank
IMPORTANT: If chute does not stay in set
position, adjust as directed in SERVICE AND
ADJUSTMENTS on page 20, or repair before
operation.
Rotate the chute with the discharge chute
crank handle.
IMPORTANT: DO NOT force frozen chute
controls. If frozen, take to warm place until
controls are free.
Axle Lock Pin
Figure 12
Use the axle lock pin to lock or unlock the
right or left wheel. Lock both wheels to
increase traction; unlock one wheel to allow
for easier turning of the unit.
NOTE: Unit will not drive with both wheels
unlocked.
To clear the discharge chute:
1. Move PTO and power switches to OFF
position. Remove key.
2. Wait 10 seconds and make sure impeller
blades have stopped rotating.
GB - 14
Once the batteries are fully charged the
Figure 12
Wheel Unlocked
Wheel Locked
Axle Lock
Pin
attached charger switches to a hibernation
mode which monitors the batteries and
maintains their charge. The battery charger
powers on intermittently to check voltage and
charge the batteries as necessary.
If a charge is required, the battery charger
sends a minimal level of current. Over time
this low rate of charge helps to extend battery
life by equalizing charge imbalances between
cells. This low charge rate also prevents
damage to the batteries from the forming of
lead sulfate which occurs when batteries
remain in a discharged state.
If there is a power outage while the battery
charger is connected to the batteries the
charger will reset once power is restored. The
charger will automatically check the charge
level of the batteries and reset its hibernation
mode.
WARNING: FROZEN BATTERIES
CAN EXPLODE and result in death
or serious injury. DO NOT charge a
frozen battery. Let the battery thaw
before charging.
Scraper Blade
The scraper blade allows the back of the
housing to keep better contact with the
surface being cleared. It also prevents
damage to the housing from normal use.
IMPORTANT: DO NOT allow scraper blade to
wear too far or auger/impeller housing will
become damaged.
Skid Shoes
The skid shoes control the distance between
the scraper blade and the ground. Adjust skid
shoes equally to keep blade level with the
ground. Refer to Check Function of Clutches
on page 16 for recommended settings.
PRE-START
Charging the Batteries
IMPORTANT: Batteries MUST be connected
to battery charger after every use, regardless
of length of time unit was operated. After
batteries are charged the battery charger
must remain connected until the next use.
Failure to keep batteries fully charged will
reduce battery life and void battery warranty.
WARNING: DO NOT use battery
chargers other than those
recommended by an authorized
Ariens dealers. Incorrect battery
charging will void warranty and can
lead to equipment damage, death or
serious injury.
IMPORTANT: ALWAYS follow information
provided with the battery charger. Contact
battery charger manufacturer for detailed
instructions.
1. Park unit in a well-ventilated area.
2. Turn PTO and power switches OFF.
Remove key from switch.
3. Attach battery charger connector to
battery charging port (see Figure 13).
GB - 15
4. Plug battery charger into wall outlet. Do
Figure 13
1. Battery Charger Connector
2. Battery Charging Port
1
2
Figure 14
ON: (Power) – Red LED
remains lit while battery
charger is attached to unit and
plugged into outlet. Flashes
once per second when in
hibernation mode.
CHARGE: Yellow LED
remains lit while batteries are
charging, begins to flash when
batteries reach 80% charge
level, and continues to flash
until full charge is achieved.
Shuts off upon full charge.
READY: Green LED lights
and remains lit once batteries
are fully charged.
Connector
Battery Charger
not use an extension cord unless
necessary. If an extension cord is
needed follow the manufacturer’s
recommendations for length and
capacity.
Ensure that status indicator LEDs are lit on
charger (see Figure 14). If LEDs do not light
correctly refer to troubleshooting chart (see
BAT TERY CHARGING
TROUBLESHOOTING on page 31).
5. Allow batteries to charge. When fully
charged the green "READY" LED on the
charger will light. Do not disconnect
battery charger until the Sno-Thro is to
be used.
NOTE: Depending on extent of discharge
and battery condition, allow approximately 7
hours for a complete recharge before
additional use.
NOTE: An optional heavy duty charger is
available that reduces charge time to
approximately 3 hours (see ACCESSORIES
on page 31).
6. To use Sno-Thro, disconnect battery
charger from wall outlet and disconnect
from unit charging port. Store charger in
a dry area away from children, pets, heat
and moisture.
1. Check Function of Clutches
If clutches do not engage or disengage
properly, adjust or repair before operation.
See Attachment Clutch/Brake Adjustment on
page 25 and Traction Drive Clutch
Adjustment on page 27.
GB - 16
2. Check Dual Handle Interlock
Without the drive motor running, press down
(engage) both clutch levers. Release
attachment clutch lever. Attachment clutch
should remain engaged until traction clutch
lever is released, then both clutches must
disengage.
If clutches do not engage or disengage
properly, adjust or repair before operation
(see Attachment Clutch/Brake Adjustment on
page 25 and Traction Drive Clutch
Adjustment on page 27).
3. Check Axle Lock Pins
Use the axle lock pins to lock or unlock the
wheels. Lock both wheels to increase
traction; unlock one wheel to allow for easier
turning of the unit.
4. Check Skid Shoes
Check and adjust skid shoes (Skid Shoes on
page 20). Allow 1/8 in. (3 mm) between
scraper blade and hard, smooth surface(s).
Allow 1-1/4 in. (30 mm) between scraper
blade and uneven or gravel surfaces.
TO STOP IN AN EMERGENCY
Immediately release both control levers to
stop unit in an emergency. Disengage PTO
switch, remove key and wait for all rotating
parts to stop before leaving operator’s
position.
STARTING AND SHUT OFF
WARNING: FAILURE TO FOLLOW
INSTRUCTIONS could result in
personal injury and/or damage to
unit. DO NOT attempt to start your
unit at this time. Read entire
Owner/Operator Manual first.
See Figure 10 for all Controls and Features.
Starting
IMPORTANT: Disengage PTO and release
both controls before turning power switch to
ON position.
1. Inser t key and turn power switch to the
ON position. LED in battery level
indicator will glow. Drive motor will not
yet run.
2. Engage PTO switch. Drive motor will
run.
Stopping
1. Release traction drive clutch lever and
allow unit to come to a complete stop.
2. Run impeller a few minutes after use to
prevent freeze-up of Impeller.
3. Release attachment clutch lever and
wait for all moving parts to come to a
complete stop.
4. Disengage PTO switch. Drive motor will
stop.
5. Turn power switch to OFF position and
remove key.
6. Attach unit to battery charger.
NOTE: Try out each control without the drive
motor running to see how it works and what it
does.
SNOW REMOVAL
NOTE: Attachment clutch should be engaged
before wheel drive clutch when throwing
snow.
1. Select speed control position and
direction.
2. Engage attachment clutch (right-hand
lever).
3. Engage traction drive clutch (left-hand
lever).
IMPORTANT: DO NOT overload unit capacity
by attempting to clear snow at too fast a rate.
Use slow speed to clear deep or hard packed
snow.
Low Battery Voltage
If unit is run to the point of shutting down due
to low battery voltage:
1. Disengage PTO switch and turn power
switch to OFF position.
2. Manually move unit to a safe location.
3. Wait 2 – 5 minutes and move power and
PTO switches to the ON position. Do not
engage attachment clutch.
Batteries will regenerate enough power to
drive unit back to charging area. Immediately
attach battery charger to unit and charge fully.
Tips for Operation
Snow is best removed as soon as possible
after snow fall.
To clear an area, run unit in an overlapping
series of paths. For large areas, start in the
middle and throw snow to each side, so snow
is not cleared more than once.
ALWAYS direct snow away from area to be
cleared and with direction of the wind.
TRAVELING
To travel from one work area to another:
1. Press down on handlebars enough to
raise front of unit slightly off surface.
2. Engage traction drive clutch without
engaging attachment drive clutch.
GB - 17
TRANSPORT
Figure 15
Service Position
OS2595
Batteries MUST be
removed before
tipping unit.
ALWA YS move PTO and power switches to
OFF position and remove key when
transporting unit on a truck or trailer.
MAINTENANCE
Ariens Dealers will provide any service or
adjustments which may be required to keep
your unit operating at peak efficiency.
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
SERVICE POSITION
WARNING: Before tipping unit up
onto housing, both batteries must be
removed from the unit. Ensure unit is
secure and will not tip over during
maintenance.
Remove hair pin from chute crank and
remove chute crank arm. Remove both
batteries and place unit on a flat level surface
(see Removing and Installing Batteries on
page 22). Tip unit forward onto front of auger
housing for service. Ensure unit is secure and
will not tip over. S trap and clamp onto bench if
needed.
Use extra care when loading or unloading
unit onto trailer or truck.
Secure unit chassis to transport vehicle.
NEVER secure from rods or linkages that
could be damaged.
MAINTENANCE SCHEDULE
The chart below shows the recommended
maintenance schedule that should be
performed on a regular basis. More frequent
service may be required.
MAINTENANCE SCHEDULE
Service
Performed
Charge
Batteries *
Check Dual
Handle
Interlock
Check
Fasteners
Check Clutch
Operation
Check Clutch
Spring
Adjustments
Check Tire
Pressure
Check Auger
Gearcase
General
Lubrication
* Batteries MUST be connected to battery
charger after every use, regardless of length
of time unit was operated. After batteries are
charged the battery charger must remain
connected until the next use. Failure to keep
batteries fully charged will reduce battery life
and void battery warranty.
CHECK DUAL HANDLE
INTERLOCK
Check operation of dual handle interlock. See
Dual Handle Interlock on page 13.
Each
Use
•
•
•
•
Every
5 hrs.
Every
Yearly
25
hrs.
•
••
••
••
CHECK FASTENERS
Make sure all hardware is tightened properly.
GB - 18
CHECK CLUTCH OPERATION
Figure 16
1. Auger Gearcase
2. Filler Plug
OS2600
1
2
Auger and impeller must stop within 5
seconds when attachment clutch/impeller
brake lever is released.
Wheels must stop quickly when traction drive
clutch lever is released.
If clutches do not engage or disengage
properly, adjust or repair before operation
(see Attachment Clutch/Brake Adjustment on
page 25 and Traction Drive Clutch
Adjustment on page 27).
CHECK CLUTCH SPRING
ADJUSTMENT
Make sure the attachment clutch and traction
drive clutch are adjusted to the range
specified in Attachment Clutch/Brake
Adjustment on page 25 and Traction Drive
Clutch Adjustment on page 27.
CHECK TIRE PRESSURE
Keep tires at pressure listed on the tire
sidewall. (see Check Tire Pressure on
page 11).
CHECK AUGER GEARCASE
IMPORTANT: Proper oil level must be
maintained.
Gear cases are filled to the correct level at
the factory. Unless there is evidence of
leakage, no additional lubricant should be
required. Check oil level each season or
every 25 hours of operation.
To ensure adequate lubricant level:
1. Remove filler plug (Figure 16). Lubricant
must be at least up to bottom of lubricant
filler hole with unit resting on a level
surface.
2. Add lubricant if required. Allow oil to
drain to level of plug and replace plug.
IMPORTANT: Use only Ariens special gear
lubricant L-2 (Part Number 00008000).
Gearcase filler plug may require an
application of Loctite® 565 thread sealant
with repeated servicing.
GENERAL LUBRICATION
Figure 17
IMPORTANT: Wipe each fitting clean before
and after lubrication. Do not wipe gearcase
filler plug; wiping the gearcase filler plug may
remove thread sealant and cause leaks.
IMPORTANT: DO NOT allow grease or oil to
get on friction disc, friction plate or belts.
NOTE: Apply Ariens Hi-T emp Grease or
equivalent to the lubrication fittings. See
SERVICE PARTS on page 31 .
Sno-Thro should be lubricated (Figure 17) at
beginning of season or every 25 operating
hours.
Auger Shaft
NOTE: To grease auger shaft, remove shear
bolt nuts, and shear bolts. Apply grease at the
grease zerks and then turn the auger
assemblies on the auger shaft. Replace
shear bolts per instructions in Shear Bolts on
page 21.
GB - 19
OS2602
= Grease
Figure 17
OS2603
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
SCRAPER BLADE
IMPORTANT: Damage to auger/impeller
housing will result if blade wears down too
far.
Scraper blade is adjustable to compensate
for wear.
To adjust scraper blade:
1. Tip unit back onto handlebar, support
housing and loosen nuts retaining
scraper blade.
2. Adjust skid shoes to fully raised position
(housing closest to ground).
3. Reposition scraper blade flush with skid
shoes and tighten lock nuts.
SKID SHOES
Skid shoes should be adjusted as conditions
require (Figure 18).
1. Position unit on a hard, flat, smooth level
surface.
2. Adjust skid shoes by inserting a spacer
of desired thickness under center of
scraper blade.
3. Loosen skid shoe hardware.
4. Slide skid shoe to flat surface. Allow
1/8 in. (3 mm) between scraper blade
and hard smooth surfaces. Allow 11/4 in. (30 mm) between scraper blade
and uneven or gravel surfaces.
Retighten hardware.
NOTE: Keep housing level by adjusting skid
shoes equally.
GB - 20
SHEAR BOLTS
Figure 18
OS0482
1. Skid Shoe
2. Skid Shoe Hardware
1
2

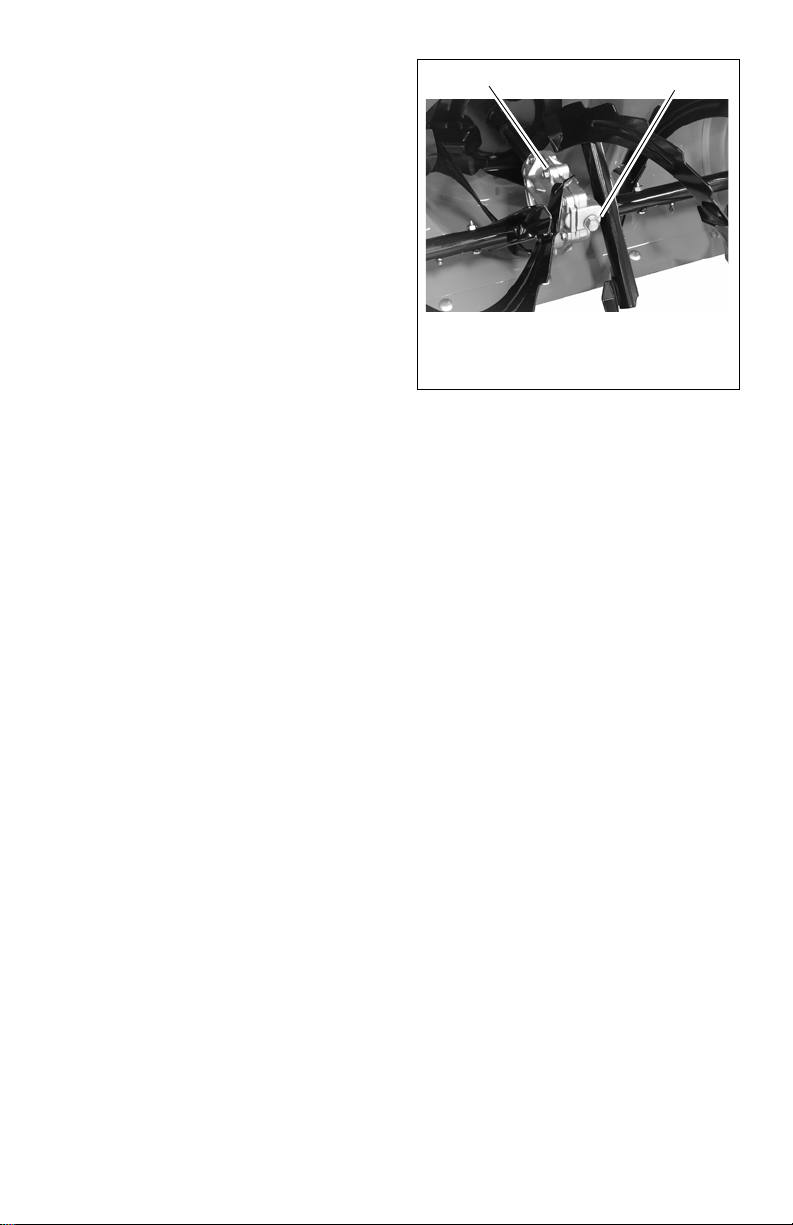

Figure 19
1. Auger
2. Shear Bolts
OS2610
1
2
2
Figure 20
2
1
1. Adjusting Nuts
2. Cable Support Bracket
3. Remote Deflector Control Cable
4. Discharge Deflector
3
4
IMPORTANT: Use only Ariens shear bolts for
replacement. Use of any other type of shear
bolt may result in severe damage to unit and
may void the warranty.
Occasionally a foreign object may enter the
auger/impeller housing and jam the auger,
breaking the shear bolts which secure the
auger to the shaft (Figure 19). This allows the
auger to turn freely on the shaft which may
help prevent damage to gear case and its
components.
REMOTE DISCHARGE
DEFLECTOR CONTROL
ADJUSTMENT
Figure 20
If discharge deflector does not follow full
range of travel:
1. Push deflector remote all the way
forward.
2. Loosen adjusting nuts on remote
deflector cable attached to the chute
deflector (Figure 20).
3. To adjust the deflector lower:
Loosen bottom adjustment nut and
tighten top adjustment nut.
To adjust deflector higher:
Loosen top adjustment nut and tighten
bottom adjustment nut.
4. Check the deflectors range of travel and
repeat adjustment as necessary.
Replacement
1. Align shear bolt holes in auger with
shear bolt holes in the shaft.
2. Drive shear bolt through hole. If shear
bolt was broken this will drive remaining
part from shaft.
3. Secure shear bolt with nut.
DISCHARGE CHUTE
If discharge chute does not stay in position
while operating, tighten nut (2) at pivot point
to increase tension on spring. See Figure 21.
GB - 21
REMOVING AND INSTALLING
Figure 21
OS2620
1. Spring
2. Nut
1
2
Figure 22
Front
1. Rear Battery
2. Front Battery
3. Wire Leads
1
2
3
3
BATTERIES
Removal
1. Move power and PTO switches to the
OFF position. Remove key from switch.
2. Remove four screws securing battery
cover to unit and rotate battery cover
toward handlebar. Use care not to place
excess tension on wires.
3. Disconnect batteries from unit power
harness.
4. Carefully lift batteries from battery box.
Installation
Figure 22
1. Install the rear battery into battery box
standing upright with wire leads in the
top left position.
2. Insert the front battery on its side into the
battery box with the wire leads oriented
toward the top left position.
SPEED SELECTOR
ADJUSTMENT
To adjust (Figure 23):
1. Disconnect adjustment pivot pin from
speed selector arm. Save hardware for
reinstallation.
2. Place the speed selector on dash panel
in the fastest forward (6) speed position.
3. Turn the speed selector arm straight
down towards the ground as far as it will
go.
4. Thread the adjustment pivot pin along
the shift rod until it aligns with the mating
hole on the speed selector arm, and
then turn it up the shift rod 3 turns. Insert
the pivot pin into hole.
5. Connect the pivot pin to the speed
selector arm with the hardware removed
in step 1.
6. Check forward and reverse speeds:
a. Move power and PTO switches to
the ON position.
b. Shift speed selector into the first
forward speed.
c. Engage the traction clutch. Unit
should move forward.
d. Release the traction clutch.
e. Shift speed selector into first
reverse speed.
f. Engage the traction clutch. Unit
should move backward.
g. Shut off unit.
7. Adjust pivot pin on the shift rod as
necessary so unit travels forward when
speed selector is in first forward position
and travels backward when speed
selector is in first reverse position.
8. Connect the pivot pin to the speed
selector arm with the hardware removed
in step 1.
NOTE: If first forward speed is too fast,
disconnect adjustment pivot pin from speed
selector arm. Rotate pivot pin to move it up
the shift rod a maximum of 2 turns and
reconnect pivot pin to speed selector arm.
3. Connect batteries to power cable.
4. Install battery cover.
GB - 22
ATTACHMENT DRIVE BELT
Figure 23
1. Shift Rod
2. Adjustment Pivot Pin
3. Speed Selector Arm
4. Hairpin
2
4
1
3
OS8060
Figure 24
1. Belt Fingers
2. Attachment Drive Belt
1
2
OS2625
REPLACEMENT
Remove Attachment Drive Belt
(Figures 24, 25 and 26)
1. Move power and PTO switches to the
OFF position. Remove key.
2. Disconnect batteries.
3. Loosen the hardware sec uring belt
cover to uni t.
NOTE: DO NOT completely remove the
hardware from unit.
4. Remove the belt cover.
5. Remove spring pin from chute crank and
separate.
6. R emove remote deflector control cable
from dash control.
7. Remove belt fingers by removing hex
bolts mounting belt fingers to frame. See
Figure 24.
8. Remove attachment drive belt from drive
pulley.
CAUTION: Always support Sno-Thro
frame and housing when loosening
the cap screws holding them
together. Never loosen cap screws
while unit is in service position.
IMPORTANT: To avoid bending bottom cover,
when tipping unit apart, support handlebars
firmly or tip unit up on housing and remove
bottom cover by removing six cap screws
before separating unit.
WARNING: Before tipping unit up
onto housing, both batteries must be
removed from the unit. Ensure unit is
secure and will not tip over during
maintenance.
9. Support Sno-Thro frame and housing.
10. Remove hex bolts securing housing to
frame (two on each side). Tip housing
and frame apart on pivot pin. See
Figure 25.
11.Remove attachment drive belt from
attachment pulley (hold brake away from
belt).
GB - 23
Replace Attachment Drive Belt
Figure 25
OS2625
1
2
3
4
1. Pinion Gear
2. Belt Cover
3. Spring Pin
4. Chute Crank
Figure 26
OS2623
5
3
2
1
6
7
8
4
1. Traction Belt
Idler
2. Traction
Drive Belt
3. Drive Pulley
4. Belt Finger
5. Attachment
Drive Belt
6. Attachment
Pulley
7. Attachment
Idler Nut
8. Attachment
Belt Idler
4
1. Place new belt onto attachment pulley.
NOTE: Hold down the attachment clutch
lever to make it easier to reconnect the
housing and frame.
2. Tip housing and frame back together
and secure with hex bolts.
3. Place belt onto drive pulley.
4. Replace belt fingers. Ensure that index
pins are properly seated.
5. Adjust clutch per Attachment
Clutch/Brake Adjustment on page 25.
WARNING: AV OID INJURY. Au g e r
must stop within 5 seconds when
attachment lever is released or
serious injury or unit damage may
result.
6. Replace chute crank and secure with
spring pin.
7. Reconnect remote deflector cable to
dash control.
8. Run in the attachment belt. See Run-in
Attachment Belt on page 11.
9. Replace belt cover.
TRACTION DRIVE BELT
REPLACEMENT
1. Move PTO and power switches to OFF
position.
2. Disconnect and remove batteries.
CAUTION: Before tipping unit up
onto housing, both batteries must be
removed from the unit. Ensure unit is
secure and will not tip over during
maintenance.
3. Place the unit into the service position
on a level surface (see Service Position
on page 18).
4. Remove the bottom cover by removing
six cap screws.
NOTE: To gain belt clearance, remove swing
gate spacer (Figure 27) so drive plate can be
slid over until finger is out of frame and drive
plate can swing past stop hole in frame. See
Figure 28.
GB - 24
ATTACHMENT CLUTCH/BRAKE
Figure 27
OS2630
1. Swing Gate Spacer
2. Drive Plate
1
2
Figure 28
OS8068
1. Swing Gate
2. Swing Gate Finger
3. Drive Plate
3
1
2
Figure 29
1. Attachment Clutch Cable
2. Cable Adjustment Barrel
3. Jam Nut
2
3
OS2645
1
ADJUSTMENT
WARNING: IMPROPER
ADJUSTMENT could result in
unexpected movement of auger and
impeller causing death or serious
injury. AUGER / IMPELLER MUST
STOP within 5 seconds when
Attachment Clutch/Impeller Brake
Lever is released.
Remove Attachment Cable Slack
1. Loosen the hardware securing belt
cover to unit.
NOTE: DO NOT completely remove the
hardware from unit.
1. Remove the belt cover.
2. Loosen jam nut (3) on cable adjustment
barrel (2), and then turn the adjustment
barrel down to shorten cable and
remove all cable slack. See Figure 29.
5. Pull idler away from traction drive belt
and remove belt from idler, drive pulley
and driven pulley.
6. Replace traction drive belt.
7. Swing drive plate toward friction disc to
slide finger into stop hole in frame.
Reinstall swing gate spacer.
NOTE: Make sure drive plate spring remains
connected to the frame and drive plate.
8. Replace attachment drive belt (See
Replace Attachment Drive Belt on
page 24).
3. With the attachment clutch disengaged,
check that the attachment idler arm
lightly touches the frame. See Figure 30.
4. Tighten jam nut on cable adjustment
barrel.
GB - 25
Check Attachment Idler Arm Roller
Figure 30
OS7188
With the attachment clutch disengaged,
check the attachment idler arm position
here. The attachment idler arm should
lightly touch the frame.
1. Attachment Idler Arm
1
Figure 31
OS8080
Roller should be 1/2 – 7/8 in. (12.7 –
22.2 mm) from the frame when the
attachment clutch is engaged.
Figure 32
OS8085
1/2 – 9/16 in.
(12.7 – 14.3 mm)
Clearance
1. Place the unit into the service position
(see Service Position on page 18).
Remove the bottom cover.
2. With the clutch lever engaged, check the
clearance between the frame and plastic
roller on the lower end of the attachment
idler arm. See Figure 31.
• If roller is 1/2 – 7/8 in. (12.7 –
22.2 mm) from frame, go to Adjust the
Attachment Clutch Cable Spring
Extension on page 26.
• If roller is less than 1/2 in. (12.7 mm)
from frame, loosen idler adjustment
nut and move idler closer to the belt.
Tighten adjustment nut and recheck
the roller clearance.
• If roller is more than 7/8 in. (22.2 mm)
from frame, loosen idler adjustment
nut and move idler away from the belt.
Tighten adjustment nut and recheck
roller clearance.
Adjust the Attachment Clutch Cable
Spring Extension
1. Check the attachment clutch cable
spring extension.
Measure the length of the attachment
clutch cable spring with the clutch lever
disengaged.
Then measure the attachment clutch
spring with the clutch lever engaged.
See Figure 32. The spring should be
1/2 – 9/16 in. (12.7 – 14.3 mm) longer
when the clutch lever is engaged.
• If spring extension is within the
specified range, go to Check
Attachment Brake on page 27.
• If spring extension is outside of
specified range, go to step 2.
GB - 26
2. Adjust cable length (See Figure 32).
Figure 33
OS8092
Minimum of 1/16 in. (1.6 mm)
1. Brake Arm and Pad
2. Attachment Pulley
1
2
Traction Clutch
Lever
OS2490
Figure 34
7-1/2 – 8 in.
(19.0 – 20.3 cm)
when wheels
begin to brake.
a. Loosen jam nut on cable.
b. To increase spring extension,
adjust barrel down the cable and
tighten jam nut.
c. To decrease spring extension,
adjust barrel up the cable and
tighten jam nut.
Check Attachme nt Brake
Figure 33
1. With the clutch lever disengaged, brake
pad must contact attachment belt. With
clutch lever engaged, brake pad must be
more than 1/16 in. (1.6 mm) from belt. If
there is more than 1/16 in. (1.6 mm) gap,
go to Traction Drive Clutch Adjustment
on page 27. If there is less than 1/16 in.
(1.6 mm) gap, go to Step 2.
2. If there is less than 1/16 in. (1.6 mm)
gap between brake pad and belt, follow
these steps:
a. To increase brake pad gap,
loosen idler adjustment nut, and
move idler away from belt.
Position idler to achieve a 1/16 in.
(1.6 mm) minimum brake pad gap
and a 1/2 – 7/8 in. (12.7 –
22.2 mm) gap between the
plastic roller and the frame.
b. Check the clutch cable spring
extension and adjust as
necessary to achieve a
1/2 – 9/16 in. (12.7 – 14.3 mm)
spring extension.
c. If the cable needed adjustment,
recheck gaps described in step 1.
Repeat steps as necessary until
brake clearance, roller gap and
spring extension are within
specified ranges.
IMPORTANT: If adjustments cannot be
brought into specified ranges see your Dealer
for repairs.
TRACTION DRIVE CLUTCH
ADJUSTMENT
If drive slips, adjust traction clutch to
compensate for friction disc wear.
To test traction clutch (Figure 34):
1. Put unit in first forward speed.
2. With power switch off, push unit forward
while slowly moving the traction drive
clutch lever toward the handlebar.
3. Measure distance between lever and
handlebar when the wheels begin to
brake. If distance is not 7-1/2 – 8 in.
(19.0 – 20.3 cm), adjust the traction
clutch.
To adjust traction clutch (Figure 35):
1. With the traction drive clutch lever
disengaged, loosen the jam nut on the
cable adjuster.
Turn adjustment barrel up the cable to
decrease the distance between clutch
lever and handlebar.
Turn the adjustment barrel down the
cable to increase the distance between
clutch lever and handlebar.
2. Check traction clutch lever distance and
repeat adjustment steps if necessary.
3. Tighten jam nut on traction cable
adjustment barrel.
4. With the clutch disengaged, check that
there is more than 1/32 in. (0.8 mm)
clearance between friction disc and
drive plate assembly. See Figure 36 on
page 28.
GB - 27
FRICTION DISC REPLACEMENT
Figure 35
1. Traction Drive
Clutch Cable
2. Adjustment
Barrel
3. Jam Nut
OS2665
1
2
3
1. Hex Shaft
2. Friction Disc
Assembly
3. Left Bearing
Flange
4. Speed
Selector
Arm
5. Friction Disc
6. Right
Bearing
Flange
7. Carrier
Bearing
8. Spring Clip
9. Drive Gear
10. Drive Plate
Assembly
OS8095
Figure 36
1
2
3
4
6
7
5
8
9
10
Remove Friction Disc
Figure 36
1. Move PTO and power switches to OFF
position. Remove key.
2. Disconnect and remove batteries.
9. Slide hex shaft to the left to remove the
flat washer, pinion gear and friction disc
assembly from the hex shaft.
NOTE: Be sure to save washers between
bearing and sliding fork for reassembly.
10. Remove friction disc assembly from
frame.
11.Remove three screws holding friction
disc to carrier bearing.
12. Remove old friction disc. Put the new
friction disc in place, cup side to carrier
bearing.
13. Reinstall three screws into new friction
disc and carrier bearing. Torque to
5 – 6 lbf-ft. (6.8 – 8.13 N•m).
3. Place the unit into the service position
on a level surface (see Service Position
on page 18).
4. R emove lockpins from wheel axles and
remove wheels.
5. Remove bottom cover by removing six
hex bolts.
6. Disconnect pivot pin from the speed
selector arm. Save the hardware for
reinstallation.
7. R emove spring clip pin nearest drive
gear from hex shaft.
8. Remove left bearing flange from frame.
CAUTION: Before tipping unit up
onto housing, both batteries must be
removed from the unit. Ensure unit is
secure and will not tip over during
maintenance.
14. Insert new friction disc assembly into
frame. Install washers onto carrier
bearing and slide into speed selector
arm.
15. Slide hex shaft through new friction plate
assembly. Inst all pinion gear and washer
onto hex shaft and slide shaft into right
bearing.
16. Install left bearing using hardware
removed in step 8.
17. Reinstall clip pin into hex shaft.
GB - 28
18. Connect pivot pin to speed selector arm.
See Speed Selector Adjustment on
page 22.
19. Install bottom cover.
20. Install wheels.
21. Return unit to upright position.
22. Install and connect batteries.
23. Adjust traction drive clutch. See Traction
Drive Clutch Adjustment on page 27.
STORAGE
Inspect unit for visible signs of wear,
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
SHORT TERM
Maintain battery charge.
IMPORTANT: Always keep battery charger
connected to batteries and a reliable power
source when Sno-Thro is not in use. Failure
to keep batteries fully charged will reduce
battery life and void battery warranty.
Run with attachment clutch engaged a few
minutes after each use to free unit of any
loose or melting snow.
Remove key f rom switch.
breakage or damage.
Keep all nuts, bolts and screws properly
tightened and know unit is in safe working
condition.
Store unit in a cool, dry protected area.
LONG TERM
Follow all instructions under Short-Term
storage.
Clean unit thoroughly and lubricate (see
MAINTENANCE on page 18).
Touch up all scratched painted surfaces.
Remove weight from wheels by putting
blocks under frame or axle.
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTION
Drive motor will not
run.
Does not operate
in Forward /
Reverse.
Small rubber
beads collect in
frame.
1. PTO switch in ON position
when key turned ON.
2. Traction or attachme nt
clutch levers engaged.
3. Discharged batteries. 3. Charge batteries (see Charging
4. Disconnected batteries. 4. Connect both batteries to power
5. Faulty electrical system. 5. Contact your Ariens Dealer
6. Drive motor stops when
attachment lever is
engaged.
1. Friction disc not adjusted
properly.
2. Traction belt not
functioning.
3. Speed selector n ot
adjusted properly.
4. Discharged batteries. 4. Charge batteries – Controller
1. Friction disc wear. 1. Normal friction disc wear. Chunks
1. Turn PTO switch OFF before
turning key switch ON.
2. Release levers.
the Batteries on page 15).
harness.
6. Charge batteries – Controller
senses low battery voltage (see
Low Battery Voltage on page 17).
1. Repair or replace friction disc
(see Friction Disc Replacement
on page 28).
2. Repair or replace traction drive
belt (see Traction Drive Belt
Replacement on page 24).
3. Adjust speed selector (see
Speed Selector Adjustment on
page 22).
senses low battery voltage (see
Low Battery Voltage on page 17).
or large pieces of rubber mean
friction disc should be checked
and replaced as necessary.
GB - 29
TROUBLESHOOTING
Controller
PROBLEM PROBABLE CAUSE CORRECTION
Unit throws snow
poorly or does not
throw snow.
Controller displays
flashing red light
under the cover.
1. Shear bolts broken. 1. Replace shear bolts (see Shear
2. Attachment clutch/brake
not adjusted properly.
3. Auger is frozen in place. 3. Move unit to a warm place to
4. Ice or debris is obstructing
auger.
5. Attachment drive belt
slipping, worn or damaged.
1. A trouble code has been
set in the electrical system:
____ = long flash
• = short flash
Code:
1. ____ •____•
(Motor Coil Overheated)
2. ____ • •____• •
(Motor Position Error)
3. ____ • • •____• • •
(Controller Overheated)
4. ____ • • • •____• • • •
(Low System Voltage)
5. ____ ____• •____ ____• •
(Stall Mode)
Bolts on page 21).
2. Adjust attachment clutch/brake
(see Attachment Clutch/Brake
Adjustment on page 25).
thaw.
4. Move PTO and key switches to
OFF position. Remove key from
switch. Clear blockage from
auger or chute (see Snow Clean-
Out Tool on page 14).
5. Adjust or replace attachment
drive belt (see Attachment
Clutch/Brake Adjustment on
page 25).
Perform the suggested correction. If
trouble code resumes contact your
Ariens Dealer.
1. Turn key to OFF position, allow
unit to fully cool before resuming.
2. Contact your Ariens Dealer.
3. Turn key to OFF position, allow
unit to fully cool before resuming.
4. Charge batteries (see Low
Battery Voltage on page 17) .
5. Move PTO and key switches to
OFF position. Remove key from
switch. Clear blockage from
auger or chute (see Snow Clean-
Out Tool on page 14).
NOTE: Unit must be OFF for a
minimum of 30 seconds before
resuming.
GB - 30
BATTERY CHARGING TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTION
Battery charger
LED indicators
do not light.
Yell ow LED does
not light.
Green “READY”
LED on battery
charger does not
light after 7
hours.
Green “READY”
LED on battery
charger flashes.
1. No power to
battery charger.
2. Battery charger
cord not properly
connected to
charger.
3. Faulty battery
charger.
1. Battery charger
not properly
connected to
power cable.
2. Batteries not
connected to
power harness.
3. Defective cable
between battery
charger and
batteries.
4. Faulty battery or
batteries.
1. Battery charger
connector not
seated in charging
port.
2. Faulty battery or
batteries.
1. Faulty battery or
batteries.
1. Check power source.
2. Ensure that battery charger cord is properly
connected.
3. Contact your Ariens Dealer.
1. Ensure proper connection.
2. Ensure that batteries are properly
connected to power harness.
3. Inspect and replace faulty cables on unit or
replace battery charger.
4. Replace defective battery or batteries (see
Removing and Installing Batteries on
page 22).
1. Insert battery charger connector completely
into charging port.
2. Replace defective battery or batteries (see
Removing and Installing Batteries on
page 22).
1. Replace defective battery or batteries (see
Removing and Installing Batteries on
page 22).
SERVICE PARTS
Order the following parts through your
Dealer:
Part No. Description
03793500 Battery Sub-Pack
03822200 Battery Charger (Standard)
07200513 Impeller Belt
07200110 Traction Belt
53200500 Shear Bolts
00170800 Friction Disc
00036800 Ariens Hi-Temp Grease (3, 3 oz.
cartridges)
ACCESSORIES
See your authorized Ariens dealer to add the
additional accessories available to your
Sno-Thro model.
Part No. Description
71600100 20-Amp Heavy Duty Battery
73203100 Slicer Bar
72406500 Front Weight Kit
72600300 Composite Skid Shoe Kit
73203600 Sno-Thro Cover
GB - 31
Charger
SPECIFICATIONS
Model Number 916003
Description AMP 24
Motor
Type Electric Brushless DC
Electrical
Battery 48 Volt Maintenance Free VRLA
PTO (Power Take Off) Electric Motor Control
Chute
Chute Rotation Angle 200°
Rotation Control 2.5X Quick Turn
Deflector Control Remote
Auger
Snow Clearing Width – in. (cm) 24.0 (61.0)
Gear Case Aluminum
Auger Diameter – in. (cm) 11.0 (27.9)
Housing Height – in. (cm) 17.5 (44.5)
Impeller
Impeller Diameter – in. (cm) 12.0 (30.5)
Impeller Speed – No Load (RPM) 1330
Drive
Blower Drive HA Belt
Drive System
Speeds 6 Forward and 2 Reverse
Axle Control Pin-Lock
Pneumatic Tires – in. 13 x 4-6
Size and Weight
Length – in. (cm) 53 (134.6)
Height – in. (cm) 44 (111.8)
Width – in. (cm) 26. 5 (67.3)
Weight – lbs (Kg) 232 (105.2)
Disc-O-Matic
®
GB - 32
Three-Year Limited Sno-Thro®
Warranty
Ariens Company (Ariens) warrants to the original purchaser that Ariens Sno-Thro products will be free from
defects in material and workmanship for a period of three years after the date of purchase. An authorized
Ariens dealer will repair any defect in material or workmanship, and repair or replace any defective part,
subject to the conditions, limitations and exclusions set forth herein. Such repair or replacement will be free of
charge to the original purchaser (labor and parts), except as noted below.
The duration of this warranty applies only if the product is put to personal use around a household or
residence. If the product is put to any business use, agricultural, commercial, or industrial, then the duration
of this warranty shall be 90 days after the date of purchase, or one year after the date of purchase if the
product is labeled as a Pro, Professional, or Commercial Product. If any product is rented or leased, then the
duration of this warranty shall be 90 days after the date of purchase. It is the owner’s responsibility to perform
correctly the maintenance and minor adjustments explained in the owner’s manual.
Two-Year Limited Warranty on AMP™ Series Battery Packs and Subassemblies
The battery pack and/or battery subassemblies on AMP series electric Sno-Thro products is/are warranted to the origin al pu rc ha ser for two years from the date of purchase. Ariens will replace, free of
charge to the original purchaser, any battery pack and/or battery subassembly that fails due to defect in
material or workmanship for one year after the date of purchase. For the next 12 months, Ariens will
cover the prorated cost of replacing a battery pack and/or battery subassembly that fails due to defect
in material or workmanship. This warranty does not apply to battery packs or battery subassemblies
that fail due to accident, neglect, abuse, improper maintenance, improper storage or improper charging
procedures.
Service Parts and Accessories Warranty
Genuine Ariens or Gravely brand service parts and accessories are warranted to be free from defects
in material and workmanship for a period of 90 days after the date of purchase. An authorized Ariens
dealer will repair or replace any such part or accessory free of charge, except for labor, during that
period.
Exceptions, Limitations, Exclusions
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must complete the product registration card in the literature package and return it to the Ariens
Company, or register the unit online at www .ariens.com or www.gravely.com.
To obtain warranty service, the original purchaser must:
• Perform the maintenance and minor adjustments explained in the owner’s manual.
• Promptly notify Ariens or an authorized Ariens or Gravely service representative of the need for
warranty service.
• Transport the product to and from the place of warranty service.
• Have the warranty service performed by an authorized Ariens or Gravely service representative.
To find an Ariens or Gravely authorized service representative, contact Ariens at:
655 W. Ryan Street
Brillion, WI 54110
(920) 756 - 2141
www.ariens.com
www.gravely.com
Limitations
• Batteries are warranted only for a period of 12 months after date of purchase, on a prorated basis. For
the first 90 days of the warranty period, a defective battery will be replaced free of charge. If the
applicable warranty period is more than 90 days, Ariens will cover the prorated cost of any defective
battery, for up to 12 months after the date of purchase. This battery limited warranty does not apply to
the battery packs on AMP series products.
• Friction discs, belts, idlers, cables, and electrical components on Sno-Thro models put to personal use
around a household or residence are warranted against defects in materials or workmanship to the
original purchaser for two years.
ARIENS COMPANY
GRAVELY® | STENS® | LOCKE® | NATIONAL® | BYNORM® | EVERRIDE® | GREAT DANE®
Snow_2010
33
Exclusions – Items Not Covered by This Warranty
• Engines and engine accessories are covered only by the engine manufacturer’s warranty and are not
covered by this warranty.
• Parts that are not genuine Ariens or Gravely service parts are not covered by this warranty and may
void the warranty.
• Damages resulting from the installation or use of any part, accessory or attachment which is not
approved by the Ariens Company for use with product(s) identified herein are not covered by this
warranty.
• The following maintenance, service and replacement items are not covered by this warranty unless
they are noted in the Limitations section above: lubricants, spark plugs, oil, oil filters, air filters, brake
shoes, runners, scraper blades, shear bolts, headlights, light bulbs.
• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires
repair is not covered by this warranty.
• This warranty applies only to products purchased in the United States (including Puerto Rico) and
Canada. In all other countries, contact place of purchase for warranty information.
Disclaimer
Ariens may from time to time change the design of its products. Nothing contained in this warranty shall be
construed as obligating Ariens to incorporate such design changes into previously manufactured products,
nor shall such changes be construed as an admission that previous designs were defective.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company’s liability under this warranty, and under any implied warranty that may exist, is limited to
repair of any defect in workmanship, and repair or replacement of any defective part. Ariens shall not be
liable for incidental, special, or consequential damages (including lost profits). Some states do not allow the
exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express or implied, other than what is expressly made in this
warranty. If the law of your state provides that an implied warranty of merchantability, or an implied
warranty of fitness for particular purpose, or any other implied warranty, applies to Ariens Company,
then any such implied warranty is limited to the duration of this warranty. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
ARIENS COMPANY
GRAVELY® | STENS® | LOCKE® | NATIONAL® | BYNORM® | EVERRIDE® | GREAT DANE®
Snow_2010
34
Ariens Company
655 West Ryan Street
Brillion, WI 54110-1072
920-756-2141
Fax 920-756-2407
www.ariens.com
www.ampbyariens.com
Loading...
