ARGtek Give Me Five User Manual

ARGtek Give Me Five

Wireless LAN 802.11b/g/n USB Adapter for

Ralink RT3070

User Manual

Contents

CHAPTER 1 GETTING START .................................................................................................................................. 3

M

INIMUM SYSTEM REQUIREMENTS

W

INDOWS 7 USERS

Steps for changing notification level of UAC settings...........................................................................................3

Steps for Enabling Windows built-in Administrator account................................................................................5

CHAPTER 2 INSTALLATION AND UNINSTALL ......................................................................................................... 8

PART I – I

PART II - I

U

CHAPTER 3 GIVE ME FIVE USER GUIDE ............................................................................................................... 16

Q

NSTALL

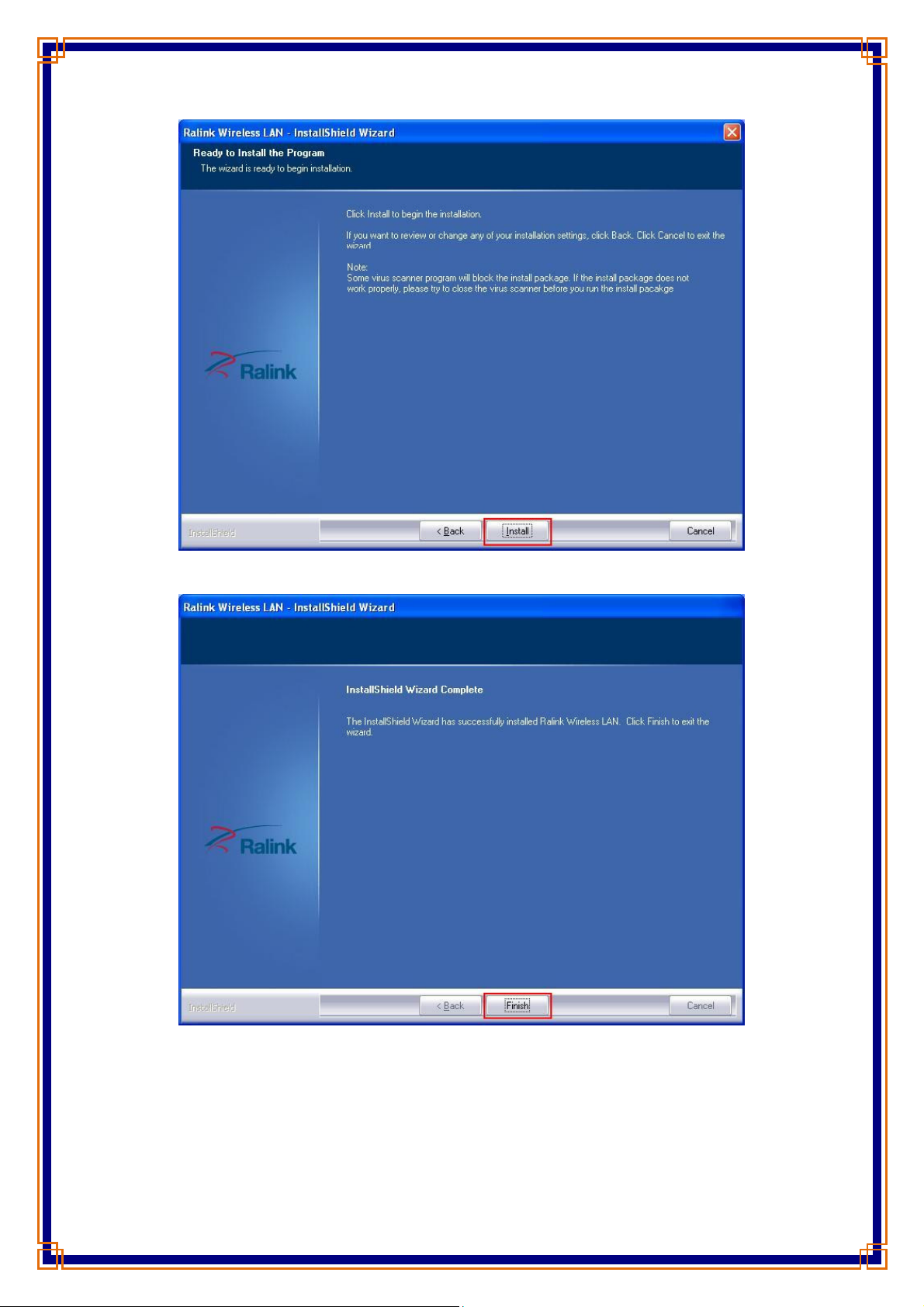

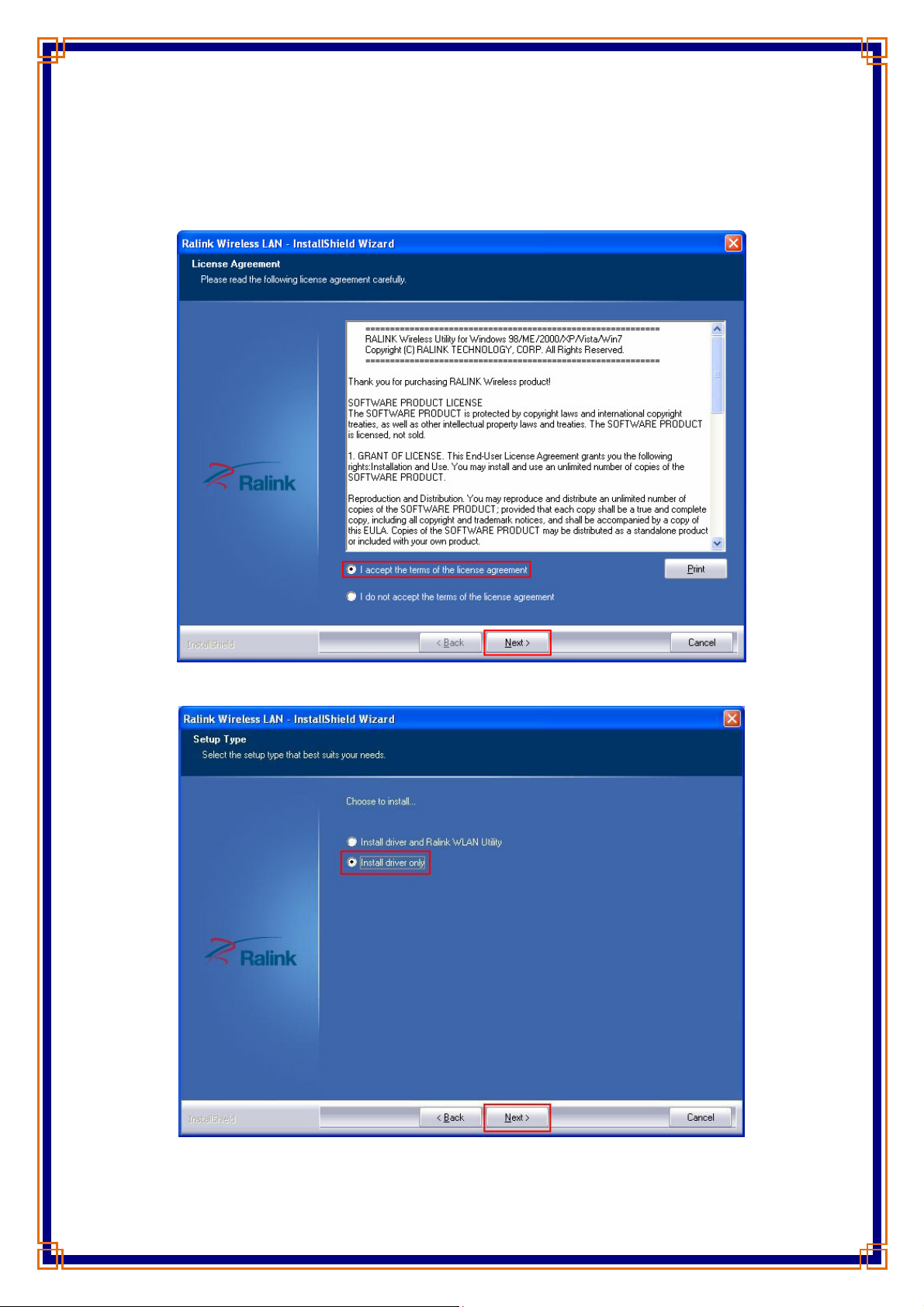

Install WLAN adapter Driver for Windows XP ......................................................................................................8

Install WLAN adapter Driver for Windows 7 ......................................................................................................11

NSTALL GIVE ME FIVE UTILITY

Install Give Me Five utility for Windows XP ..................................................................................................11

Install Give Me Five utility for Windows 7 ....................................................................................................13

NINSTALL GIVE-ME-FIVE UTILITY

UICK START

.......................................................................................................................................................3

WLAN A

..............................................................................................................................................................16

..................................................................................................................................3

DAPTER DRIVER

.................................................................................................................................13

.......................................................................................................................8

...................................................................................................................11

F

UNCTION DESCRIPTION

File Menu ...........................................................................................................................................................19

Tools Menu .........................................................................................................................................................19

About Menu .......................................................................................................................................................19

Connections Pane...............................................................................................................................................19

Properties Pane ..................................................................................................................................................19

Action Bar...........................................................................................................................................................19

Status Bar...........................................................................................................................................................20

...............................................................................................................................................18

Chapter 1 Getting Start

Minimum System Requirements

 Pentium

 At least one available USB 2.0 or 1.1 port

 At least one built-in NIC interface.

 The installation CD

 5Mbytes free hard disk space.

 Windows, XP, XP professional, Vista, or Windows 7.

Before you proceed with the installation, please notice the following descriptions.

1. Windows XP users must install SP3 or above.

2. If you have installed the WLAN USB driver & utility before, please uninstall the old version first.

3. The installation guide herein is operated under Windows system. For Linux or Mac driver

installation guide, please refer to the instruction in README at directory the driver has stored in

CD-Rom.

4. Give Me Five utility support Windows operating systems only. Linux and MAC users

®

300 MHz or higher compatible processor

Give-Me-Five wireless adapter can only act as a normal wireless adapter, without the advance

function the Give-Me-Five have.

5. Many WLAN chipset vendors have provided proprietary UI. If users already have pre-installed

WLAN adapter on system. We strongly suggest to turn off proprietary UI and switch to Windows

zero configuration instead.

Windows 7 Users

To install Give Me Five utility and execute. Windows 7 Home Edition users have to change notification

level of UAC (User Account Control) settings to “Never Notify”. For Windows Professional and Ultimate

Edition users, in addition to change UAC settings, enable and switch to Windows built-in Administrator

account get the most performance of operation.

Steps for changing notification level of UAC settings

1. Open Control Panel and click System and Security

2. In Action Center, click Change User Account Control settings

3. Drag notification button down to Never Notify

Steps for Enabling Windows built-in Administrator account

1. Right click Computer icon on desktop, from popup menu, select Manage.

2. Expend the console tree on Local Users and Groups, click Users, and right click Administrator on action

pane, and then click Properties

3. Uncheck Account is disabled and click OK

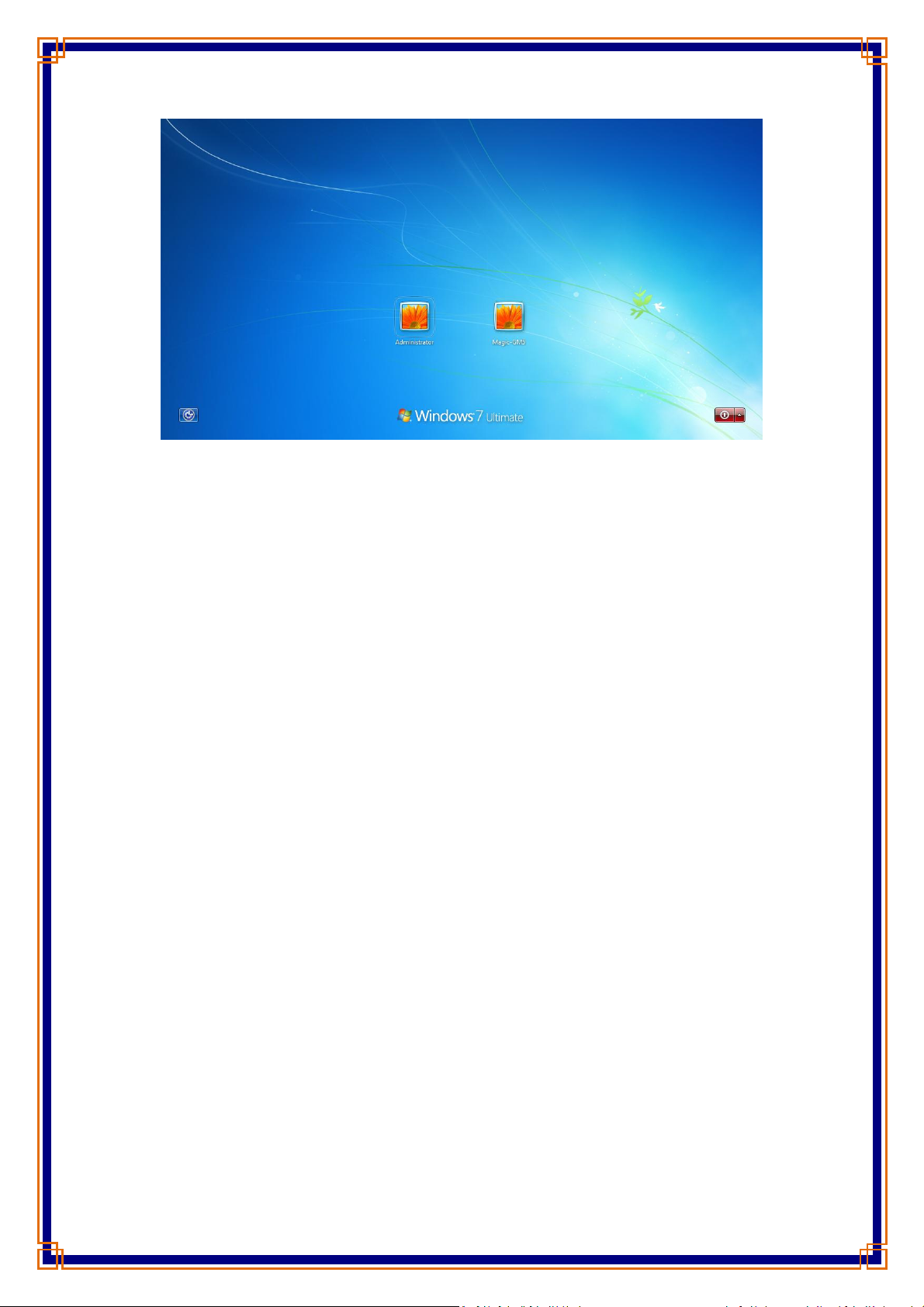

4. Click Start button and Select Switch user

5. Login Administrator account
