ARGtek ARG-U23G User Manual

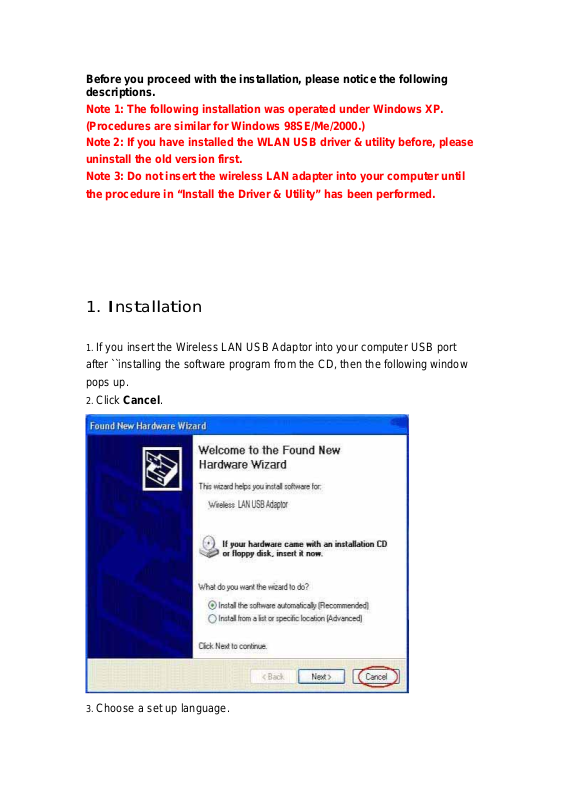

Before you proceed with the installation, please notice the following
descriptions.

Note 1: The following installation was operated under Windows XP.
(Procedures are similar for Windows 98SE/Me/2000.)

Note 2: If you have installed the WLAN USB driver & utility before, please
uninstall the old version first.
Note 3: Do not insert the wireless LAN adapter into your computer until
the procedure in “Install the Driver & Utility” has been performed.

1. Installation

1.

If you insert the Wireless LAN USB Adaptor into your computer USB port
after ``installing the software program from the CD, then the following window
pops up.

2.

Click Cancel.

3.

Choose a set up language.

4.

Click Next to process the installation. .

5.

Click install to WLAN USB adaptor installation.

6.

On Windows Logo Software Installation screen, click Continue Anyway to
continue.

Note: Not all the drivers will have this message box.

7.

Click Finish to complete the installation.

8.

After setup, restart your computer

2. Uninstallation

A. Uninstall the WLAN USB Adaptor Driver from “Wireless Network Driver and

Utility” or “Control Panel”. Click “Uninstall” (or “Change/Remove”) to
remove Wireless LAN USB Adaptor driver.

B. Click “OK” if you want to remove Wireless LAN USB Adaptor

Driver.

C. Click “Finish” to complete the uninstallation.

Making a Basic Network Connection

In the following instruction for making a network connection, we use the ut
provided to configure your wireless network settings.

ility we

Note: For Windows XP users that want to configure your wireless network using this
Utility, please perform the following procedures to disable your native Windows
wireless support (Wireless Zero Configuration Service)

1. Double click the icon on your desktop to start the ut

the task bar.

ility or in

XP

Ad-Hoc Mode

A

n Ad-Hoc mode wireless network connects two computers directly without the use of

a router or AP.

It is also know as a peer-to-peer network. For example, we can

install this wireless adapter to two computers respectively. The
communication

between the two computers is an Ad-Hoc mode network.

To use this adapter in Ad-Hoc Mode

1. Double click the icon on your desktop to start the ut

the task bar.

ility or in

2. Click the “Available Network” button to scan available wireless network

adapters. Double click on the network adapter that you are going to connect to.

3. Click the OK button to confirm that you are connecting to an open wireless

network.

4. Click OK to add this network into the profile list.

Note: This example is an open wireless network. If you are going to connect to a
Wireless adapter with security protection, you w

ill have to configure the encryption
settings in this profile to be corresponding to the other wireless adapter. Please click
on the “Network Authentication” drop list to select an authentication method,
and then select a “Data encryption” type. Fill in each required blanks and click

“OK”.
